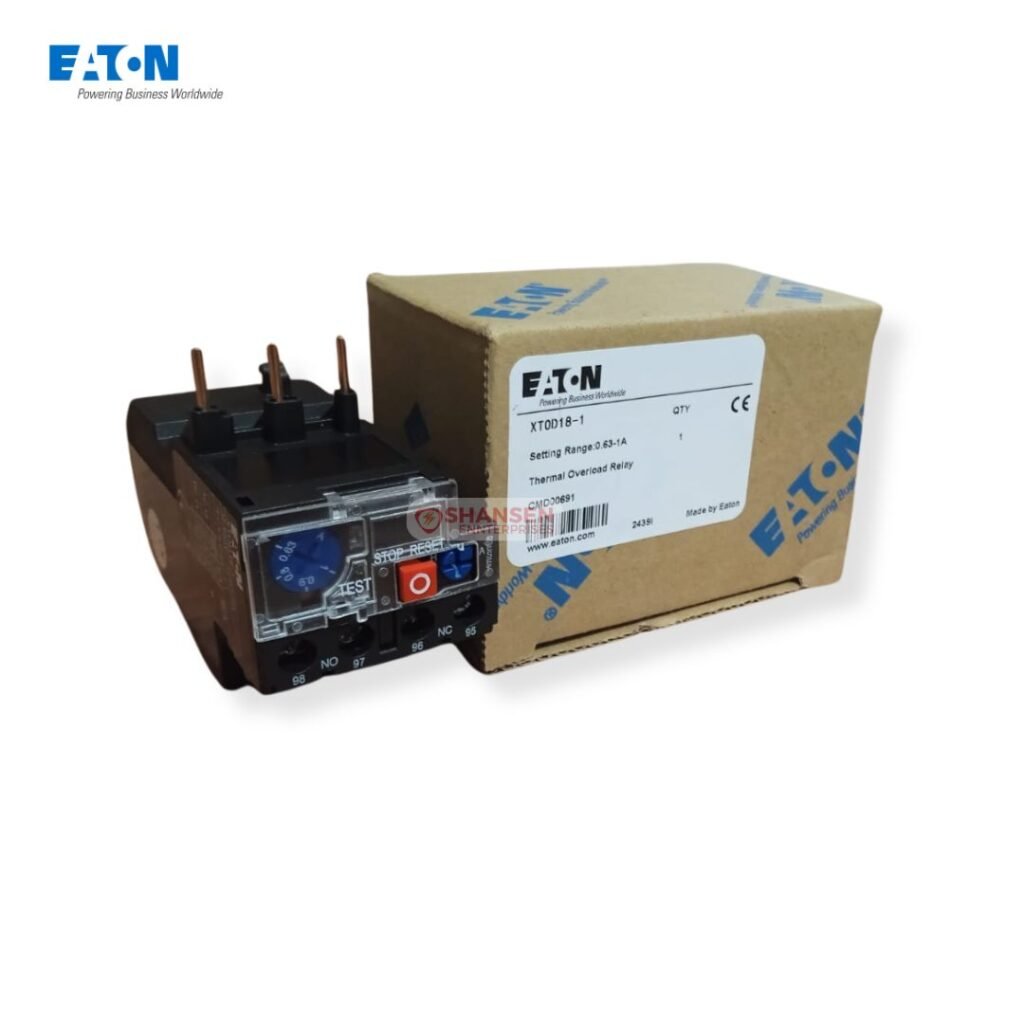

Q1: What is the Eaton XTOD18‑1 thermal overload relay used for?
A: The XTOD18‑1 is designed to protect motors from overload conditions by sensing excessive current and triggering a safe shutdown. It’s ideal for use in HVAC systems, pumps, compressors, and conveyors when paired with XTCD series contactors.
Q2: What is the current adjustment range for the XTOD18‑1?
A: This relay covers a current range of 0.63 to 1.0 Amps, making it suitable for small industrial motor protection tasks.

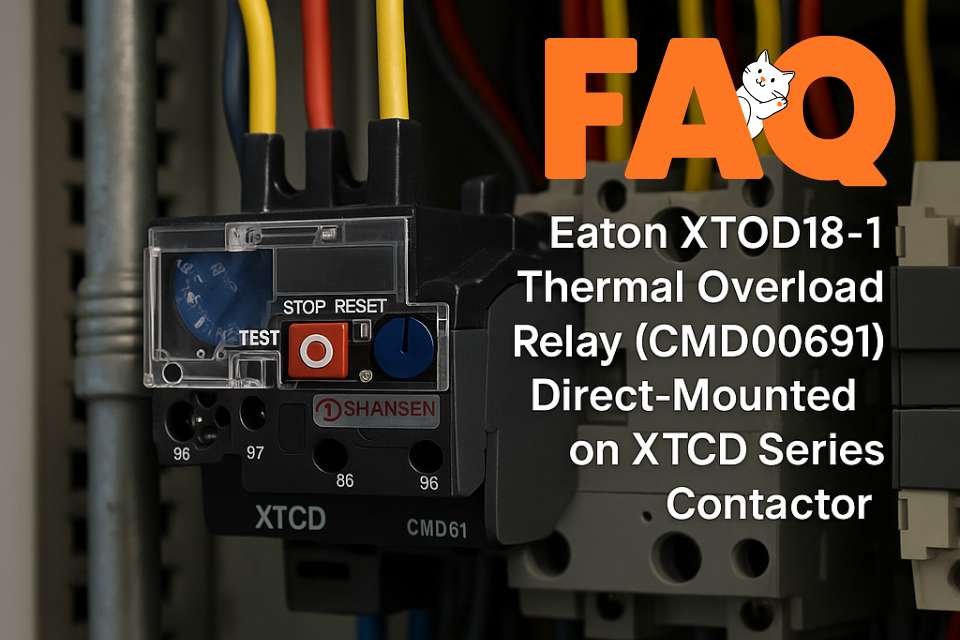

Q3: Can I use this relay with any contactor?
A: It is specifically designed to mount directly onto Eaton’s XTCD series contactors, particularly models rated between 6A and 38A. For other contactors, manual mounting and wiring may be required.
Q4: What are the available reset options?
A: The XTOD18‑1 supports both manual and automatic reset modes. You can switch between them using the selector switch on the front panel.
Q5: Does it offer phase-failure protection?
A: Yes, it features phase-failure sensitivity, which helps detect phase loss conditions and disconnect the motor safely to prevent damage.
Q6: What are the certification standards?
A: The relay complies with IEC/EN 60947 standards and is typically UL/CSA rated for global compatibility.
Q7: Is it reusable after tripping?
A: Absolutely. You can reset the unit manually or allow it to auto-reset based on your configured setting. It’s designed for long-term, repeated use.

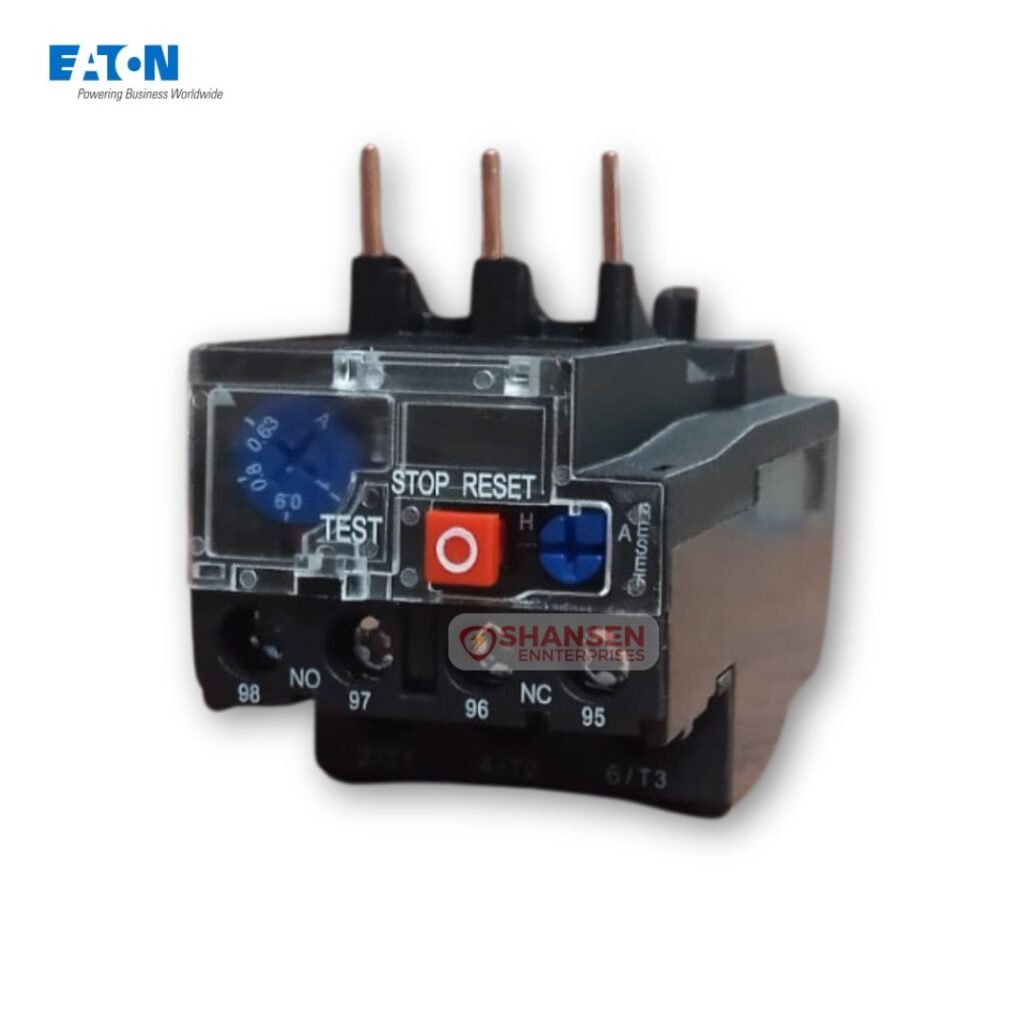

Q8: What kind of auxiliary contacts does it have?
A: The XTOD18‑1 includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact for feedback or interlocking applications.
Q9: Is short-circuit protection built-in?
A: No. Short-circuit protection must be provided externally with appropriate fusing as per the contactor’s rated current limits.
Q10: Where can I buy this relay?
A: You can purchase genuine Eaton XTOD18‑1 relays from Shansen Enterprises, an Authorized Channel Partner. Click here to get a quote on WhatsApp.
