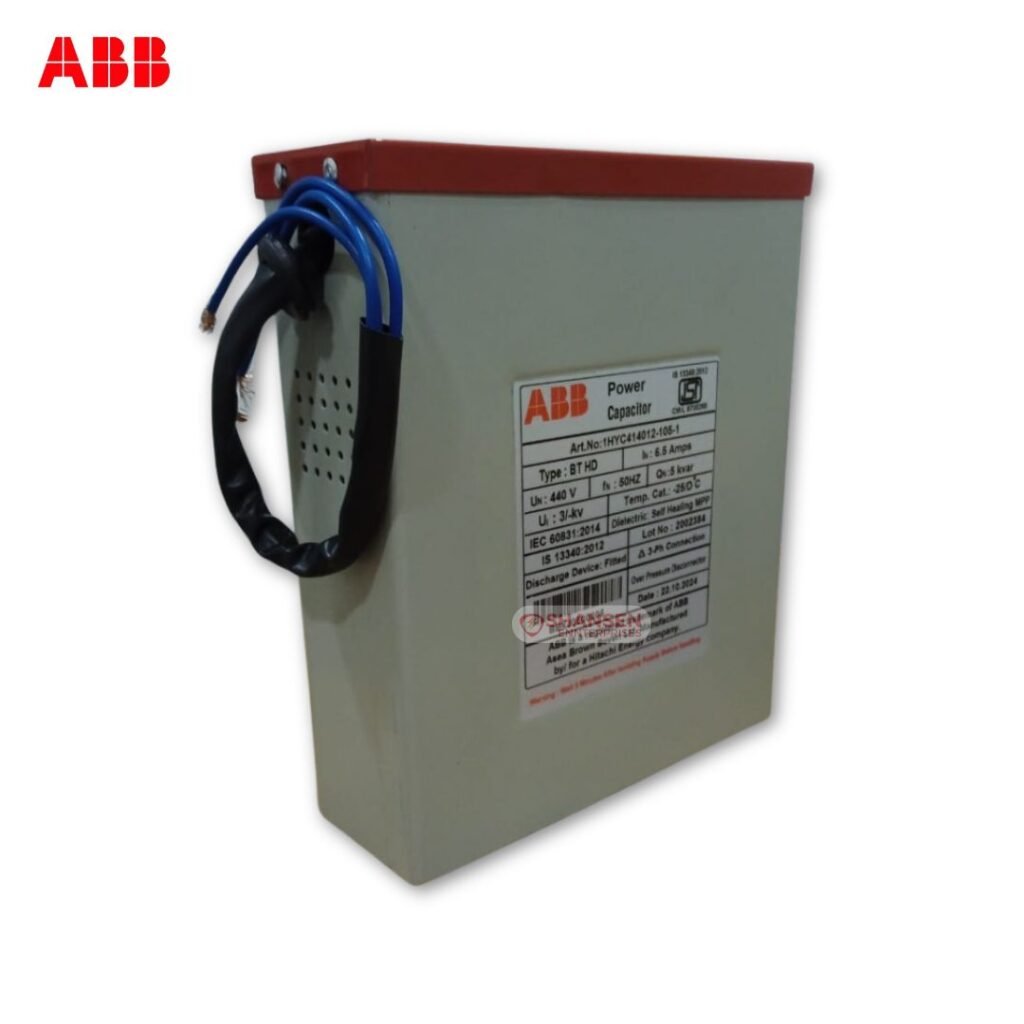

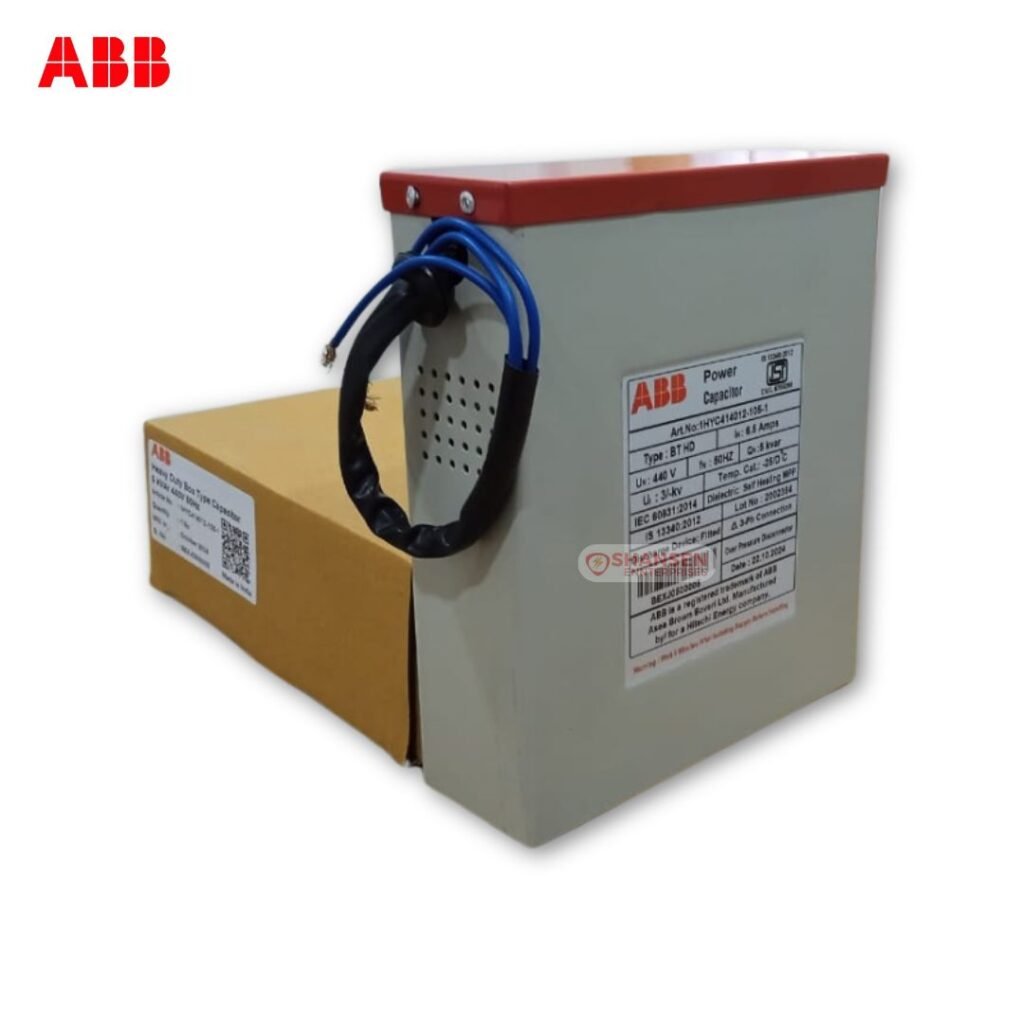

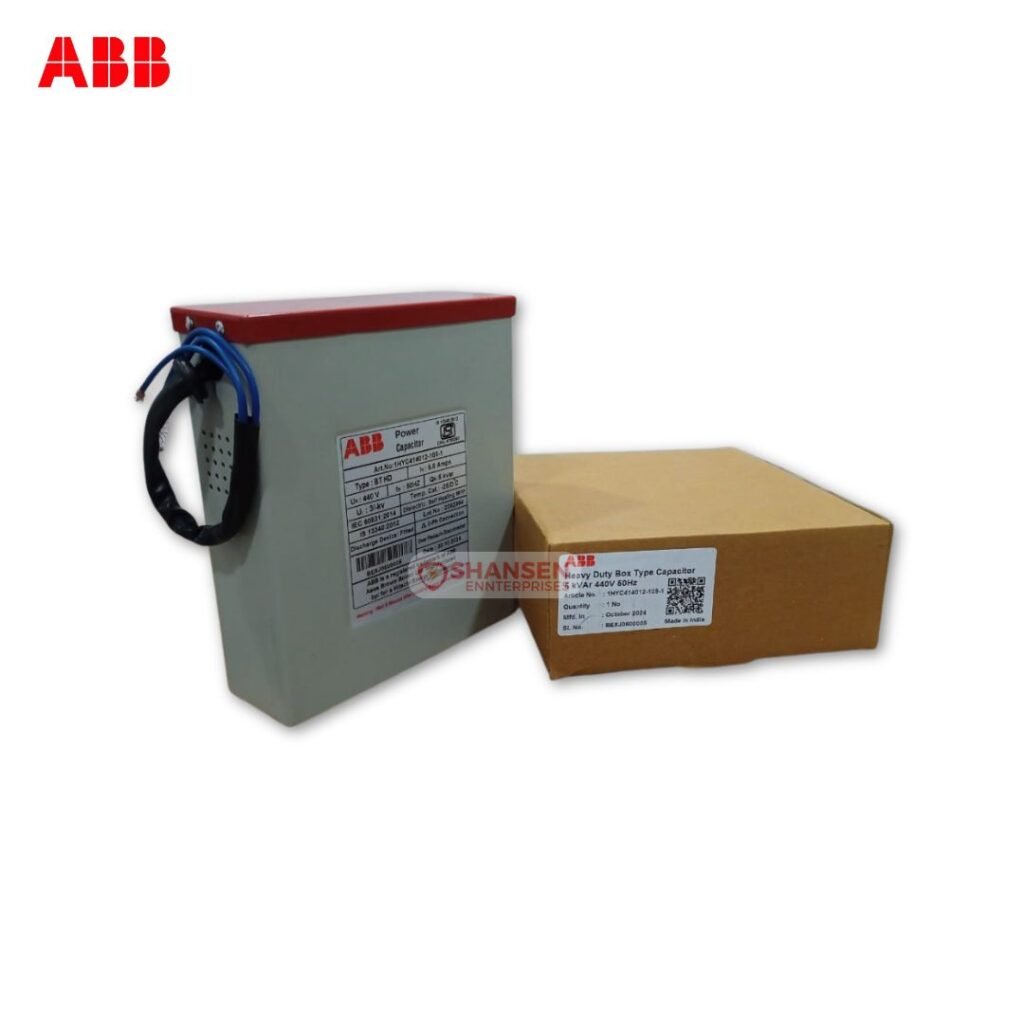

ABB 5kVAR Heavy Duty Power Capacitor – Your Complete FAQ Guide

When it comes to industrial power factor correction, few names match the reliability of ABB. Their 5kVAR Heavy Duty Box Type Power Capacitor is widely used across manufacturing units, APFC panels, HVAC systems, and more. At Shansen Enterprises, we often get detailed technical and application-related questions about this product. So, here’s a comprehensive FAQ guide that answers it all – from specs and usage to standards and installation best practices.

🔌 Frequently Asked Questions (FAQs)

1. What is the rated output of this capacitor?

The ABB capacitor in question offers a reactive power rating of 5 kVAR at a rated voltage of 440V AC, suitable for 3-phase Delta (Δ) connections.

2. What does “Heavy Duty” mean in this context?

“Heavy Duty” indicates that the capacitor is designed for demanding industrial conditions. It supports higher electrical stress, longer operational life, and is built with rugged housing and self-healing MPP (Metallized Polypropylene) dielectric material.

3. What standards does this capacitor comply with?

It complies with:

IS 13340:2012
These standards ensure performance, endurance, and built-in safety for capacitors used in power factor correction systems.

IEC 60831:2014

4. What safety features are included?

This ABB capacitor includes:

Overpressure disconnector (BEKJ0500065) to disconnect the capacitor in case of fault or overheating

Self-healing dielectric to repair internal breakdowns

Built-in discharge resistor to safely release stored charge

5. Can I use this in an APFC panel?

Yes, it is ideal for both manual and automatic Power Factor Correction (APFC) panels. The Delta 3-phase configuration ensures balanced performance under varying loads.

6. What industries use this type of capacitor?

Industries that commonly install these capacitors include:

Oil & Gas Facilities

Manufacturing

Cement and Steel Plants

Data Centers

HVAC Systems

Renewable Energy Systems

7. How do I ensure proper installation?

Here are some quick tips:

Always check with an ABB-certified technician or Shansen Enterprises’ support team

Mount vertically in a ventilated enclosure

Avoid direct sun or water exposure

Use appropriate fuses and contactors

Ensure proper earthing

8. What is the temperature rating?

The unit is rated for Temperature Category -25/D, which means it operates reliably from -25°C to +55°C, making it suitable for a wide range of climates.

9. Does it come with ISI and CML certification?

Yes. It is ISI certified under IS 13340:2012 and carries a valid CML number: 8710861, signifying compliance for use in India.

10. Where can I buy genuine ABB capacitors?

You can contact Shansen Enterprises, an Authorized ABB Channel Partner, for original products, technical support, and fast WhatsApp quotes. 👉 Tap here to WhatsApp us now

✅ Key Takeaways

Available with expert support from Shansen Enterprises

Rated: 5kVAR, 440V, 6.5A, 50Hz

Box Type Heavy Duty (BT HD)

Ideal for APFC panels and industrial power factor correction

Fully certified under IEC and IS standards
