ABB A26-30-10 contactor FAQs

Why this FAQ?

Engineers need the practical ratings, application limits, and compliance details to size and source the correct A26 contactor. This set distills ABB specs and buying info via Shansen Enterprises | Shansen Traders for quick decisions.

[faq question=”What is the ABB A26-30-10 (200V 50Hz / 200–220V 60Hz) contactor used for?”]A26 contactors control 3-phase motors and general power circuits up to 690 V AC or 220 V DC. They are also suitable for isolation, capacitor switching, and lighting applications. This model is a block-type, 1-stack, 3-pole contactor with an AC coil.[/faq]

[faq question=”What does the designation A26-30-10 signify?”]“A26” is the series/frame. “-30” indicates 3 NO main poles (0 NC), and “-10” indicates 1 NO, 0 NC built-in auxiliary contact. The device has 3 main poles plus the single auxiliary as standard.[/faq]

[faq question=”What are the key current and voltage ratings?”]Rated operational voltage (main circuit) is up to 690 V AC. AC-3 Ie is 26 A at 220/230/240 V (55 °C); AC-1 Ie is 45 A at 690 V (40 °C). AC-15 Ie is 4 A at 220/240 V. Auxiliary circuit Ith is 16 A at 40 °C per IEC 60947-5-1. Rated insulation voltage Ui is 600 V (UL/CSA).[/faq]

[faq question=”What are the making/breaking capacities and switching speed?”]Per IEC 60947-4-1, AC-3 making capacity is 10 × Ie and breaking capacity is 8 × Ie. Per IEC 60947-5-1, AC-15 breaking capacity is 10 × Ie. The time from coil de-energization to NO contact opening is 4…11 ms. Maximum electrical switching frequency in AC-1 duty is 600 cycles/hour.[/faq]

[faq question=”What is the coil specification for this variant?”]This variant has an AC coil rated 200 V at 50 Hz and 200–220 V at 60 Hz with a laminated magnet circuit. Device frequency limits are 25…400 Hz; the supply coil itself is for 50/60 Hz. Coil consumption (average holding, 50 Hz): Refer datasheet / contact Shansen for confirmation.[/faq]

[faq question=”Is it suitable for capacitor switching (AC-6b)?”]Yes—AC-6b rated operational power (Pe) is 11.5 kvar at 230/240 V, 40 °C, 50/60 Hz. Verify kvar and inrush conditions for your bank design and protection scheme. For other voltages or ambient conditions, refer datasheet / contact Shansen.[/faq]

[faq question=”What auxiliary contacts and accessories are available?”]It includes 1 built-in auxiliary NO; additional auxiliary blocks can be front- or side-mounted. A wide range of accessories is supported (e.g., add-on auxiliaries, interlocks, etc.). Terminal type is screw—tighten to ABB-specified torque (refer datasheet).[/faq]

[faq question=”Which standards and compliance references apply?”]Ratings and test duties follow IEC 60947-4-1 (contactors) and IEC 60947-5-1 (control circuits). Rated insulation voltage Ui 600 V is noted per UL/CSA. For specific approvals/markings (UL listing, CE, RoHS), refer datasheet / contact Shansen for confirmation.[/faq]

[faq question=”What are the size/weight and environmental limits relevant to logistics?”]Package dimensions are approx. 115 × 101 × 61 mm with a gross weight of ~0.6 kg. Storage temperature is −60…+80 °C. For operating ambient limits, clearances, and mounting orientation, refer datasheet / contact Shansen.[/faq]

[faq question=”Where to buy this ABB A26-30-10 in India?”]Purchase from Shansen Enterprises, Coimbatore—Authorized Channel Partner for ABB contactors, relays, and MCBs. Pan-India delivery is available; customers in Tamil Nadu (Chennai, Madurai, Salem, Tiruppur, Erode, Trichy, Namakkal, Hosur, Dindigul, Tirunelveli) and nearby states can get quick WhatsApp quotes from the product page. Supply is from ready stock; confirm availability and courier/transport options via WhatsApp.[/faq]

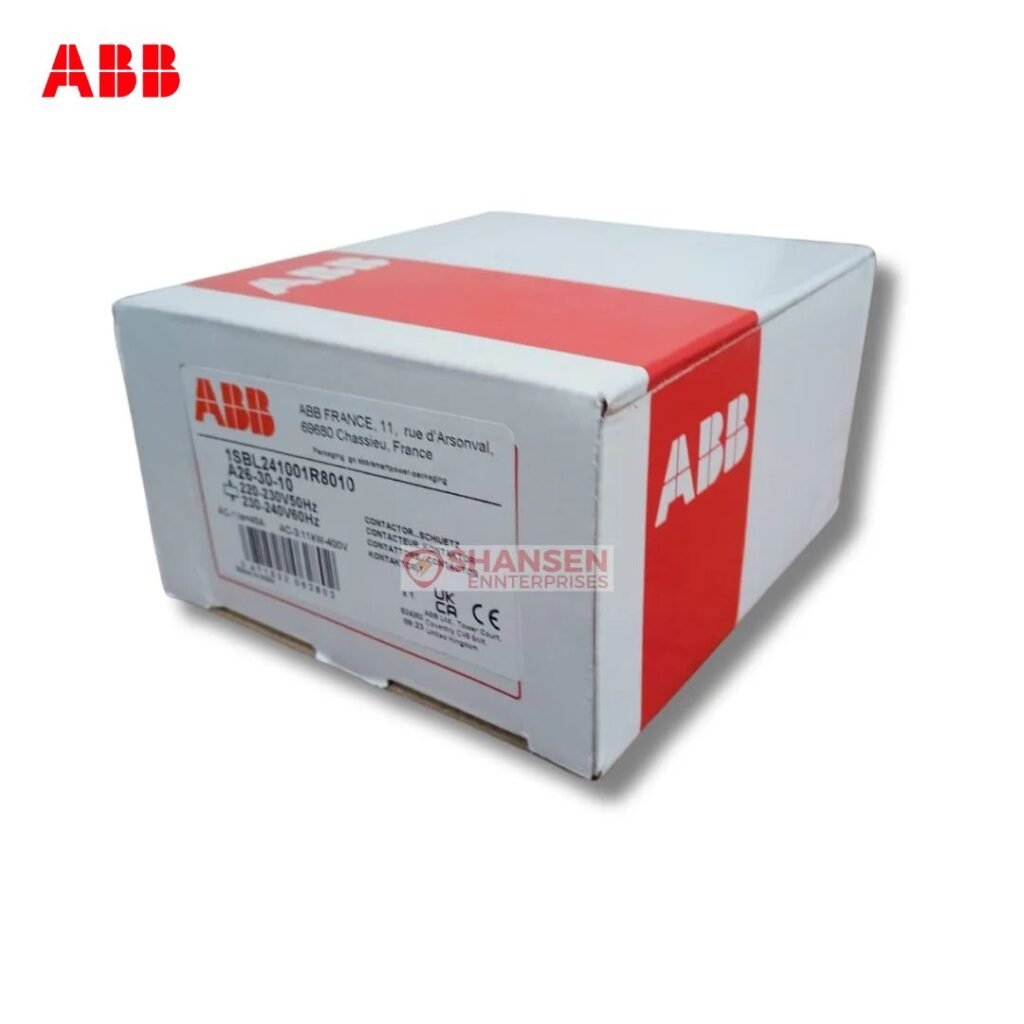

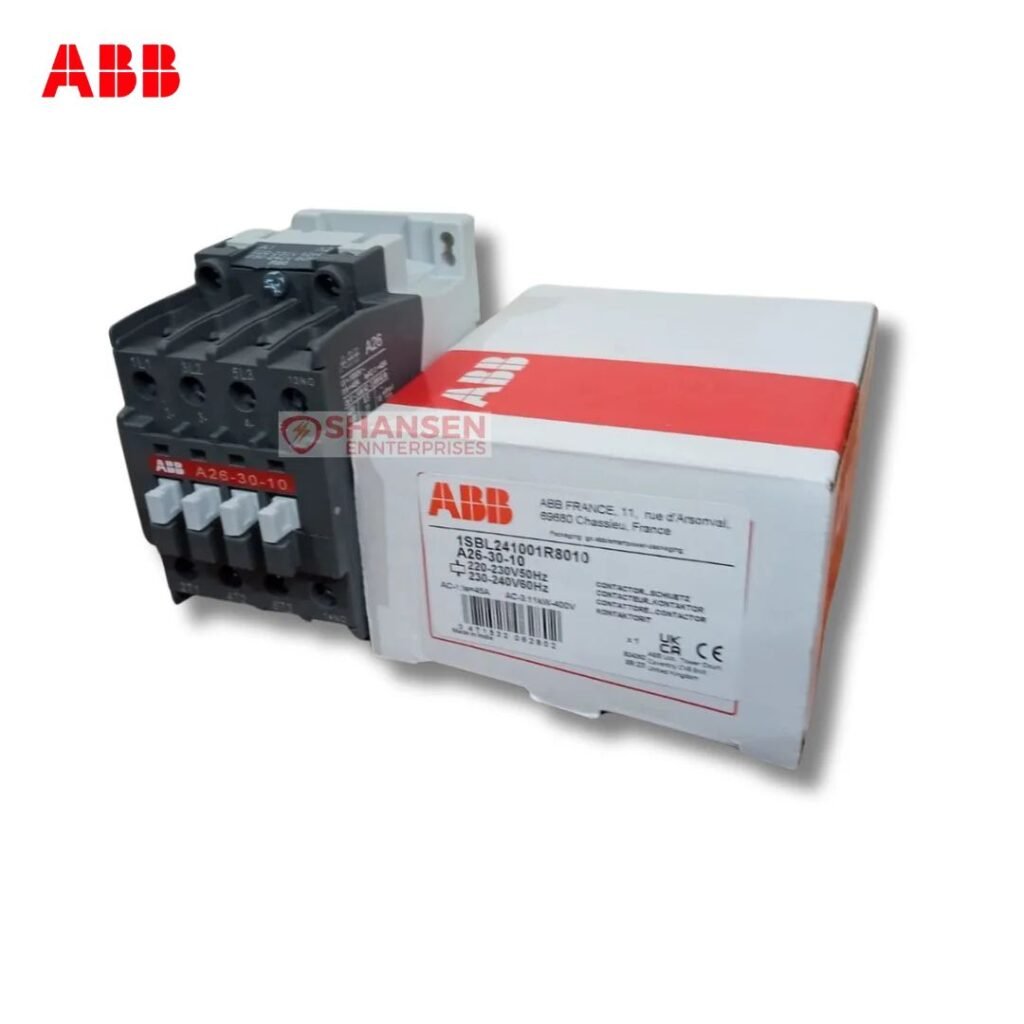

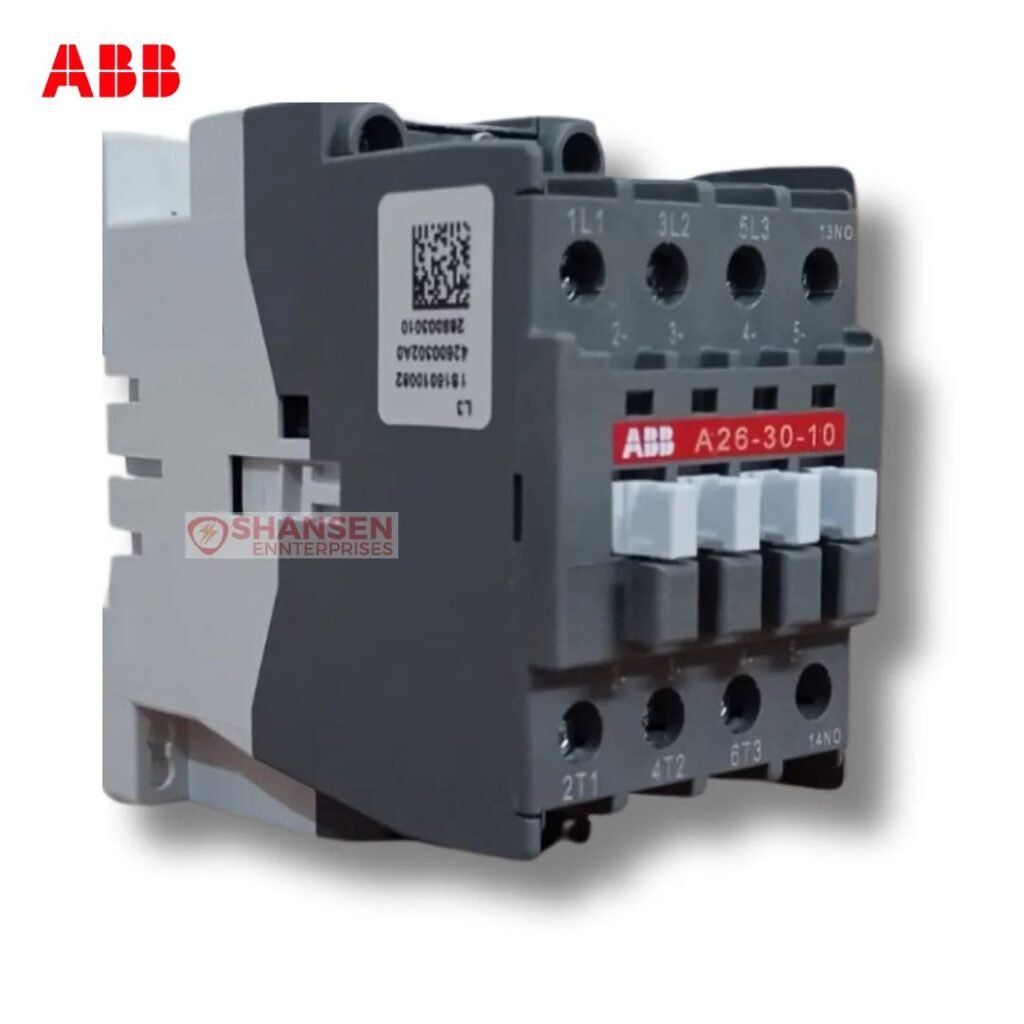

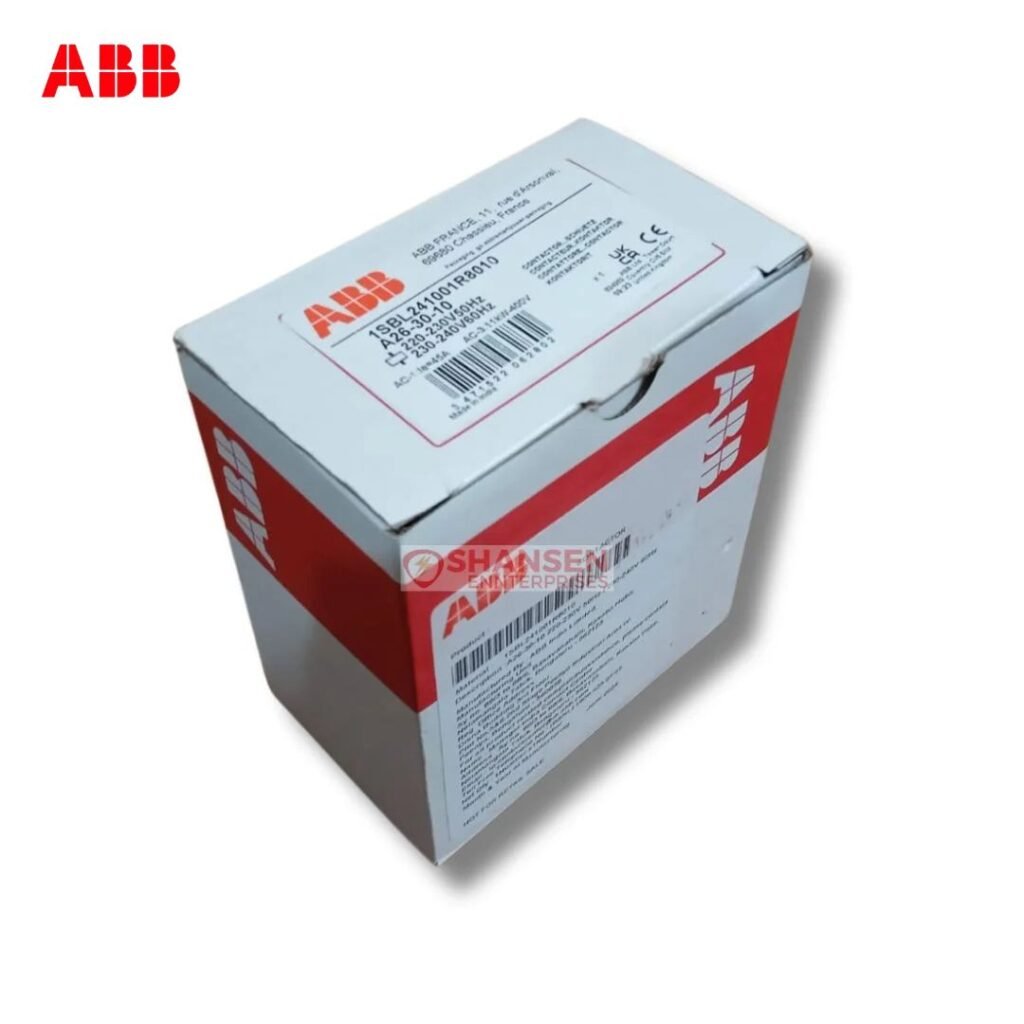

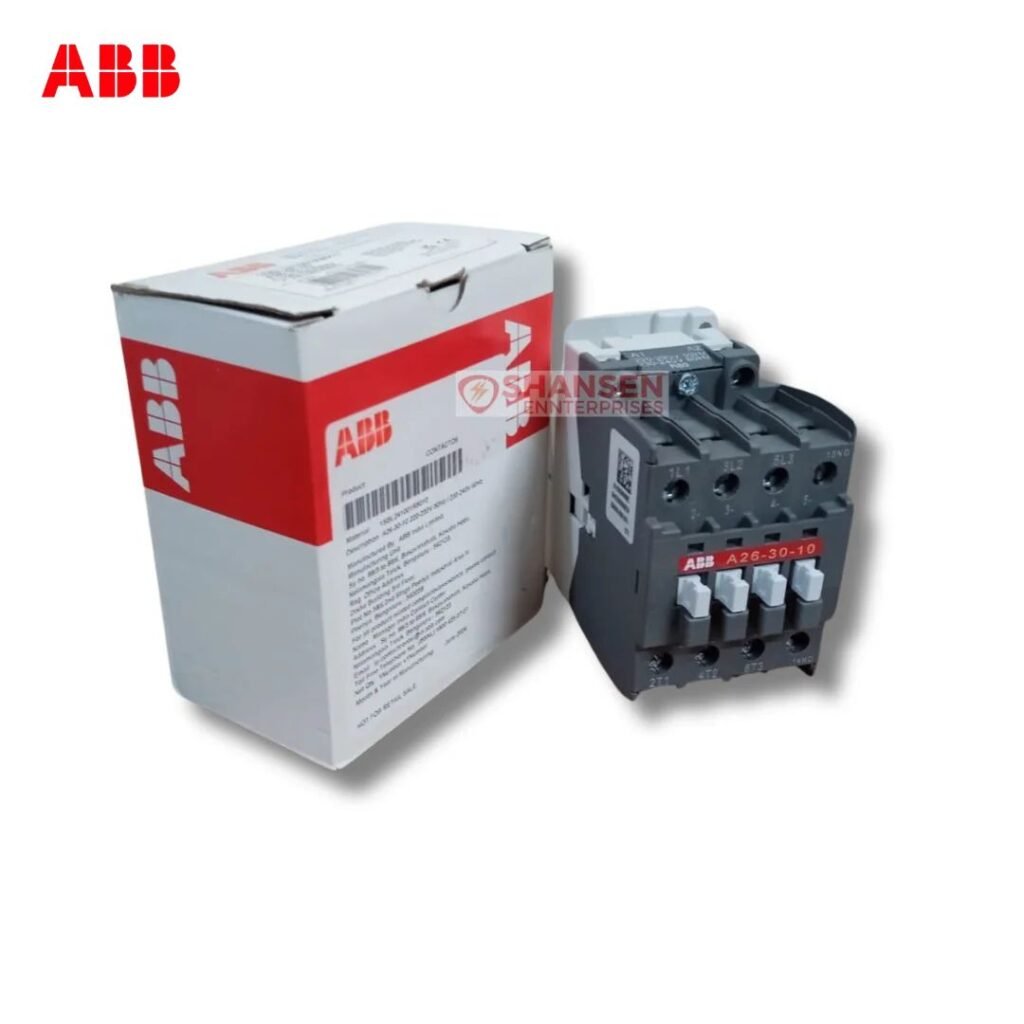

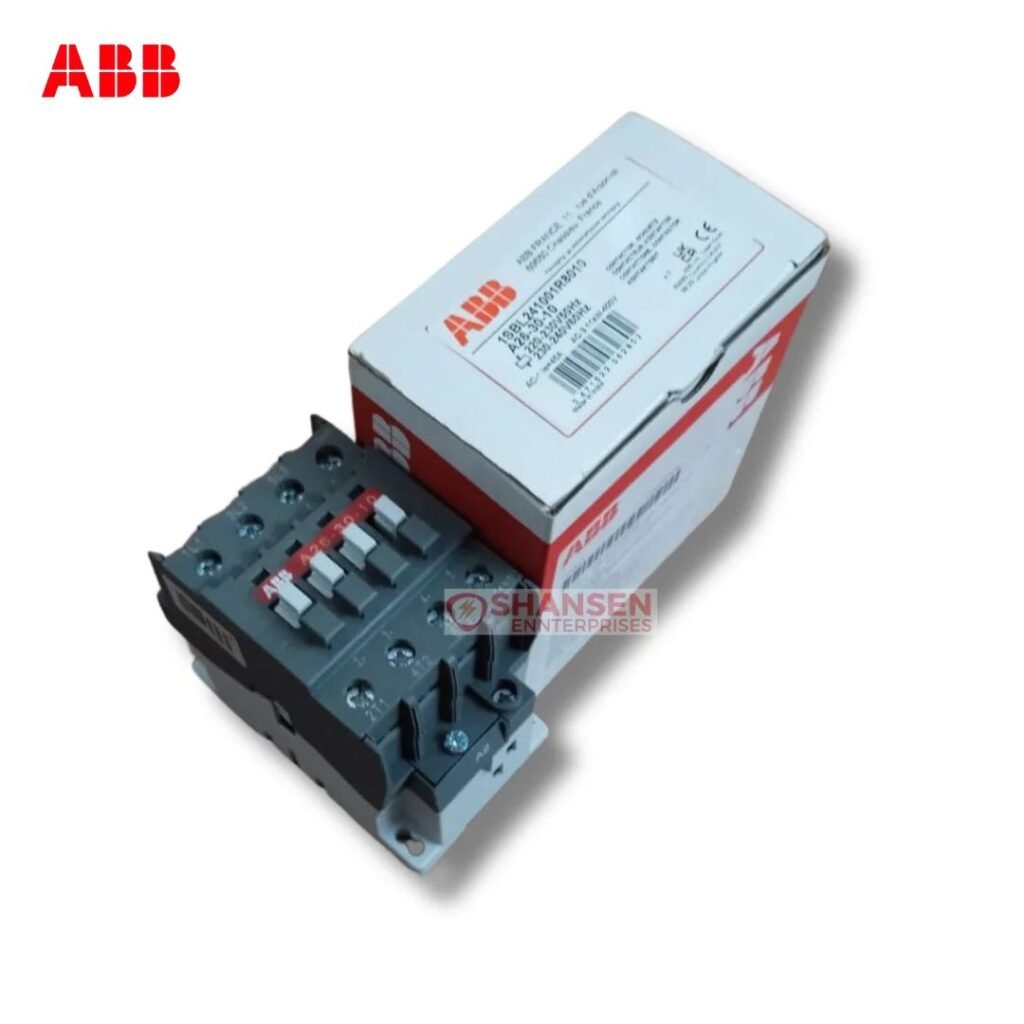

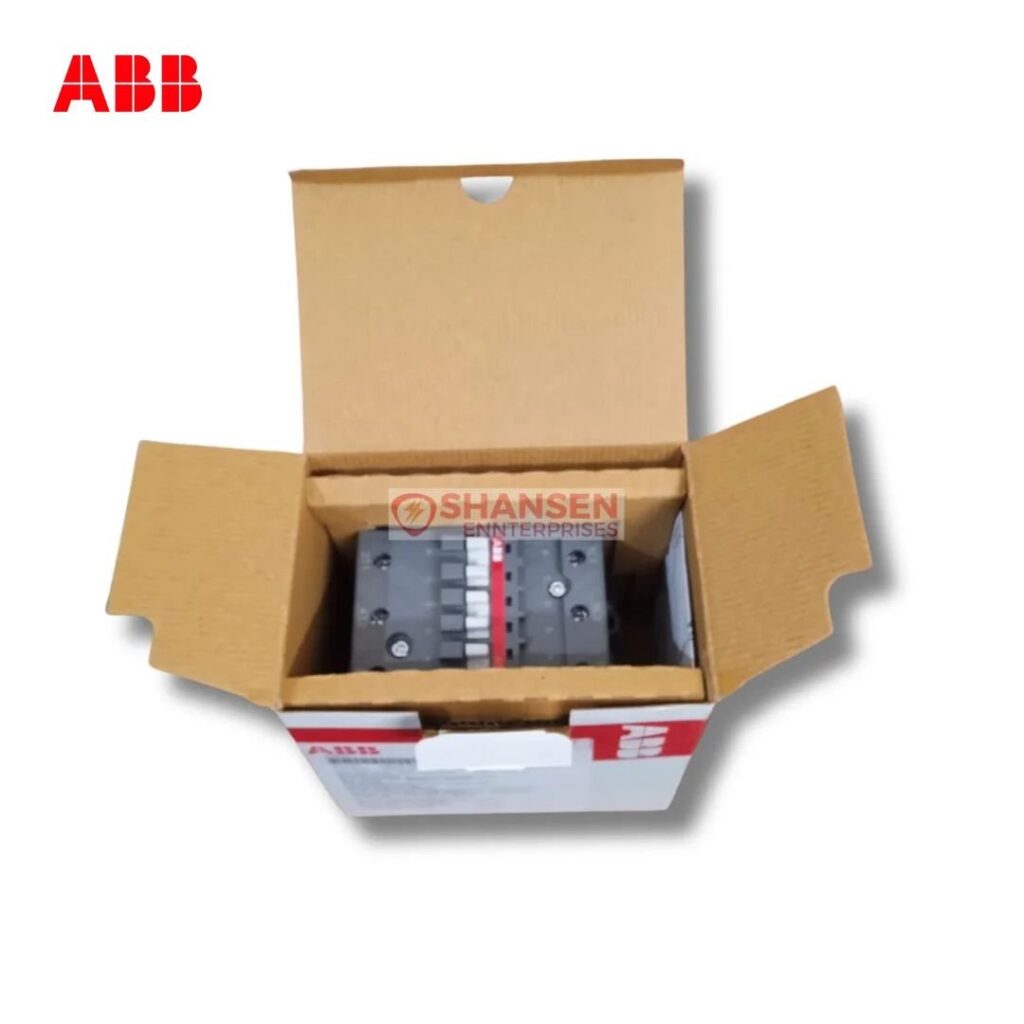

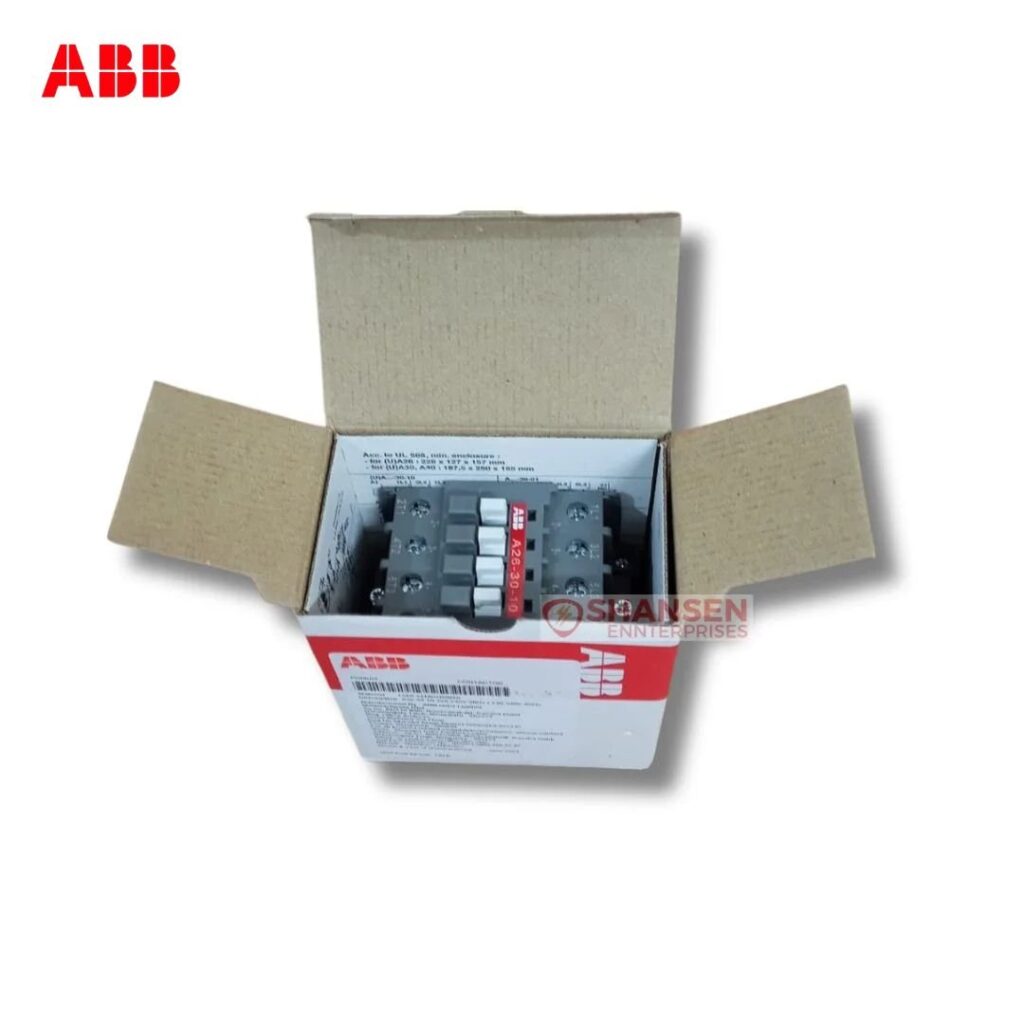

ABB A26-30-10 contactor Gallery
