ABB TA110DU-110 Thermal Overload Relay FAQ

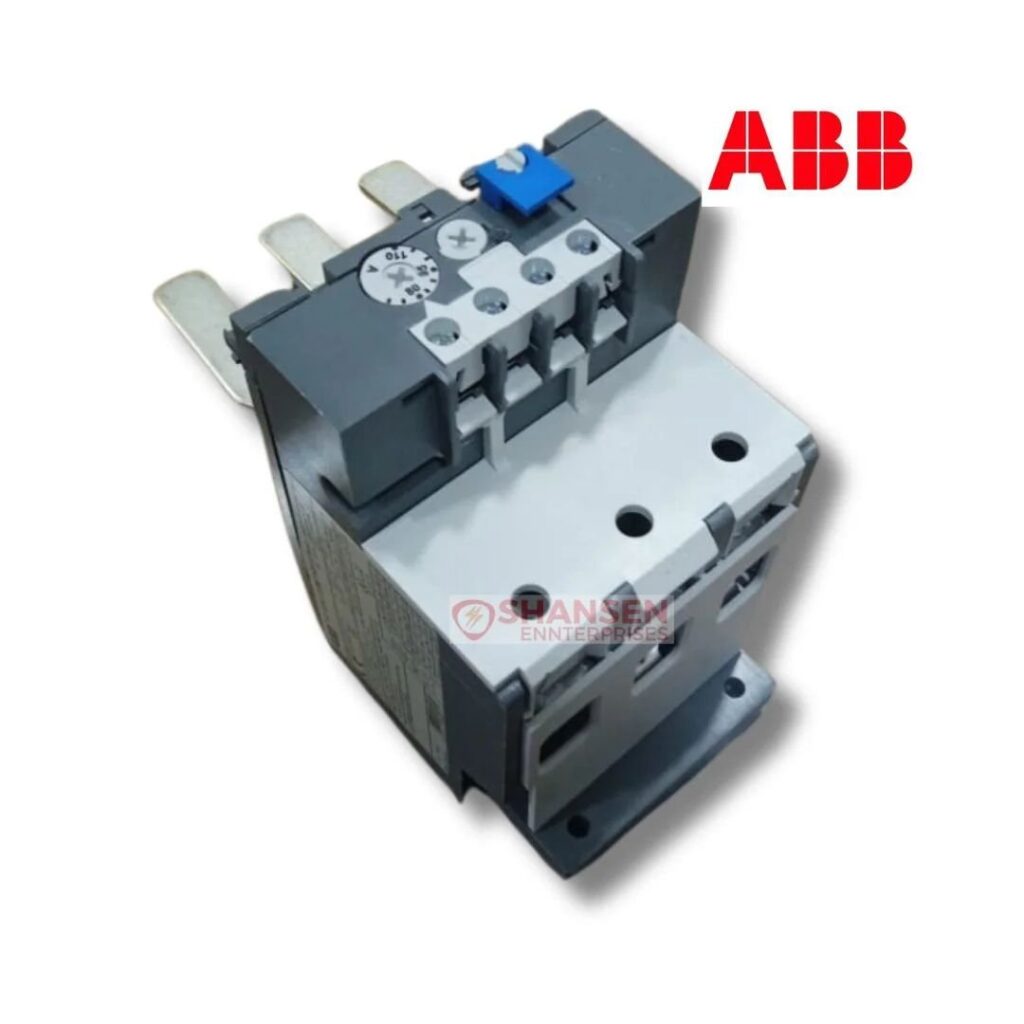

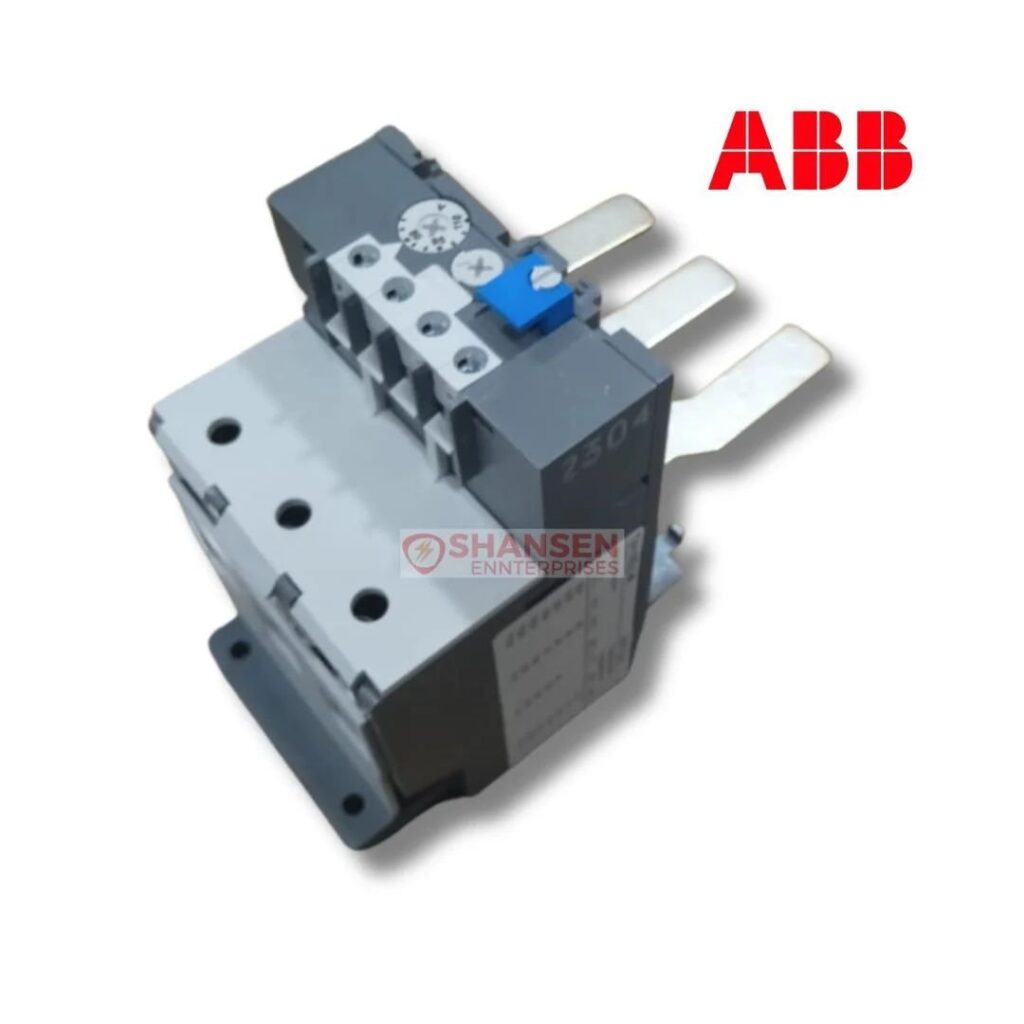

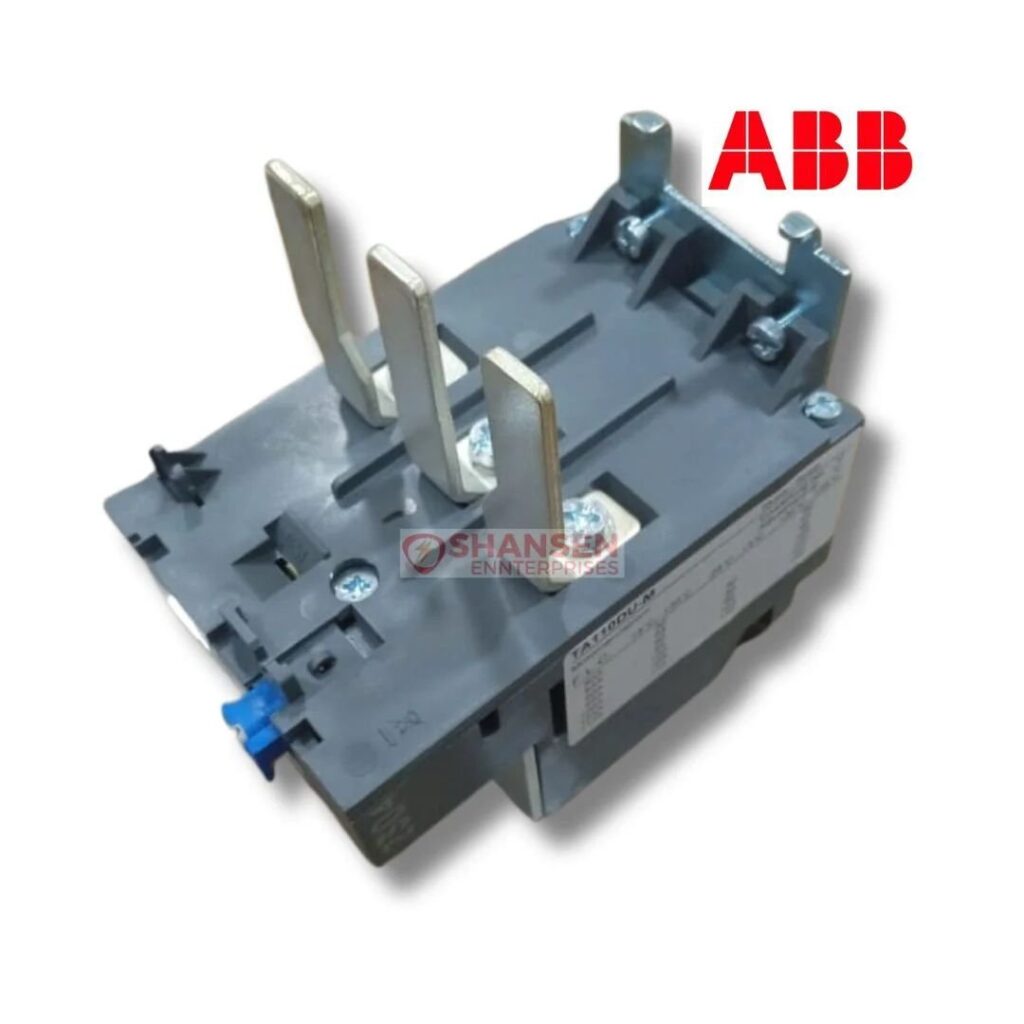

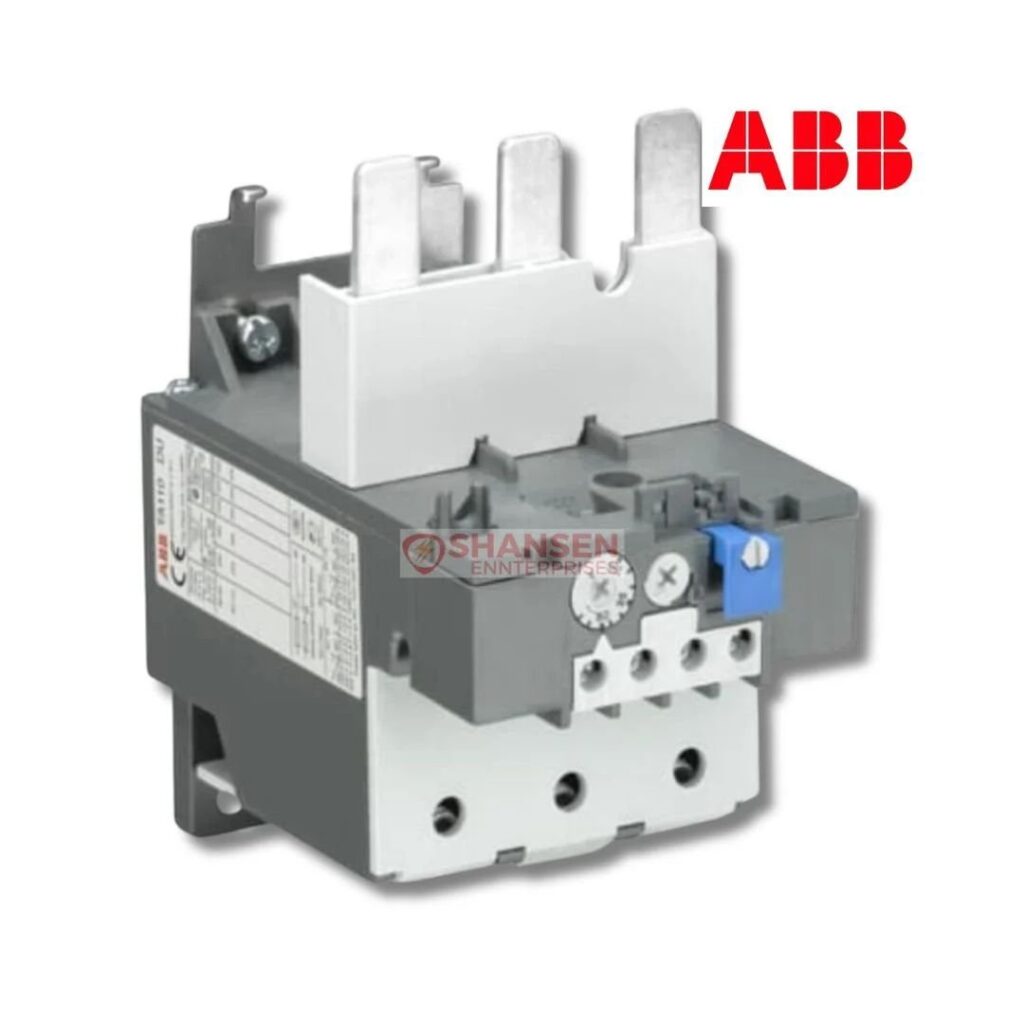

The ABB TA110DU-110 has an adjustable current setting range from 80 A to 110 A, suitable for protecting medium to large motors against overload and phase failure. It features trip class 10A for standard motor starting conditions.

The relay supports up to 690 V AC in the main circuit and 500 V AC or 440 V DC in the auxiliary circuit. It offers a rated insulation voltage (Ui) of 690 V and an impulse withstand voltage (Uimp) of 6 kV, ensuring strong dielectric strength.

It is a 3-pole thermal overload relay with one normally closed (NC) trip contact and one normally open (NO) signal contact. These provide clear tripping feedback and easy integration into control circuits.

The relay includes a trip-free mechanism, STOP and TEST functions, trip indication, and selectable manual or automatic reset. Temperature compensation ensures stable tripping under varying ambient conditions.

It is designed for direct connection to ABB AF/AFS series block contactors in the 80–110 A range. For independent installation, a single mounting kit accessory is available. Refer to ABB’s mounting guide or Shansen for compatibility confirmation.

The housing is rated IP20 and terminal protection IP10, suitable for enclosed panel use in Pollution Degree 2 environments. It complies with IEC motor protection standards for industrial and OEM applications.

For AC-15 duty, NC contacts handle up to 3 A @ 240 V, while NO contacts handle 1.2 A @ 240 V. Under DC-13 duty, contacts support 1.25 A @ 24 V DC or 0.25 A @ 125 V DC, ensuring reliable control circuit performance.

Purchase genuine ABB TA110DU-110 relays through Shansen Enterprises, an authorized ABB channel partner. Pan-India delivery and quick WhatsApp quotations are available for OEMs, panel builders, and maintenance teams.
