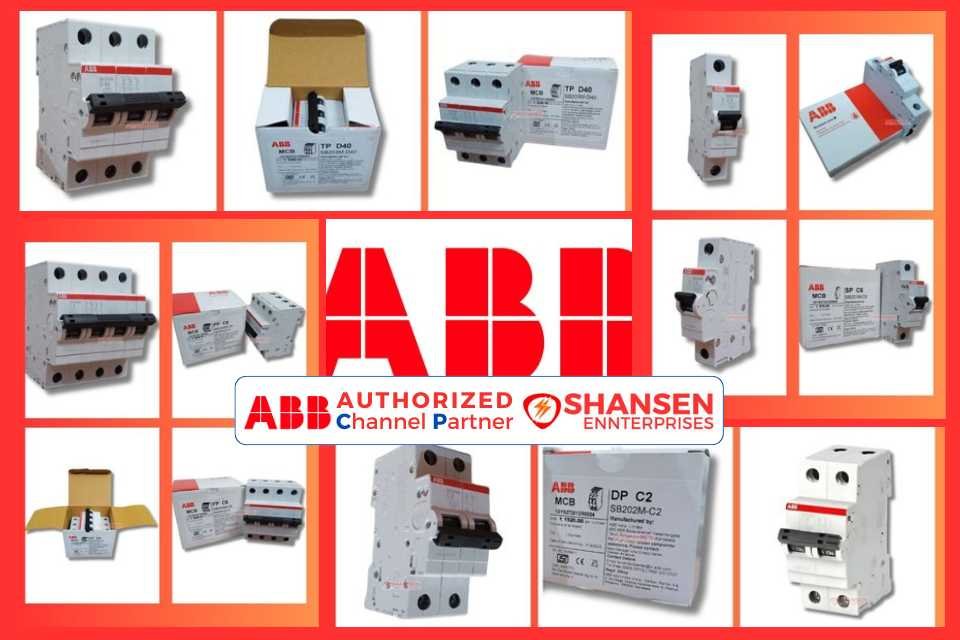

ABB Miniature Circuit Breakers (MCBs)

Miniature Circuit Breakers (MCBs) are integral to electrical safety, offering protection against overloads and short circuits. ABB, a global leader in electrical products, has carved a niche with its System pro M Compact SB200M series, delivering reliable and efficient performance. Let’s dive into what ABB MCBs are, explore some popular models, understand their unique features, and discover their applications.

What Are ABB Miniature Circuit Breakers?

ABB Miniature Circuit Breakers (MCBs) are cutting-edge devices designed to safeguard electrical circuits by interrupting power flow during abnormal conditions such as overloads or short circuits. With state-of-the-art technology and robust construction, ABB MCBs ensure reliability, safety, and efficiency in both domestic and industrial setups.

Popular ABB MCB Models

ABB offers a wide range of miniature circuit breakers to suit various applications. Here are some notable models from their System pro M Compact SB200M series:

ABB System pro M Compact SB202M-C2

Type: Double Pole (2P)
Rated Current: 2A
Characteristic Curve: C-type
This model is perfect for circuits requiring double-pole protection with minimal current flow, ensuring a reliable safeguard for sensitive applications.

ABB System pro M Compact SB203M-D40

Type: Triple Pole (3P)
Rated Current: 40A
Characteristic Curve: D-type
Ideal for industrial setups, this breaker handles higher fault currents, ensuring robust protection for heavy machinery.

ABB SB201M-C6

Type: Single Pole (1P)
Rated Current: 6A
Characteristic Curve: C-type
A compact and efficient solution for residential circuits with moderate current loads.

ABB SB204M-C6

Type: Four Pole (4P)
Rated Current: 6A
Characteristic Curve: C-type
Engineered for more complex systems, this four-pole breaker offers enhanced safety and versatility.

Key Features of ABB Miniature Circuit Breakers

ABB MCBs stand out due to their innovative design and advanced features:

1. Current-Limiting Technology

This feature minimizes fault currents during short circuits, reducing the risk of damage to electrical systems and connected devices.

2. Dual Tripping Mechanisms

Thermal Tripping: Protects against sustained overloads, allowing temporary surges without unnecessary interruptions.
Electromechanical Tripping: Ensures instant disconnection during high fault currents, such as those caused by short circuits.

3. Flexible Pole Configurations

Available in single-pole (1P), double-pole (2P), triple-pole (3P), and four-pole (4P) options, with neutral (N) configurations for added versatility.

4. High Breaking Capacity

With a breaking capacity of up to 10 kA at 240/415 V AC, ABB MCBs can handle high fault currents safely.

5. Wide Range of Rated Currents

ABB MCBs are available with rated currents from 2A to 63A, catering to a broad spectrum of electrical needs.

6. Compliance with Safety Standards

Conforming to IS/IEC 60898-1, ABB MCBs ensure adherence to international safety and performance benchmarks.

Applications of ABB Miniature Circuit Breakers

The reliability and versatility of ABB MCBs make them indispensable across various sectors:

1. Residential Applications

ABB MCBs safeguard household circuits, protecting lighting, appliances, and electrical outlets. By tripping during overloads or short circuits, they prevent fires and electrical hazards.

2. Commercial Spaces

In offices, retail spaces, and other commercial settings, ABB MCBs secure critical circuits for lighting, HVAC systems, and electronic equipment. They ensure seamless operations and safety for occupants.

3. Industrial Settings

ABB MCBs are a staple in industrial environments, providing protection for motors, control panels, and production lines. Their high breaking capacity and robust construction make them ideal for demanding applications.

Why Choose ABB Miniature Circuit Breakers?

Proven Reliability: Trusted by professionals worldwide, ABB MCBs deliver consistent performance.
Wide Range: With options for various pole configurations and rated currents, ABB offers tailored solutions for diverse needs.
Commitment to Safety: Compliance with stringent standards underscores ABB’s dedication to user safety.
Durability: Built with high-quality materials, ABB MCBs withstand the test of time and rigorous conditions.

Conclusion

ABB Miniature Circuit Breakers are more than just safety devices—they are vital components for any reliable electrical system. Whether you’re safeguarding a home, office, or industrial plant, ABB’s System pro M Compact SB200M series delivers unmatched protection and performance. By investing in ABB MCBs, you’re choosing innovation, safety, and peace of mind.

Looking to integrate ABB MCBs into your electrical systems? Explore their range today and ensure safety and efficiency in every circuit!
