Eaton Bussmann PV-160A-01XL fuse, 160A 1000Vdc gPV with indicator FAQs

Why this FAQ?

These FAQs clarify technical ratings, certifications, installation needs, and sourcing options for the Eaton Bussmann PV-160A-01XL photovoltaic fuse, helping engineers and buyers make informed decisions.

[faq question=”What is the Eaton Bussmann PV-160A-01XL fuse used for?”]
The PV-160A-01XL is a gPV class fuse designed for photovoltaic (solar) applications. It protects DC systems up to 1000 Vdc and handles currents up to 160 A, ensuring safe isolation during fault conditions.
[/faq]

[faq question=”What are the key electrical ratings of PV-160A-01XL?”]
This fuse is rated 160 A at 1000 Vdc with an interrupting capacity of 50 kAIC. It has a typical power loss of 44 W under rated conditions.
[/faq]

[faq question=”Which standards and certifications does the PV-160A-01XL meet?”]
It is tested to IEC 60269 standards, UL Listed, CSA Certified, CE Marked, and RoHS compliant. These approvals confirm suitability for global photovoltaic system requirements.
[/faq]

[faq question=”What is the physical size and construction of this fuse?”]

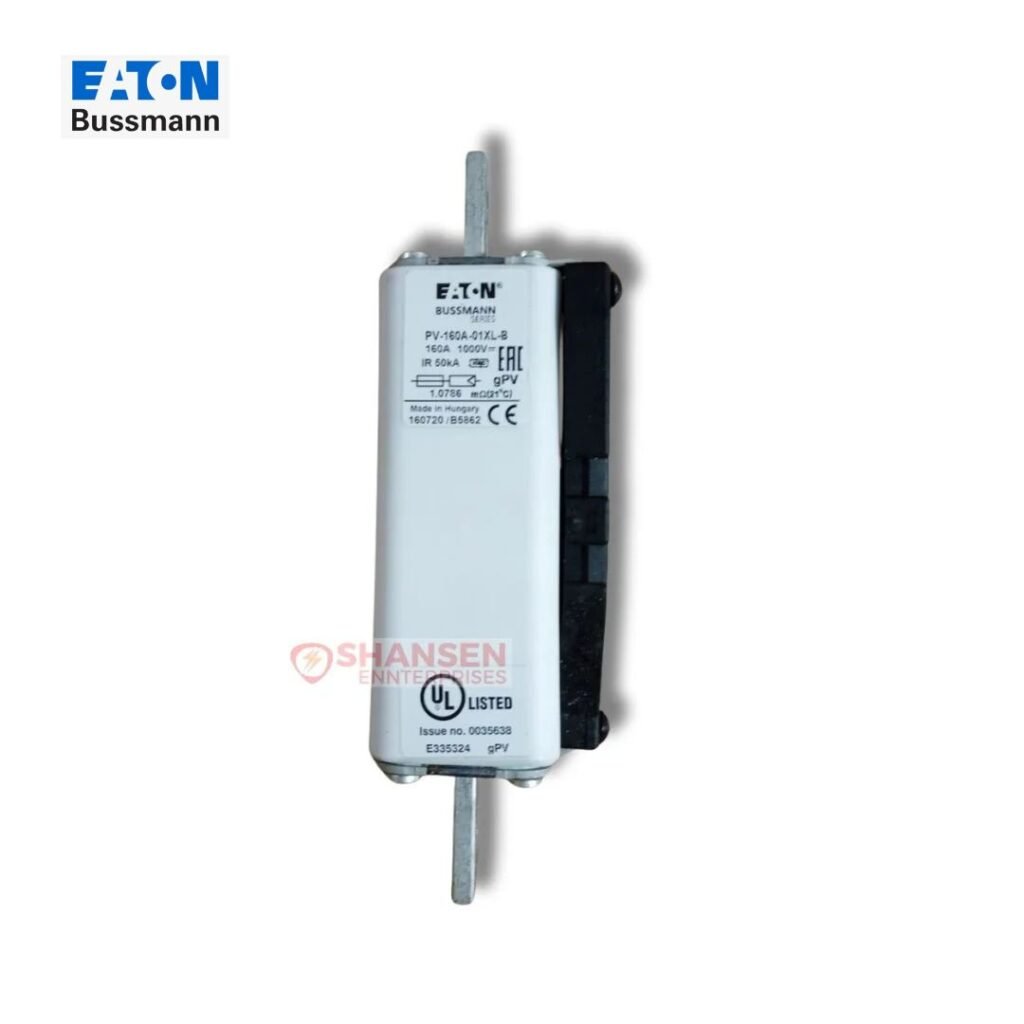

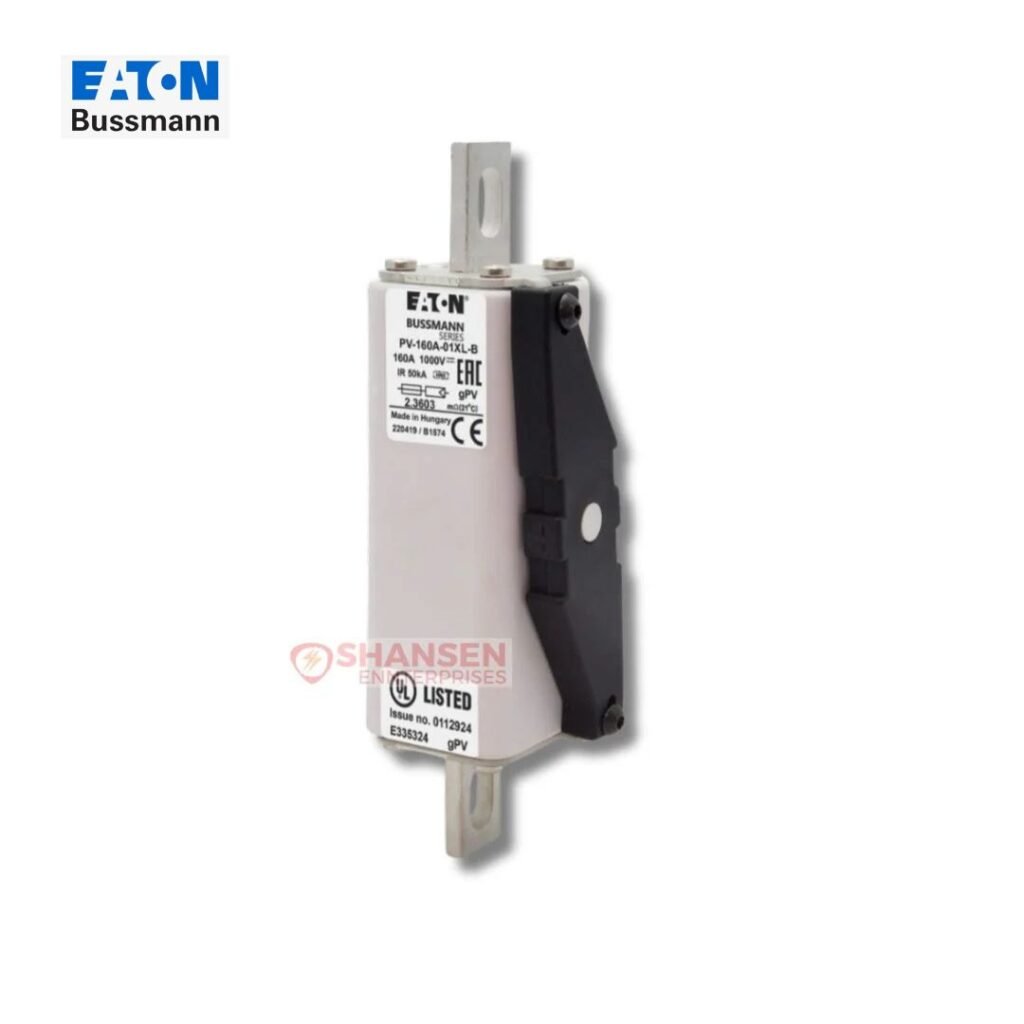

The fuse measures 47 × 189 mm for the link, with overall dimensions of 218 × 84 × 61 mm. It has a ceramic body, blade-type terminals, and an integral indicator for blown-fuse identification.
[/faq]

[faq question=”Which fuse holder is compatible with the PV-160A-01XL?”]
It is designed for use with the Eaton Bussmann SD1XL-S-PV XL fuse base. Using the correct holder ensures safe installation and compliance with standards.
[/faq]

[faq question=”Where can I source the Eaton Bussmann PV-160A-01XL fuse in India?”]
Shansen Enterprises is an authorized channel partner for Eaton Bussmann. Pan-India delivery is available, and quick quotations can be requested via WhatsApp.
[/faq]

[faq question=”Does the PV-160A-01XL fuse include a built-in indicator?”]

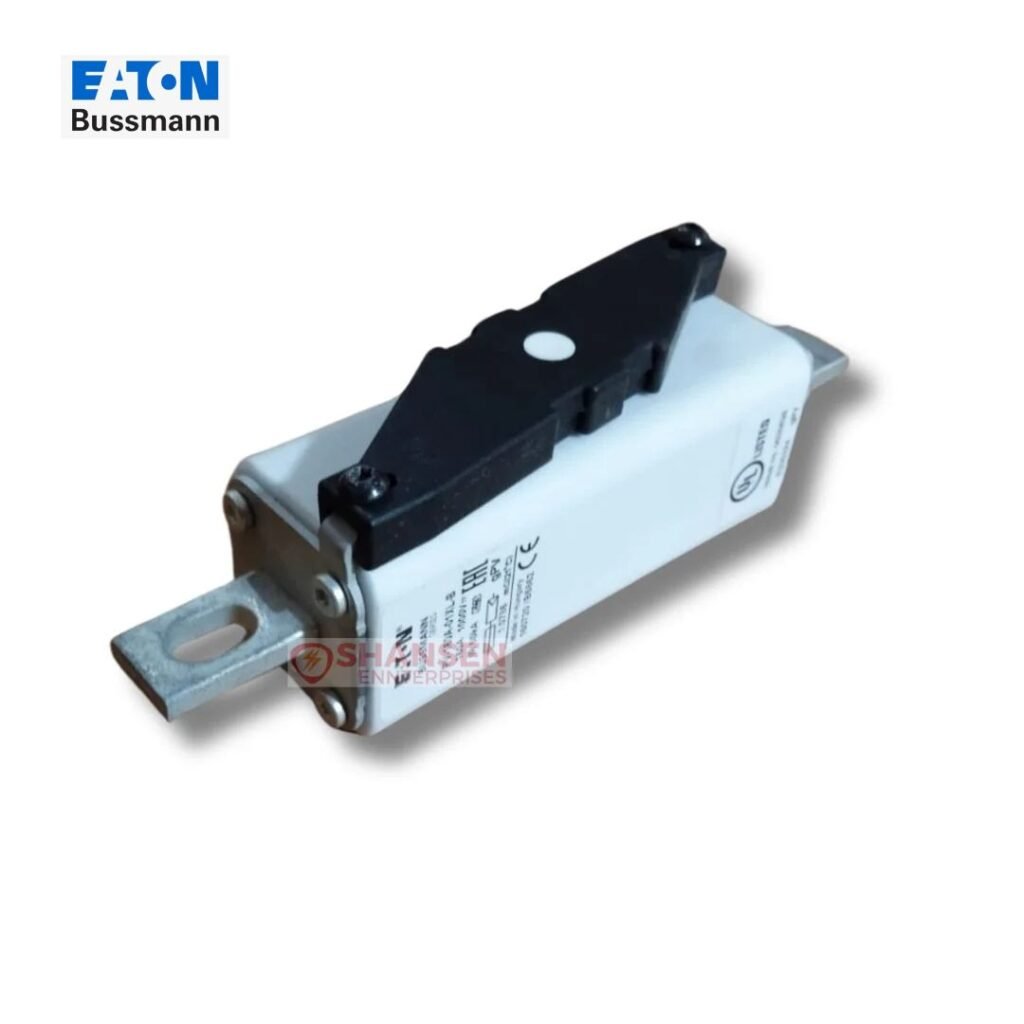

Yes, it has an indicator window that provides clear visual confirmation when the fuse has operated, simplifying maintenance and replacement.
[/faq]

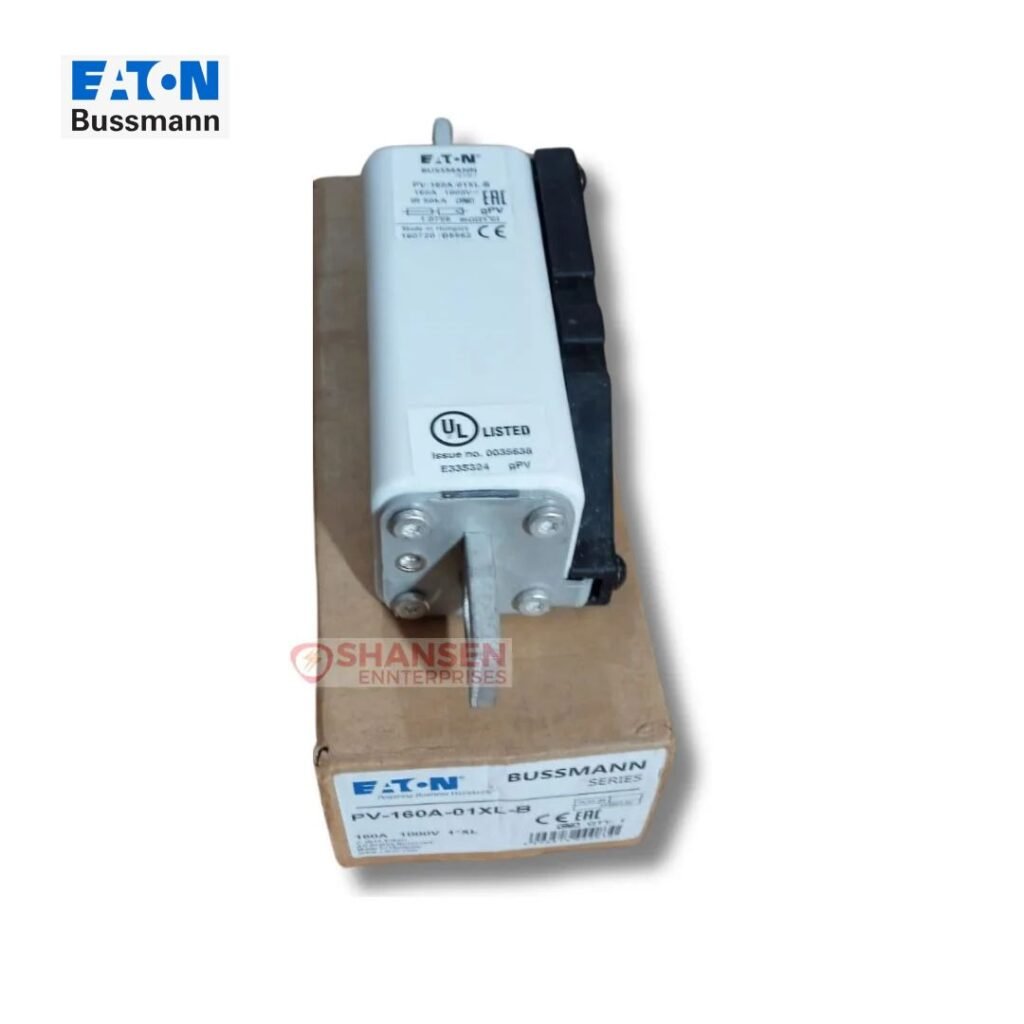

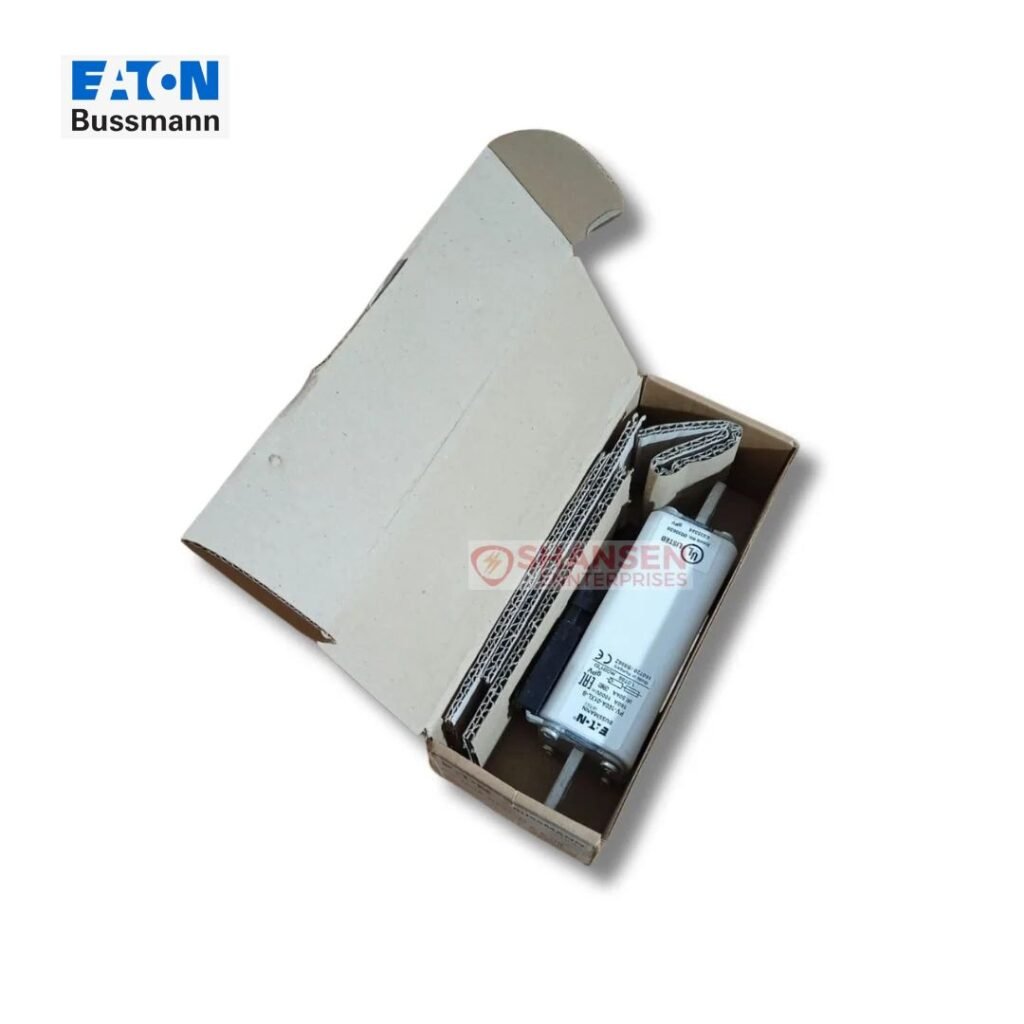

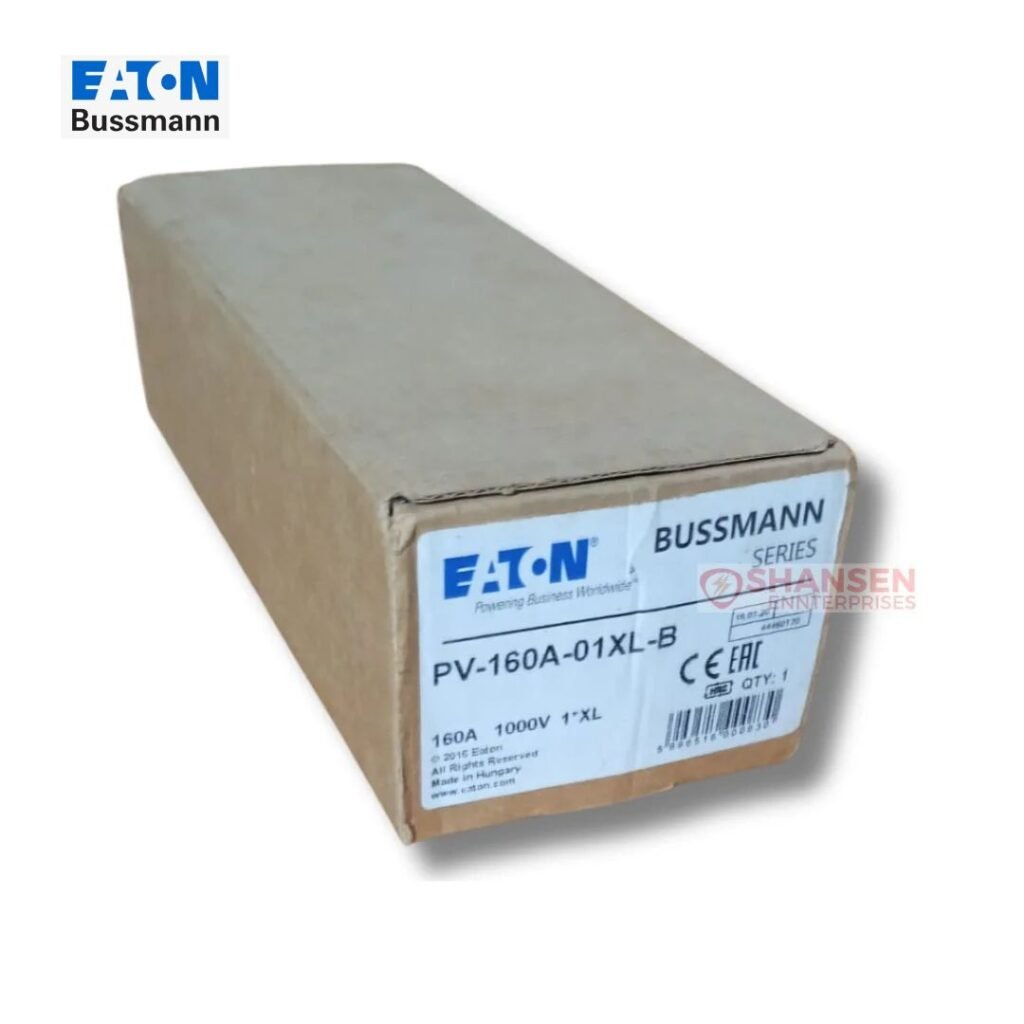

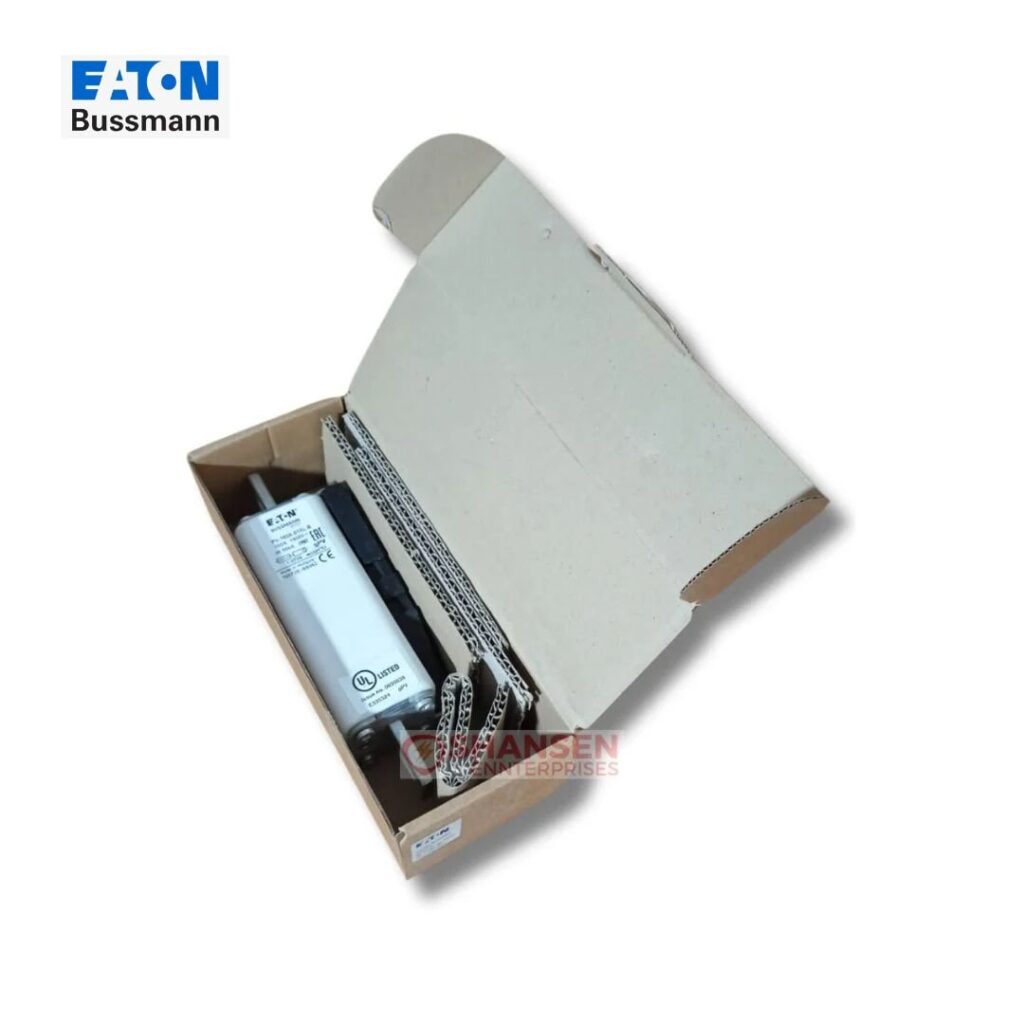

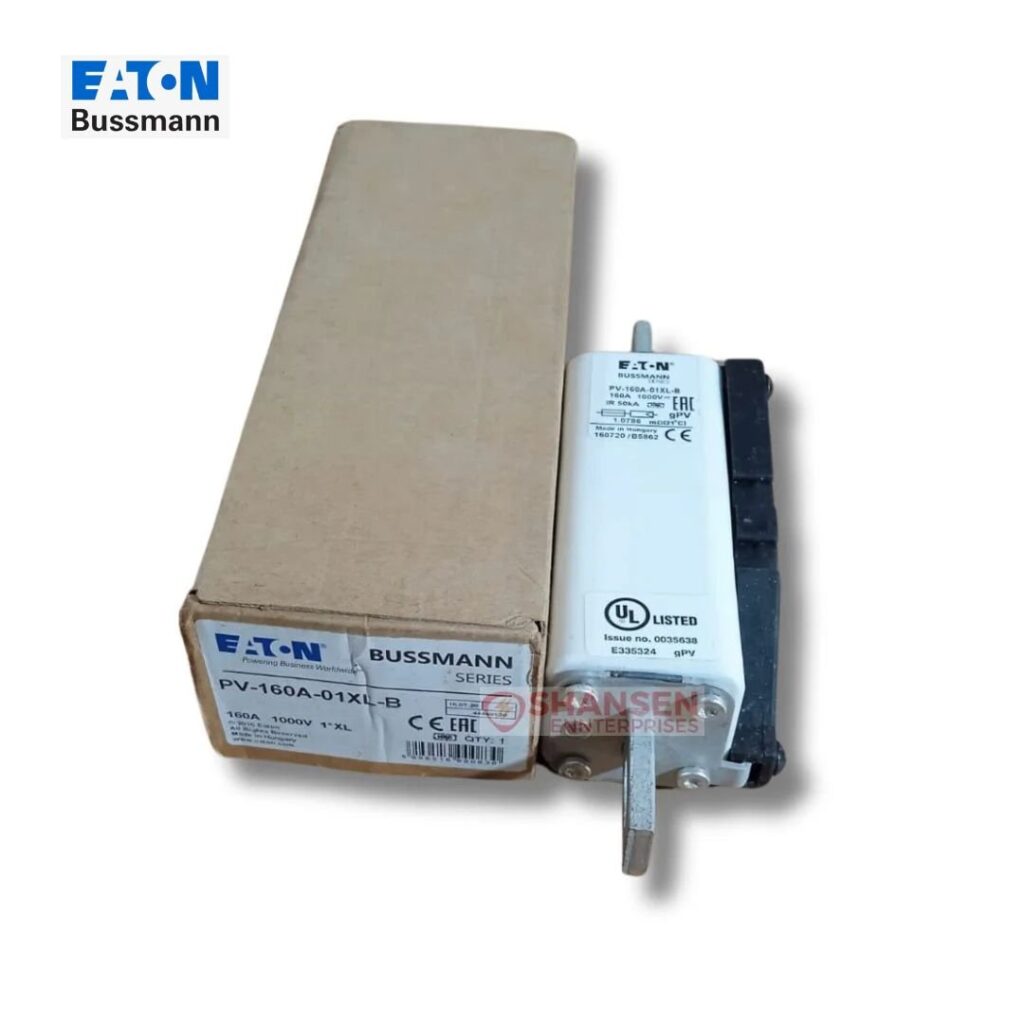

Eaton Bussmann Series Photovoltaic Fuse PV-160A-01XL Gallery
