Eaton Bussmann PV-200ANH1, 200 A, 1000 Vdc photovoltaic fuse FAQ

Why this FAQ?

This set of FAQs highlights key technical specifications, standards compliance, applications, and installation details of the Eaton Bussmann PV-200ANH1. It also directs engineers and buyers to authorized supply channels in India.

[faq question=”What is the Eaton Bussmann PV-200ANH1 fuse used for?”]
The PV-200ANH1 is a photovoltaic fuse designed for DC protection in solar PV systems, inverters, and associated equipment. It safeguards strings and arrays against overcurrents and fault conditions.
[/faq]

[faq question=”What are the electrical ratings of the PV-200ANH1 fuse?”]
This fuse is rated at 200 A, 1000 Vdc, with an interrupting capacity of 50 kAIC. It belongs to Class gPV and has a pre-arcing I²t value of 10,200. Its typical watt losses are 25 W.
[/faq]

[faq question=”Which standards and certifications does this fuse comply with?”]
The PV-200ANH1 meets IEC 60269 requirements and is UL Listed and CSA Certified. It is also CE marked and RoHS compliant for global acceptance.
[/faq]

[faq question=”What type and size is the PV-200ANH1 fuse?”]

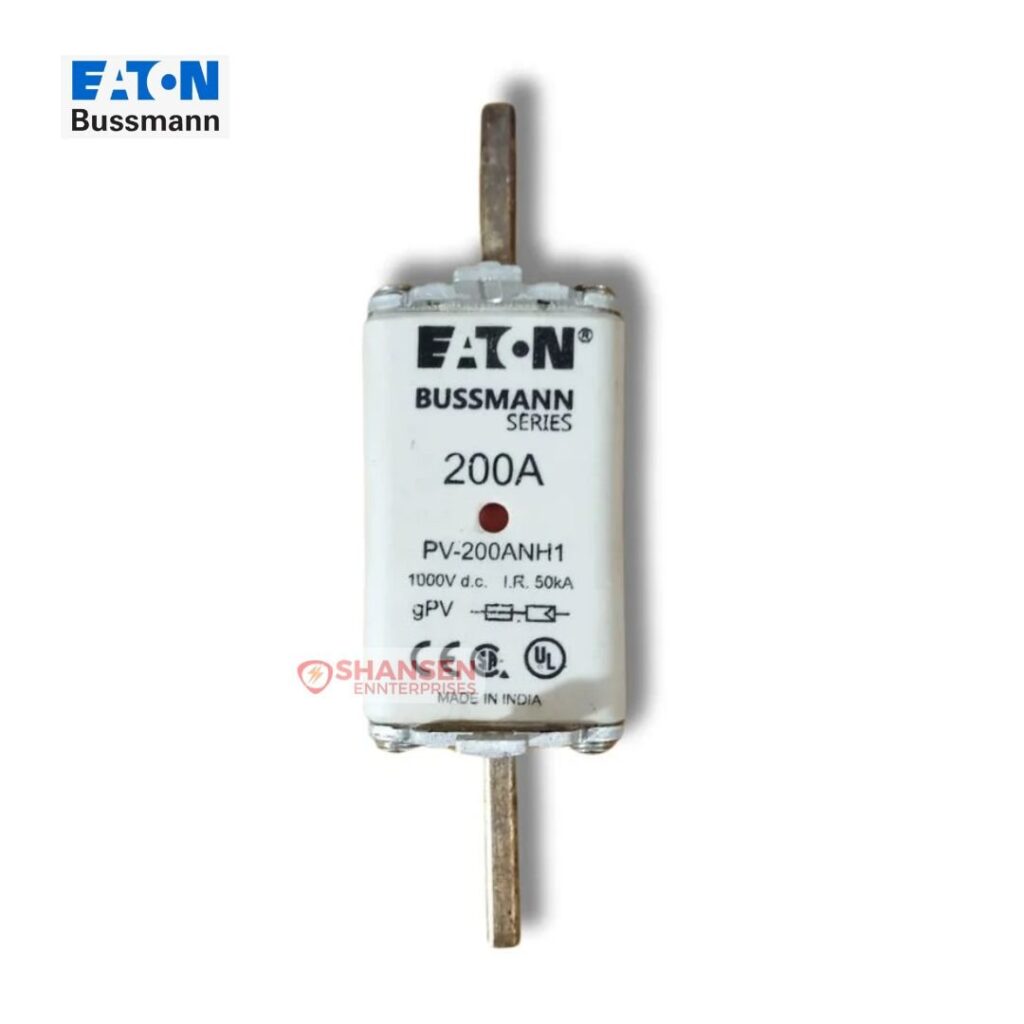

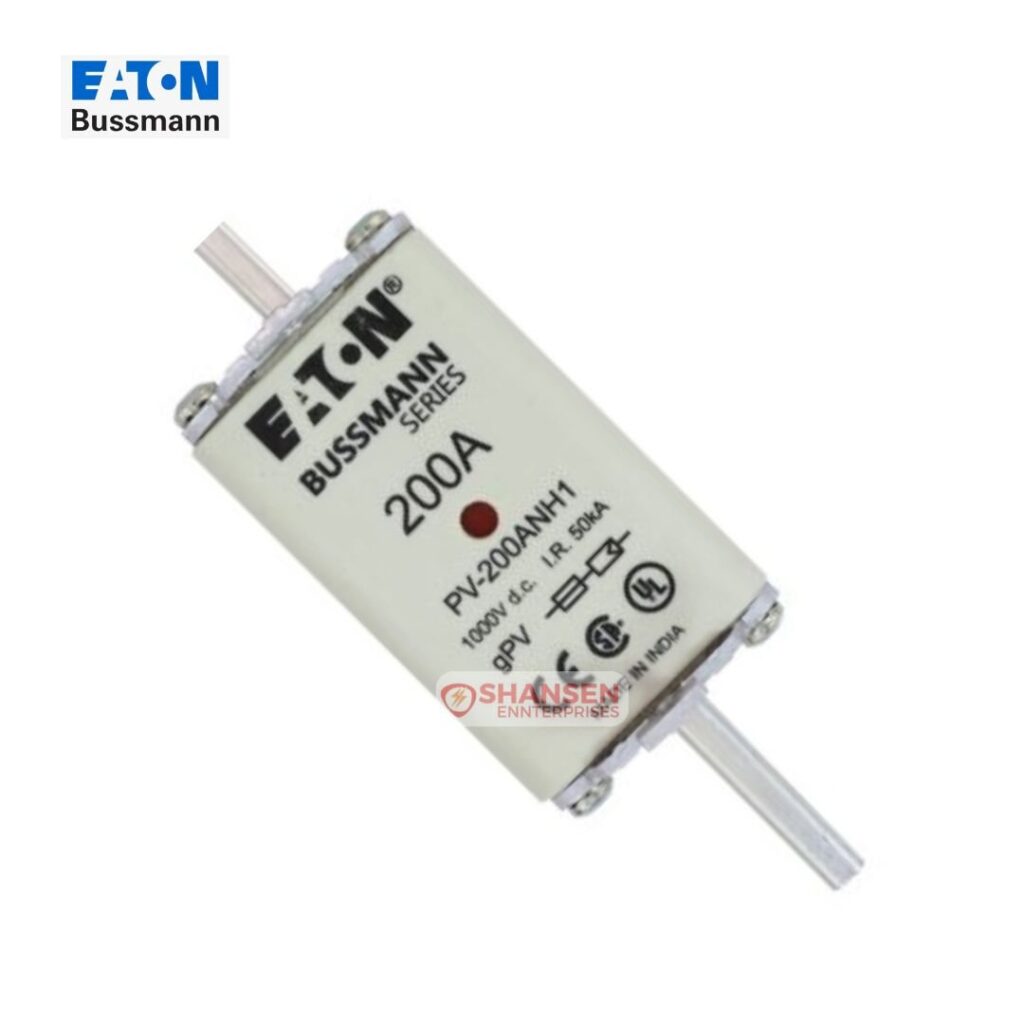

It is an NH1 size, high-speed, blade-type fuse without bolt holes. It is fitted with a dual status indicator for quick fault detection.
[/faq]

[faq question=”Which fuse holder is compatible with the PV-200ANH1?”]
The PV-200ANH1 is suitable for the Eaton Bussmann SD1-D-PV NH fuse base, ensuring secure installation in PV systems.
[/faq]

[faq question=”What are the physical dimensions and weight of this fuse?”]
The fuse measures approximately 137 mm in length, 68 mm in height, and 134 mm in width, with a weight of about 434 g.
[/faq]

[faq question=”Is the PV-200ANH1 fuse made in India?”]
Yes, this fuse is manufactured in India and supplied under the Eaton Bussmann series.
[/faq]

[faq question=”Where can I buy the Eaton Bussmann PV-200ANH1 fuse in India?”]
You can source it from Shansen Enterprises, an authorized channel partner for Eaton Bussmann. Pan-India delivery and WhatsApp quotes are available.
[/faq]

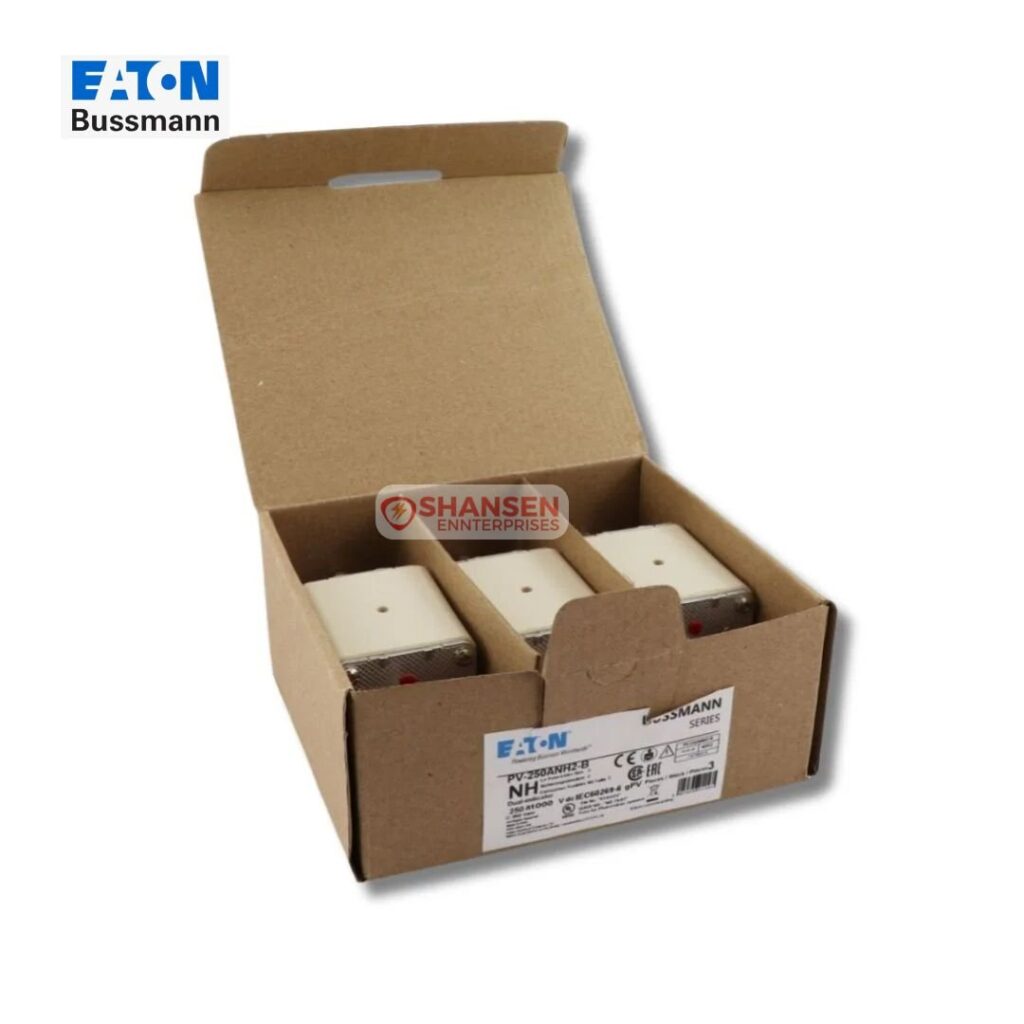

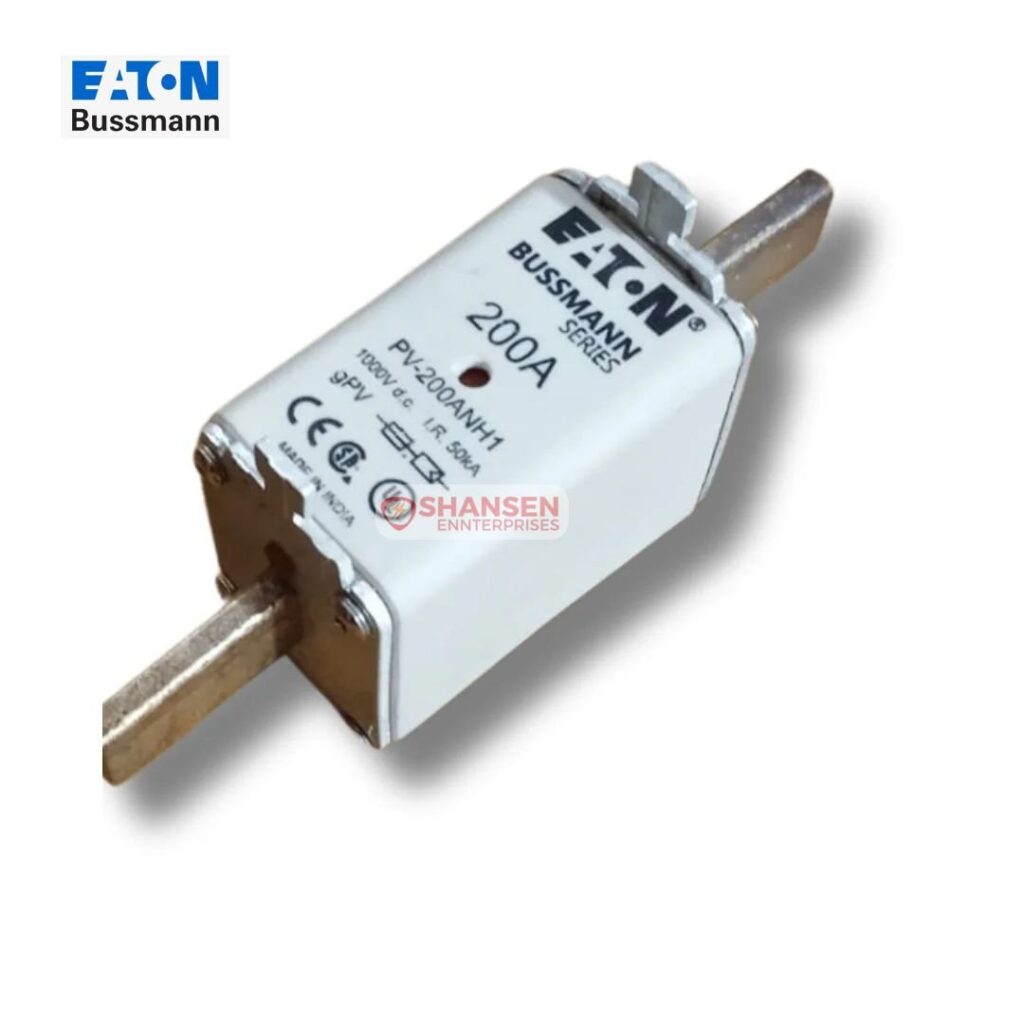

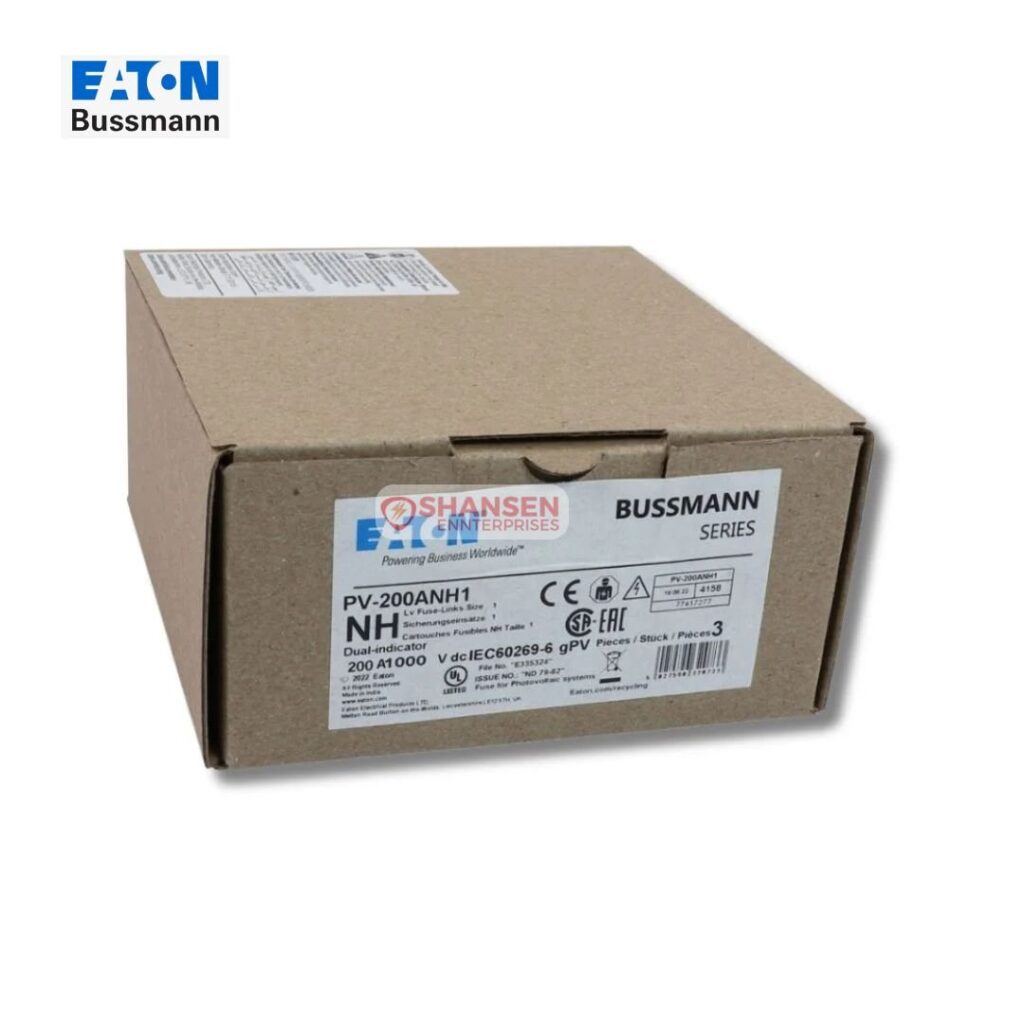

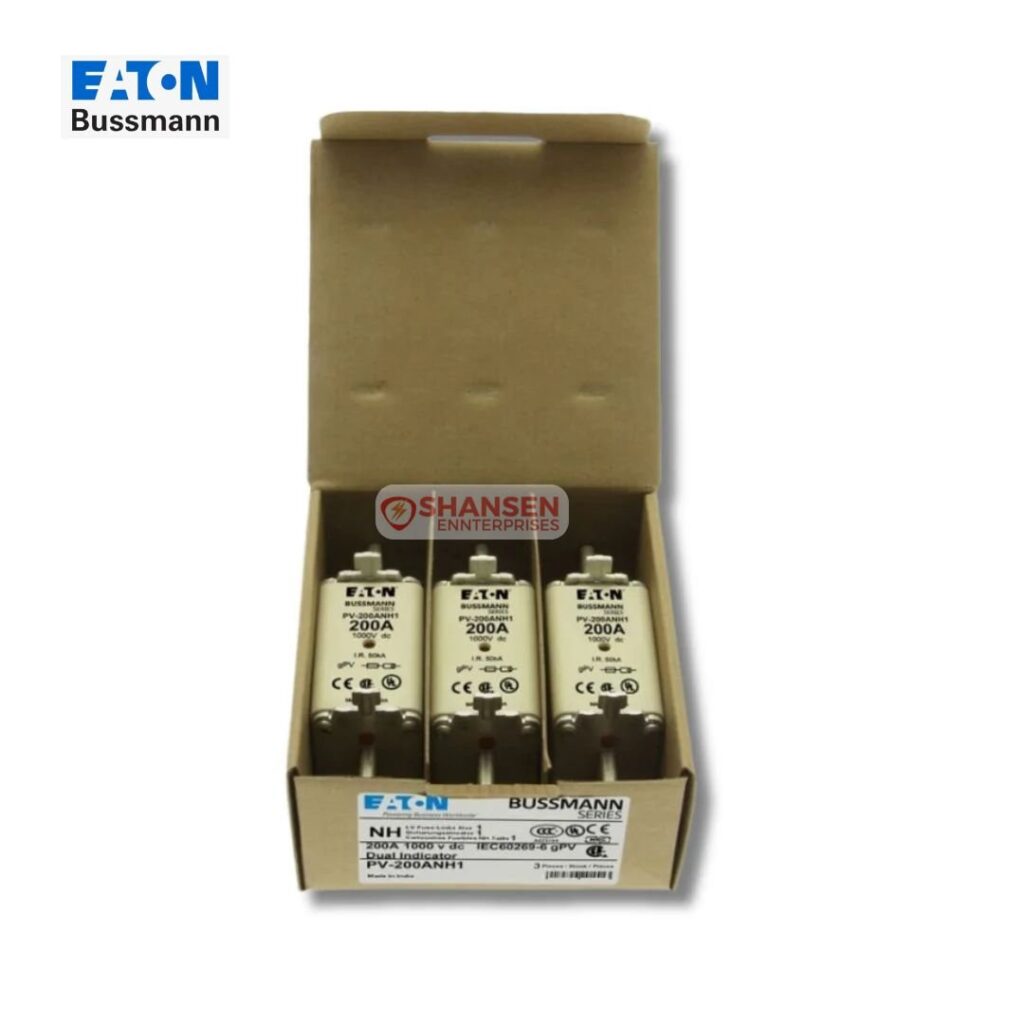

Eaton Bussmann Photovoltaic Fuse PV-200ANH1 Gallery
