Why this FAQ?
These FAQs provide engineers and panel builders with the essential specifications, compliance details, and sourcing information for the Eaton Bussmann 170H1013 fuse base.
What is the Eaton Bussmann 170H1013 fuse base used for?
The Eaton Bussmann 170H1013 is a high-speed fixed centre fuse base designed for semiconductor protection and industrial power circuits. It accommodates 690 V, 200 A fuses with an 80 mm centre distance, ensuring reliable mounting and electrical performance in demanding applications.
What are the electrical ratings of the 170H1013 fuse base?
This fuse base supports a maximum voltage of 690 V AC and a continuous current rating of 200 A. It is suitable for use with high-speed fuses in DC and AC circuits, as specified by Bussmann for semiconductor protection.
What type of connection and mounting does the 170H1013 use?
It features M8 screw connections for secure conductor termination and a screw-on mounting method. The fixed 80 mm centre distance provides stable mechanical support for high-speed fuse links.
Is the Eaton Bussmann 170H1013 fuse base compliant with international standards?
Yes, it is RoHS compliant and certified to UL 512 standards. This ensures environmental safety and compliance with global fuse accessory requirements.
What materials and features ensure safety in the 170H1013?
The base is halogen-free, offering better fire performance and reduced toxic emissions. Its insulated design and robust terminals provide reliable electrical isolation under high current loads.
What are the physical dimensions and construction details of this fuse base?
The 170H1013 measures approximately 125 mm (L) × 80 mm (W) × 45 mm (H) and weighs about 103 g. It is a single-pole construction suitable for panel-mounted applications.
Is the 170H1013 supplied as a spare part or a main assembly?
It is classified as a fuse accessory or spare part, typically used to mount and connect Bussmann high-speed fuse links within existing power assemblies.
Where can I buy the Eaton Bussmann 170H1013 in India?
Shansen Enterprises is an authorized Eaton Bussmann channel partner offering the 170H1013 with pan-India delivery. Engineers and OEMs can request quick WhatsApp quotes for project or maintenance needs.

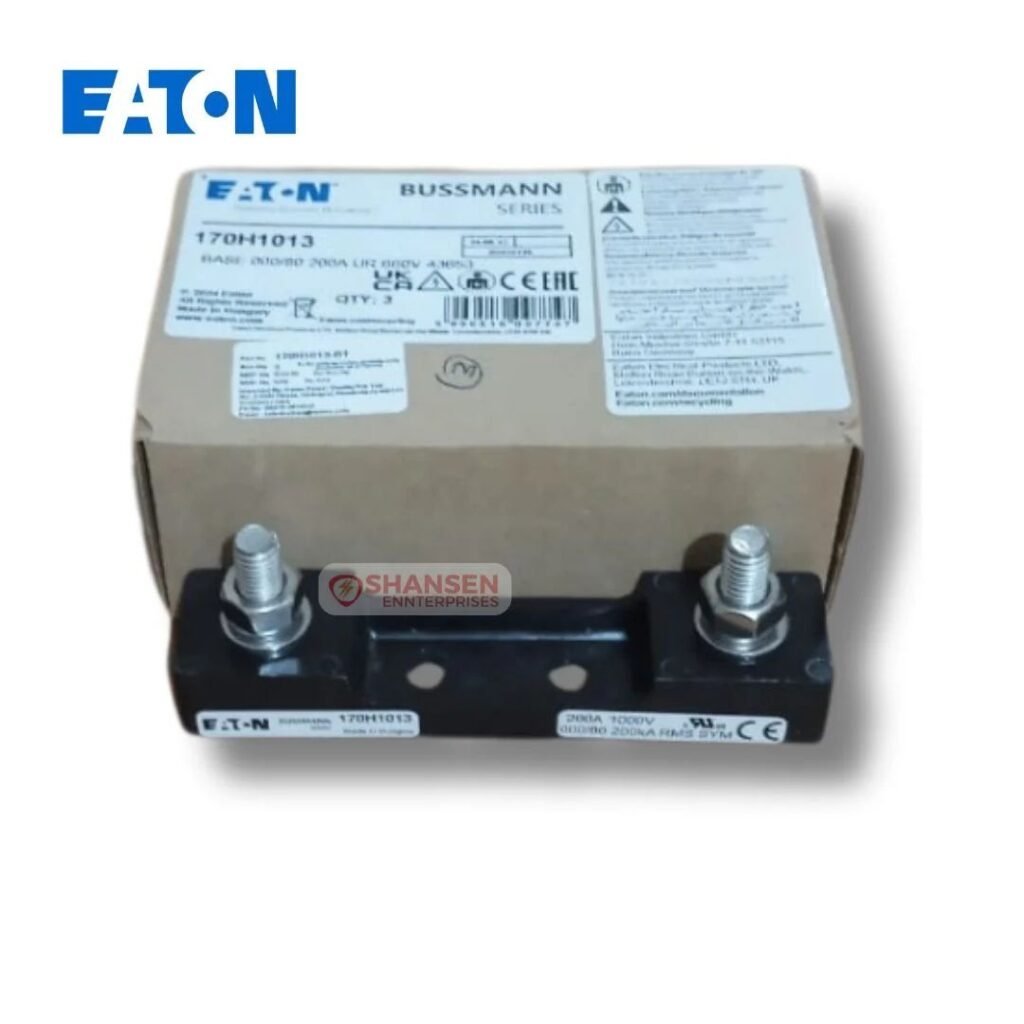

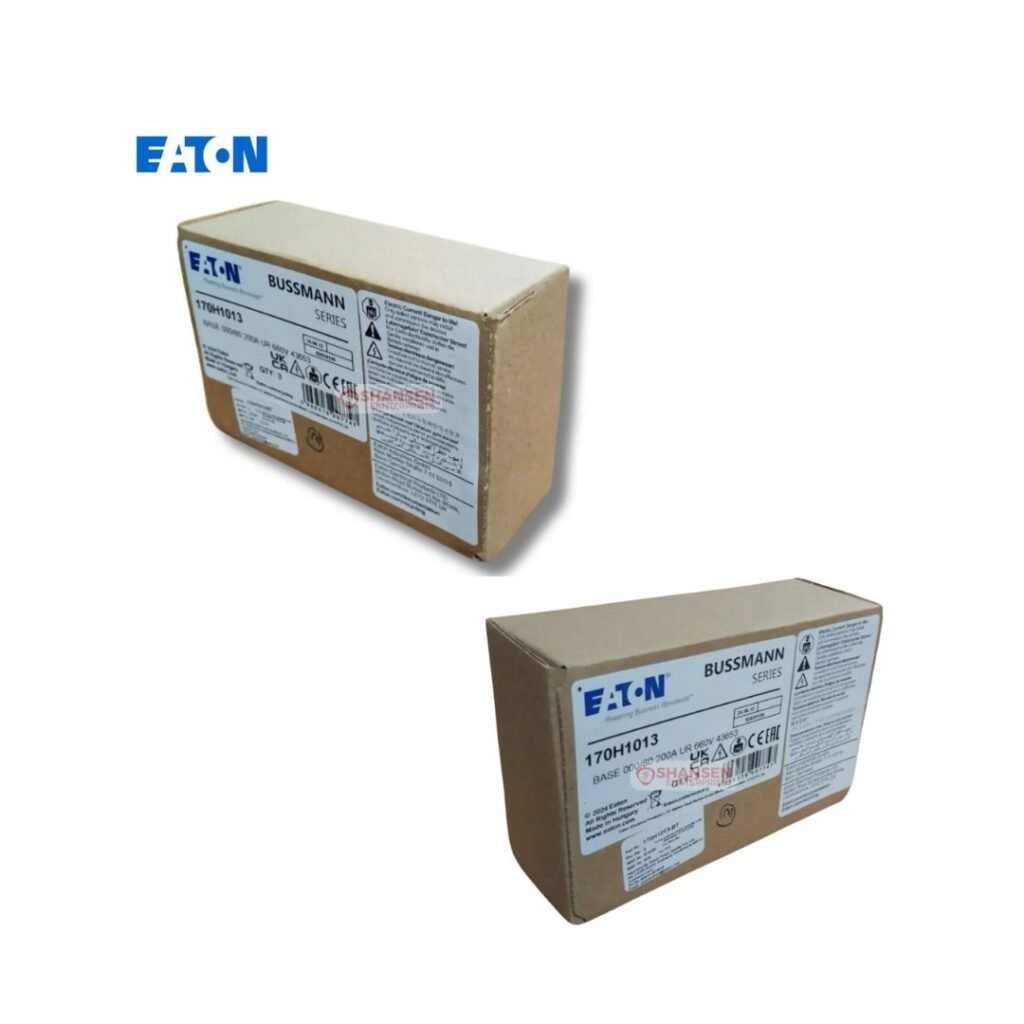

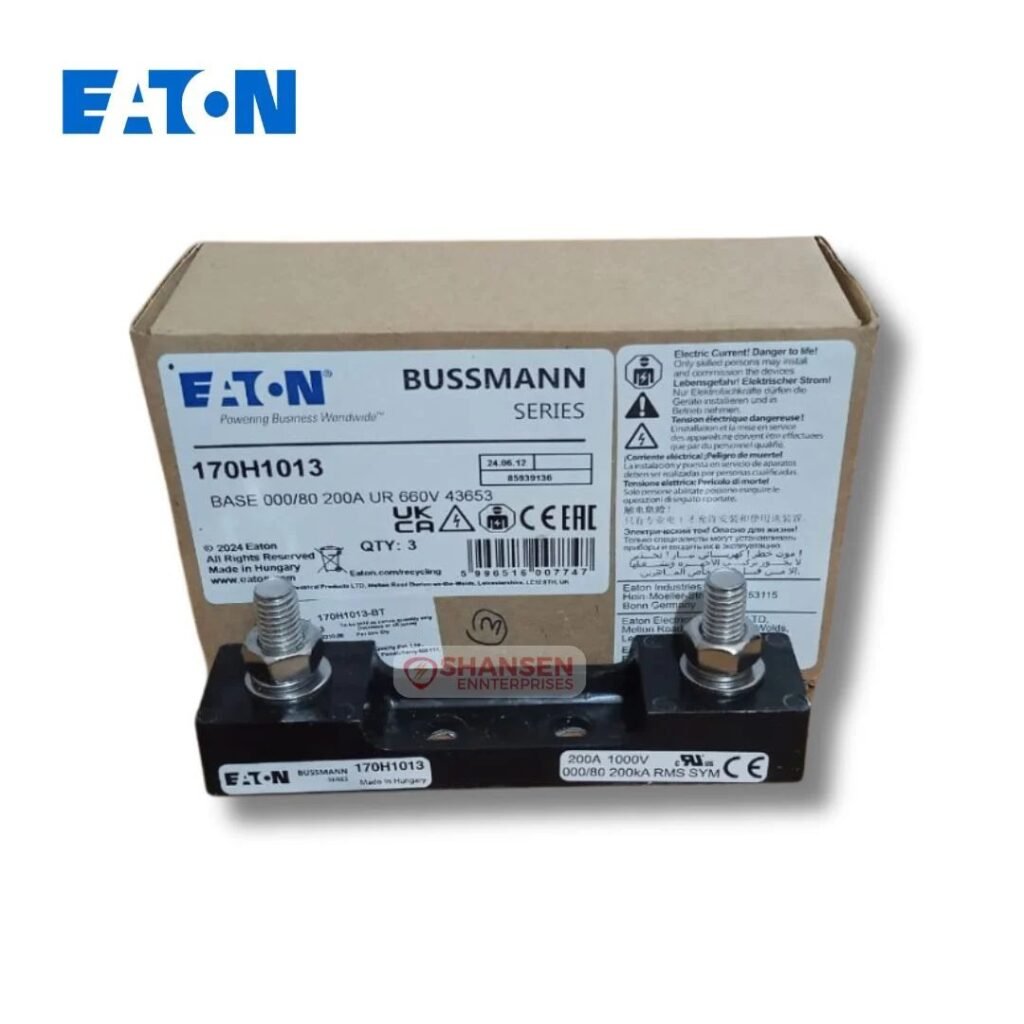

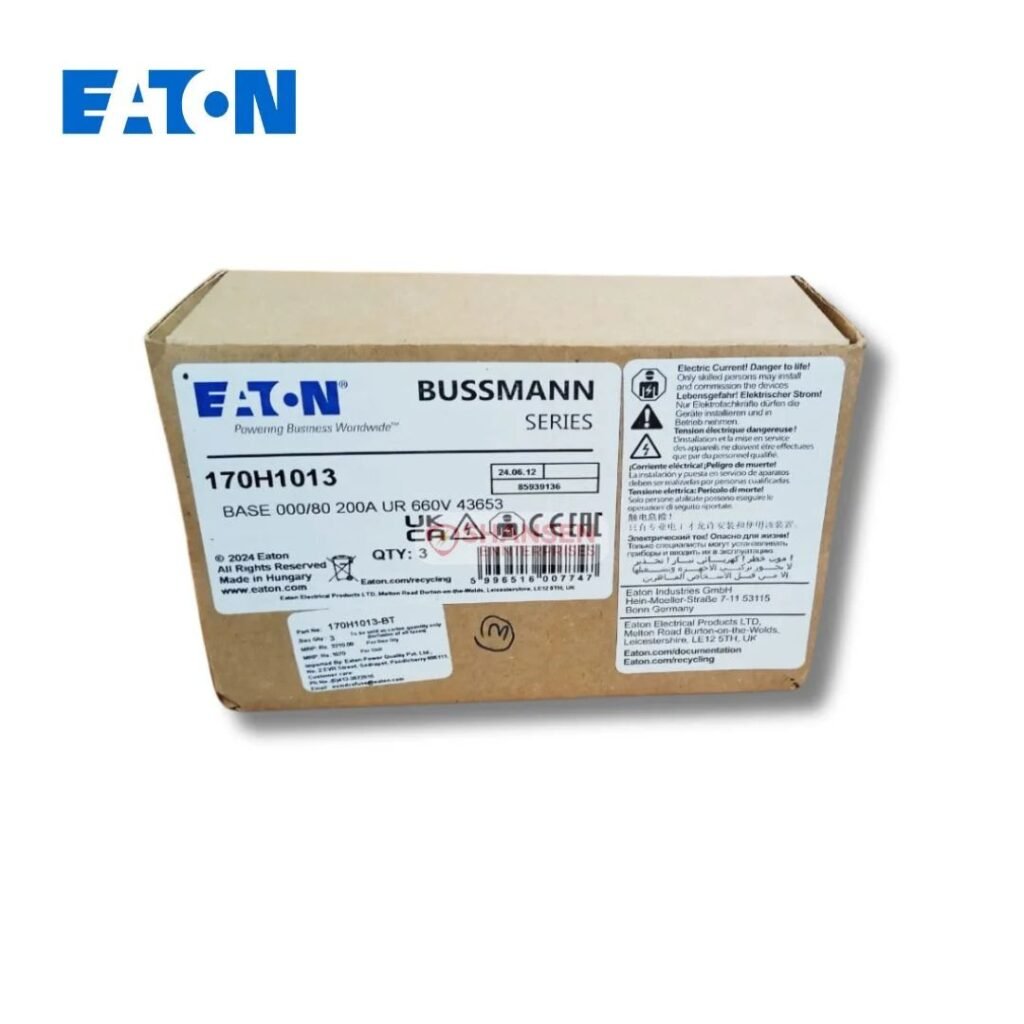

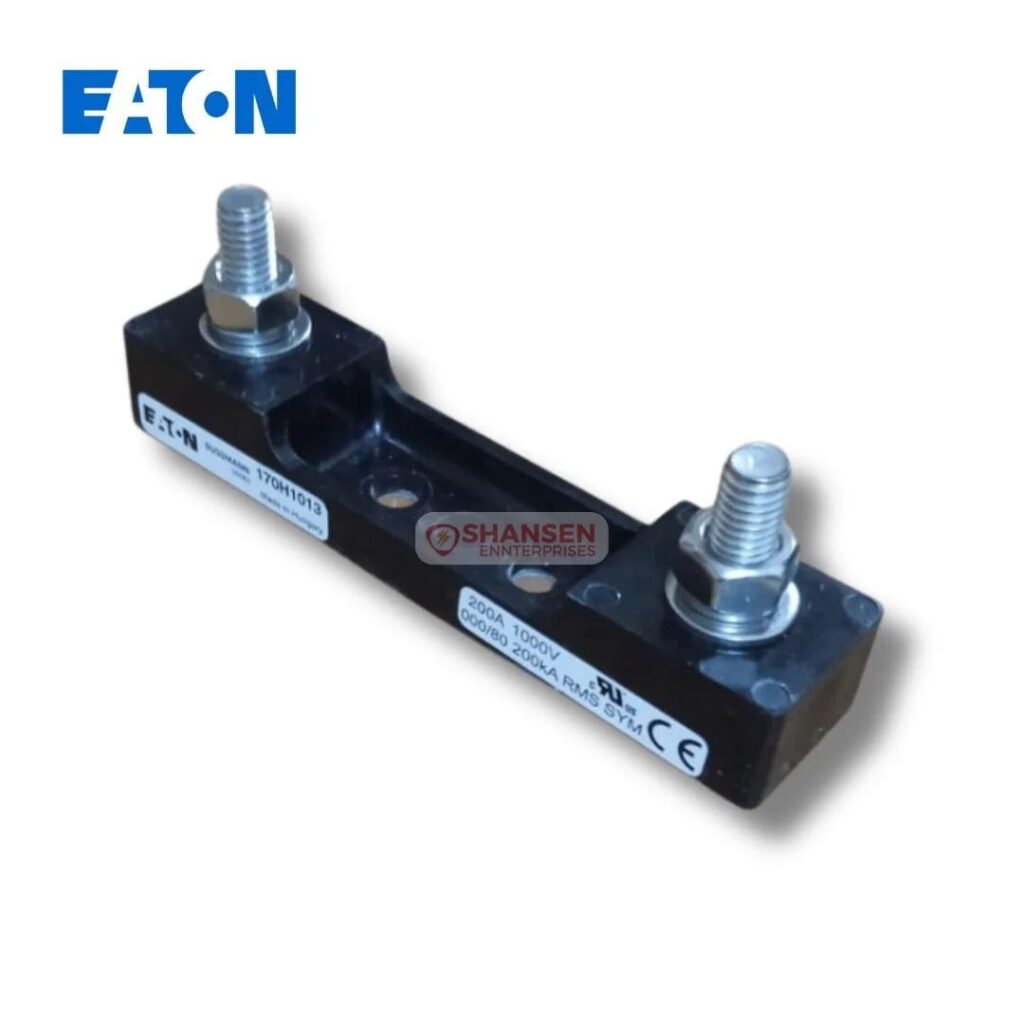

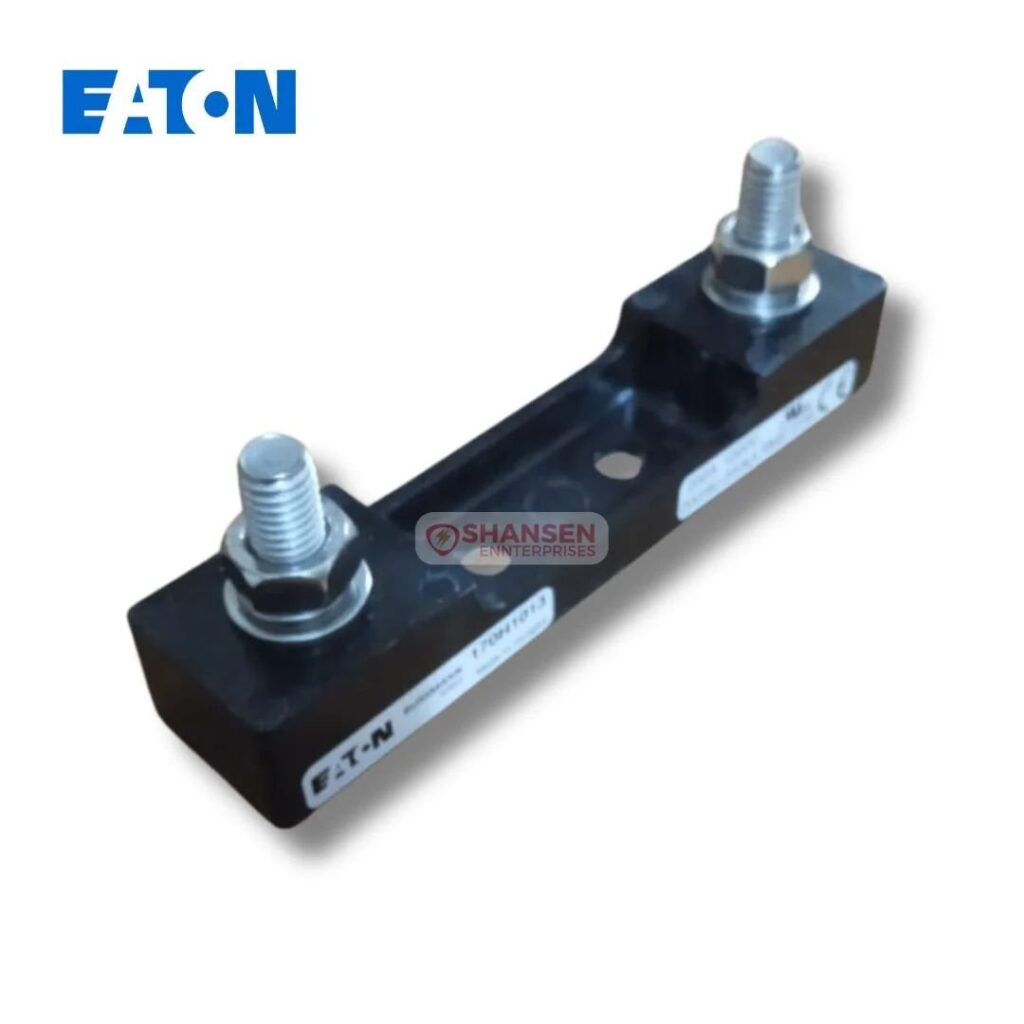

Eaton Bussmann series high speed fuse base 170H1013 Galley
