Eaton PLSI-C40/3-GI 40 A 3-FAQs

Q: 1. What is the Eaton PLSI-C40/3-GI MCB?

The Eaton PLSI-C40/3-GI is a three-pole miniature circuit breaker rated at 40 A with a Type C thermal-magnetic trip curve. It’s engineered for “Made for India” conditions—handling normal inrush loads (5–10× In) while offering a 10 kA breaking capacity for superior short-circuit interruption.

Q: 2. What does “Type C curve” mean?

A Type C trip curve means the breaker will tolerate brief inrush currents up to 5–10 times its rated current before tripping. This makes it ideal for: Motors and compressors Fluorescent lighting General-purpose circuits with moderate startup surges

Q: 3. How does the 10 kA breaking capacity protect my installation?

The 10 kA Icn rating indicates the maximum fault current the MCB can safely interrupt without damage. In real-world terms, it means: Faster, cleaner fault clearance Reduced risk of catastrophic arc flash Lower let-through energy to downstream devices

Q: 4. Where should I use this breaker?

Ideal applications include: Residential distribution boards & sub-mains Commercial panelboards in offices, retail outlets Light-industrial machine control circuits Any other setups requiring fast, dependable over-current protection

Q: 5. What certifications and standards does it meet?

The PLSI-C40/3-GI is ISI & CE certified and complies with: IS/IEC 60898-1 EN/IEC 60898-1 Its IP20 finger-proof terminals and fire-retardant engineering-plastic enclosure add further safety assurances.

Q: 6. How do I install the Eaton PLSI-C40/3-GI?

Mount on a standard 35 mm DIN rail using the tool-free, 2-position clamp. Connect conductors: Flexible up to 16 mm² Rigid up to 25 mm² Tighten to 2 N·m torque using combi-head M5 screws. Verify the true-contact position indicator shows green (off) before applying power.

Q: 7. Can this MCB serve as an isolation switch?

Yes. Thanks to its trip-free mechanism, the PLSI-C40/3-GI cannot be held closed under fault, allowing it to safely isolate circuits when required.

Q: 8. What maintenance or testing is recommended?

Visual inspections every 6–12 months: check for discoloration, dust, or loose terminals. Mechanical trip test: flip the toggle at least once per year. Thermal imaging (optional): ensure no hotspots develop at terminals.

Q: 9. How do I troubleshoot nuisance tripping?

Check load currents: ensure nominal current doesn’t exceed 40 A. Identify transient spikes: motors or welders may require Type D or an upstream soft-start. Verify wiring: confirm correct polarity and tight torque settings. Inspect for moisture or dust: clean or replace the breaker if environmental conditions are harsh.

Q: 10. Where can I find the full datasheet?

Download the official Eaton PLSI MCB datasheet here:Eaton MCB – Download DatasheetIf the link changes, search “Eaton PLSI MCB datasheet” on Eaton’s website.

Keeping your electrical installations safe and reliable starts with choosing the right miniature circuit breaker (MCB). The Eaton PLSI-C40/3-GI—a “Made for India” 40 A, 3-pole, Type C curve MCB—combines high performance, compact design, and peace-of-mind certifications. To help you make informed decisions, we’ve compiled the most frequently asked questions about this breaker, its features, installation, and support.

1. What is the Eaton PLSI-C40/3-GI MCB?

The Eaton PLSI-C40/3-GI is a three-pole miniature circuit breaker rated at 40 A with a Type C thermal-magnetic trip curve. It’s engineered for “Made for India” conditions—handling normal inrush loads (5–10× In) while offering a 10 kA breaking capacity for superior short-circuit interruption.

2. What does “Type C curve” mean?

A Type C trip curve means the breaker will tolerate brief inrush currents up to 5–10 times its rated current before tripping. This makes it ideal for:

Motors and compressors
Fluorescent lighting
General-purpose circuits with moderate startup surges

3. How does the 10 kA breaking capacity protect my installation?

The 10 kA Icn rating indicates the maximum fault current the MCB can safely interrupt without damage. In real-world terms, it means:

Faster, cleaner fault clearance
Reduced risk of catastrophic arc flash
Lower let-through energy to downstream devices

4. Where should I use this breaker?

Ideal applications include:

Residential distribution boards & sub-mains
Commercial panelboards in offices, retail outlets
Light-industrial machine control circuits
Any other setups requiring fast, dependable over-current protection

5. What certifications and standards does it meet?

The PLSI-C40/3-GI is ISI & CE certified and complies with:

IS/IEC 60898-1
EN/IEC 60898-1

Its IP20 finger-proof terminals and fire-retardant engineering-plastic enclosure add further safety assurances.

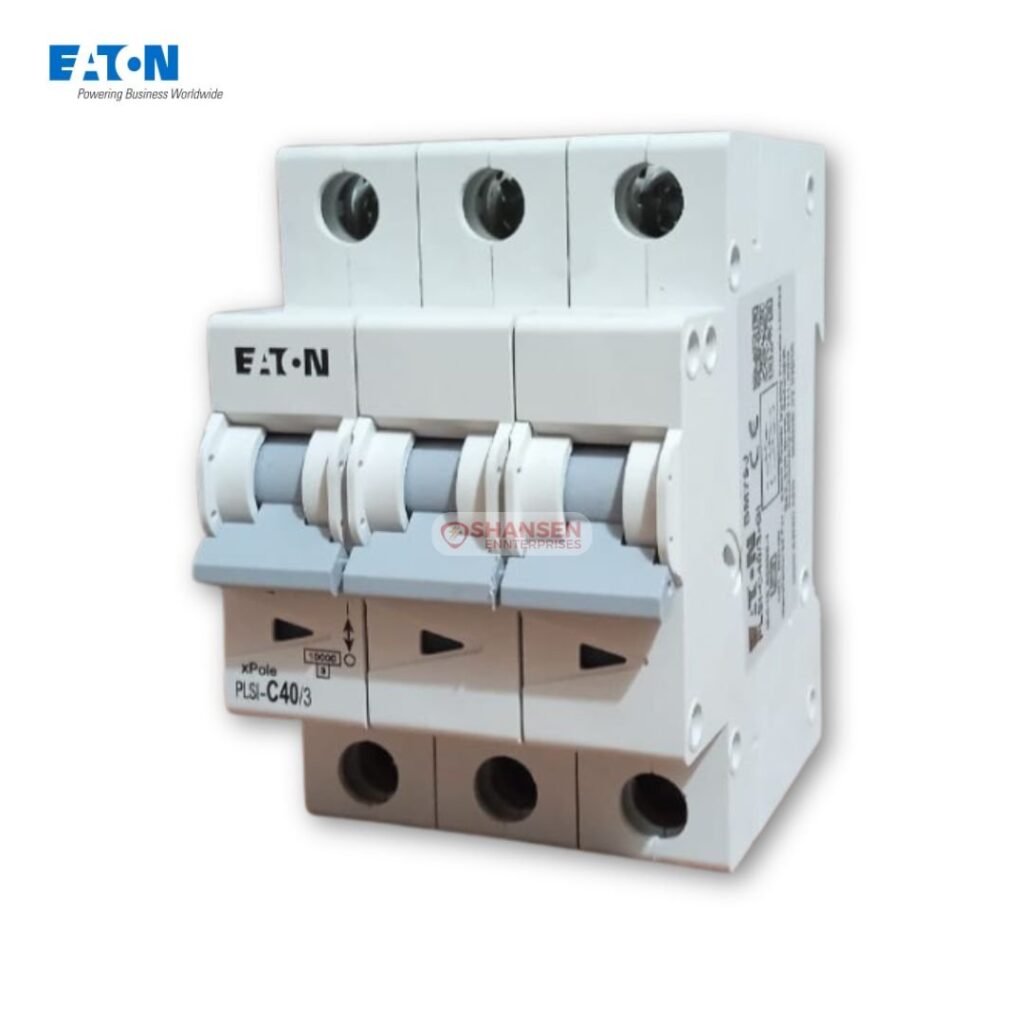

6. How do I install the Eaton PLSI-C40/3-GI?

Mount on a standard 35 mm DIN rail using the tool-free, 2-position clamp.
Connect conductors:
- Flexible up to 16 mm²
- Rigid up to 25 mm²
- Tighten to 2 N·m torque using combi-head M5 screws.
Verify the true-contact position indicator shows green (off) before applying power.

7. Can this MCB serve as an isolation switch?

Yes. Thanks to its trip-free mechanism, the PLSI-C40/3-GI cannot be held closed under fault, allowing it to safely isolate circuits when required.

8. What maintenance or testing is recommended?

Visual inspections every 6–12 months: check for discoloration, dust, or loose terminals.
Mechanical trip test: flip the toggle at least once per year.
Thermal imaging (optional): ensure no hotspots develop at terminals.

9. How do I troubleshoot nuisance tripping?

Check load currents: ensure nominal current doesn’t exceed 40 A.
Identify transient spikes: motors or welders may require Type D or an upstream soft-start.
Verify wiring: confirm correct polarity and tight torque settings.
Inspect for moisture or dust: clean or replace the breaker if environmental conditions are harsh.

10. Where can I find the full datasheet?

Download the official Eaton PLSI MCB datasheet here:
Eaton MCB – Download Datasheet
If the link changes, search “Eaton PLSI MCB datasheet” on Eaton’s website.

11. How can I purchase or get a quote?

Shansen Enterprises is your Authorized ABB & Eaton Channel Partner. For genuine products, expert guidance, and 100% customer satisfaction:

WhatsApp: 919442633195
Email: info@shansen.in
Phone: +91 94426-33195

We’ll respond with competitive pricing and delivery options.

12. What warranty and support are provided?

1-year limited warranty against manufacturing defects.
Technical support via email or phone for installation and troubleshooting.
Access to authorized Eaton service centers nationwide.

13. Can I upgrade or expand my protection scheme?

Absolutely. The PLSI range offers:

Single-pole, double-pole, and 4-pole variants
Ratings from 6 A up to 63 A
Compatible RCCBs, RCBOs, and surge protectors for full panel integration.

Conclusion

The Eaton PLSI-C40/3-GI stands out for its “Made for India” reliability, high breaking capacity, and ease of installation. Whether you’re an electrical contractor, panel builder, or facility manager, these FAQs should help you specify, install, and maintain your MCB with confidence.
