FAQ: ABB AF16-30-10-11 Contactor

The FAQ offers comprehensive insights into the ABB AF16-30-10-11 Contactor, including its features, specifications, applications, and purchase options. This helps customers evaluate its capabilities and decide if it meets their specific requirements.

Frequently Asked Questions about the ABB AF16-30-10-11 Contactor

What is the ABB AF16-30-10-11 contactor designed for?

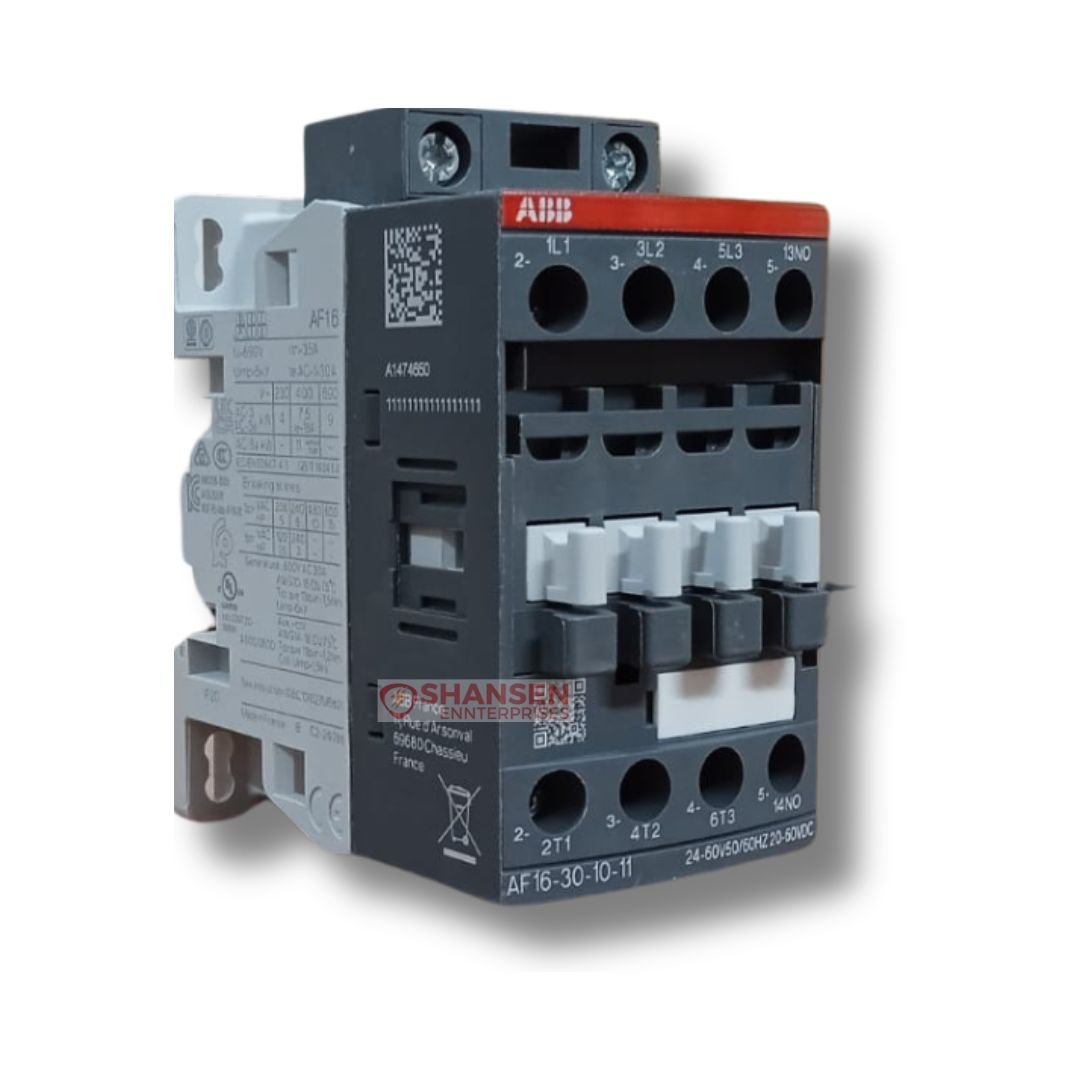

The ABB AF16-30-10-11 contactor is a 3-pole contactor designed for controlling motors and switching power circuits in industrial applications. It’s suitable for motors up to 7.5 kW at 400V AC (AC-3) or 10 HP at 480V UL, and can switch power circuits up to 30A (AC-1) or 30A UL general use.

What are the key benefits of using the ABB AF16-30-10-11 contactor?

Key benefits include:
Wide control voltage range: Adapts to voltage variations (24-60V 50/60 Hz and 20-60V DC) for seamless operation.
Built-in surge protection: Minimizes risks and provides a compact solution.
Energy efficiency: Reduces panel energy consumption.
Flexible design: Easily extended with auxiliary contact blocks and accessories.

What are the technical specifications of the ABB AF16-30-10-11 contactor?

The contactor has 3 main normally open (NO) contacts and 1 auxiliary normally open (NO) contact. It complies with IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, and CSA C22.2 No. 60947-4-1 standards. It has a rated operational voltage of 690V for both auxiliary and main circuits, and a rated frequency of 50/60 Hz. Refer to the product description for detailed information on rated operational current, power, short-time withstand current, and more.

What is “AF Technology” and how does it benefit the AF16-30-10-11 contactor?

“AF Technology” refers to ABB’s design that allows the contactor to operate over a wide range of control voltages. This eliminates the need for different contactors for different voltage levels, making the AF16-30-10-11 more versatile and adaptable to unstable power conditions.

What type of auxiliary contacts does this contactor have and can I add more?

This contactor comes with 1 Normally Open (NO) auxiliary contact. The contactor features a block-type design allowing for easy extension with add-on auxiliary contact blocks for customization.
What is the rated operational power (Pe) of the ABB AF16-30-10-11 contactor in AC-3 applications?
The rated operational power AC-3 (Pe) varies with voltage:
(400 V): 7.5 kW
(415 V): 9 kW
(440 V): 9 kW
(500 V): 9 kW
(690 V): 9 kW
(380 / 400 V): 7.5 kW
(220 / 230 / 240 V): 4 kW

Where can I purchase the ABB AF16-30-10-11 contactor?

You can purchase the ABB AF16-30-10-11 contactor from Shansen Enterprises, an authorized channel partner of ABB in Coimbatore, India. They offer service throughout India and can be contacted via WhatsApp for a quote.

What other ABB products does Shansen Enterprises offer?

Shansen Enterprises offers a wide range of ABB products, including contactors, relays, circuit breakers, auxiliary contact blocks, accessories, MCCB products, meters, mini contactors, motor starters, thermal overload relays, miniature circuit breakers (MCB), pilot lights, and switch disconnectors.
