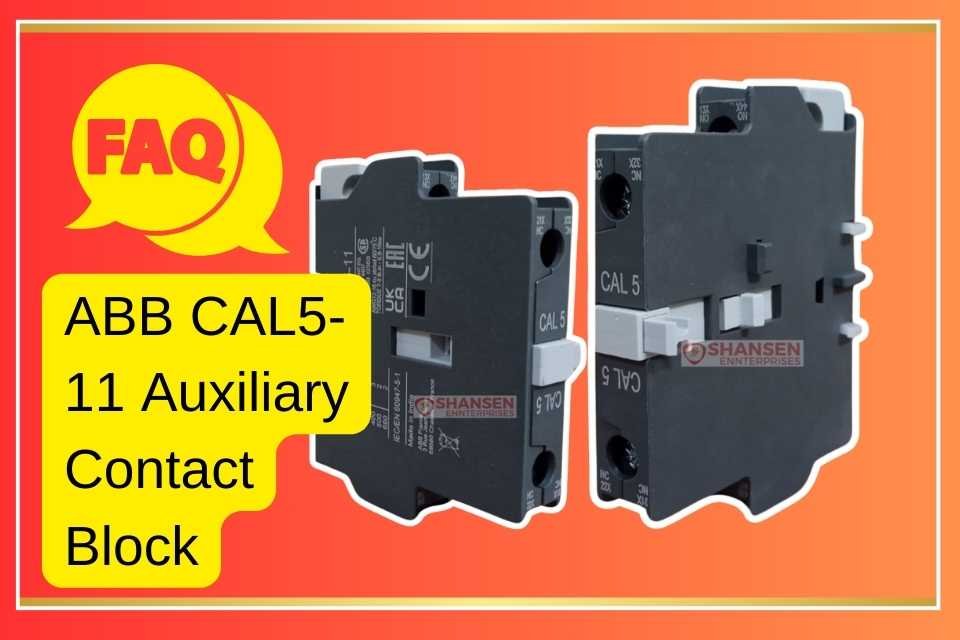

Customers often inquire about the ABB Brand CAL5-11 Auxiliary Contact Block. Here, we provide key details to help buyers like you make an informed purchase decision.
- What is an auxiliary contact block and what is its purpose?
- An auxiliary contact block is an additional component that can be attached to a main switching device like a contactor or circuit breaker to provide extra contacts for signaling or control purposes. These contacts operate in conjunction with the main device, allowing for indication of its state (open, closed, tripped) or for triggering other control circuits. They expand the functionality of the primary device without the need for additional, separate components.
- What are the key differences between the ABB AUX-C, CA4, CA5, CAL19, and CAL5 series of auxiliary contact blocks?
- The main differences lie in their configuration, intended compatibility, and mounting style. The AUX-C series is versatile, designed for XT1-XT6 circuit breakers, and offers changeover contacts for both open/closed status and tripped indication. The CA4 series (e.g., CA4-04E) provides multiple normally closed (NC) contacts. The CA5 series comes in various configurations, including single pole with a normally open (NO) contact (e.g. CA5-10) or a normally closed contact (e.g., CA5-01), or with a combination of both (e.g., CA5-22E), and they are often designed for front-mounting on A series contactors and N series contactor relays. The CAL19 series (e.g. CAL19-11B) is designed for larger AF116-AF370 contactors and their B variants. The CAL5 series (e.g., CAL5-11) is designed for side mounting on smaller A9-75 contactors and N contactor relays, and provides both normally open (NO) and normally closed (NC) contacts. Each series is engineered for specific use cases, and careful selection is important for proper integration.
- What does “N.O.” and “N.C.” mean in relation to auxiliary contacts?
- “N.O.” stands for Normally Open, which means the contact is open in the normal (de-energized) state and will close when the associated device (contactor or circuit breaker) is activated. “N.C.” stands for Normally Closed, which means the contact is closed in the normal state and will open when the associated device is activated. These terms are crucial for wiring control and indication circuits.
- What does front-mounted and side-mounted refer to for these contact blocks?
- Front-mounted refers to auxiliary contact blocks that are designed to be attached to the front of a contactor or relay. They are typically easy to access for installation and maintenance. Side-mounted auxiliary contact blocks are designed to clip on to the side of the contactor or relay, offering a different approach to integration.
- What is the significance of screw terminals and what are the advantages?
Screw terminals are a type of connection where wires are secured by tightening screws against the wire. They offer a robust and reliable connection, particularly beneficial in industrial settings where vibrations or mechanical stresses might be present. They also provide easy wiring and rewiring.
- What does it mean for a component to be “industrial grade”?
- “Industrial grade” means the component is designed and manufactured to meet the stringent requirements of industrial environments. These components are typically built to withstand harsh conditions, such as wide temperature ranges, vibration, dust, and chemical exposure. They are designed for long-term, reliable operation and often adhere to specific industry standards like IEC and UL.
- Who is Shansen Enterprises and what role do they play in providing these ABB products?
Shansen Enterprises is an authorized channel partner of ABB, specializing in the supply of ABB products such as contactors, relays, auxiliary contact blocks, RCCBs, switch disconnectors, and MCBs. They act as a reseller, providing these components to customers across India. They emphasize ready stock availability, quick response, and customer satisfaction. They are a trusted source for genuine ABB components.
- Where can I purchase ABB auxiliary contact blocks and how do I get a quote from Shansen Enterprises?
- You can purchase ABB auxiliary contact blocks from Shansen Enterprises, located in Coimbatore, Tamil Nadu. They serve customers throughout India. To get a quote, you can contact them directly via phone or email. You can also request a quote by tapping the “Get Quote via WhatsApp” button available on their product pages. This allows for quick communication and response regarding pricing and availability.
