If you’re considering the SECURE 500C-5102 Network Recorder-Energy Meter for your power monitoring needs, you’re in the right place. Below are some of the most frequently asked questions to help you understand its features, functionality, and why it’s a smart choice for modern energy management systems. Whether you’re a facility manager, technician, or consultant, this quick guide will clear up your doubts and help you make an informed decision.
❓ Frequently Asked Questions (FAQ)
About SECURE 500C-5102 Network Recorder – Advanced Power Monitoring Solution

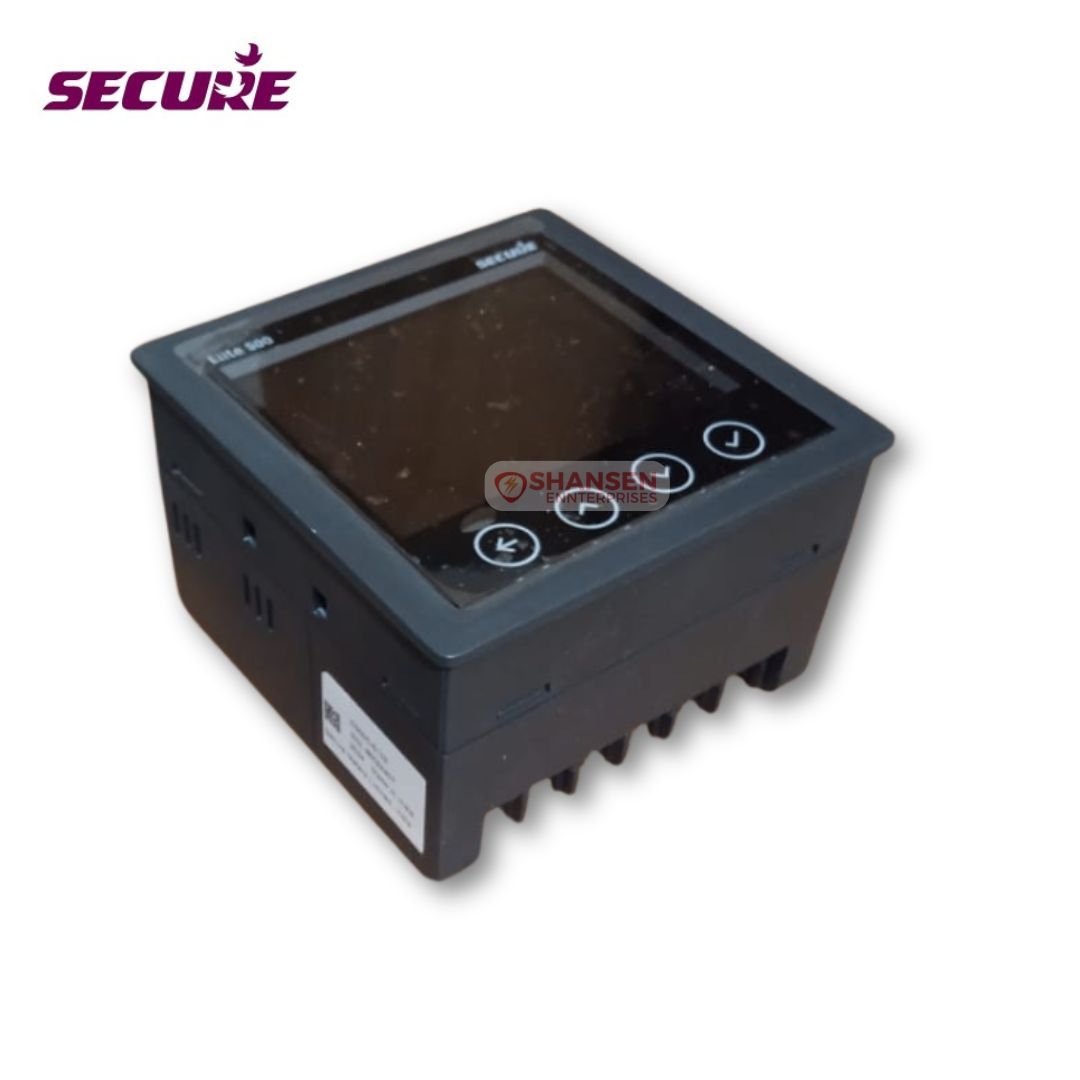

The SECURE 500C-5102 is a high-precision panel-mounted energy meter used for monitoring electrical parameters like voltage, current, active/reactive power, apparent energy, power factor, and harmonics in industrial and commercial electrical systems. It is commonly integrated into energy management and automation systems.
This meter operates at Class 0.5S, which ensures high accuracy in energy measurement – ideal for billing and detailed performance analysis in professional setups.
It supports an automatic range of nominal current up to 6A, with 5A/1A CT input compatibility. The voltage range is up to 500V Line-to-Line and 300V Line-to-Neutral, making it suitable for a wide range of electrical systems.
Yes! The SECURE 500C-5102 can measure and display harmonics up to the 15th order, helping engineers diagnose issues like waveform distortion and power quality problems.
Absolutely. It comes with Dual Loggers and 16MB of onboard memory, which can be configured to log either instantaneous or accumulated energy data over time.
You can access and retrieve data using RS485 Modbus RTU communication. Additionally, the meter supports optional protocol modules like Modbus TCP, BACnet IP, Profinet, and SCADA EC61850 for remote monitoring.

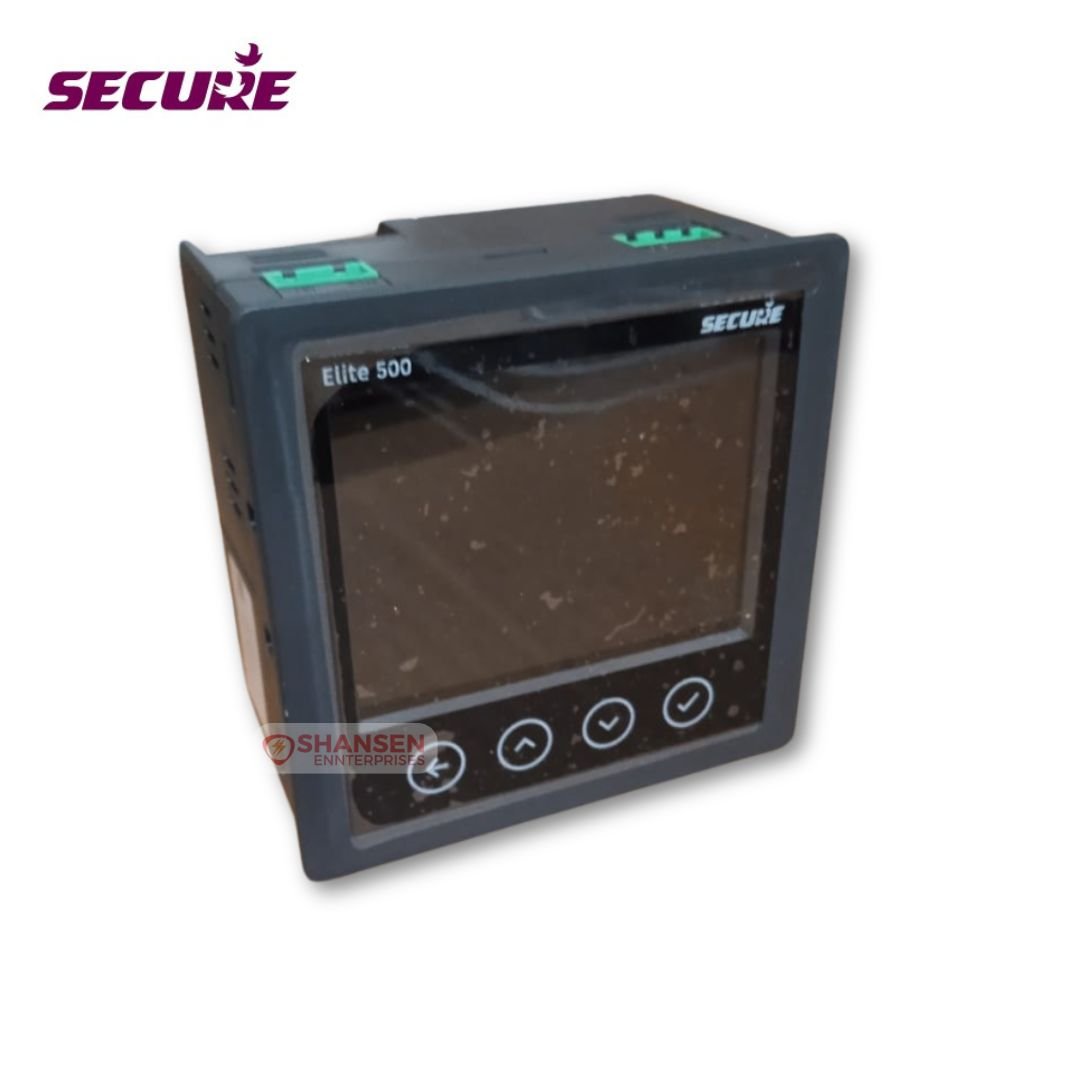

Yes! It features a bright TFT touchscreen display, offering a user-friendly interface for viewing and navigating energy parameters with ease.
It has configurable I/Os, which can be set up as 2 x Tariff Inputs, 2 x Pulse Outputs, or Alarm Outputs, offering flexibility based on your application needs.
The device operates on a wide auxiliary voltage range of 35–300V DC or 85–300V AC, offering installation flexibility across various systems.
You can purchase it from Shansen Enterprises in Coimbatore, an Authorized Channel Partner of Secure Brand products. They offer pan-India shipping, quick dispatch within 48 hours, and WhatsApp quote requests directly from the product page.
Yes, the meter supports optional SCADA EC61850 protocols, making it easily integrable into modern automation and supervisory control systems.
It’s ideal for manufacturing plants, power utilities, commercial buildings, infrastructure projects, and any facility that needs accurate energy consumption tracking and performance analysis.
