This FAQ covers the most common questions about Secure Maxchek 400 Demand Controllers, helping users understand its functions and capabilities. It explains how the device assists in managing power consumption and preventing penalties. Additionally, it provides essential details on its features, specifications, and other key information buyers should consider before making a purchase.
💡Maxchek 400 Demand Controller: Features and Specifications💡

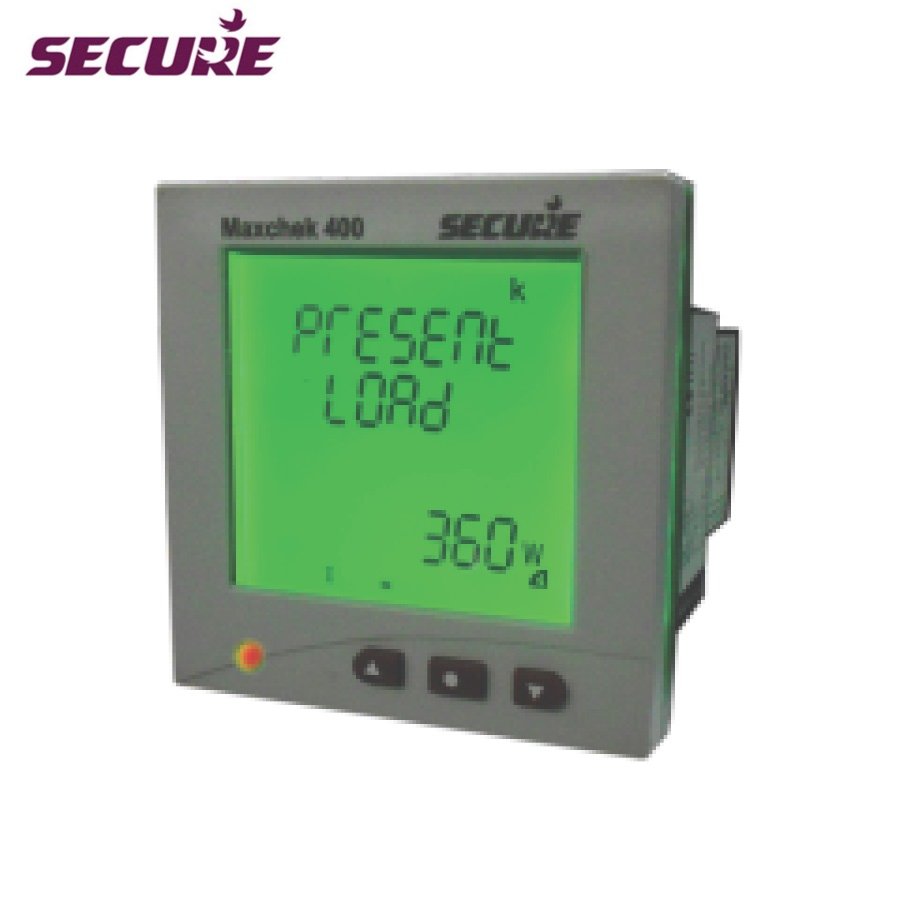

The Maxchek 400 is a multi-function panel meter designed to control electrical maximum demand for commercial and industrial users. Its primary function is to help large electricity consumers manage their power consumption and avoid exceeding their sanctioned load limit, thereby preventing stiff penalties from electricity supply utilities..
The Maxchek 400 operates as a predictive maximum demand controller (MDC). It monitors the current demand and provides stage-wise load disconnection of non-essential loads sequentially if the predefined demand limit is approached or exceeded. It can also restore those loads later to maximize the use of the sanctioned limit.
Key features include: Monitoring and control of sanctioned electrical maximum demand, flexible programming selection (with or without automatic load control), programmable sequential load tripping, shift-wise demand configuration, configurability for a wide range of applications and wiring types, power quality measurement, RS-485 and Ethernet communications ports for connection to external systems.
The Maxchek 400 is equipped with RS-485 and Ethernet communication ports. The RS-485 port supports Modbus protocol with baud rates from 1200-38400 bps (half duplex). The Ethernet port supports Modbus TCP protocol with 10/100BASE-T connectivity.
The Maxchek 400 supports a measurement voltage range of 57.7V (100V) – 240V (415 V) AC for 3 phase 4 wire (or 3 phase 3 wire) systems. The current range is field configurable with options for 1-2A and 5-10A. It operates at a main frequency of 50/60 Hz, ±5%.
The Maxchek 400 has 3 control relays for trip circuits with a rating of 2A at 230V AC. It also has 1 alarm relay for alarm circuits rated at 230V AC/DC at 100mA. All relays are single-pole, single-throw, normally open.
The Maxchek 400 can store 40 days of load profile data for 6 parameters, with a 30-minute integration period.
The Maxchek 400 has an ingress protection rating of IP54 for the front fascia and IP20 at the terminals.
Shansen Enterprises offers several advantages, including:
Ready Stock: No long waiting periods for the meter. Quick Dispatch: Orders are typically shipped within 48 hours.
Nationwide Delivery: They provide fast and efficient delivery services across India.
Easy Quotation: You can quickly obtain a price estimate via WhatsApp.
100% Customer Satisfaction Record.
💡Maxchek 400 Demand Controller: Features and Specifications💡
Shansen Enterprises promotes the Maxchek 400 demand controller, a device designed to help commercial and industrial users manage their electrical consumption. The Maxchek 400 monitors demand, disconnects non-essential loads to avoid penalties, and features communication ports for integration with external systems. This product is particularly useful for consumers facing strict limits on their electricity usage. Beyond the Maxchek 400, Shansen Enterprises offers a variety of electrical products from brands like ABB, Eaton Bussmann, and Lisha. Shansen Enterprises provides electrical equipment, including fuses, switches, and cables, available for purchase online or at their Coimbatore location.
