We know that customers often have questions about the ABB Brand System pro M Compact SB202M-C2 MCB, from its technical specifications to its benefits across different applications. To simplify your purchasing decision, we’ve compiled all the crucial details, including its key features, specifications, and advantages.
Frequently Asked Questions about ABB System pro M Compact SB202M-C2 Miniature Circuit Breaker
The primary function of the ABB System pro M Compact SB202M-C2 MCB is to provide reliable and current-limiting protection for electrical circuits. It safeguards against overloads and short circuits, ensuring the safety and efficiency of electrical installations in residential, commercial, and industrial settings. It is a 2-pole, C-curve, 2 Amp circuit breaker.
This MCB utilizes a dual tripping mechanism. It employs delayed thermal tripping for overload protection, which responds to sustained excessive current flow, and electromechanical tripping for short circuit protection, which reacts instantaneously to high fault currents. This dual system ensures comprehensive protection against various electrical faults.
Key features include current-limiting technology to minimize fault currents, dual tripping mechanisms for both overload and short circuit protection, versatile configurations to fit different installation requirements (though the specific model is 2P), a high breaking capacity of up to 10 kA at 240/415 V AC, and a wide range of available rated currents to meet diverse electrical demands. The specific model is rated for 2A.
The SB202M-C2 MCB is a 2-pole, C-curve miniature circuit breaker with a rated current of 2 A. It has a breaking capacity of up to 10 kA, an operational voltage of 240/415 V AC, and it complies with IS/IEC 60898-1 standards. It has an energy limiting class of 3, an electrical endurance of 20,000 AC cycles, and a mechanical endurance of 20,000 cycles. It is designed with a 2 N·m tightening torque and cage screw terminals.
This MCB is suitable for use in residential, commercial, and industrial applications. It is designed to protect homes from electrical faults, ensure safety in offices and retail spaces, and safeguard machinery and industrial installations. It is a general-purpose circuit breaker suitable for low current applications.
Compliance with IS/IEC 60898-1 standards ensures that the SB200M series MCBs meet internationally recognized safety and performance benchmarks for miniature circuit breakers used in household and similar installations. It signifies that the product has undergone rigorous testing to meet specific safety and performance criteria and is thus reliable for its intended use
You can purchase the ABB System pro M Compact SB202M-C2 MCB from Shansen Enterprises, an authorized channel partner of ABB products. They offer a comprehensive range of electrical products, including circuit breakers, contactors, relays, RCCBs, and more from brands such as ABB, Eaton, Leon, Lisha, Secure and others. They emphasize delivering high-quality products from ready stock with 100% customer satisfaction.
The SB202M-C2 has an operational voltage of 264 V AC maximum and 60 V DC maximum. It has a rated operational current of 2 A and a rated impulse withstand voltage of 4 kV. The mounting position is any and the recommended screwdriver is Pozidriv 2. It is designed to work with rigid wiring up to 25mm² and flexible wiring up to 16mm². It is constructed from insulation group II material with a RAL 7035 housing. It has a IP40 rating in an enclosure with a cover and has accessories available.

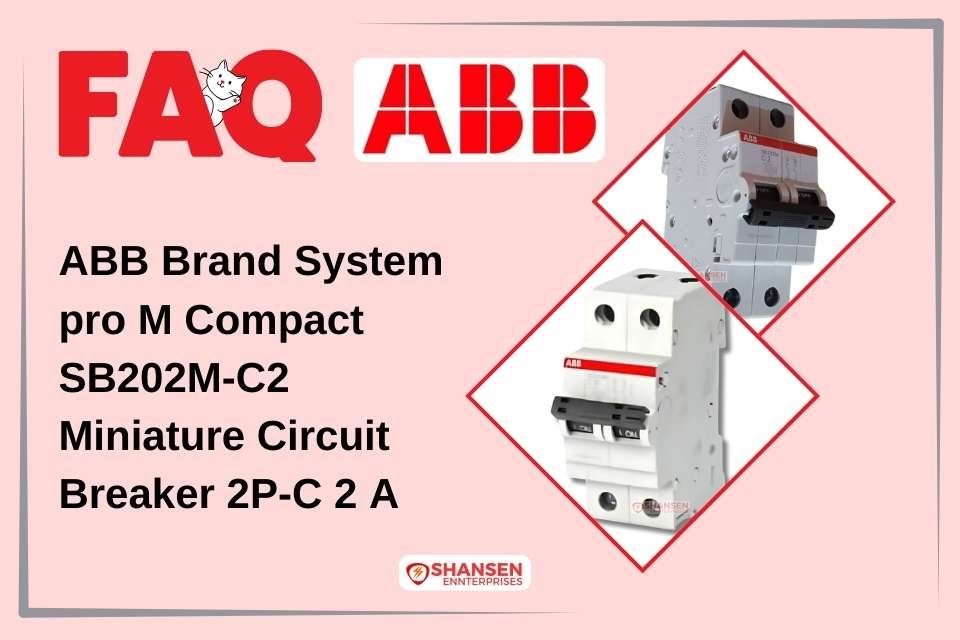

ABB System pro M Compact SB202M-C2 Miniature Circuit Breaker
Shansen Enterprises promotes the ABB System pro M Compact SB202M-C2 Miniature Circuit Breaker (MCB), a 2P-C 2 A device designed for electrical protection in residential, commercial, and industrial settings. This MCB offers current-limiting technology and dual tripping mechanisms to safeguard against overloads and short circuits. Compliant with IS/IEC 60898-1 standards, it features a high breaking capacity and versatile configurations. Shansen Enterprises, an authorized ABB partner in Coimbatore, emphasizes customer satisfaction and provides various electrical products, including circuit breakers, contactors, and relays. The SB202M-C2 MCB is marketed as a reliable solution to enhance the safety and dependability of electrical systems.
