FAQs: ABB SB204M-C1 Miniature Circuit Breaker

Welcome to our FAQ hub for the ABB SB204M-C1 MCB! If you’re considering this 4-pole, 1 A C-curve breaker for your next project—or simply want to understand how it works—these handy Q&As have you covered.

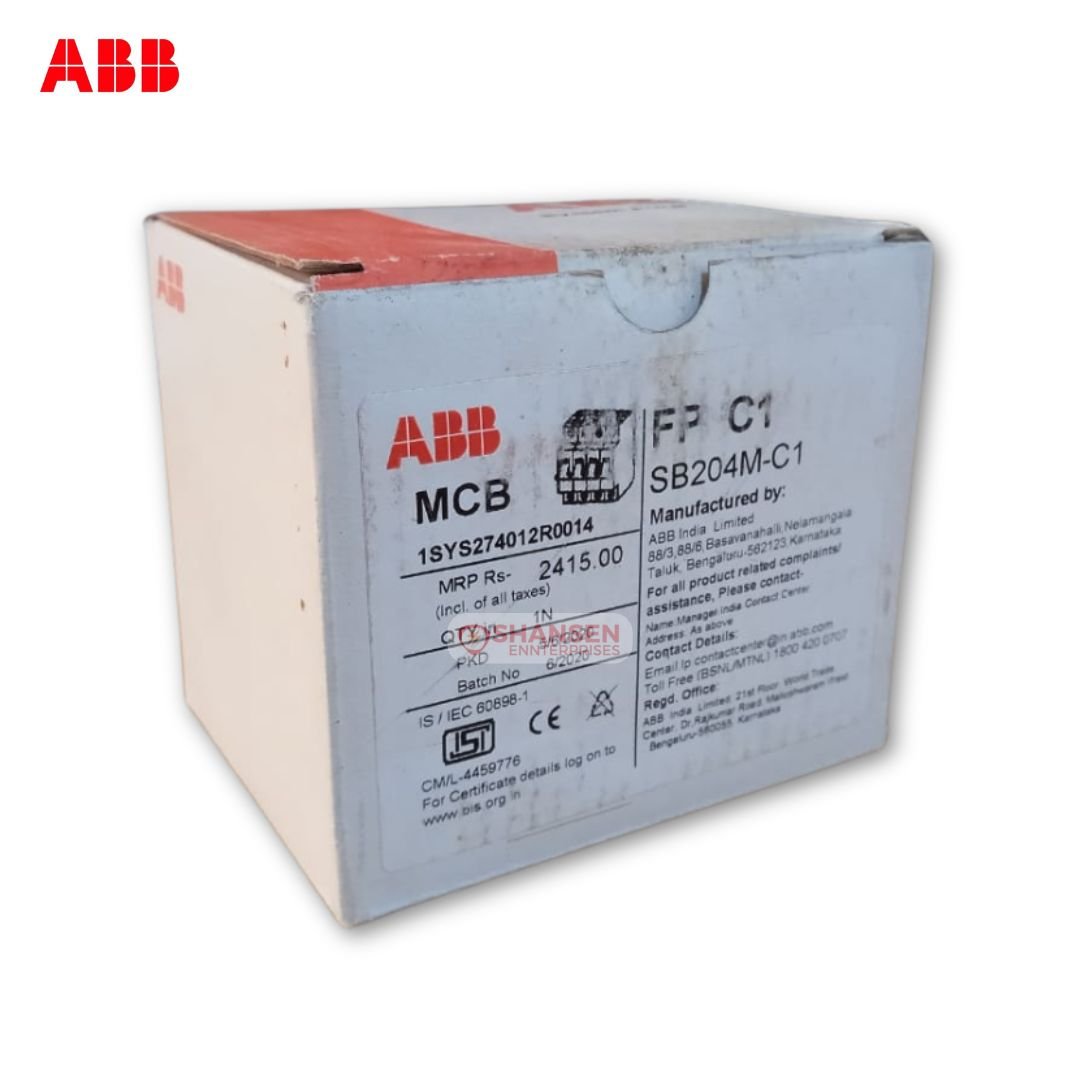

1. What is the ABB SB204M-C1 Miniature Circuit Breaker?

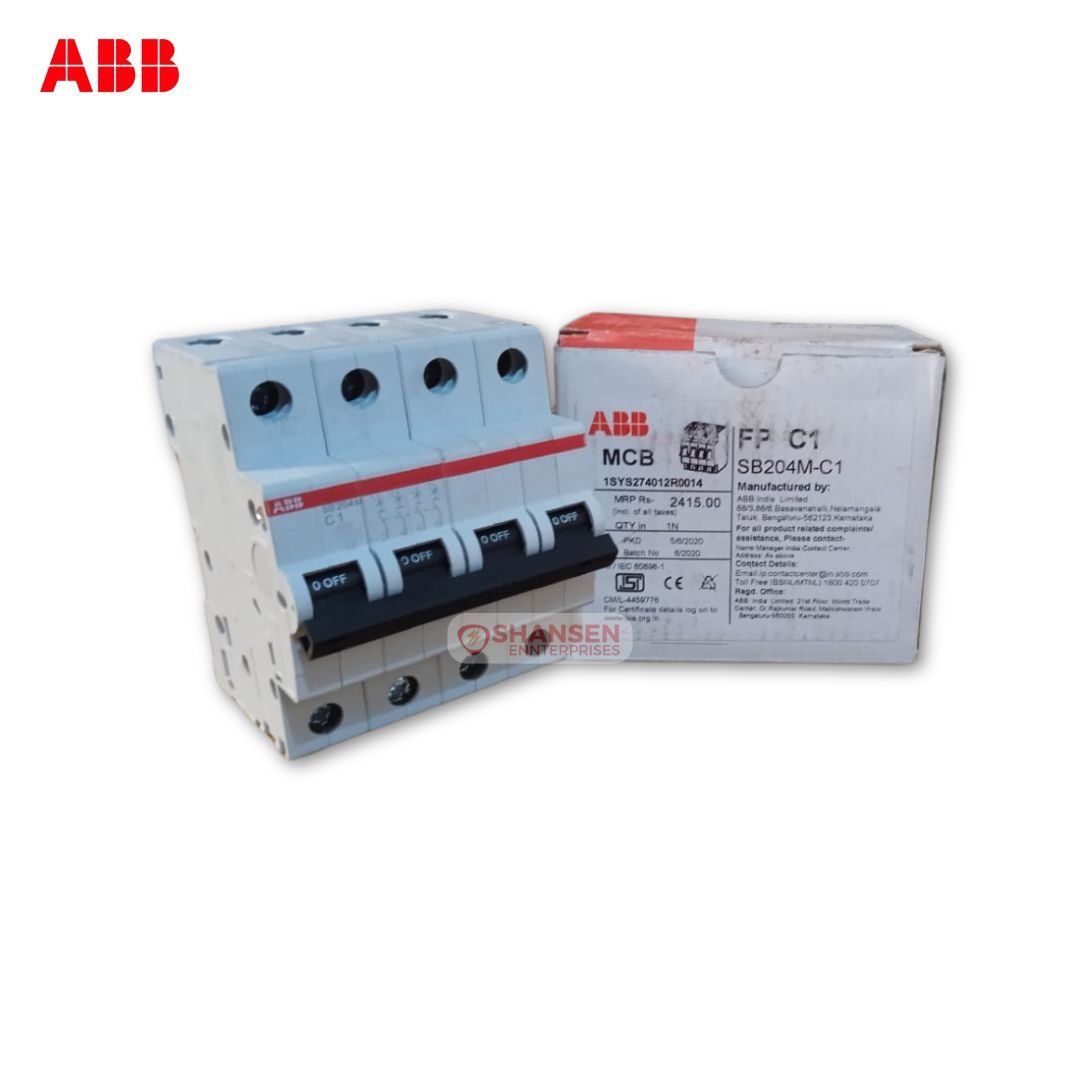

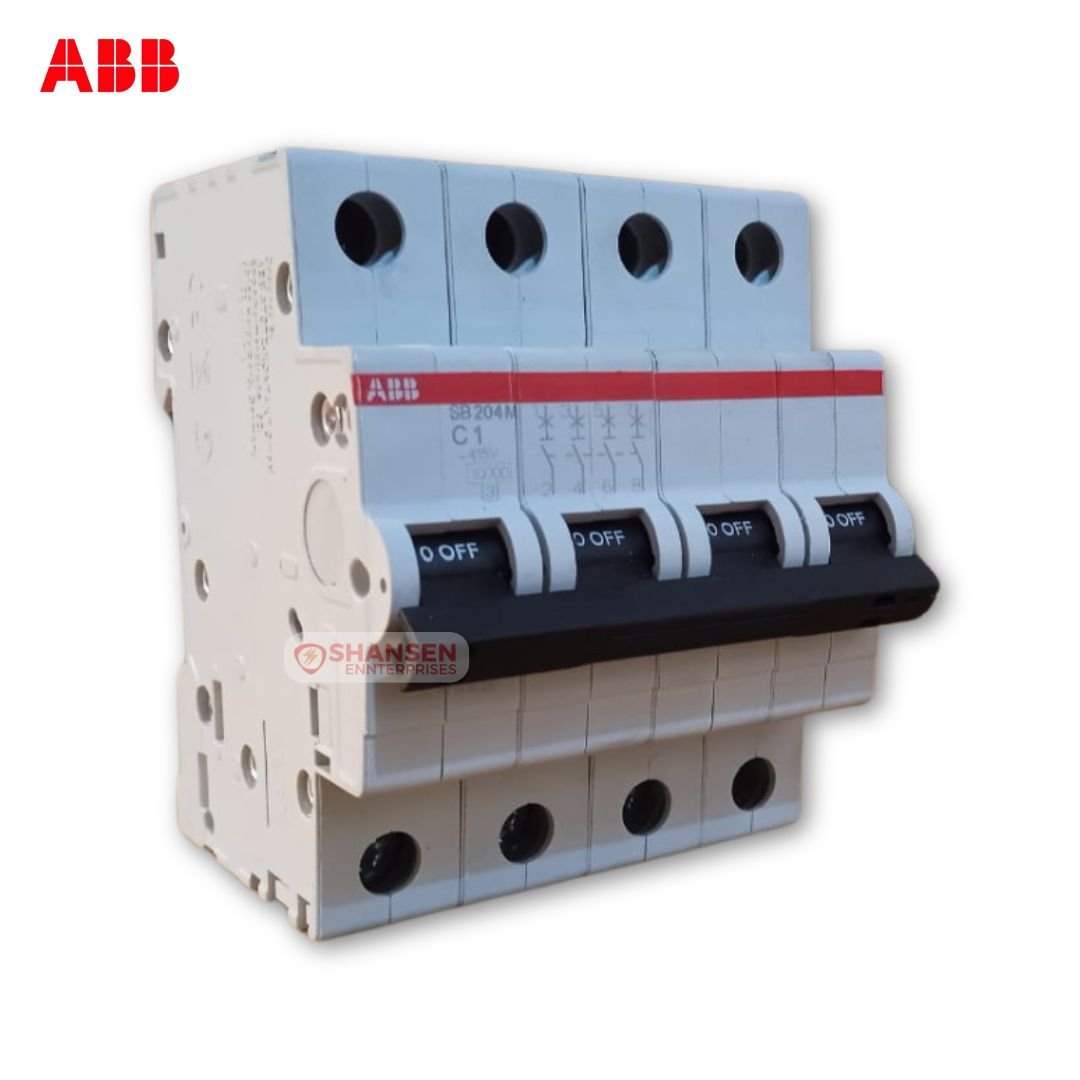

The SB204M-C1 is a compact, four-pole miniature circuit breaker from ABB’s System pro M series. Rated at 1 A with a C-characteristic curve, it provides precise overload and short-circuit protection for residential, commercial, and light-industrial installations.

2. What are the key technical specifications?

Standards: IS/IEC 60898-1 compliance (Overvoltage Category III)

Rated Current: 1 A

Tripping Curve: C-characteristic (thermal + magnetic)

Breaking Capacity: 10 kA at 240/415 V AC

Impulse Withstand Voltage (Uimp): 4 kV

Operational Voltage: up to 264 V AC / 60 V DC

Poles: 4 P

Dimensions: 70 × 85 × 69 mm

Weight: 0.47 kg

3. How does the C-curve tripping mechanism work?

A C-curve breaker trips when current reaches 5–10× its rated value. The thermal trip handles overloads slowly via a bimetallic strip, while the magnetic trip reacts instantly to high-fault currents (short circuits). This dual action ensures both sensitive overload protection and rapid short-circuit response.

4. Where is this MCB best used?

Light Industrial: Control panels for HVAC units, pumps, conveyor belts
Its C-curve balance makes it versatile for both inductive loads (motors) and purely resistive loads.

Residential: Main distribution boards, lighting circuits

Commercial: Small office panels, retail lighting

5. How do I install the SB204M-C1?

Switch ON and verify proper operation under no-load conditions before applying full system voltage.

Mount onto a standard 35 mm DIN rail—no extra hardware needed.

Connect incoming and outgoing conductors to the top/bottom terminals, tightening screws to a torque of 2 N·m.

Seal with the provided cover to maintain IP40 environmental protection.

6. What maintenance does it require?

Functional Test: Manually toggle ON/OFF periodically to ensure smooth operation; test trip response under simulated fault conditions if possible.

Visual Check: Inspect toggle lever and housing for cracks or discoloration every 6 months.

Tightening: Verify terminal screw torque (2 N·m) annually.

7. Can I use it on DC circuits?

Yes—up to 60 V DC. However, note that its 10 kA breaking capacity applies to AC use; DC switching performance will vary based on your installation’s characteristics. Always consult ABB’s technical datasheet for DC application guidance.

8. Why is breaking capacity important?

Breaking capacity (10 kA) indicates the maximum fault current the MCB can safely interrupt without damage. In high-fault environments, choosing an MCB with sufficient breaking capacity is crucial to protect both equipment and personnel.

9. How do I select the right MCB rating?

Environmental Category: Use Category III for distribution boards and Category II for appliance-level protection.

Load Current: Sum of all continuous currents downstream.

Inrush/Startup Peaks: For motors or transformers, consider 5–10× rated current; C-curve helps accommodate this.

Coordination: Match upstream/downstream breakers to avoid nuisance tripping.

10. Where can I get genuine ABB SB204M-C1 units?

Shansen Enterprises is your Authorized ABB Channel Partner for genuine ABB MCBs. For pricing, stock availability, and fast WhatsApp quotes, message us at: ABB SB204M-C1 MCB – Shansen Enterprises
