Frequently Asked Questions (FAQs) – ABB SB204M-C25 Miniature Circuit Breaker
Your go-to guide for everything you need to know about ABB’s trusted 4P, 25A MCB – System pro M compact SB204M-C25.

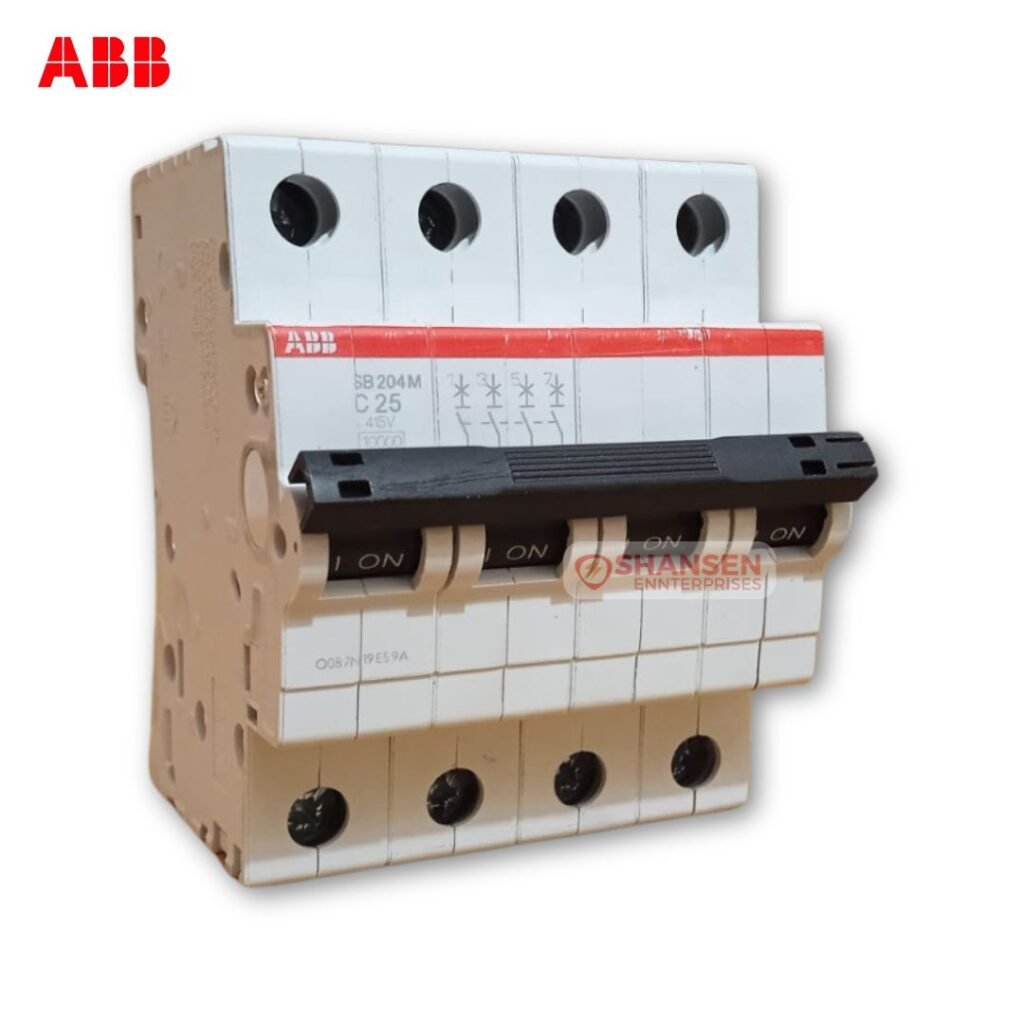

1. What is the ABB SB204M-C25 Miniature Circuit Breaker?
The ABB SB204M-C25 is a 4-pole, 25-amp Miniature Circuit Breaker from the SB200M series. It is designed for overload and short-circuit protection with a Type C tripping characteristic. Ideal for residential, commercial, and light industrial installations.
2. What does Type C tripping characteristic mean?
Type C MCBs trip when the current exceeds 5 to 10 times the rated current. This makes them suitable for circuits with moderate inrush currents such as fluorescent lighting and small motor loads.
3. What is the rated breaking capacity of this MCB?
The SB204M-C25 has a rated breaking capacity of 10 kA at 240/415 V AC, which ensures safe interruption of high fault currents without damaging the breaker or wiring.
4. Can I use this MCB in a residential application?
Yes, the SB204M-C25 is compliant with IS/IEC 60898-1 standards and is suitable for residential, commercial, and industrial use, depending on the load type.
5. What is the difference between SB200M and other ABB MCB series?
SB200M series MCBs are part of ABB’s System pro M compact range, designed for current-limiting protection. They feature advanced tripping mechanisms and are compact in size, making them ideal for high-density installations.
6. What are the voltage ratings for this model?
- Rated Voltage: 415 V AC
- Maximum Operational Voltage: 264 V AC / 60 V DC
- Impulse Withstand Voltage: 4 kV
7. What are the physical dimensions of the SB204M-C25?
This MCB has a compact footprint:
- Width: 70 mm
- Height: 85 mm
- Depth: 69 mm
- Weight: 0.47 kg
8. Is the product available in India?
Yes, the ABB SB204M-C25 is available in India. It is manufactured locally and distributed through authorized channel partners like Shansen Enterprises.
9. How do I place an order for this product?
You can get a quote and place your order through WhatsApp by contacting Shansen Enterprises, an authorized ABB Channel Partner. Enjoy expert guidance, genuine products, and 100% satisfaction.
10. What applications is the SB204M-C25 best suited for?
- Lighting Panels
- Office Distribution Boards
- Retail Units
- Small Industrial Equipment
- HVAC Sub-Circuits
- General Purpose Distribution
11. Does this MCB come with a datasheet?
Yes, the product datasheet is available upon request. Contact Shansen Enterprises via WhatsApp to receive the official ABB documentation.
12. What is the short-circuit protection mechanism?
The SB204M-C25 features an electromechanical tripping mechanism for short-circuit protection. It disconnects the circuit rapidly when fault currents are detected.
13. Is the ABB SB204M-C25 suitable for solar or inverter backup systems?
Yes, but it depends on the inverter’s surge profile and system configuration. Type C is often appropriate for moderate inrush, but always confirm with your system integrator or electrical consultant.
Still Have Questions?
Reach out to Shansen Enterprises on WhatsApp for technical support, pricing, and product availability. We are an official ABB Channel Partner with a 100% customer satisfaction record.
