Whether you’re an electrical contractor, facility manager, or DIY enthusiast, the ABB SB202M‑C63 2‑pole, 63 A Type C Miniature Circuit Breaker (MCB) delivers reliable overload and short‑circuit protection for residential, commercial, and industrial installations. Below, we’ve gathered the most common questions about this compact power-saver and answered them in clear, easy–to–understand language.
1. What exactly is the ABB SB202M‑C63 MCB?

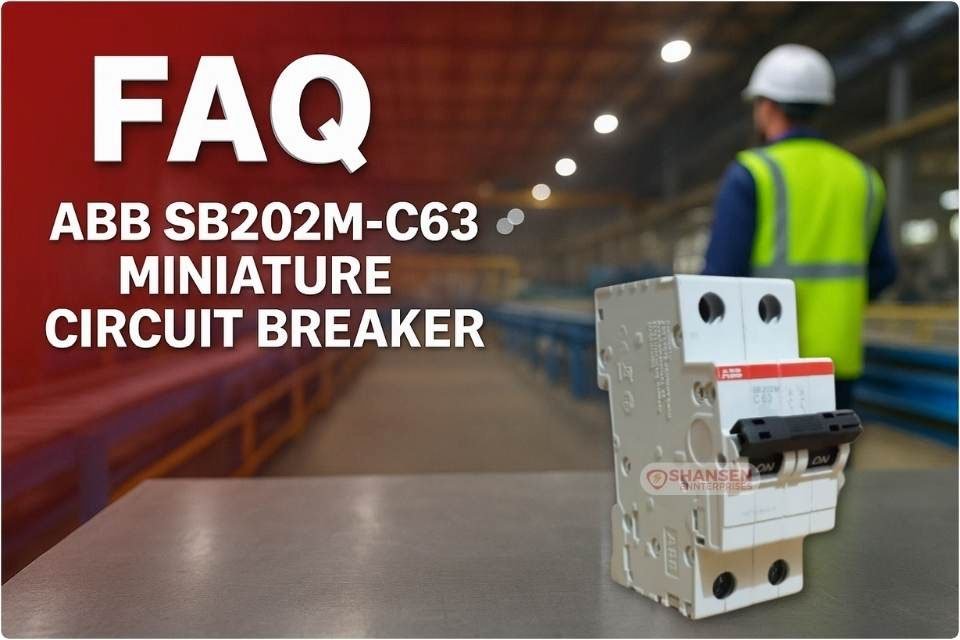

The SB202M‑C63 is part of ABB’s System pro M compact SB200M family of MCBs. It’s a two‑pole breaker rated at 63 amps with a Type C tripping characteristic. That means it handles normal overloads via a thermal trip and interrupts high‑fault currents instantly through an electromechanical trip. It complies with IS/IEC 60898‑1 standards, making it suitable for homes, offices, factories, and more.
2. What does “Type C” tripping characteristic mean?
Type C breakers are designed to trip when the current reaches 5 to 10 times their rated current. In plain English, the SB202M‑C63 will tolerate harmless inrush currents—like motor start‑ups—without nuisance trips, but will still react swiftly to genuine short‑circuits or dangerous overloads.
3. How does the SB202M‑C63 limit short‑circuit energy?
Thanks to its current‑limiting design and electromechanical trip, this MCB chops off high‑energy arcs in under a half‑cycle during severe faults. The result? Far less thermal and mechanical stress on your wiring and equipment, and a reduced fire hazard in critical applications.
4. What are the key specifications I should know?
| Specification | Detail |
|---|---|
| Rated Current (In) | 63 A |
| Rated Service Short‑Circuit Breaking Capacity (Ics) | 10 kA |
| Tripping Characteristic | Type C |
| Rated Voltage (Ur) | 415 V AC |
| Maximum Operational Voltage | 264 V AC / 60 V DC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Electrical Endurance | 10,000 AC cycles |
| Mechanical Endurance | 20,000 cycles |
| Poles | 2‑Pole (2P) |
| Dimensions (W×H×D) | 35 × 85 × 69 mm |
| Weight | 0.23 kg |
5. Where can I use this breaker?
- Residential: Main distribution boards, sub‑panels, and motor circuits
- Commercial: Office lighting, small HVAC systems, UPS lines
- Industrial: Control panels, machine tools, conveyor systems
- Specialty: Solar inverter inputs (DC), battery back‑up protection
6. How do I install the SB202M‑C63 on a DIN rail?
- Mounting: Hook the top of the breaker’s rear clip onto the top edge of your 35 mm DIN rail.
- Snap‑in: Press the bottom clip until it clicks securely.
- Wiring: Strip conductors to recommended lengths, insert into the cage terminals, and tighten to 2 N·m torque.
- Labeling: Mark pole and phase orientation clearly on your distribution board.
7. Can I get a quote and how fast will it ship?
Absolutely! Shansen Enterprises handles all inquiries via WhatsApp for quick, personalized quotes. Once confirmed, we dispatch within 48 hours using your choice of courier or transport service—nationwide, with our 100% satisfaction guarantee.
8. What accessories or add‑ons are available?
- Auxiliary Contact Blocks: For remote status indication
- Shunt Trips: For remote tripping capability
- Busbar Adapters & End Covers: For clean, safe panel layouts
Yes, accessories are available to customize the SB202M‑C63 for your application.
9. How does this breaker compare to competitors?
- Faster Fault Clearing: ABB’s current‑limiting design outpaces many standard breakers.
- Higher Endurance: 20,000 mechanical cycles—ideal for frequent switching.
- Global Standards: IS/IEC 60898‑1 compliance ensures consistent performance worldwide.
10. Who do I contact for technical support or warranty?
Shansen Enterprises provides full technical assistance and a manufacturer‑backed warranty. Just WhatsApp us your query or call our Coimbatore office for prompt support.
Still have a question? Drop us a WhatsApp message today, and we’ll be happy to help you choose the perfect protection solution for your project!
