When it comes to solar photovoltaic (PV) systems, safety and reliability are everything. A fuse base may look simple, but it plays a critical role in protecting your solar investment from overcurrents and faults. The Eaton Bussmann SD3L-S-PV Fuse Base is a trusted choice worldwide, designed specifically for high-performance PV systems. Rated at 500 Amps and 1500 V DC, this single-pole fuse holder is built to house Bussmann XL size 3L fuses, making it ideal for combiner boxes, inverters, and utility-scale installations.
In this guide, we’ll cover:
- What makes the SD3L-S-PV unique
- Its role in solar applications
- Installation tips and best practices
- Common mistakes to avoid
- Where to buy genuine units in India
🔎 What is the Eaton Bussmann SD3L-S-PV Fuse Base?
The SD3L-S-PV is part of Eaton’s Bussmann XL series of fuse bases, specifically designed for PV protection.
Quick Specs:
- Current Rating: 500 A
- Voltage Rating: 1500 V DC
- Fuse Size Supported: 3L (Photovoltaic)
- Poles: Single-pole
- Certifications: IEC 60269-2, UL Listed, CE Marked, RoHS Compliant
- Dimensions: 22 mm x 22 mm x 58 mm
- Weight: 242 g
These features make it one of the most robust solutions for handling high DC voltages in solar installations.
☀️ Why PV Fuse Bases Matter in Solar Systems
Solar arrays operate at high DC voltages, which increases the risk of arc faults and overcurrents. A PV fuse base ensures that the fuse is mounted securely, making replacement and system maintenance safe and efficient.
Without a reliable fuse base, issues such as loose connections, overheating, or poor isolation can compromise both safety and system performance.
🔧 Key Features and What They Mean for Installers
- 500A / 1500V DC Rating → Handles high-capacity PV arrays safely.
- Single-Pole Design → Simplifies installation and maintenance.
- Compact Size → Saves valuable panel space.
- Certifications (UL, IEC, CE) → Ensures compliance with global standards.
- Durable Construction → Withstands harsh environmental conditions in solar farms.
🛠 Step-by-Step Installation Checklist
⚠️ Always follow Eaton’s official datasheet and safety procedures.
- Preparation: Confirm system voltage, current, and fuse compatibility (size 3L).
- Tools & PPE: Use insulated tools and proper protective gear.
- Mounting: Install the fuse base securely in the combiner box or panel.
- Fuse Insertion: Place the Bussmann size 3L PV fuse correctly in the holder.
- Connections: Tighten terminals with correct torque (per datasheet).
- Verification: Check polarity, continuity, and insulation resistance.
⚠️ Common Mistakes to Avoid
- Using non-compatible fuse sizes
- Installing in AC circuits (this is DC-specific)
- Loose connections leading to overheating
- Ignoring torque specifications
- Placing near high-heat sources without proper ventilation
📌 Applications & Who Should Use It
- Utility-Scale PV Power Plants
- Commercial Rooftop Solar Installations
- PV Combiner Boxes
- Inverter Protection Circuits
- Industrial DC Power Distribution
📊 Comparison: SD3L-S-PV vs Other PV Fuse Bases
| Feature | Eaton Bussmann SD3L-S-PV | Generic PV Fuse Base |
|---|---|---|
| Voltage Rating | 1500 V DC | 1000–1500 V DC |
| Current Rating | 500 A | 250–500 A |
| Fuse Size | 3L Photovoltaic | Varies |
| Certifications | UL, IEC, CE, RoHS | Varies (not always) |
| Durability | High, PV-specific | General-purpose |
🛡 Maintenance, Inspection & Troubleshooting Tips
- Inspect terminals every 6–12 months for corrosion or overheating.
- Verify that bolted connections remain tight.
- Replace fuses showing signs of discoloration or wear.
- Keep dust and moisture away from installation site.
🛒 Where to Buy & Support
Looking for genuine Eaton Bussmann SD3L-S-PV Fuse Bases in India?
👉 Get them from Shansen Enterprises – your trusted channel partner of ABB, Eaton Bussmann, and SECURE Meters.
- ✅ 100% customer satisfaction record
- 🚚 Delivery across India
- 📲 Quick and easy WhatsApp quotes
❓ FAQs
Q1: Is the SD3L-S-PV suitable for AC circuits?
No, it is designed specifically for 1500 V DC photovoltaic applications.
Q2: Which fuses are compatible?
It supports Eaton Bussmann XL size 3L photovoltaic fuses.
Q3: Can I use it in large solar farms?
Yes — with a 500A/1500V DC rating, it’s widely used in utility-scale PV systems.
✅ Conclusion
The Eaton Bussmann SD3L-S-PV Fuse Base offers unmatched reliability for solar PV protection. Its high DC rating, compact design, and international certifications make it an ideal choice for installers and project developers who demand safety and performance.
📲 Ready to order? Contact Shansen Enterprises on WhatsApp today for a quick quote and delivery across India.

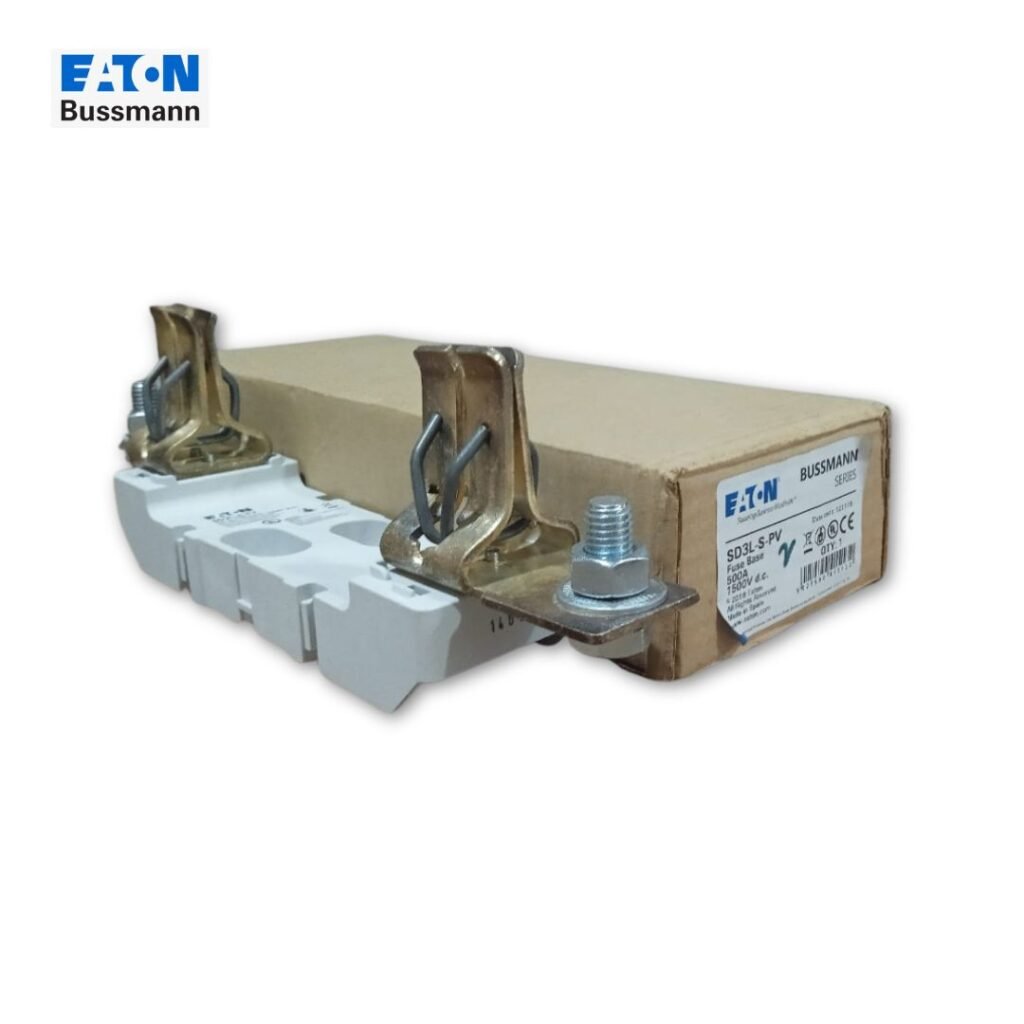

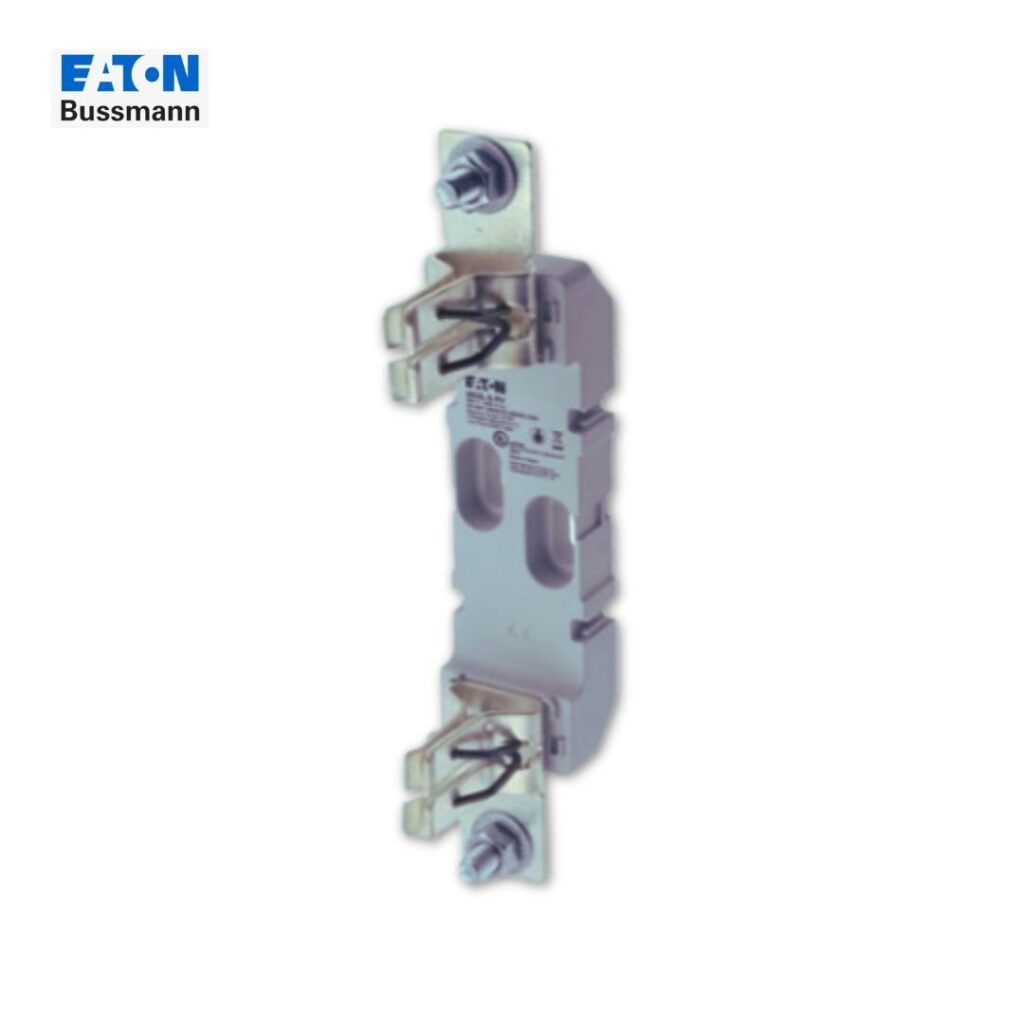

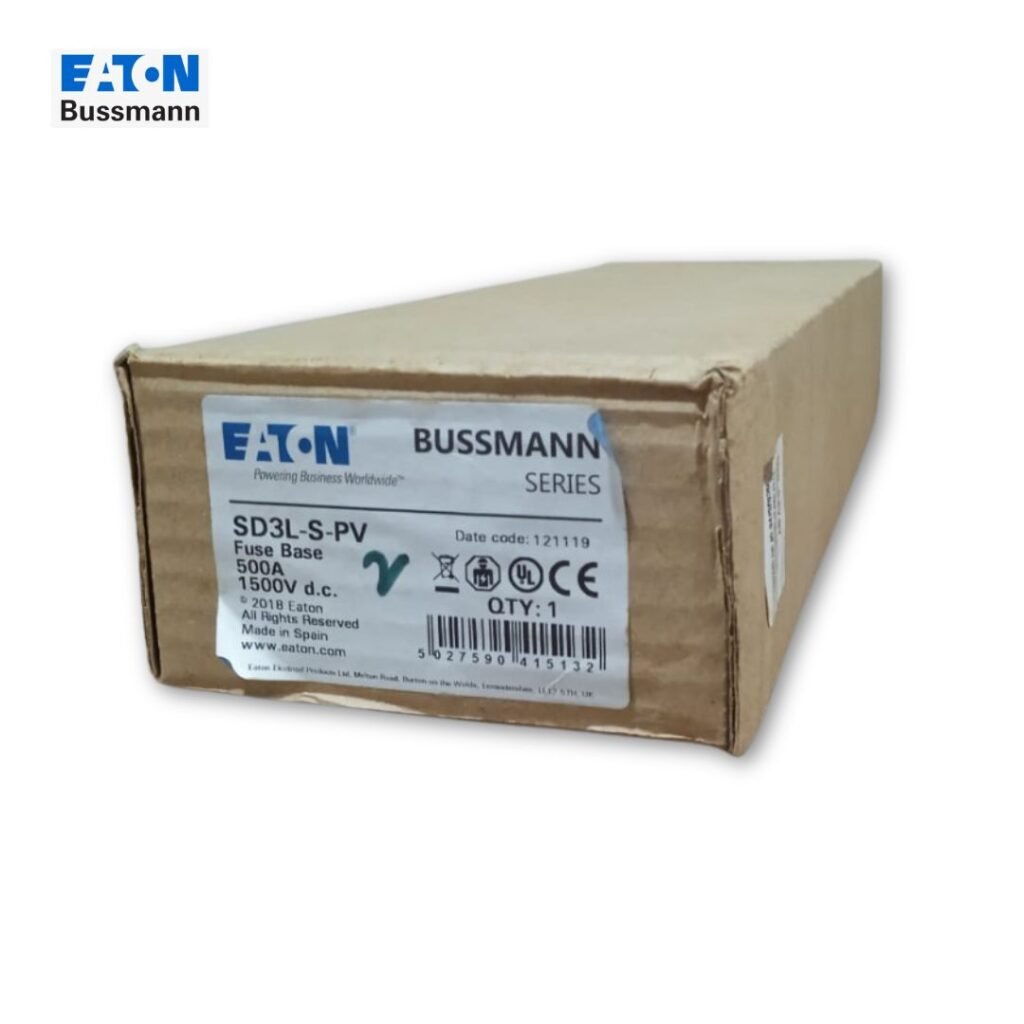

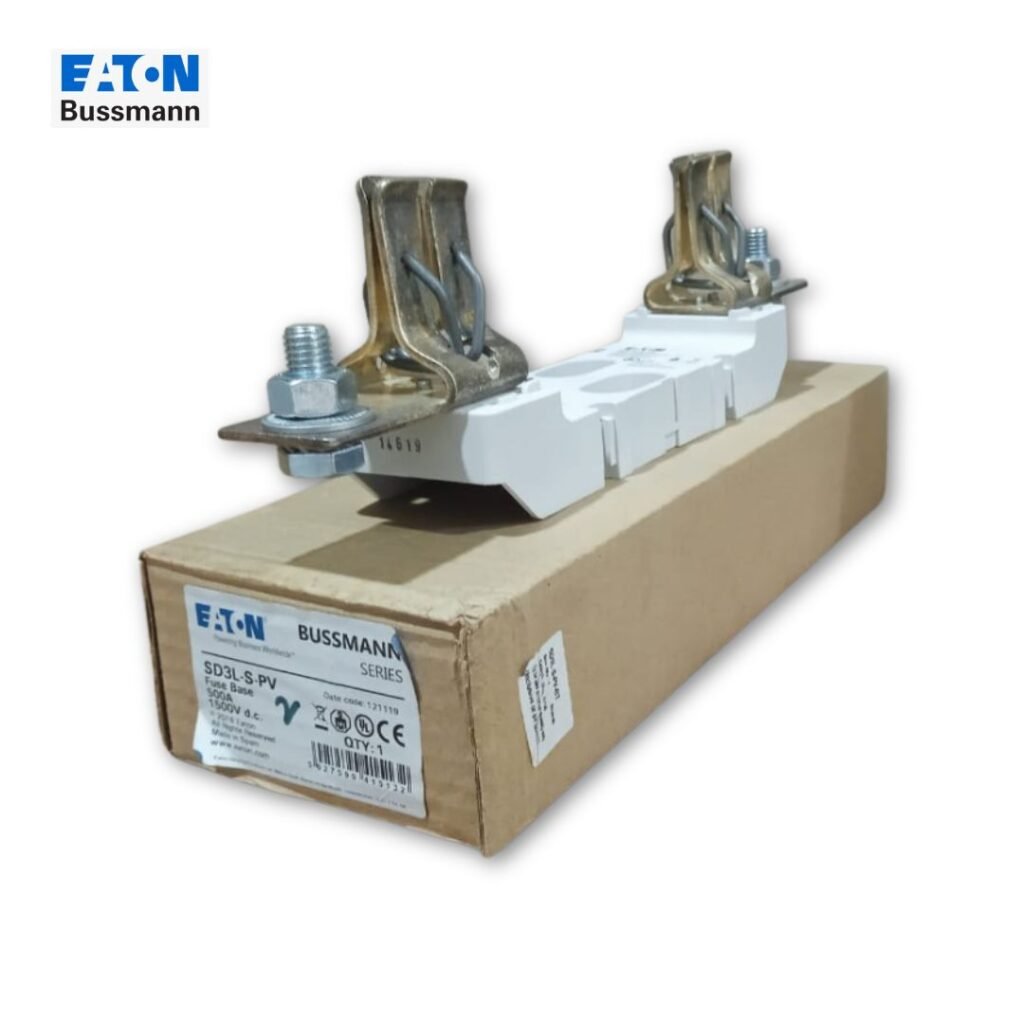

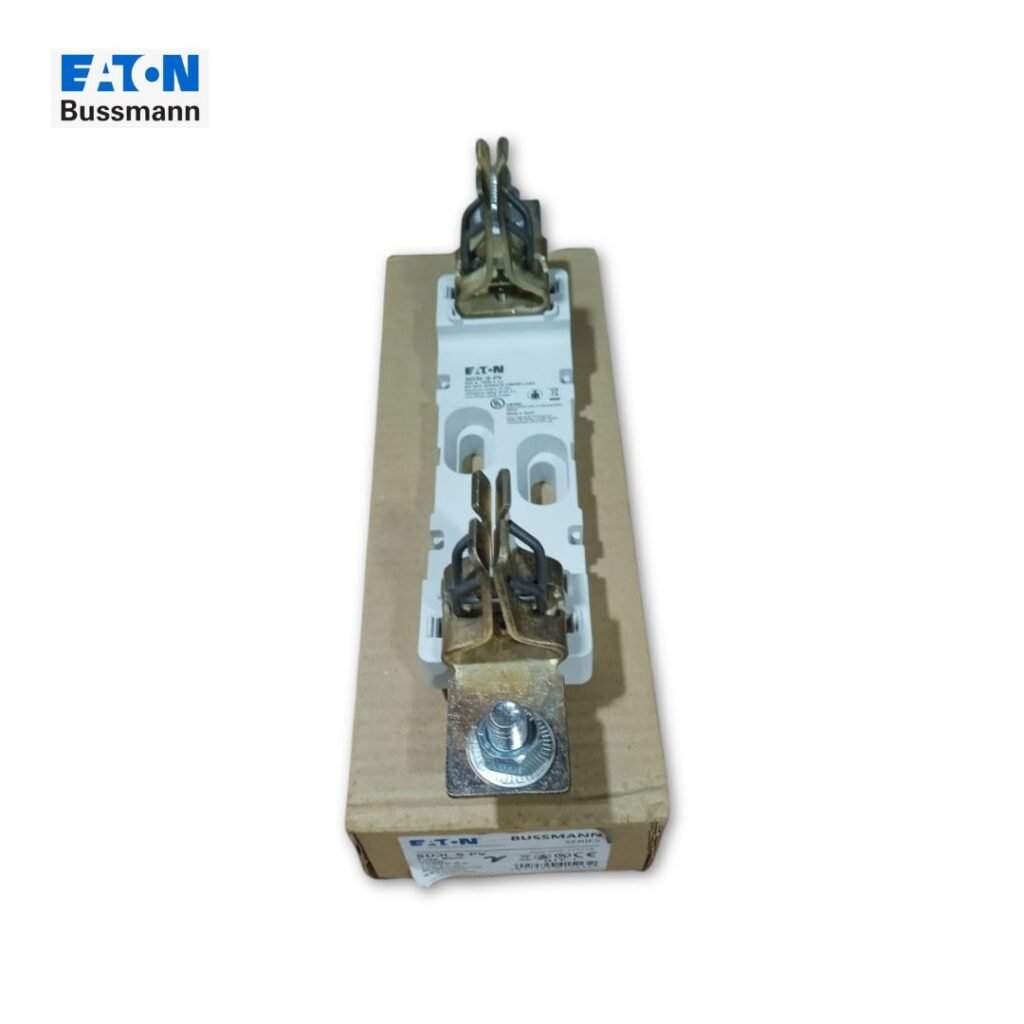

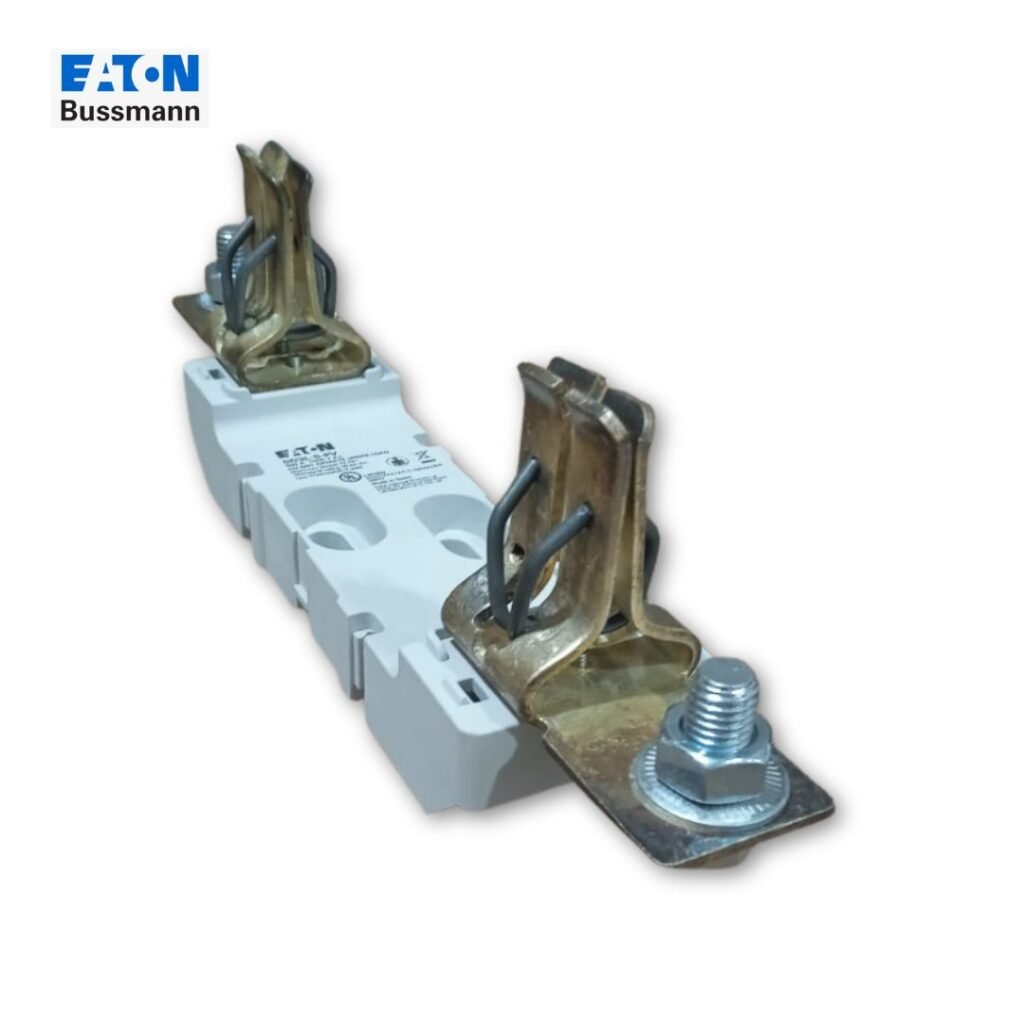

Eaton Bussmann SD3L-S-PV Fuse Base Gallery
