Unpacking the Eaton 250FM Fuse

In the intricate world of electrical systems, from industrial powerhouses to sophisticated data centers, the demand for robust and rapid circuit protection cannot be overstated. Power surges, short circuits, and overloads can wreak havoc on sensitive equipment, leading to costly downtime, damaged components, and even safety hazards. This is where the unsung heroes of electrical protection come in: fuses. And when it comes to safeguarding high-value, sensitive electronics, you need a fuse that’s not just reliable, but lightning-fast.

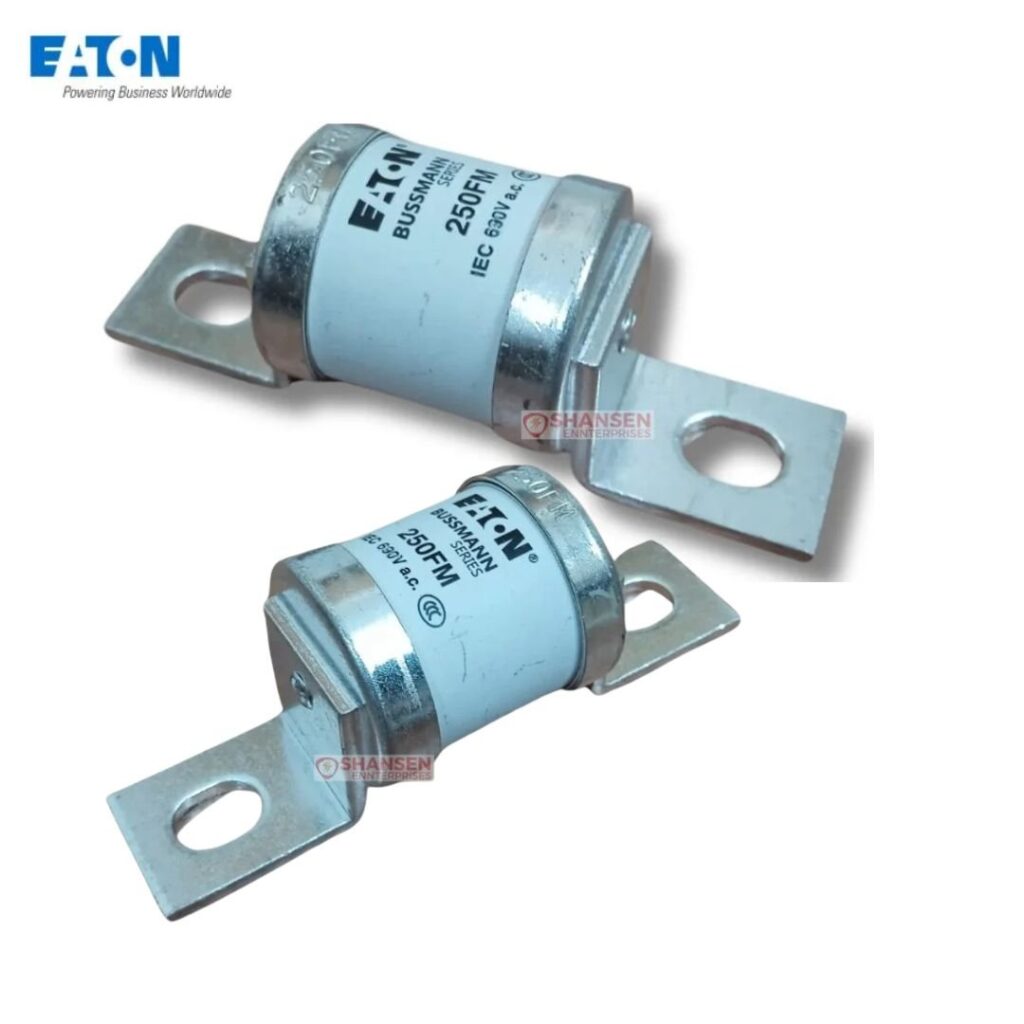

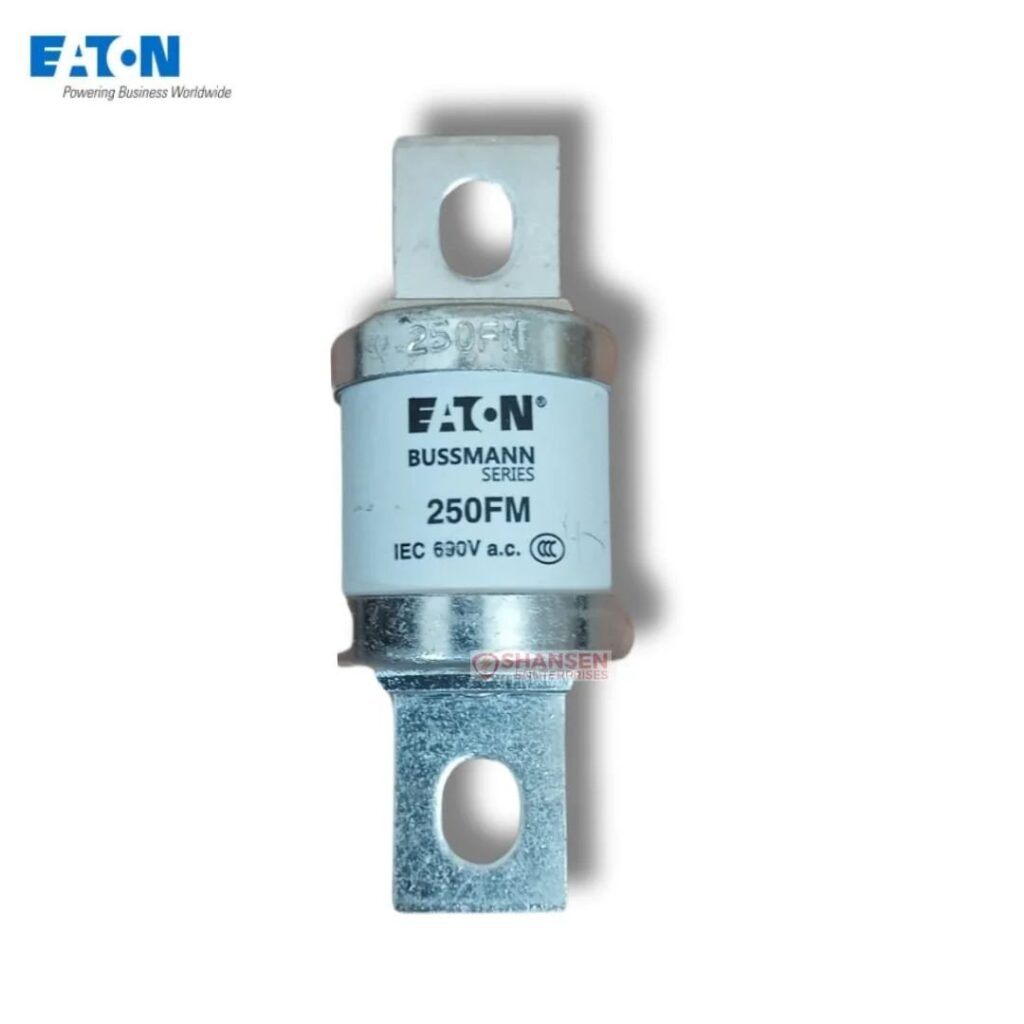

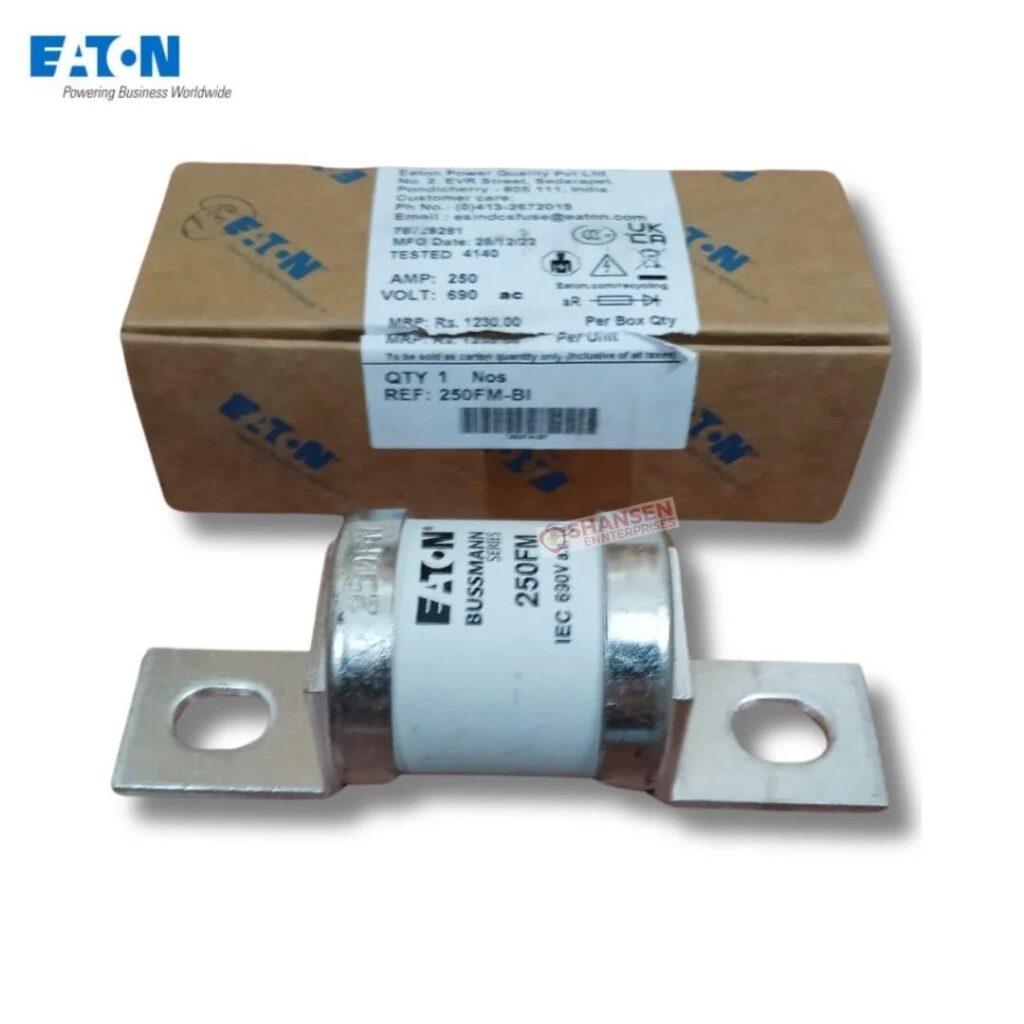

Today, we’re putting the spotlight on a true champion of rapid protection: the Eaton Bussmann Series High Speed Fuse 250FM. This isn’t just any fuse; it’s a meticulously engineered solution designed to deliver unparalleled performance and peace of mind.

The Need for Speed: Why “High Speed” Matters

Imagine a sudden, massive surge of electricity – a short circuit. In the blink of an eye, thousands of amps can attempt to flow through your system. For components like semiconductors, DC drives, power converters, and rectifiers, even a momentary exposure to such extreme currents can be catastrophic. Traditional fuses, while effective, might not react quickly enough to prevent damage to these ultra-sensitive devices.

This is precisely where the Eaton Bussmann 250FM excels. As a “high-speed” (Class aR) fuse, it’s engineered to interrupt fault currents almost instantaneously, drastically limiting the energy that reaches your critical equipment. Think of it as an electrical sprinter, ready to react before the race even fully begins, shutting down the threat with incredible precision.

A Deep Dive into the 250FM’s Robust Capabilities

Let’s break down what makes the 250FM a standout performer:

Powerful Amperage & Versatile Voltage: With an Amperage Rating of 250A, this single-barrel fuse is built to handle significant current loads. Its impressive voltage ratings – 690 VAC (IEC) and 700 VAC (UL) for alternating current, along with 450 VDC (IEC) and 500 VDC (UL) for direct current – highlight its exceptional versatility, making it suitable for a vast array of AC and DC applications across different global standards.
Unmatched Interrupting Capacity: When a fault occurs, you need a fuse that won’t just trip, but will decisively clear the fault. The 250FM boasts an incredible interrupt rating of 200 kA RMS Symmetrical (IEC/UL) for AC faults. For DC systems, it’s equally formidable, offering 40 kA at 450 VDC (IEC) and 50 kA at 500 VDC (UL). These high ratings mean the fuse can safely interrupt even severe short-circuit currents without exploding or sustaining damage, protecting both your equipment and personnel.
Class aR: The Epitome of Rapid Action: The “aR” classification is key. It signifies an “all-range, rapid-acting” fuse. This means it provides protection across the entire range of potential overcurrents, from small overloads to catastrophic short circuits, always with rapid response times. This precision is vital for the semiconductor protection it’s designed for.
Critical I²t Values for Coordinated Protection: For engineers, the Pre-arc (I²T) of 5200 and Clearing (I²T) of 20500 at 415 V (37500 at 660 V) are crucial. These values represent the amount of energy (in Ampere-squared seconds) that the fuse “lets through” before it melts (pre-arc) and completely clears the fault (clearing). Lower I²T values mean less energy is allowed to pass during a fault, minimizing damage to downstream components. This allows for precise coordination with other protective devices in a system.
Efficient Operation: With Watt losses of just 48 W, the 250FM is designed to operate efficiently, minimizing energy wastage during normal operation.

Where the 250FM Shines: Key Applications

The Eaton Bussmann 250FM fuse is specifically designed for demanding applications where speed and reliability are non-negotiable:

Semiconductor Protection: The primary use case. Its high-speed action is perfect for protecting sensitive power semiconductor devices like rectifiers, thyristors, and IGBTs, which are highly susceptible to damage from overcurrents.
DC Common Bus: Essential for safeguarding DC power distribution systems.
DC Drives: Critical for protecting the electronics in variable speed drives used in industrial machinery.
Power Converters/Rectifiers: Ensuring the safe operation of equipment that converts AC to DC power, or vice versa.

Built to Global Standards, Backed by Trust

Choosing a fuse from Eaton Bussmann isn’t just about selecting a component; it’s about investing in a legacy of excellence. The 250FM comes with a host of certifications and compliances, testifying to its quality and adherence to international safety standards:

CE Marked & RoHS Compliant: Meeting European health, safety, and environmental protection standards.
UL Recognized & IEC Rated: Ensuring it meets the rigorous requirements of both the Underwriters Laboratories (UL) and the International Electrotechnical Commission (IEC).
Designed and tested to BS88 part 4 IEC 60269-4: Adhering to British and international standards for low-voltage fuses.
CCC Certified: Meeting the mandatory certification requirements for products sold in China.

Furthermore, its compatibility with accessories like the MC-600 Trip indicator kit (indicator + clips), TI700 Fuse indicator, MAI Microswitch/adaptor, and MBI Microswitch/adaptor allows for seamless integration into larger monitoring and control systems, providing immediate fault indication and enabling rapid response.

The Eaton Bussmann Advantage

For over a century, Bussmann (now part of Eaton) has been synonymous with circuit protection innovation and reliability. The 250FM fuse continues this tradition, offering cutting-edge technology wrapped in a robust, dependable package.

In a world where electrical reliability directly impacts productivity and safety, the Eaton Bussmann 250FM High-Speed Fuse stands as a critical investment. It’s more than just a fuse; it’s a silent guardian, diligently standing guard to protect your most valuable electrical assets, ensuring continuous operation and ultimate peace of mind.
