Mastering Auxiliary Contact Blocks: A Guide to Enhanced Electrical System Control

Auxiliary contact blocks might not always take center stage in electrical systems, but their importance is undeniable. These compact yet powerful components play a pivotal role in extending the capabilities of devices like contactors and circuit breakers. By adding extra contact points, they enhance monitoring, control, and signaling functions, making them indispensable in modern electrical setups.

In this blog, we’ll dive into the essentials of auxiliary contact blocks, explore their features, and highlight some top-notch options from ABB.

What Are Auxiliary Contact Blocks?

Auxiliary contact blocks are add-on components designed to provide supplementary functionality to primary electrical devices. They work by delivering additional contact points, enabling advanced operations that go beyond the core functions of the main device.

Why Are They Essential?

Auxiliary contact blocks enhance your electrical systems in several ways:

Contact Capacity Expansion: Add extra contact points when the main device doesn’t have enough.

Status Indication: They communicate the operational state (open/closed) of the main device.

Trip Indication: Signal when a circuit breaker has tripped, helping you identify faults quickly.

Control Functions: Trigger other devices or systems based on the main device’s status.

Key Features to Look For

When choosing an auxiliary contact block, here are some important features to consider:

Contact Configurations

• Normally Open (N.O.): Remains open in the normal state and closes when activated.
• Normally Closed (N.C.): Stays closed in the normal state and opens when activated.
• Changeover (SPDT): Offers both N.O. and N.C. functions in a single unit.

Mounting Options

• Front-Mounted: Easily attaches to the front of the main device.
• Side-Mounted: Fits snugly on the side for a more compact setup.

Terminals and Ratings

• Screw Terminals: Provide secure and reliable connections.
• Voltage and Current Ratings: Ensure compatibility with your system’s specific needs.

Durability and Protection

• Rugged Design: Built to withstand industrial environments.
• IP20 Protection: Guards against solid objects, ensuring longevity and safety.

Compatibility

Auxiliary contact blocks are often tailored to work seamlessly with specific contactors, relays, or circuit breakers, making it crucial to pick the right one for your setup.

---

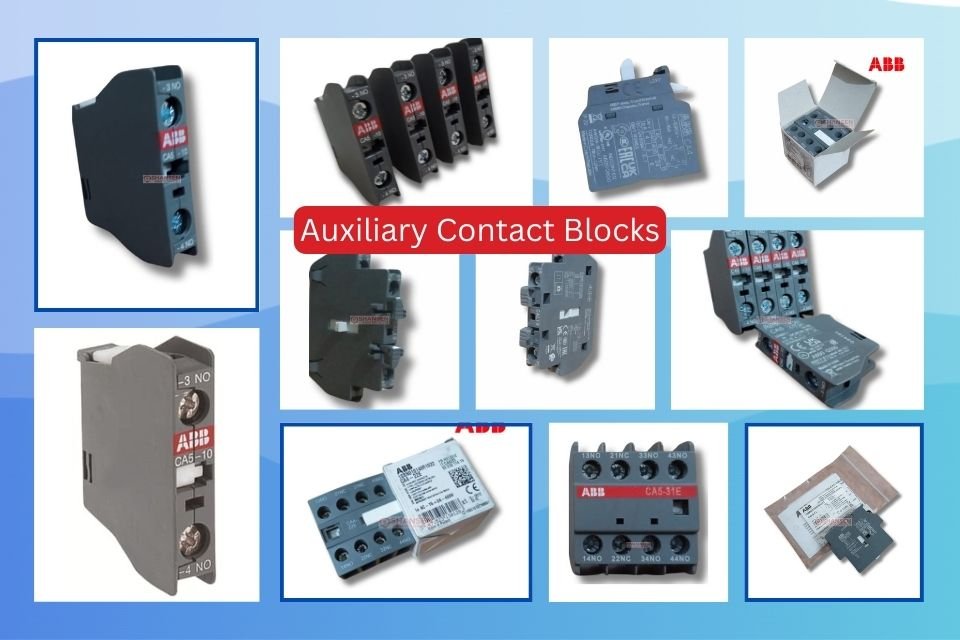

Spotlight on ABB Auxiliary Contact Blocks

ABB, a global leader in electrical systems, offers an impressive range of auxiliary contact blocks designed for reliability and performance. Let’s explore some of their standout products:

ABB AUX-C 1Q+1SY

• Compatible with XT1-XT6 circuit breakers.
• Features one changeover contact for open/closed status and another for trip indication.

ABB CA4-04E

• 4-pole, front-mounted block.
• Offers 4 N.C. instantaneous contacts.

ABB CA5-01

• 1-pole, front-mounted block.
• Includes 1 N.C. instantaneous contact for A series contactors and N series contactor relays.

ABB CA5-10

• 1-pole, front-mounted block.
• Equipped with 1 N.O. instantaneous contact for A series contactors and N series contactor relays.

ABB CA5-22E

• 4-pole, front-mounted block.
• Features 2 N.O. and 2 N.C. instantaneous contacts for 3-pole A series contactors.

ABB CAL19-11B

• Designed for ABB AF116 to AF370 contactors.
• Includes screw terminals and offers IP20 protection.

ABB CAL5-11

• 2-pole, side-mounted auxiliary contact block.
• Comes with 1 N.O. and 1 N.C. contact for A9…75 contactors and N contactor relays.

---

Why Choose Auxiliary Contact Blocks?

By integrating auxiliary contact blocks into your electrical systems, you gain:

• Enhanced Functionality: Expand the control and monitoring capabilities of your devices.
• Improved Efficiency: Streamline complex operations with ease.
• Greater Safety: Quickly identify and address system faults.

Whether you’re upgrading an industrial setup or designing a new electrical system, auxiliary contact blocks offer an affordable and effective way to optimize performance.

---

Auxiliary contact blocks might be small, but their impact is mighty. By choosing high-quality options like those from ABB, you ensure your electrical systems are more reliable, efficient, and capable than ever before. Invest in these essential components today and take your control and monitoring game to the next level!

---

Got questions or need the perfect auxiliary contact block for your system? Contact us today for expert assistance!
