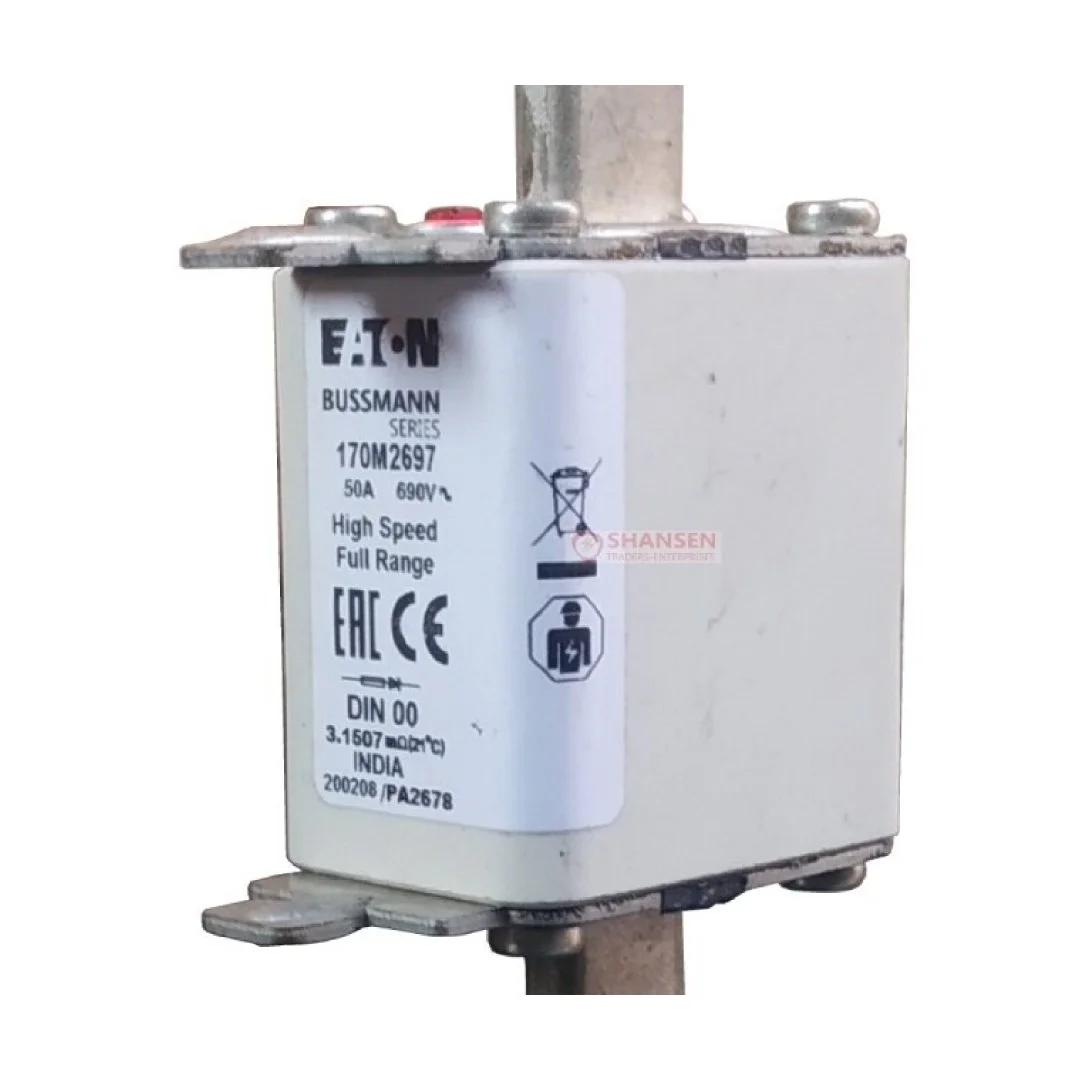

170M2697 Eaton Bussmann series high speed square body fuse

0.00

Fast, Reliable Protection for Industrial Applications

The 170M2697 Eaton Bussmann Series High Speed Square Body Fuse is built for high-performance electrical protection. With rapid response time, robust fault handling, and international certifications, it’s a top-tier solution for safeguarding sensitive components in demanding environments. Trusted globally and designed to meet exacting standards, this fuse is perfect for industries prioritizing safety and uptime.

Key Features at a Glance

  • ⚡ High-speed fuse for fast fault interruption

  • 🔋 Voltage Rating: 700V (UL) / 690V (IEC)

  • 🔌 Current Rating: 50A

  • 💥 Interrupting Capacity: 200 kAIC

  • 🔧 Blade End X Din 43-620 blade end design

  • 🔍 Top Fuse Status Indicator for easy diagnostics

  • ✅ Class gR fuse – high protection rating

  • 📏 Compliant with DIN 43 620 standards

  • 🌍 CE Marked, RoHS Compliant

  • 📄 IEC Rated and UL Recognized

Why Choose This Product

The 170M2697 offers exceptional protection for your electrical systems with its rapid response time and high interrupting capacity. Designed to prevent equipment damage during short circuits or overloads, this fuse ensures operational continuity and minimizes downtime. Its globally recognized certifications make it suitable for both local and international applications, while its robust construction provides long-lasting reliability.

Ideal For

  • Power Electronics

  • Drives and Inverters

  • Renewable Energy Systems

  • Industrial Automation

  • Electrical Distribution Panels

  • Semiconductor Protection

Request a Quote on WhatsApp

Get genuine Eaton Bussmann fuses from Shansen Enterprises, your Authorized Channel Partner in India. We ensure 100% customer satisfaction with prompt support and verified supply. Click below to request a quick quote via WhatsApp – fast, easy, and reliable!

FAQs

Q1: What does the top fuse status indicator do?
It allows users to visually confirm if the fuse is blown without removing it.

Q2: Is this fuse suitable for renewable energy systems?
Yes, its fast-acting nature and high interrupt rating make it ideal for solar and wind power systems.

Q3: Can I get technical documentation or a datasheet?
Yes, contact Shansen Enterprises directly via WhatsApp for datasheet and support.

Description

PRODUCT SPECIFICATIONS

FUSE INDICATOR
Top fuse status indicator
INTERRUPT RATING
200 kAIC
CONSTRUCTION SIZE
Other
CLEARING (I2T)
1000 at 600 V
INSULATED METAL GRIPPING LUGS (IMGL)
No
CONNECTION
Blade end x Din 43-620 blade end
MOUNTING METHOD
DIN 43 620
AMPERAGE RATING
50 A
UTILIZATION CATEGORY
gR (general purpose semiconductor protection)
WATT LOSSES
11 W
TYPE
Fuse
FUSE SHAPE
Square body, knife blade contacts
CLASS
Class gR
PRE ARC (I2T)
185
VOLTAGE RATING
690 V
APPLICATION
semiconductor protection
VOLTAGE TYPE
AC
PACKAGING TYPE
Standard

Additional information

Brand

Eaton Bussmann Series

Model

170M2697

Type

High-Speed Square Body Fuse

Voltage Rating

700V (UL), 690V (IEC)

Current Rating

50A

Interrupting Capacity

200 kAIC

End Connection

Blade X DIN 43-620

Indicator

Top Fuse Status Indicator

Fuse Class

gR

Compliance

CE, RoHS, IEC, UL

Country of Origin

India
