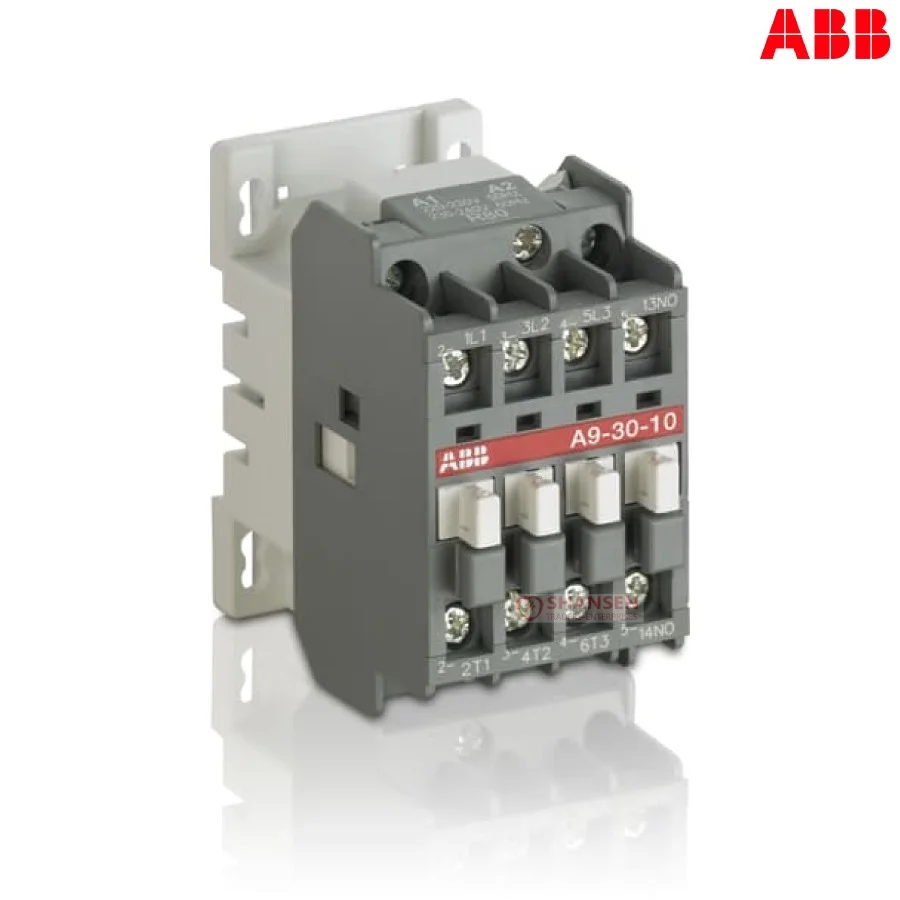

Description
Dimensions
-
- Product Net Width:
- 44 mm
-
- Product Net Depth / Length:
- 74 mm
-
- Product Net Height:
- 74 mm
-
- Product Net Weight:
- 0.34 kg
Technical
-
- Number of Main Contacts NO:
- 3
-
- Number of Main Contacts NC:
- 0
-
- Number of Auxiliary Contacts NO:
- 0
-
- Number of Auxiliary Contacts NC:
- 1
-
- Standards:
- Devices complying with international standards IEC 947-1 / 947-4-1, and European standards EN 60 947-1 / 60 947-4-1. Electromagnetic compatibility (EMC) acc. to amendment A11 to IEC 947-1, EN 60 947-1 and amendment 2 to IEC 947-4-1
-
- Rated Operational Voltage:
- Main Circuit 690 V
-
- Rated Frequency (f):
- Supply Circuit 50 60 Hz
-
- Conventional Free-air Thermal Current (Ith):
- acc. to IEC 60947-4-1, Open Contactors q = 40 °C 26 A
acc. to IEC 60947-5-1, q = 40 °C 16 A
-
- Rated Operational Current AC-1 (Ie):
- (690 V) 40 °C 25
(690 V) 55 °C 22
(690 V) 70 °C 18
-
- Rated Operational Current AC-3 (Ie):
- (415 V) 55 °C 9 A
(440 V) 55 °C 9 A
(500 V) 55 °C 9 A
(690 V) 55 °C 7 A
(380 / 400 V) 55 °C 9 A
(220 / 230 / 240 V) 55 °C 9
-
- Rated Operational Power AC-3 (Pe):
- (415 V) 4 kW
(440 V) 4 kW
(500 V) 5.5 kW
(690 V) 5.5 kW
(380 / 400 V) 4 kW
(220 / 230 / 240 V) 2.2 kW
-
- Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:
- 8 x Ie AC-3
-
- Rated Making Capacity AC-3 acc. to IEC 60947-4-1:
- 10 x Ie AC-3
-
- Rated Operational Current AC-15 (Ie):
- (500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(380 / 400 V) 3 A
-
- Short-Circuit Protective Devices:
- Auxiliary Circuit – gG Type Fuses 10 A
gG Type Fuses 25 A
-
- Maximum Breaking Capacity:
- cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A
-
- Maximum Electrical Switching Frequency:
- (AC-1) 600 cycles per hour
(AC-2 / AC-4) 300 cycles per hour
(AC-3) 1200 cycles per hour
-
- Rated Operational Current DC-13 (Ie):
- (24 V) 6 / 144 A
(48 V) 2.8 / 134 A
(72 V) 2 / 144 A
(125 V) 1.1 / 138 A
(250 V) 0.55 / 138 A
-
- Rated Insulation Voltage (Ui):
- acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V
-
- Rated Impulse Withstand Voltage (Uimp):
- 8 kV
-
- Mechanical Durability:
- 10 million
-
- Maximum Mechanical Switching Frequency:
- 3600 cycles per hour
-
- Rated Control Circuit Voltage (Uc):
- 50 Hz 24 V
60 Hz 24 V
-
- Coil Consumption:
- Average Holding Value 50 / 60 Hz 8 2 V·A
Average Pull-in Value 50 Hz 74 V·A
Average Pull-in Value 60 Hz 70 V·A
-
- Operate Time:
- Between Coil De-energization and NC Contact Closing 9 … 16 ms
Between Coil De-energization and NO Contact Opening 4 … 11 ms
Between Coil Energization and NC Contact Opening 7 … 21 ms
Between Coil Energization and NO Contact Closing 10 … 26 ms
-
- Connecting Capacity Main Circuit:
- Flexible with Cable End 0.75 … 2.5 mm²
Rigid Cable 1 … 4 mm²
-
- Connecting Capacity Auxiliary Circuit:
- Flexible with Cable End 0.75 … 2.5 mm²
Rigid Cable 1 … 4 mm²
-
- Degree of Protection:
- acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40
-
- Connecting Terminals (delivered in open position) Main Poles:
- M 3.5 (+,-) pozidriv 2 screws with cable clamp
-
- Terminal Type:
- Screw Terminals
Environmental
-
- Ambient Air Temperature:
- Close to Contactor Fitted with Thermal O/L Relay -25 … +55 °C
Close to Contactor without Thermal O/L Relay (0.85 … 1.1 Uc) -40 … +55 °C
Close to Contactor without Thermal O/L Relay (Uc) -40 … +70 °C
Close to Contactor for Storage -60 … +80 °C
-
- Climatic Withstand:
- acc. to IEC 60068-2-30 and 60068-2-11 – UTE C 63-100 specification II
-
- Maximum Operating Altitude Permissible:
- 3000 m
-
- Resistance to Shock acc. to IEC 60068-2-27:
- Closed, Shock Direction: B1 10 K40
Open, Shock Direction: B1 5 K40
Shock Direction: A 20 K40
Shock Direction: B2 15 K40
Shock Direction: C1 20 K40
Shock Direction: C2 20 K40
-
- RoHS Status:
- Following EU Directive 2011/65/EU
