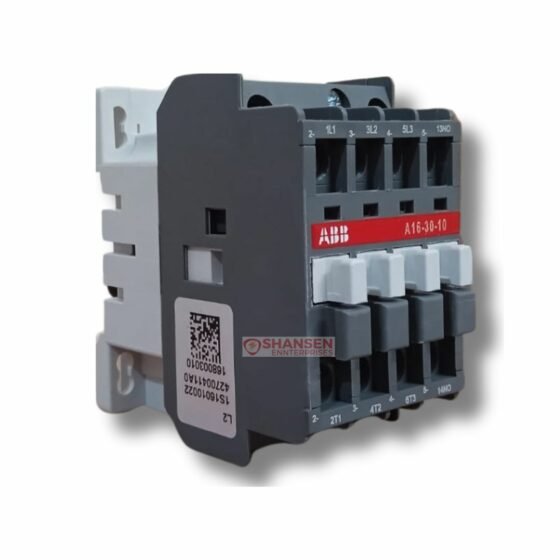

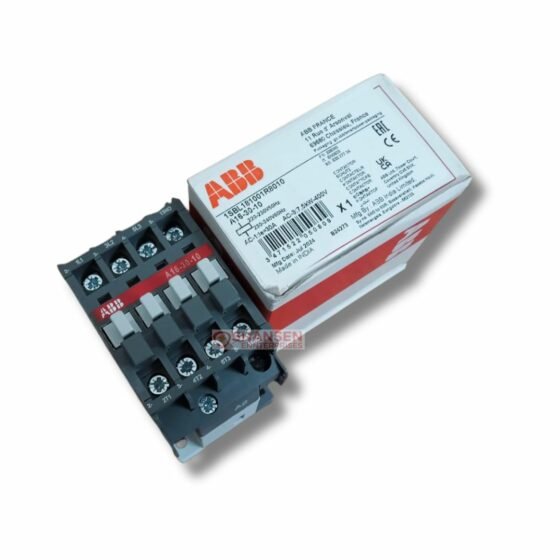

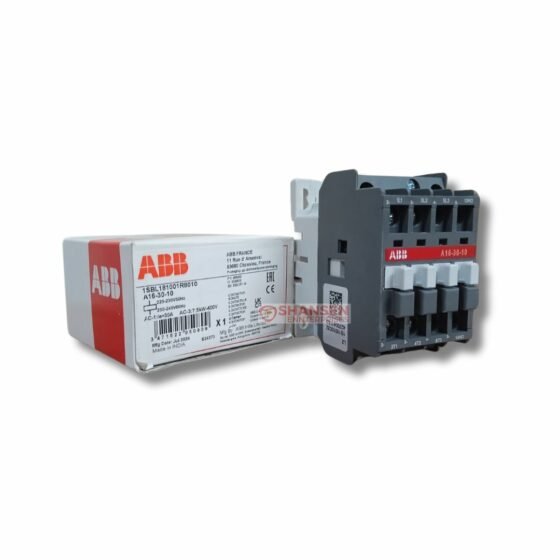

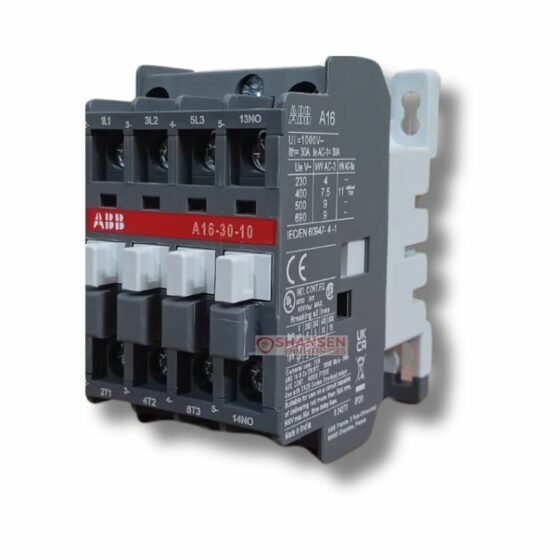

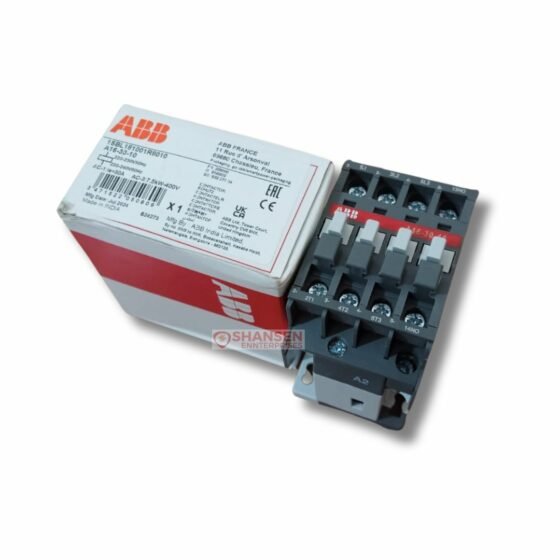

Description
| Technical Specification | Details |
|---|---|
| Number of Main Contacts NO | 3 |
| Compatibility | A Contactors |
| Max Mechanical Switching Frequency | 3600 cycles per hour |
| Max Electrical Switching Frequency | AC-1: 600 cycles per hour, AC-2 / AC-4: 300 cycles per hour, AC-3: 1200 cycles per hour |
| Conventional Free-air Thermal Current (Ith) | IEC 60947-5-1: 16 ampere (q = 40°C), IEC 60947-4-1: 30 ampere (q = 40°C) |
| Coil Consumption | Holding Value 50/60Hz: 8.2 VA, Pull-in Value 50Hz: 74 VA, Pull-in Value 60Hz: 70 VA |
| Terminal Type | Screw Terminals |
| Rated Operational Voltage | Main Circuit: 690 V |
| Operate Time | De-energization to NO Contact Opening: 4-11 ms, Energization to NO Contact Closing: 10-26 ms |
| Rated Control Circuit Voltage (Uc) | 50Hz: 220-230V, 60Hz: 230-240V |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Operational Power AC-6b (Pe) | 230/240V (40°C): 7.5 KVR, (55°C): 7.5 KVR, (70°C): 6 KVR 400/415V (40°C): 12.5 KVR, (55°C): 12.5 KVR, (70°C): 10 KVR |
| Rated Operational Power AC-3 (Pe) | 220/230/240V: 4 KWT, 380/400V: 7.5 KWT, 415V: 9 KWT, 440V: 9 KWT, 500V: 9 KWT, 690V: 9 KWT |
| Rated Operational Current DC-13 (Ie) | 125V: 1.1/138 A, 24V: 6/144 A, 250V: 0.55/138 A, 48V: 2.8/134 A, 72V: 2/144 A |
| Rated Operational Current AC-3 (Ie) | 220/230/240V (55°C): 17 A, 380/400V (55°C): 17 A, 415V (55°C): 17 A, 440V (55°C): 16 A, 500V (55°C): 14 A, 690V (55°C): 10 A |
| Rated Operational Current AC-15 (Ie) | 220/240V: 4 A, 24/127V: 6 A, 380/440V: 3 A, 500V: 2 A, 690V: 2 A |
| Rated Operational Current AC-1 (Ie) | 690V (40°C): 30 A, 690V (55°C): 27 A, 690V (70°C): 23 A |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Rated Breaking Capacity AC-15 | 10 x Ie AC-15 |
| Rated Frequency Limits | 25 – 400 Hz |
| Rated Frequency (f) | Supply Circuit 50/60 Hz |
