Description
| Technical Specification | Details |
|---|
| MRP (Indian Rupees) | Not for Retail Sale |
| Number of Main Contacts NO | 3 |
| Compatibility | A Contactors |
| Max Electrical Switching Frequency | AC-1 600 cycles per hour |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, q = 40 °C 16 ampere |
| Coil Consumption | Average Holding Value 50 Hz 12.3 volt-ampere |
| Terminal Type | Screw Terminals |
| Rated Operational Voltage | Main Circuit 690 volt |
| Operate Time | Between Coil De-energization and NO Contact Opening 4…11 millisecond |
| Rated Breaking Capacity AC-3 | acc. to IEC 60947-4-1 8 x Ie AC-3 |
| Rated Operational Power AC-6b (Pe) | (230 / 240 V) 40 °C, 50 / 60 Hz 11.5 kilovar |
| Rated Operational Current DC-13 (Ie) | (125 V) 1.1 / 138 ampere |
| Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 55 °C 26 ampere |
| Rated Operational Current AC-15 (Ie) | (220 / 240 V) 4 ampere |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 45 ampere |
| Rated Making Capacity AC-3 | acc. to IEC 60947-4-1 10 x Ie AC-3 |
| Rated Breaking Capacity | acc. to IEC 60947-5-1 10 x Ie AC-15 |
| Rated Frequency Limits | 25 … 400 hertz |
| Rated Frequency (f) | Supply Circuit 50/60 hertz |
| Number of Aux Contacts NO | 1 |
| Package Width | 101 millimetre |
| Package Length | 115 millimetre |
| Package Height | 61 millimetre |

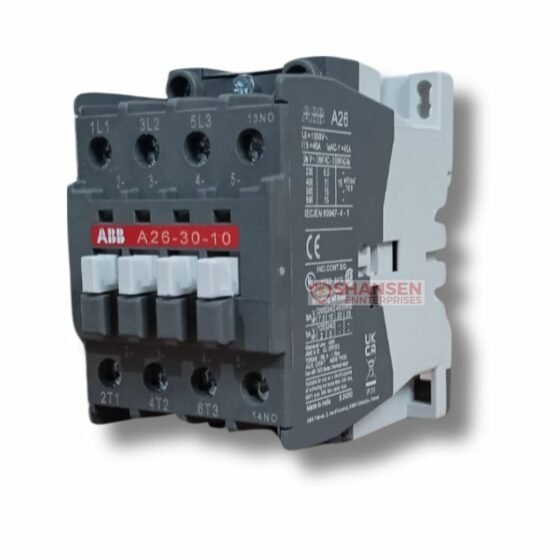

| Invoice Description | A26-30-10 200V 50Hz / 200-220V 60Hz Contactor |
| Product Range | A Contactors |
| Package Gross Weight | 0.6 kilogram |
| Extended Product Type | A26-30-10 200V 50Hz / 200-220V 60Hz |
| Ambient Air Temperature | Close to Contactor for Storage -60 … +80 degree Celsius |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 volt |
| Product Class | Block Contactors |
