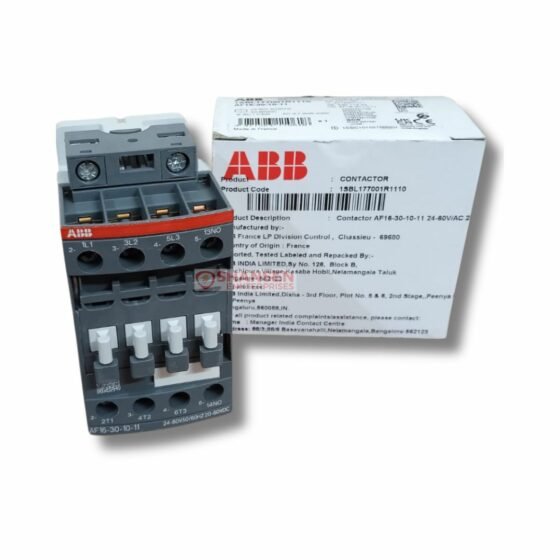

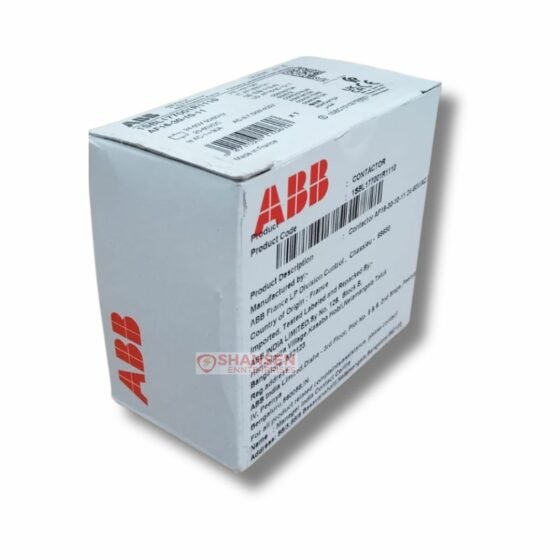

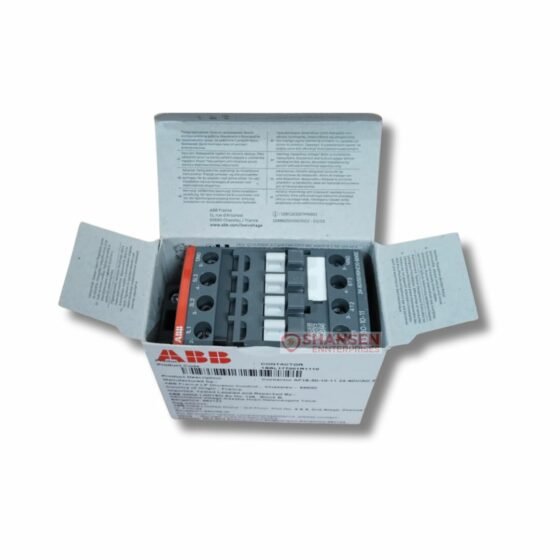

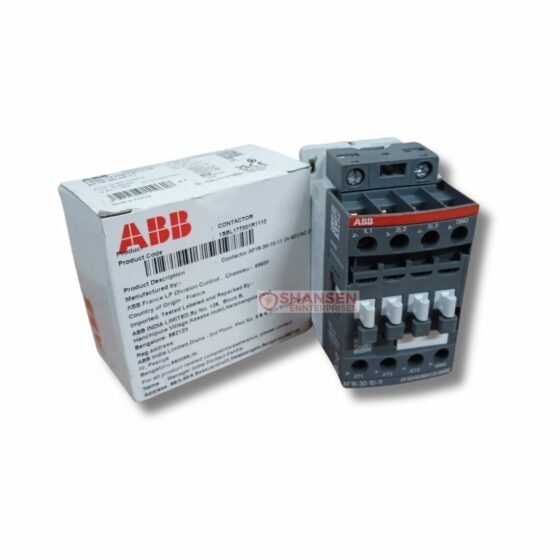

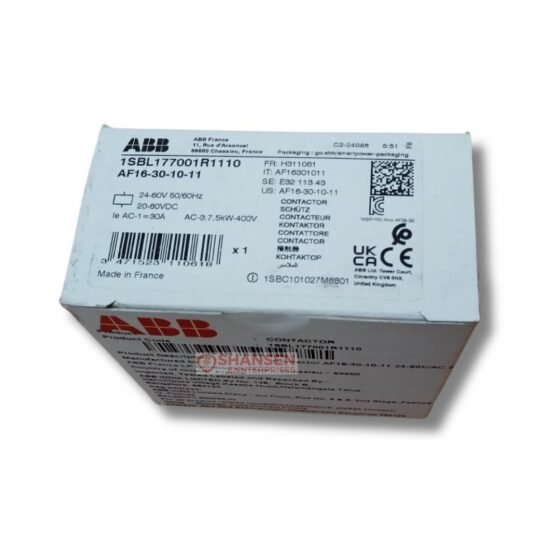

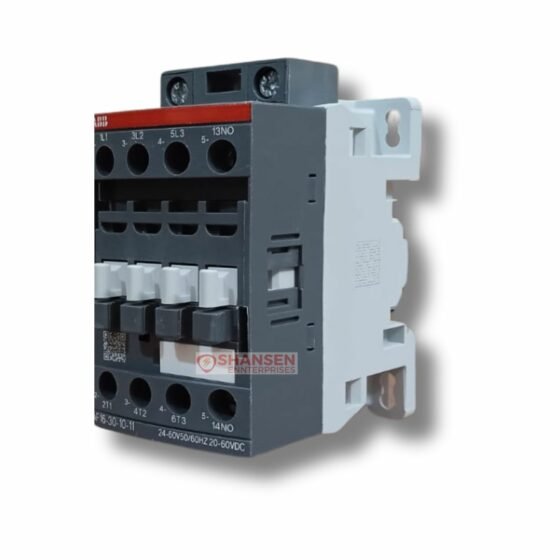

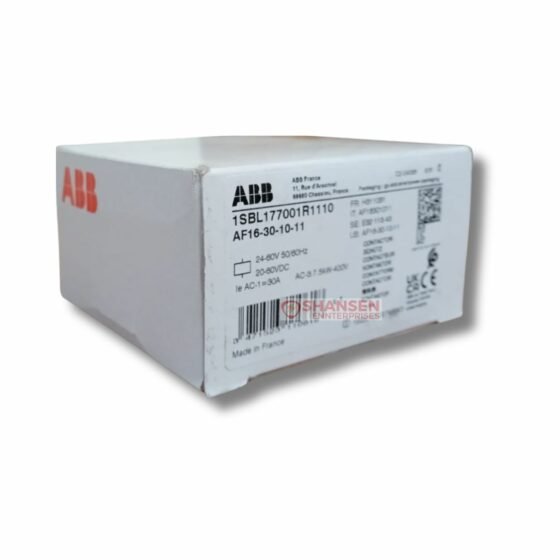

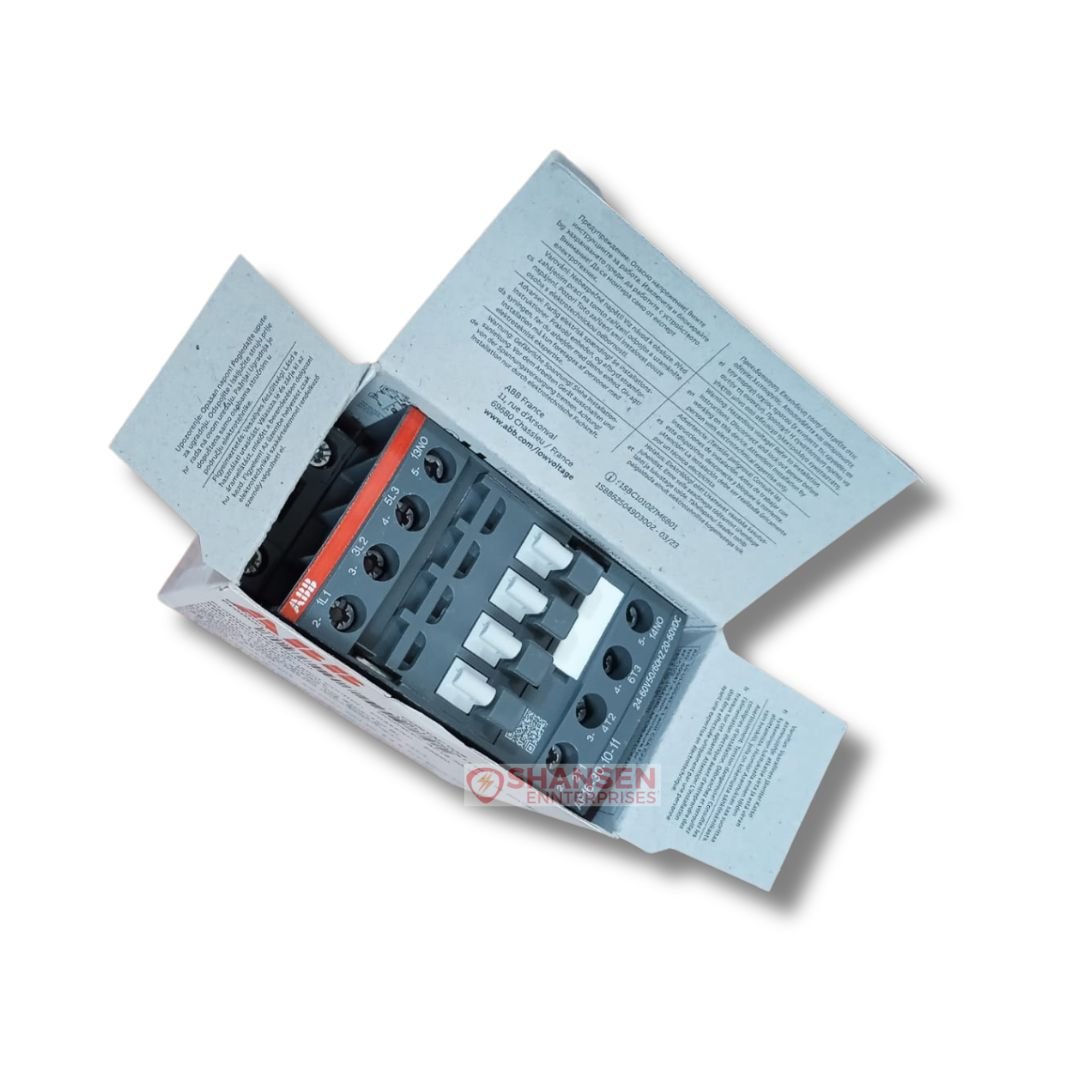

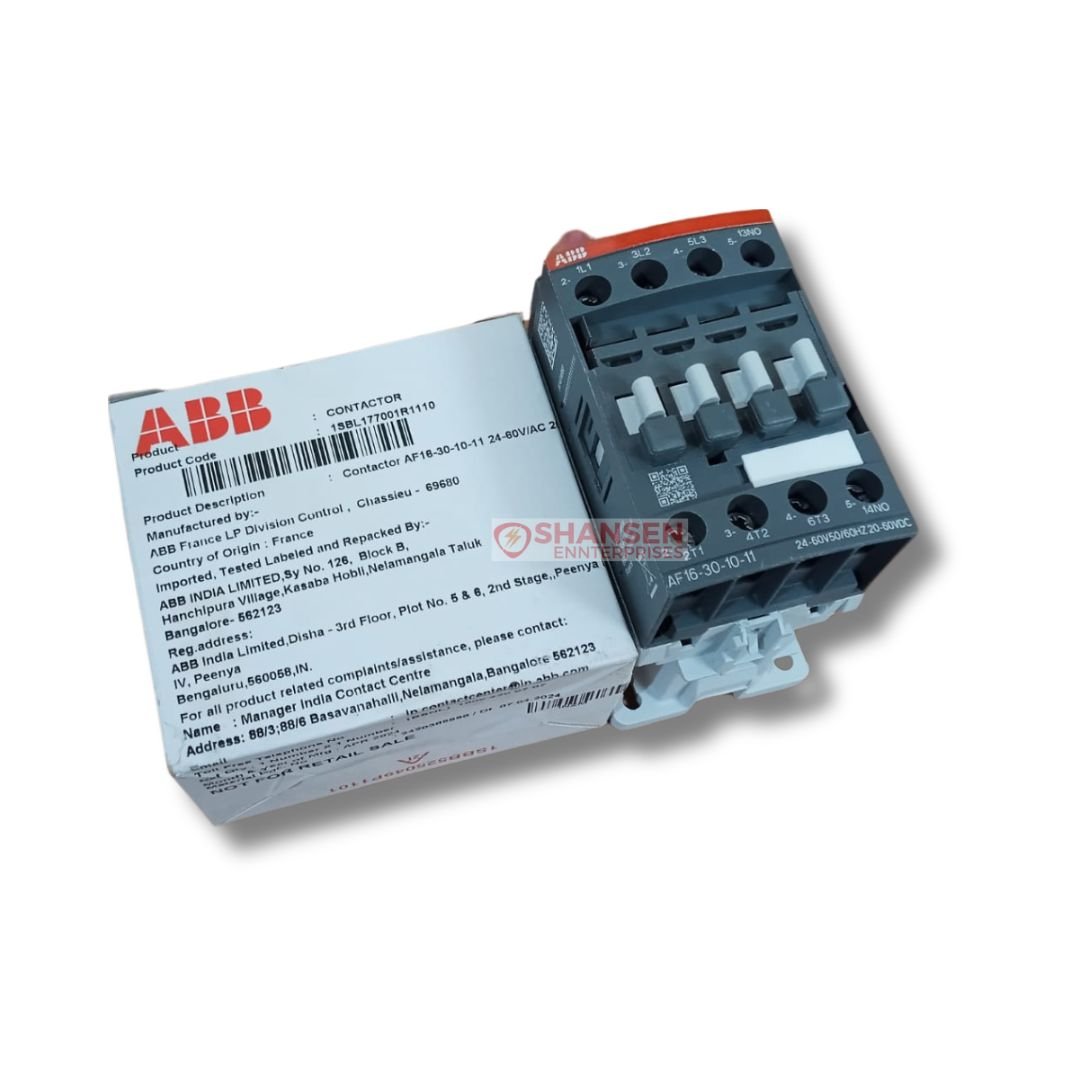

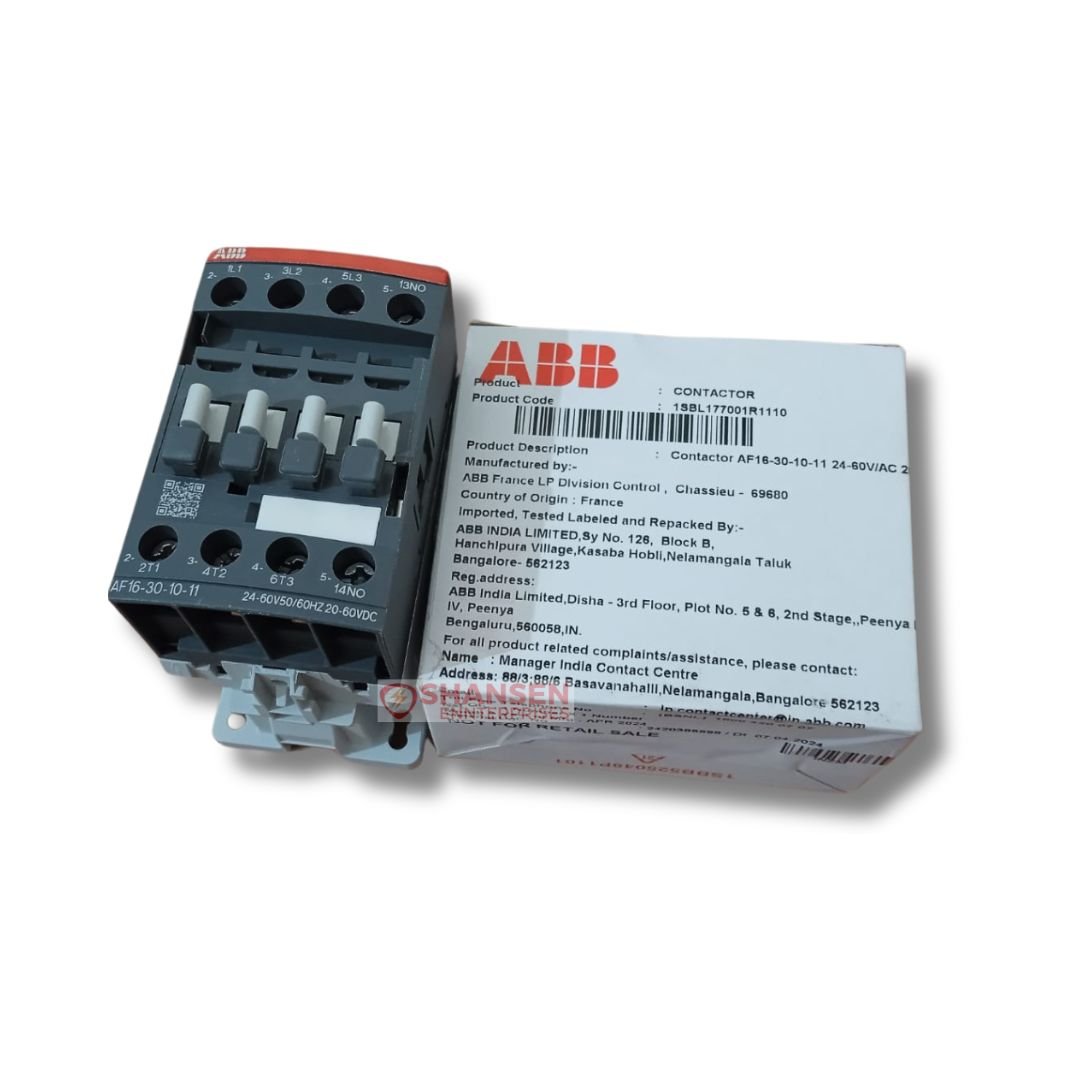

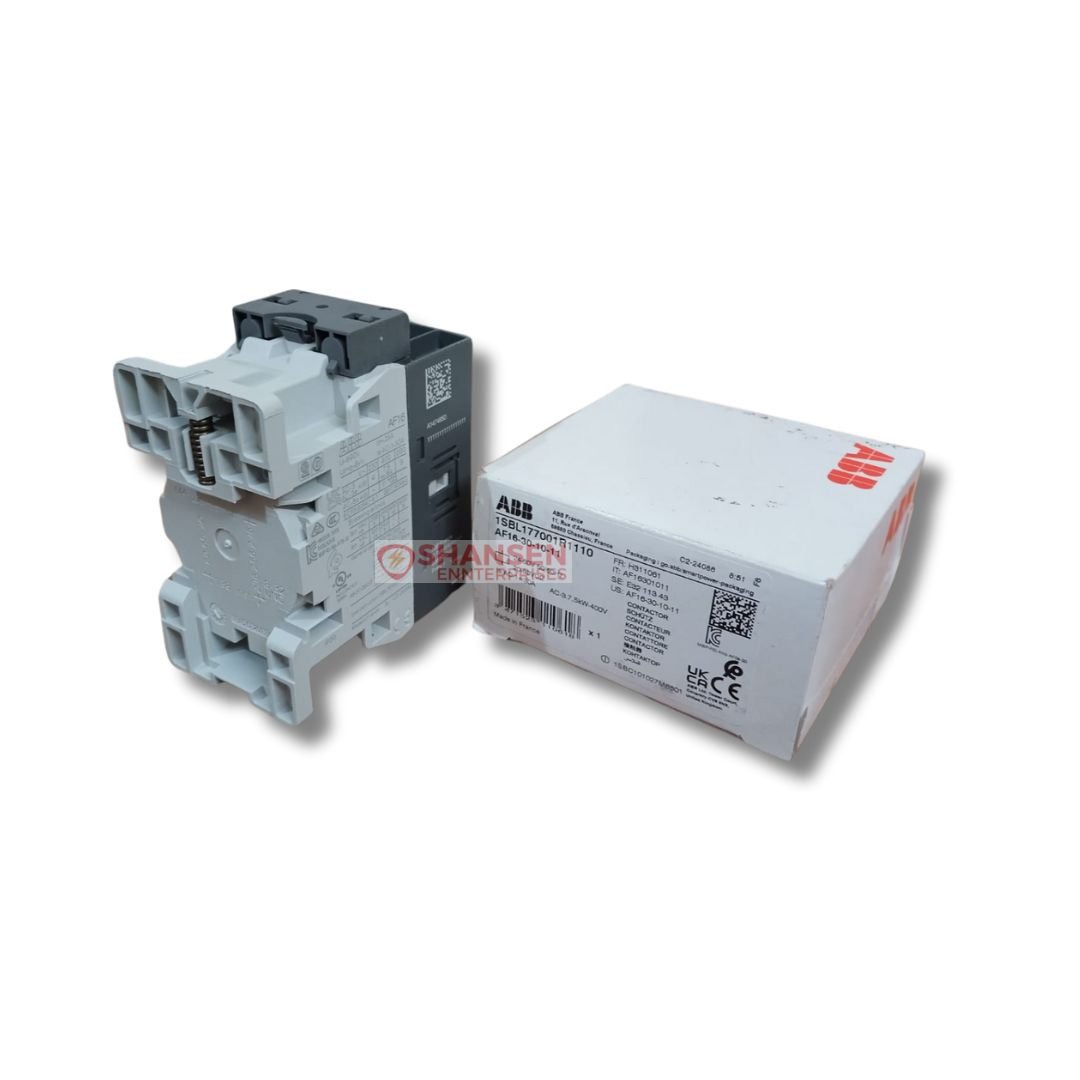

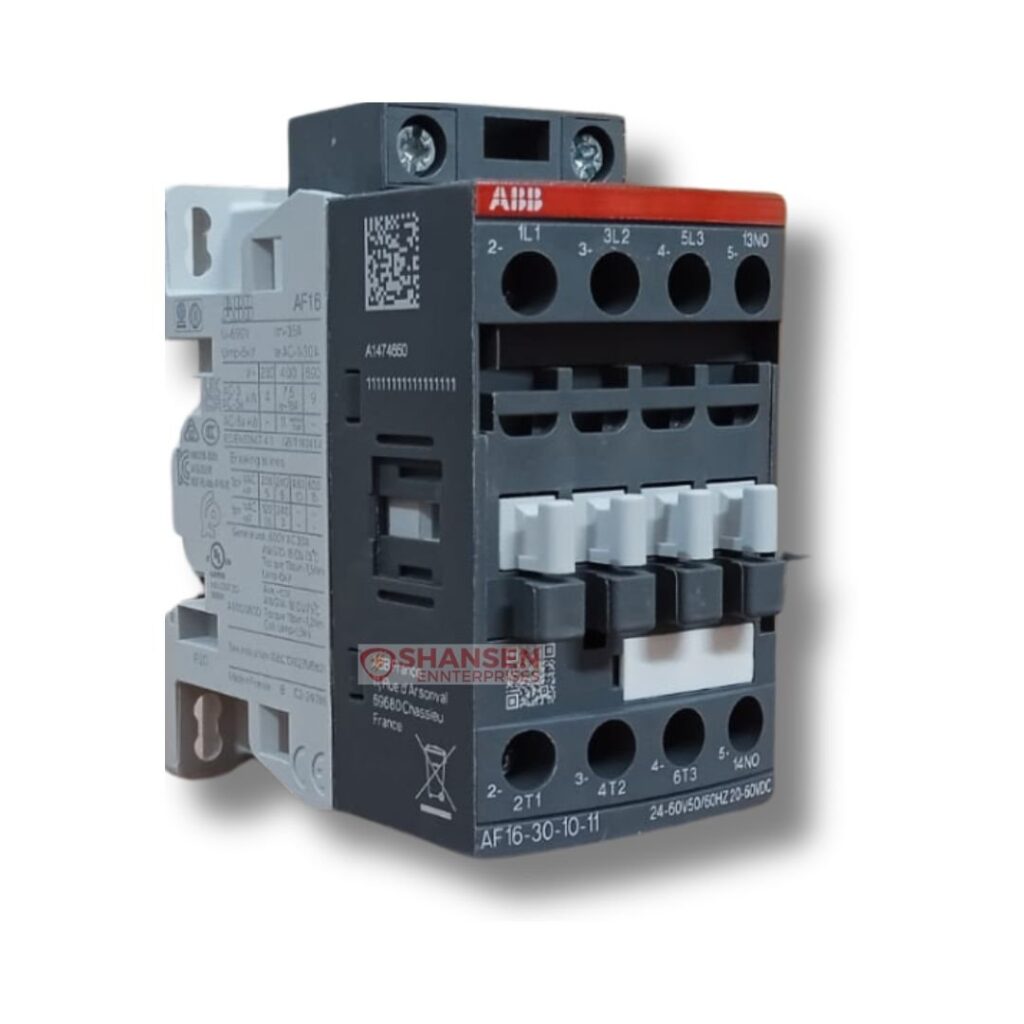

ABB Brand AF16-30-10-11 24-60V50/60HZ 20-60VDC Contactor

₹0.00

Looking for a reliable and energy-efficient contactor? The ABB Brand AF16-30-10-11 contactor is your perfect solution! This 3-pole, 690 V IEC / 600 UL contactor is designed to control motors up to 7.5 kW at 400V AC (AC-3) or 10 HP at 480V UL. Its ability to switch power circuits up to 30A (AC-1) or 30A UL general use makes it a robust choice for industrial applications.

Why Choose ABB AF16-30-10-11?

  1. Wide Control Voltage Range: Thanks to AF technology, the AF16-30-10-11 contactor supports a wide range of control voltages (24-60V 50/60 Hz and 20-60V DC), allowing it to adapt to large voltage variations. It ensures seamless operations even in unstable power conditions.
  2. Built-in Surge Protection: Safety is a priority. The contactor comes with built-in surge protection, minimizing risks and offering a more compact solution.
  3. Energy Efficiency: This contactor significantly reduces panel energy consumption, enhancing overall system efficiency.
  4. Flexible Design: With a block-type structure, it can be easily extended with add-on auxiliary contact blocks and additional accessories to customize based on your needs.

Available Now at Shansen Enterprises!

Shansen Enterprises, an authorized channel partner of ABB in Coimbatore, offers this highly versatile AF16-30-10-11 contactor. With satisfied customers across India, Shansen Enterprises is your trusted supplier of ABB Contactors, Relays, and Circuit Breakers.

Need a Quote? Easily request a quote via WhatsApp by tapping the “Get WhatsApp Quote” button on this product page. Get quick, efficient service!

Category: Tags: , , , , , , , , , , , , , , , , , , ,

Description

Technical
Number of Main Contacts NO: 3
Number of Main Contacts NC: 0
Number of Auxiliary Contacts NO: 1
Number of Auxiliary Contacts NC: 0
Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Rated Operational Voltage: Auxiliary Circuit 690 V
Main Circuit 690 V
Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz
Control Circuit 50 / 60 Hz
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith): IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A
IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-1 (Ie): (690 V) 40 °C 30 A
(690 V) 60 °C 30 A
(690 V) 70 °C 26 A
Rated Operational Current AC-3 (Ie): (415 V) 60 °C 18 A
(440 V) 60 °C 18 A
(500 V) 60 °C 15 A
(690 V) 60 °C 10.5 A
(380 / 400 V) 60 °C 18 A
(220 / 230 / 240 V) 60 °C 18 A
Rated Operational Current AC-3e (Ie): (415 V) 60 °C 18 A
(440 V) 60 °C 18 A
(500 V) 60 °C 15 A
(690 V) 60 °C 10.5 A
(380 / 400 V) 60 °C 18 A
(220 / 230 / 240 V) 60 °C 18 A
Rated Operational Power AC-3 (Pe): (400 V) 7.5 kW
(415 V) 9 kW
(440 V) 9 kW
(500 V) 9 kW
(690 V) 9 kW
(380 / 400 V) 7.5 kW
(220 / 230 / 240 V) 4 kW
Rated Operational Power AC-3e (Pe): (415 V) 9 kW
(440 V) 9 kW
(500 V) 9 kW
(690 V) 9 kW
(380 / 400 V) 7.5 kW
(220 / 230 / 240 V) 4 kW
Rated Operational Current AC-15 (Ie): (500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(400 / 440 V) 3 A
Rated Short-time Withstand Current Low Voltage (Icw): at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A
Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A
Maximum Electrical Switching Frequency: (AC-1) 600 cycles per hour
(AC-15) 1200 cycles per hour
(AC-2 / AC-4) 300 cycles per hour
(AC-3) 1200 cycles per hour
(DC-13) 900 cycles per hour
Rated Operational Current DC-1 (Ie): (110 V) 1-Pole, 40 °C 20 A
(110 V) 2 Poles in Series, 40 °C 30 A
(110 V) 3 Poles in Series, 40 °C 30 A
(220 V) 2 Poles in Series, 40 °C 20 A
Rated Operational Current DC-13 (Ie): (24 V) 6 A / 144 W
(48 V) 2.8 A / 134 W
(110 V) 0.55 A / 60 W
(220 V) 0.27 A / 60 W
Rated Insulation Voltage (Ui): IEC 60947-4-1 690 V
IEC 60947-5-1 690 V
UL/CSA 600 V
Rated Control Circuit Voltage (Uc): 50 Hz 24 … 60 V
60 Hz 24 … 60 V
DC Operation 20 … 60 V
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) IEC 60715
Mounting by Screws: 2 x M4 screws placed diagonally
Connecting Capacity Main Circuit: Flexible with Ferrule 1/2x 0.75 … 6 mm²
Rigid Solid 1/2x 1 … 4 mm²
Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1/2x 0.75 … 2.5 mm²
Rigid Solid 1/2x 1 … 2.5 mm²
Degree of Protection: IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
Terminal Type: Screw Terminals
