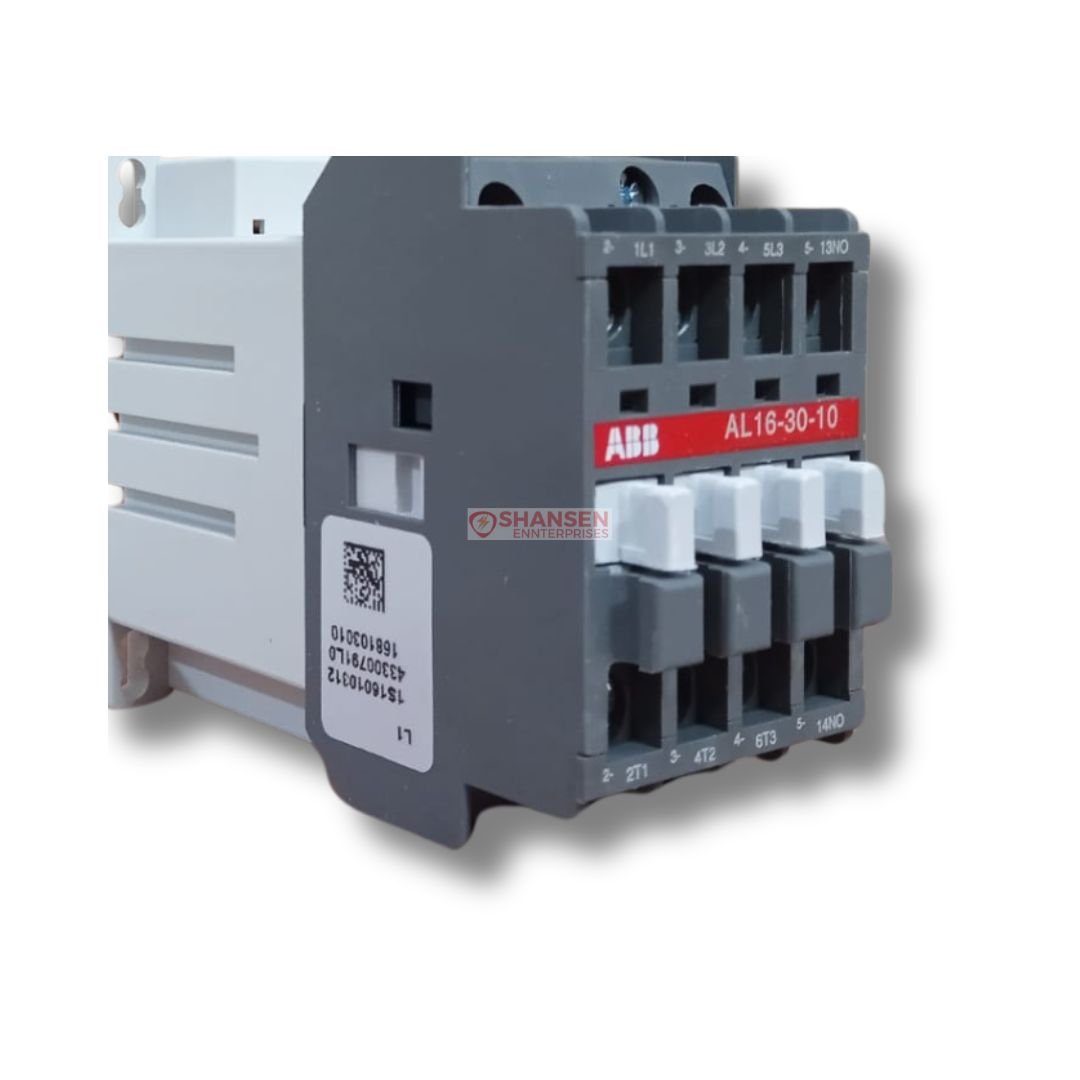

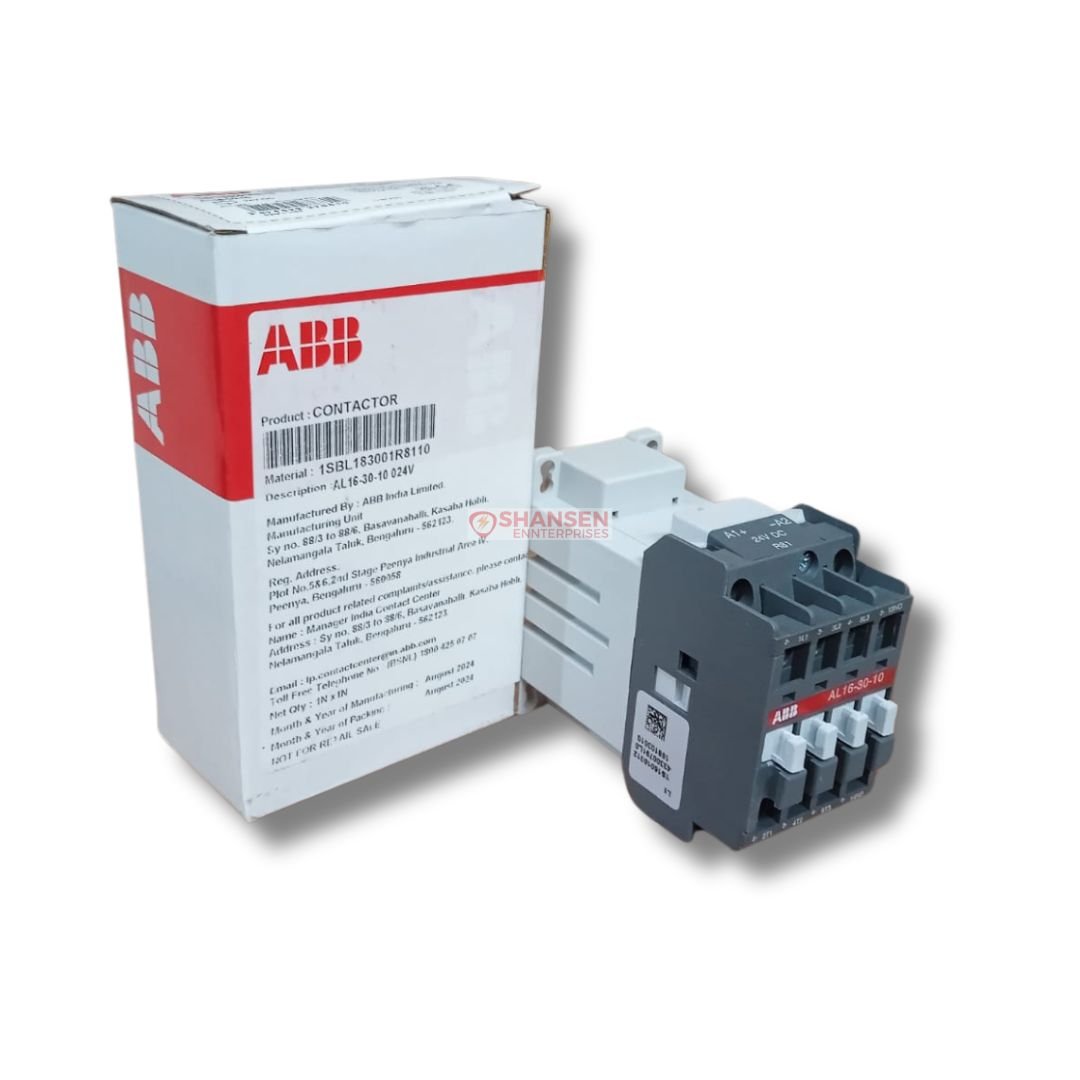

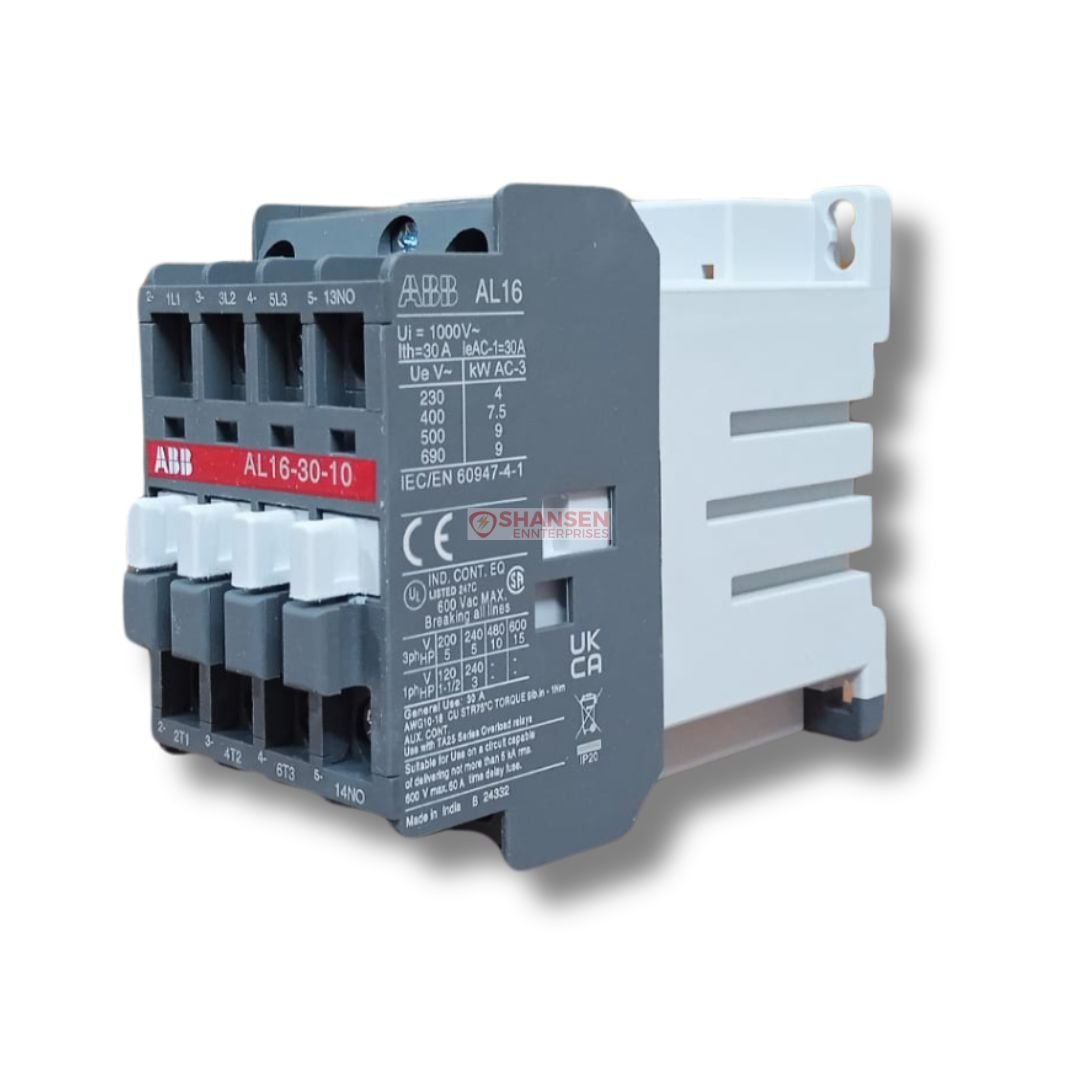

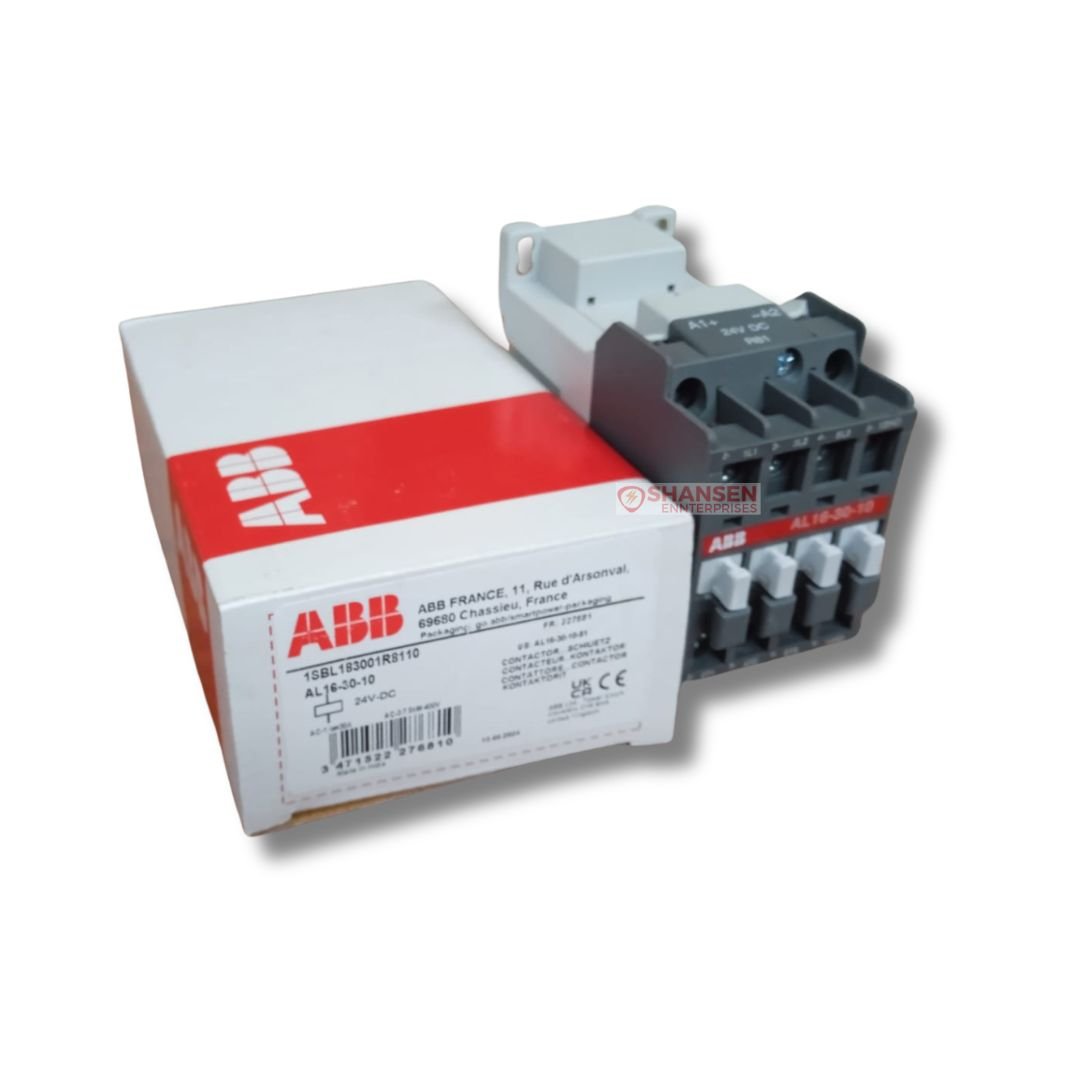

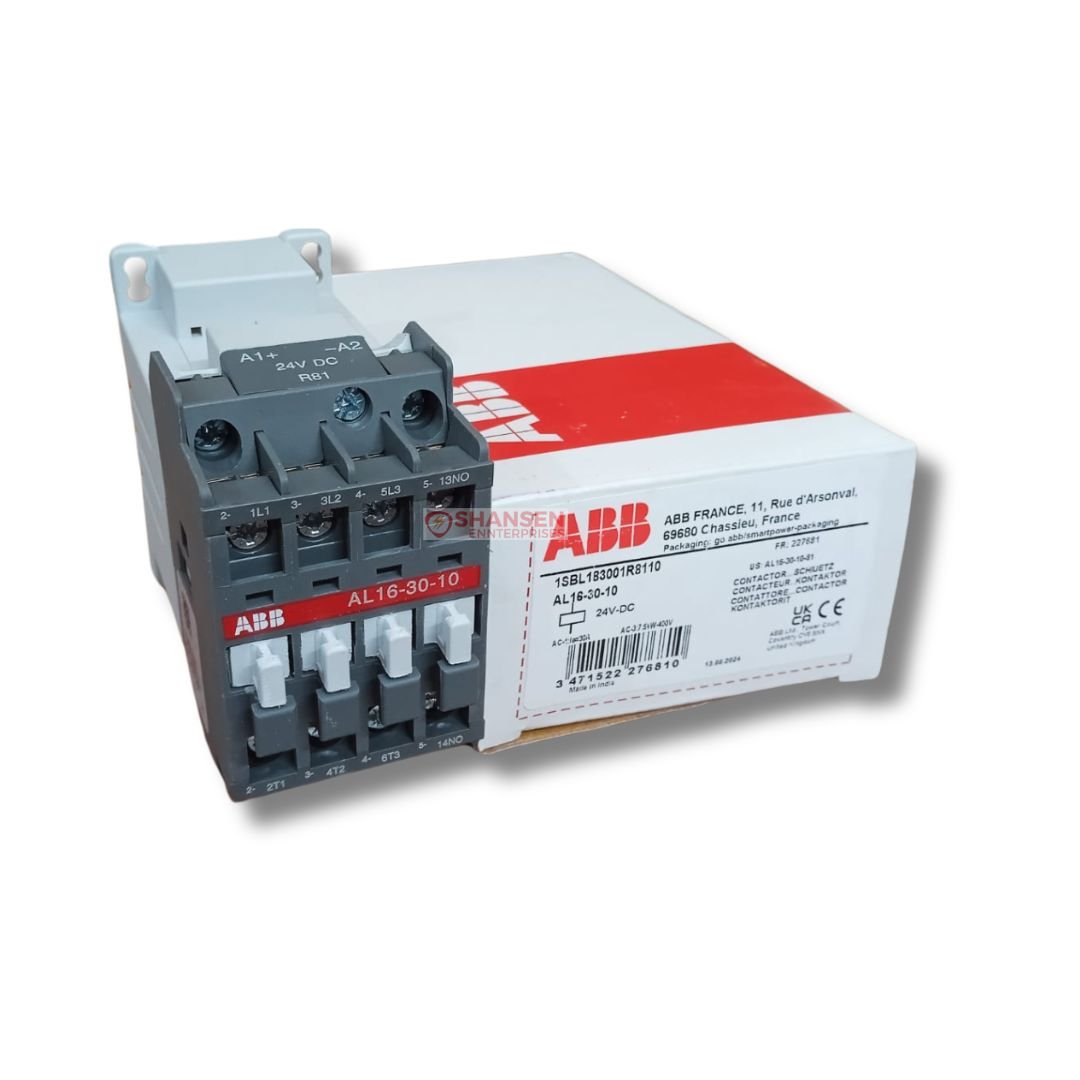

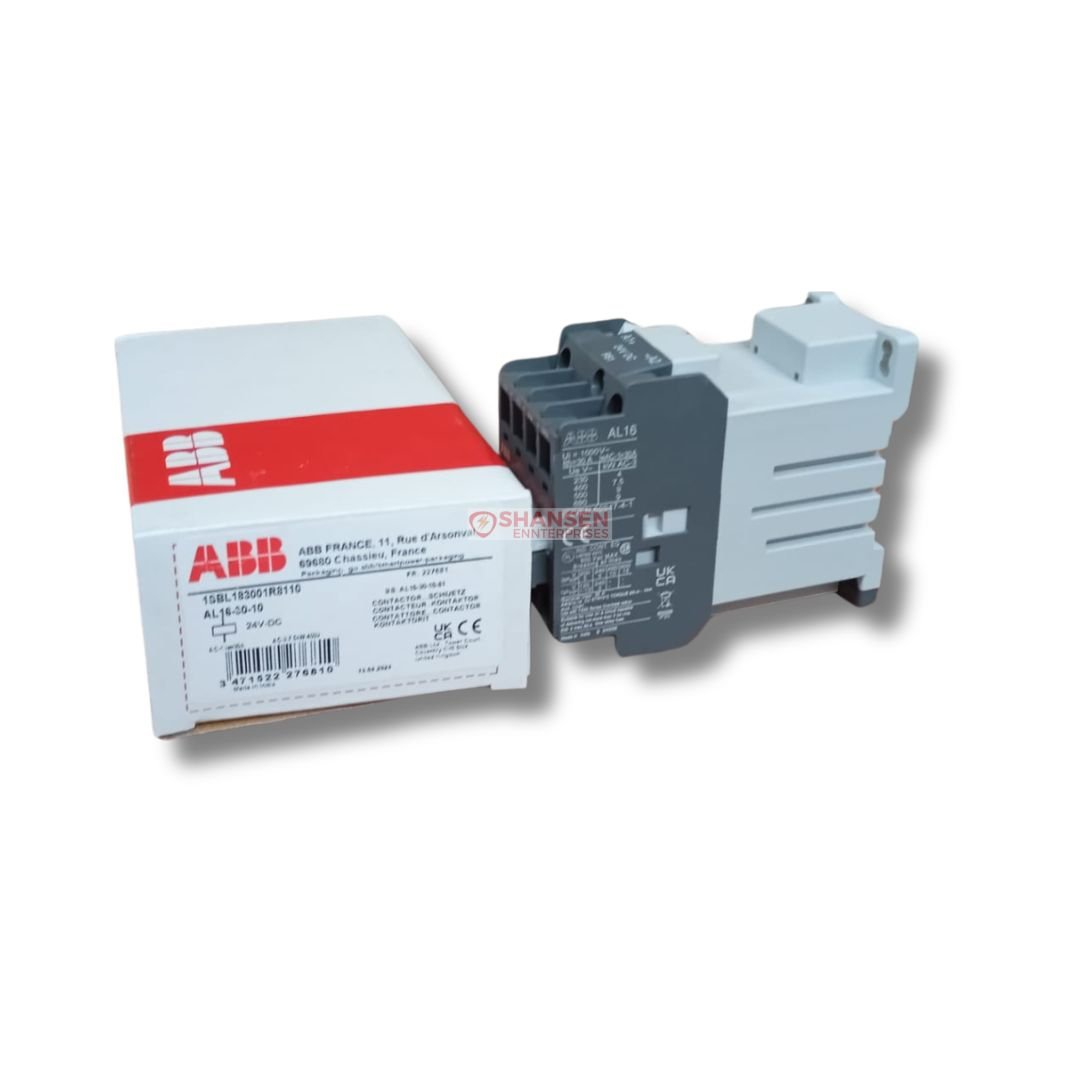

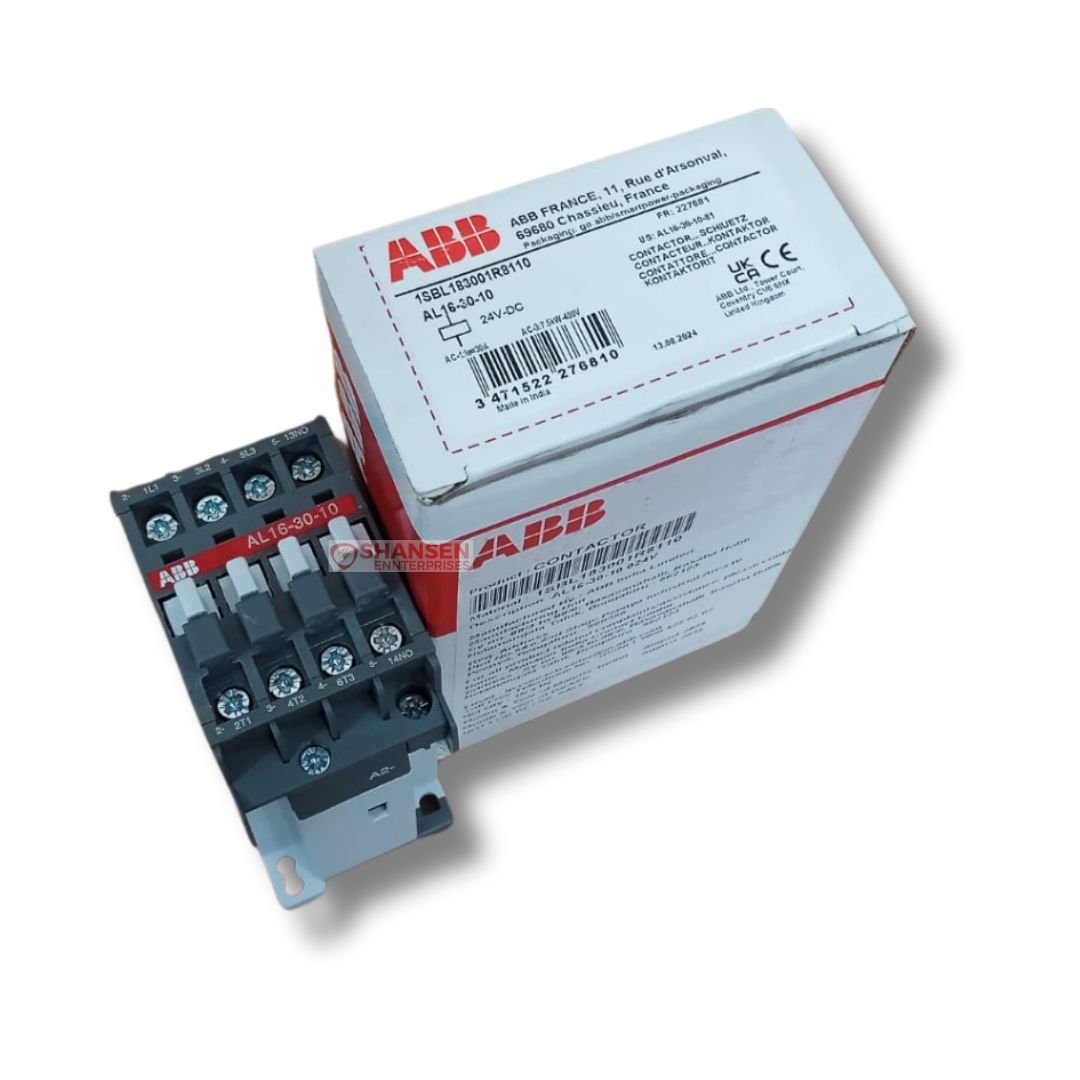

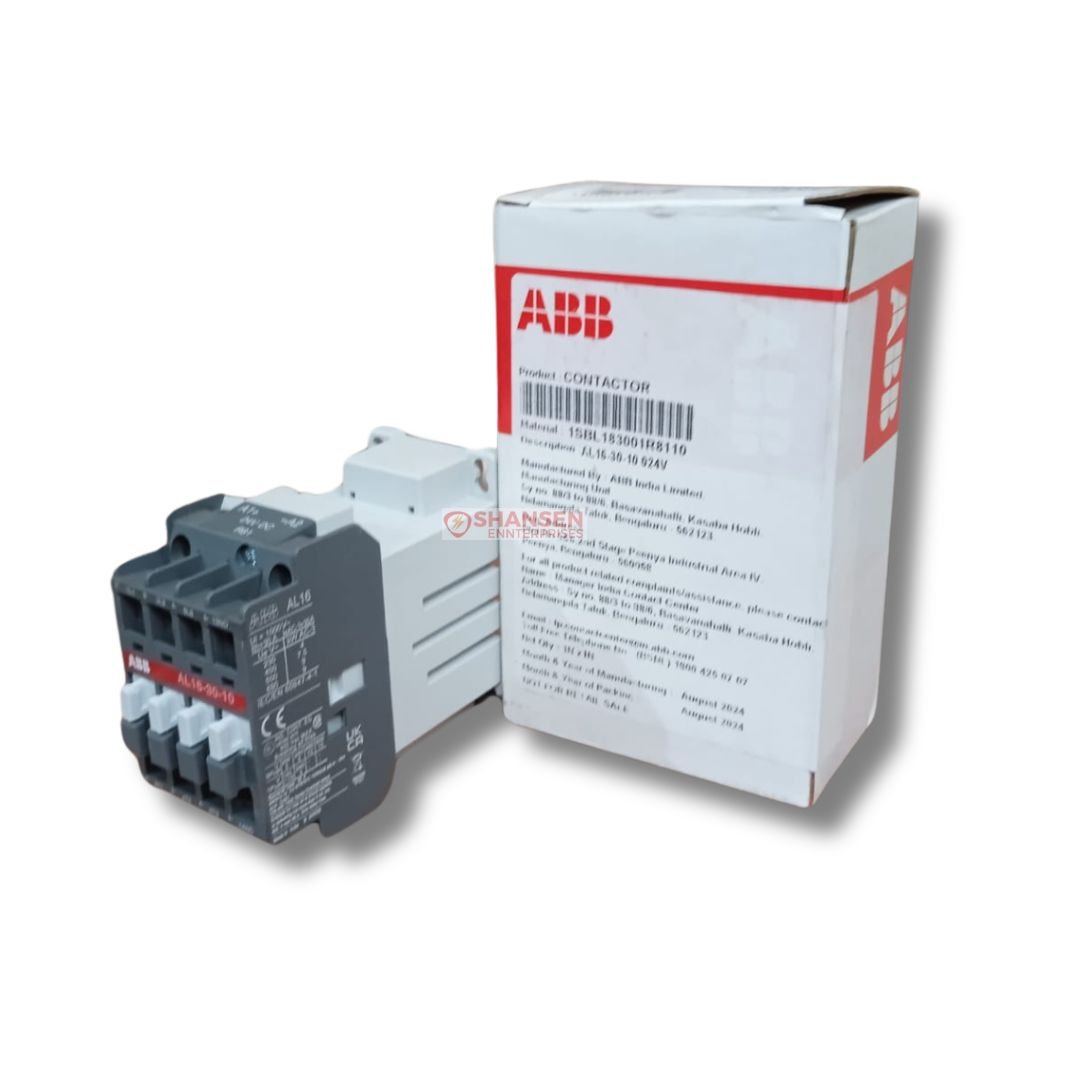

Description
| Technical Specification | Details |
|---|---|
| Compatibility | AL Contactors |
| Max Mechanical Switching Frequency | 3600 cycles per hour |
| Max Electrical Switching Frequency | AC-1 600 cycles per hour, AC-2 / AC-4 300 cycles per hour, AC-3 1200 cycles per hour |
| Conventional Free-air Thermal Current (Ith) | IEC 60947-5-1, q = 40 °C 16 ampere, IEC 60947-4-1, Open Contactors q = 40 °C 30 ampere |
| Coil Consumption | Average Holding Value, Warm State 3W, Average Pull-in Value, Cold State 3W |
| Terminal Type | Screw Terminals |
| Rated Operational Voltage | Auxiliary Circuit 690V, Main Circuit 690V |
| Operate Time | NC Contact Closing: 16-27 ms, NO Contact Opening: 10-17 ms, NO Contact Closing: 50-100 ms |
| Rated Control Circuit Voltage (Uc) | DC Operation 24V |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Operational Power AC-3 (Pe) | 220/230/240V: 4 KWT, 380/400V: 7.5 KWT, 415V: 9 KWT, 440V: 9 KWT, 500V: 9 KWT, 690V: 9 KWT |
| Rated Operational Current DC-13 (Ie) | 125V: 1.1/138A, 24V: 6/144A, 250V: 0.55/138A, 48V: 2.8/134A, 72V: 2/144A |
| Rated Operational Current AC-3 (Ie) | 220/230/240V: 17A, 380/400V: 17A, 415V: 17A, 440V: 16A, 500V: 14A, 690V: 10A |
| Rated Operational Current AC-15 (Ie) | 220/240V: 4A, 24/127V: 6A, 380/440V: 3A, 500V: 2A, 690V: 2A |
| Rated Operational Current AC-1 (Ie) | 690V, 40°C: 30A, 55°C: 27A, 70°C: 23A |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Rated Frequency Limits | 25-400 Hz |
| Rated Frequency (f) | Supply Circuit 50-60 Hz |
| Number of Aux Contacts NO | 1 |
| Package Width | 86 mm |
| Package Length | 141 mm |
| Package Height | 51 mm |
| Invoice Description | AL16-30-10 24V DC Contactor |
| Product Range | AL Contactors |
| Package Gross Weight | 0.52 kg |
| Extended Product Type | AL16-30-10 24V DC |
| Ambient Air Temperature | -60°C to +80°C for storage, -40°C to +55°C without Thermal O/L Relay |
| Rated Insulation Voltage (Ui) | UL/CSA 600V, IEC 60947-4-1, VDE 0110 (Gr. C) 1000V |
| Product Class | Block Contactors |
