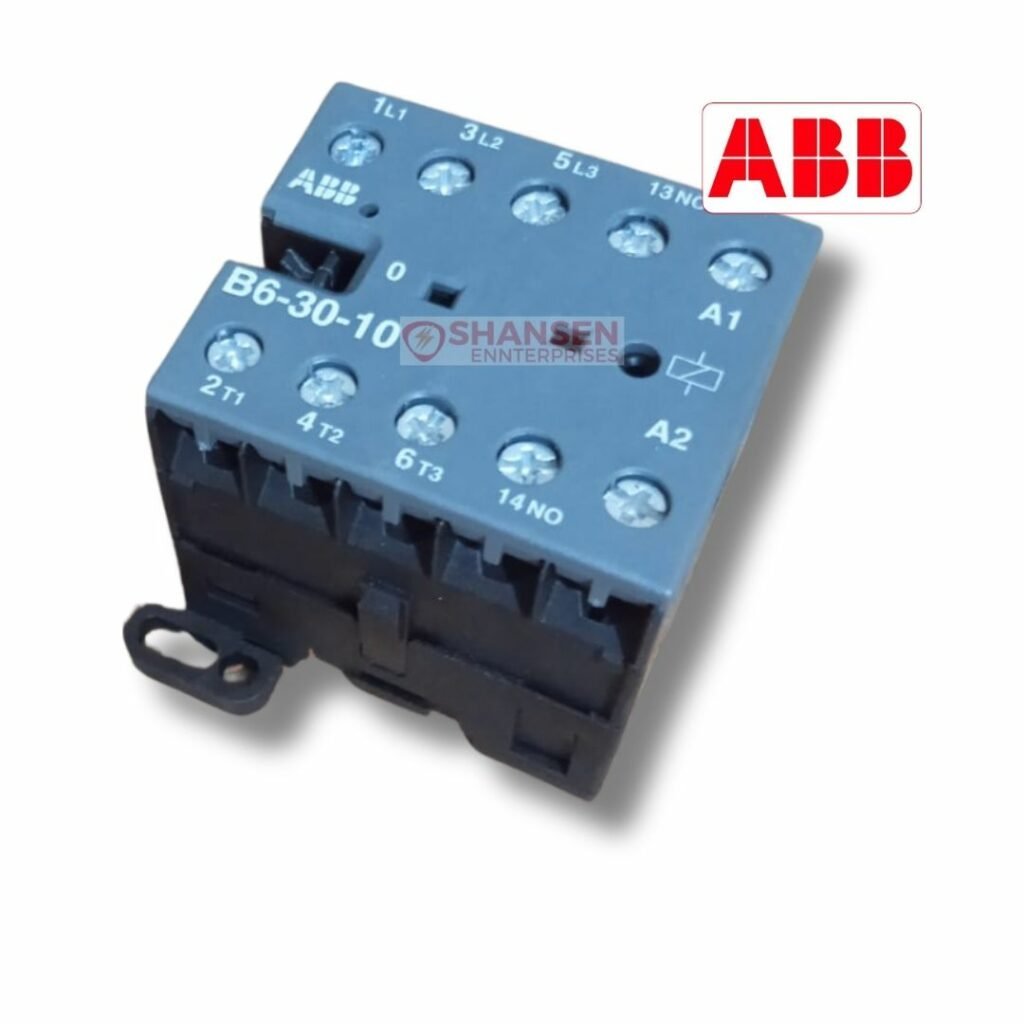

Description
Technical Specification
| Feature | Details |
|---|---|
| Number of Main Contacts NO | 3 |
| Compatibility | Mini Contactors |
| Max Electrical Switching Frequency | AC-1 300 cycles per hour, AC-15 600 cycles per hour, AC-3 600 cycles per hour, DC-1 600 cycles per hour, DC-13 600 cycles per hour, DC-3 600 cycles per hour |
| Horsepower Rating UL/CSA | (208 V AC) Three Phase 1 HP, (220-240 V AC) Single Phase 0.5 HP, (220-240 V AC) Three Phase 2 HP, (440-480 V AC) Three Phase 3 HP, (550-600 V AC) Three Phase 1 HP |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 20 A |
| Coil Consumption | Average Holding Value 50 Hz 3.5 VA, Average Pull-in Value 50 Hz 3.5 VA |
| Terminal Type | Screw Terminals |
| Rated Operational Voltage | Auxiliary Circuit 12-240 V DC, Main Circuit 12-690 V AC/DC |
| Rated Control Circuit Voltage (Uc) | 24V AC |
| Rated Breaking Capacity AC-3 (IEC 60947-4-1) | 8 x Ie / AC-3 |
| Rated Operational Power AC-3 (Pe) | (220-240 V) 2.2 kW, (400 V) 4 kW, (500 V) 4 kW, (690 V) 3 kW |
| Rated Operational Current DC-13 (Ie) | (110 V) 0.7 A, (220-240 V) 0.4 A, (24 V) 2.5 A |
| Rated Operational Current AC-3 (Ie) | (220-240 V) 55°C 8.5 A, (380-400 V) 55°C 8.5 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 4 A, (220-240 V) 4 A |
| Rated Making Capacity AC-3 (IEC 60947-4-1) | 10 x Ie / AC-3 |
| Rated Frequency (f) | Control Circuit 50/60 Hz, Main Circuit 50/60 Hz, DC |
| Rated Short-time Withstand Current (Icw) | 64 A at 40°C |
| Max Operating Voltage UL/CSA | Main Circuit 600 V AC, Auxiliary Circuit 600 V AC/DC |
| Package Width | 115 mm |
| Package Length | 280 mm |
| Package Height | 54 mm |
