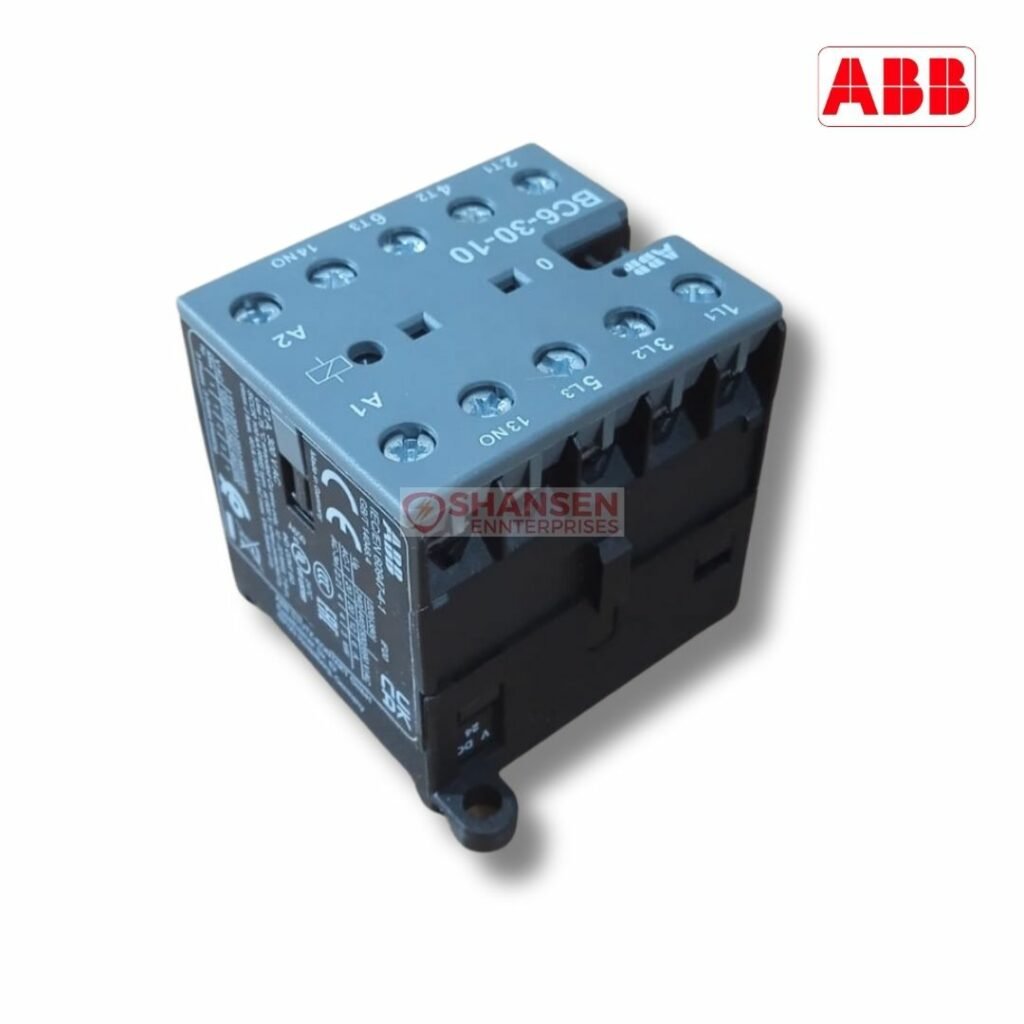

Description
| Technical Specification | Details |
|---|---|
| Number of Poles | 3P |
| Mini Contactor Type | Mini Contactor |
| Rated Operational Voltage | Auxiliary Circuit 690 V AC, Auxiliary Circuit 250 V DC, Main Circuit 690 V AC, Main Circuit 220 V DC |
| Rated Frequency (f) | Control Circuit DC, Main Circuit 60 Hz, Main Circuit 50 Hz, Main Circuit DC |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV, Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V, acc. to UL/CSA 600 V |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 3 |
| Rated Operational Current AC-1 (Ie) | (220/240 V) 40 °C 20 A, (220/240 V) 55 °C 16 A, (380/440 V) 40 °C 20 A, (380/440 V) 55 °C 16 A, (690 V) 40 °C 6 A, (690 V) 55 °C 6 A |
| Rated Operational Power AC-3 (Pe) | (230 V) Three Phase 2.2 kW, (400 V) Three Phase 4 kW, (500 V) Three Phase 4 kW, (690 V) Three Phase, NO 3 kW |
| Rated Short-time Withstand Current Low Voltage (Icw) | At 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Rated Operational Current AC-15 (Ie) | (24 V) 4 A, (120 V) 4 A, (500 V) 2 A, (220/240 V) 4 A, (380/400 V) 3 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A, (110 V) 0.7 A, (220/240 V) 0.4 A |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 20 A |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Coil Operating Limits | (acc. to IEC 60947-4-1) for DC supply 0.85 … 1.1 x Uc (at θ ≤ 55 °C) |
| Degree of Protection | Auxiliary Circuit Terminals IP20, Control Circuit Terminals IP20, Main Circuit Terminals IP20 |
| Mechanical Durability | 10000000 cycles |
| Minimum Switching Capacity | Auxiliary Circuit 17 V, Auxiliary Circuit 5 mA |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles/hour, (AC-15) 600 cycles/hour, (AC-3) 600 cycles/hour, (DC-1) 600 cycles/hour, (DC-13) 600 cycles/hour, (DC-3) 600 cycles/hour |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 1 … 2.5 mm², Rigid 1/2x 1 … 4 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 1 … 2.5 mm², Rigid 1/2x 1 … 4 mm² |
