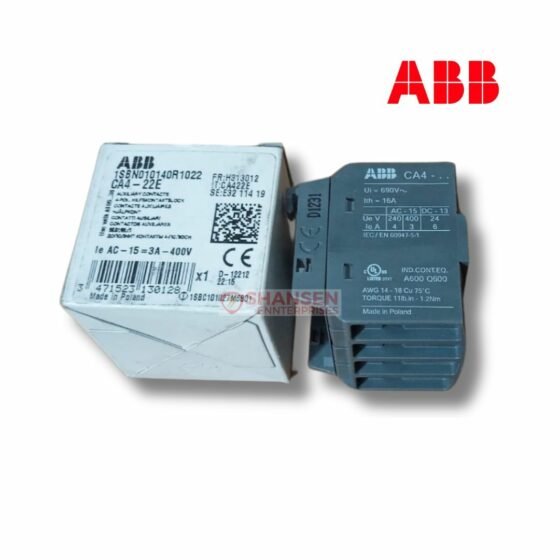

Description
| Technical Specification | Details |
|---|---|
| Number of Auxiliary Contacts NO: | 2 |
| Number of Auxiliary Contacts NC: | 2 |
| Standards: | IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14 |
| Rated Operational Voltage: | Auxiliary Circuit 690 V |
| Rated Frequency (f): | Auxiliary Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (Ie): | (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (400 / 440 V) 3 A |
| Rated Short-time Withstand Current Low Voltage (Icw): | for 0.1 s 140 A, for 1 s 100 A |
| Maximum Electrical Switching Frequency: | (AC-15) 1200 cycles per hour, (DC-13) 900 cycles per hour |
| Rated Operational Current DC-13 (Ie): | (24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.27 A / 60 W, (250 V) 0.27 A / 68 W, (400 V) 0.15 A / 60 W, (500 V) 0.13 A / 65 W, (600 V) 0.1 A / 60 W |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-5-1 690 V, acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Maximum Mechanical Switching Frequency: | 3600 cycles per hour |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 0.75 … 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 … 1.5 mm², Flexible with Insulated Ferrule 1x 0.75 … 2.5 mm², Rigid Solid 1/2x 1 … 2.5 mm², Rigid Stranded 1/2x 1 … 2.5 mm² |
| Wire Stripping Length: | Auxiliary Circuit 10 mm |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type: | Screw Terminals |
| Suitable For: | AF09, AF09Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, AFC09, AFC16, AFC26, AFC30, AFC38, AF09B, AF09ZB, AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB, AF40B, AF52B, AF65B, AF80B, AF96B |
