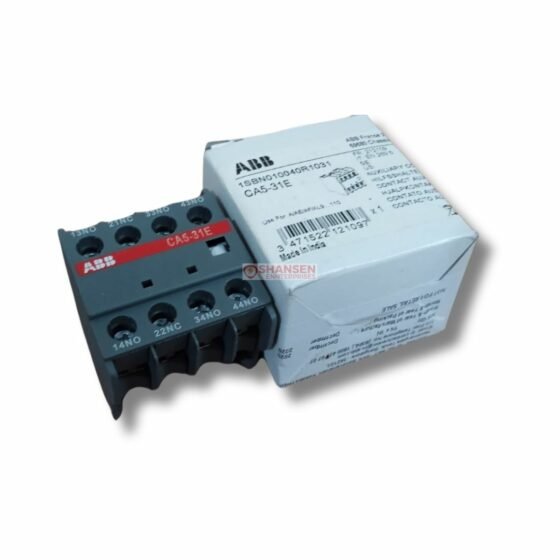

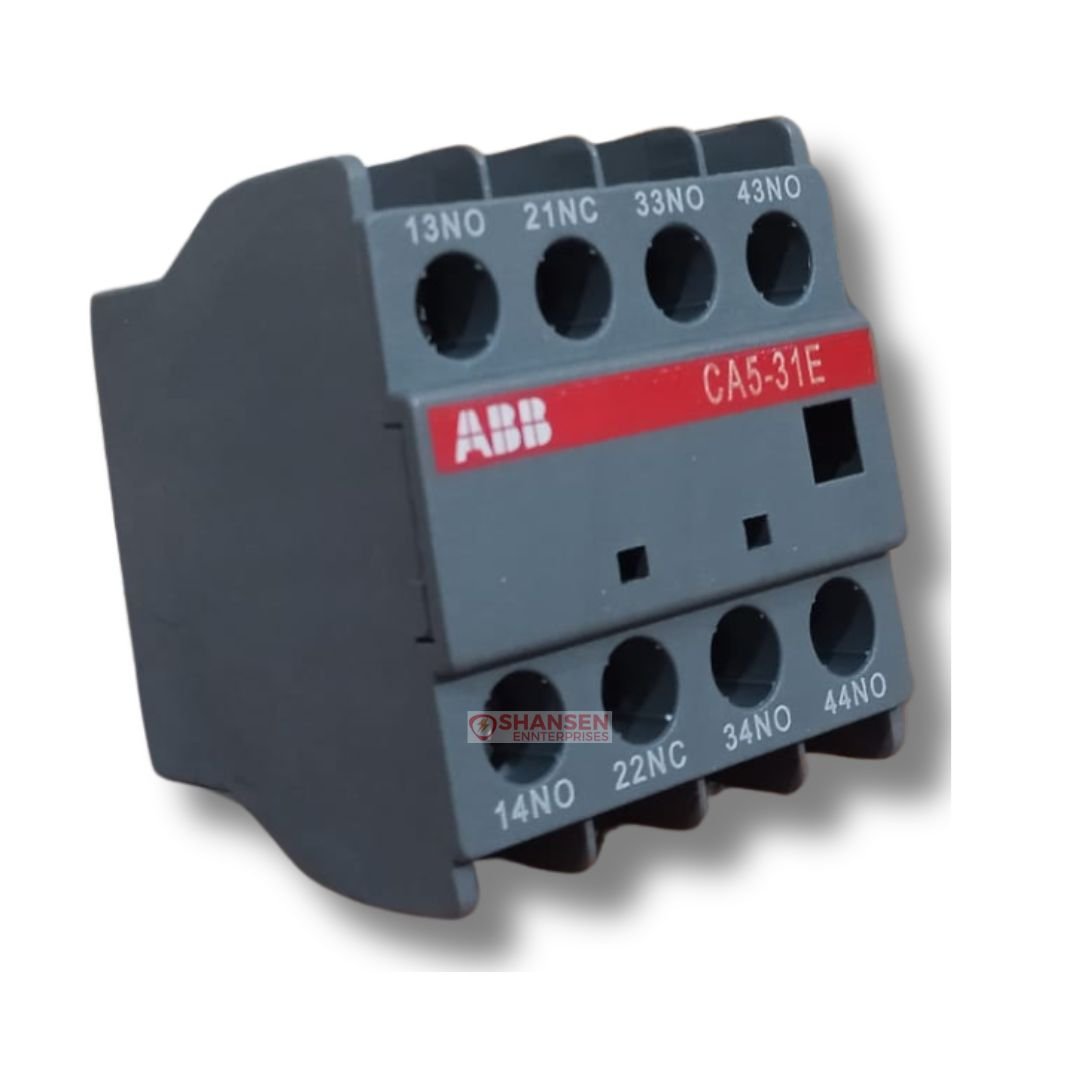

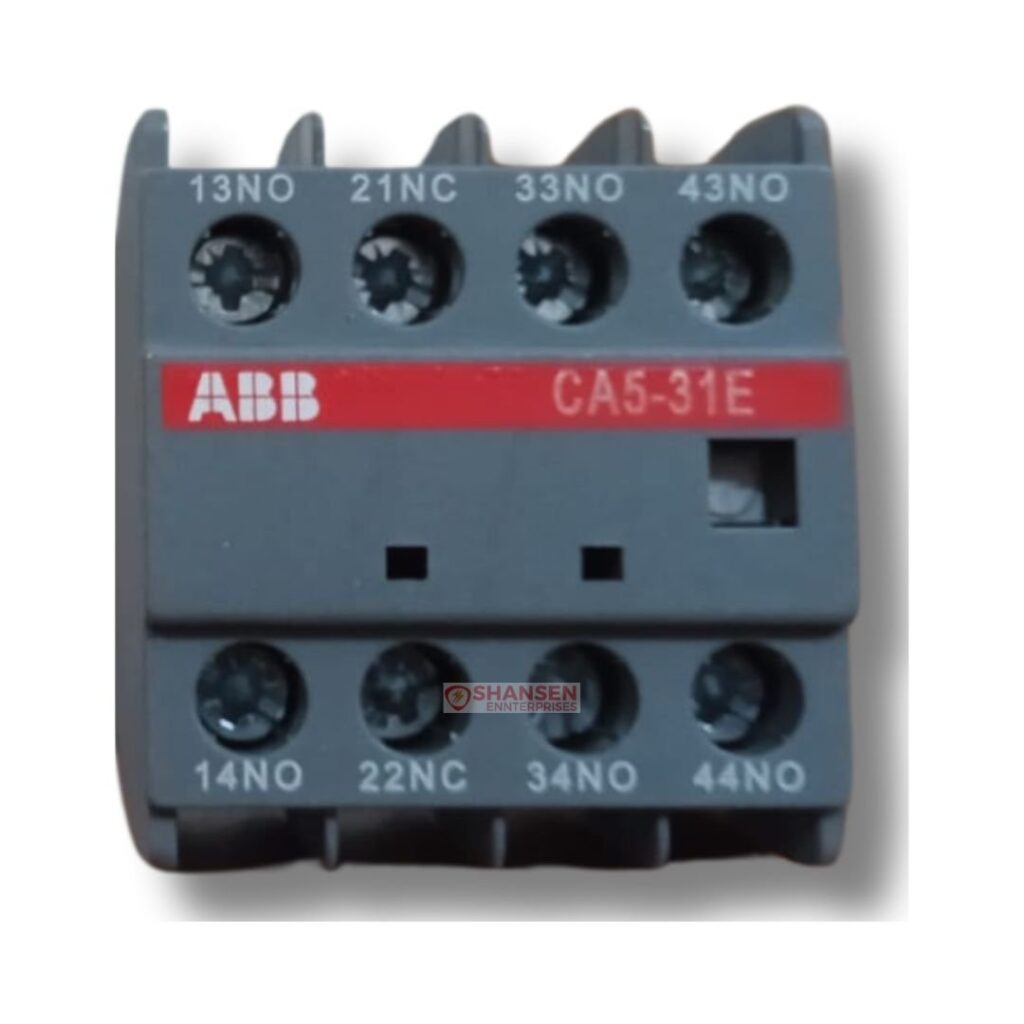

Description
| Specification | Details |
|---|---|
| Number of Auxiliary Contacts NO | 3 |
| Number of Auxiliary Contacts NC | 1 |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (380 / 400 V) 3 A |
| Short-Circuit Protective Devices | Auxiliary Circuit – gG Type Fuses 10 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A for 1 s 100 A |
| Maximum Electrical Switching Frequency | 1200 cycles per hour |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W (48 V) 2.8 A / 134 W (72 V) 1 A / 72 W (110 V) 0.55 A / 60 W (125 V) 0.55 A / 69 W (220 V) 0.30 A / 66 W (250 V) 0.3 A / 75 W |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V acc. to UL/CSA 600 V |
| Mechanical Durability | 10 million / 3 million |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Screw Terminals |
| Suitable For | AF45, AF50, AF63, AF75, AF95B, GAF75, A9, A16, A26, A45, A50, A63, A75, A95, A110, AL9, AL16, AL26, AE45, AE50, AE63, AE75, TAL9, TAL16, TAL26, TAE45, TAE50, TAE75, GA75, GAE75, UA50, UA63, UA75, UA95, UA110 |
