Description
| Technical Specification | Details |
|---|---|
| Ambient Air Temperature | Operation: -25 … +70 °C Storage: -40 … +85 °C |
| Color | Blue |

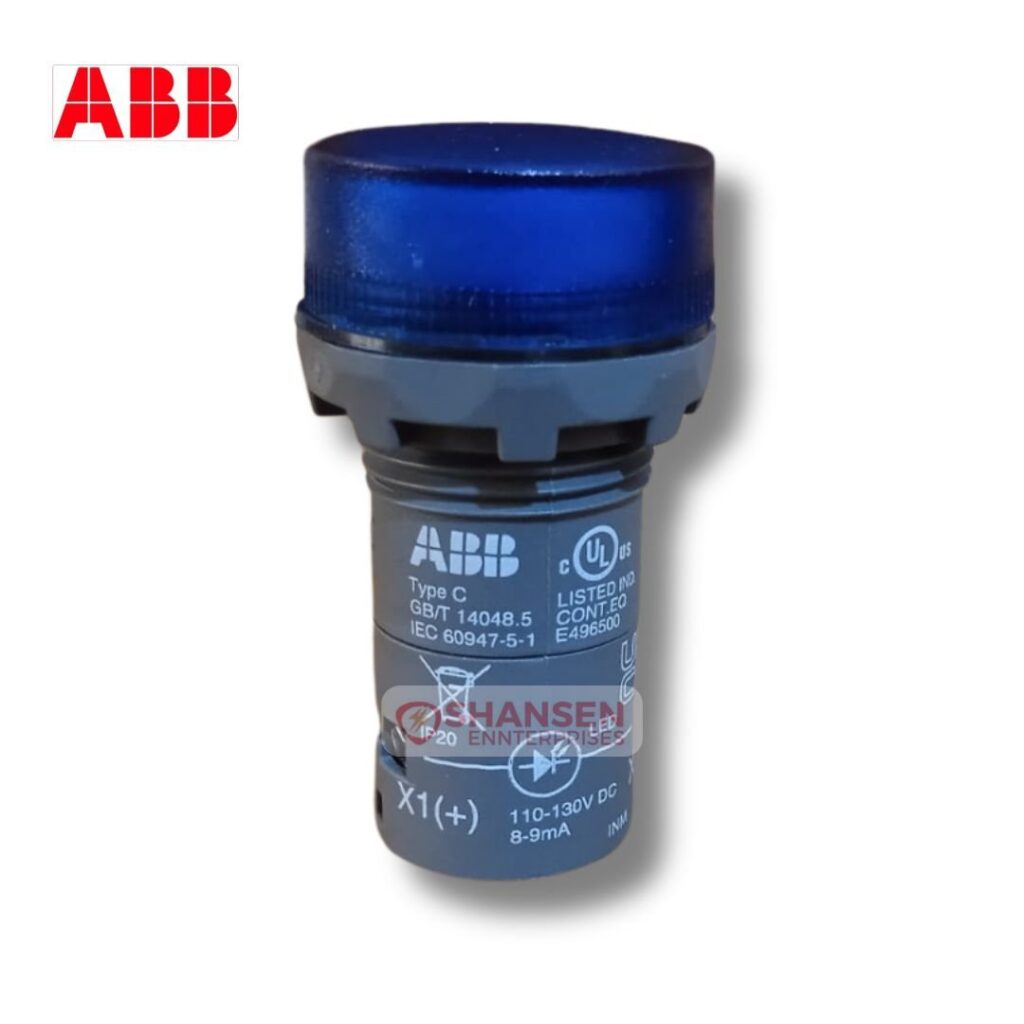

| Actuator Type | Pilot light head |
| Illumination | Illuminated |
| Lamp Type | 110-130 V DC, integrated LED |
| Enclosure Type NEMA | Type 1, Type 12, Type 13, Type 3R, Type 4, Type 4X |
| Pollution Degree | 3 |
| Rated Operational Voltage | 110 … 130 V DC |
| Supply Circuit | 110 … 130 V DC |
| Connecting Capacity | Flexible with Ferrule: 1 x 0.75…2.5 mm², 2 x 0.75…2.5 mm² Flexible with Insulated Ferrule: 1 x 0.75…2.5 mm², 2 x 0.75…2.5 mm² Flexible: 1 x 0.75 … 2.5 mm², 2 x 0.75 … 2.5 mm² Solid: 1 x 0.75…2.5 mm², 2 x 0.75…2.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
