Description
MRP (Indian Rupees) | |
---|---|
Rated Insulation Voltage (Ui) | 690 volt |
Ambient Air Temperature | Around the Enclosure 0 … +40 degree Celsius, Operation -25 … +70 degree Celsius, Operation Compensated -25 … +55 degree Celsius, Storage -50 … +80 degree Celsius |
Full Load Amps Motor Use | (110 … 120 V AC) Three Phase 1 ampere, (200 V AC) Three Phase 1 ampere, (208 V AC) Three Phase 1 ampere, (220 … 240 V AC) Three Phase 1 ampere, (440 … 480 V AC) Three Phase 1 ampere, (550 … 600 V AC) Three Phase 0.9 ampere |
General Use Rating UL/CSA | (600 V AC) 1 ampere |
Rated Frequency (f) | Main Circuit 50 hertz/Main Circuit 60 hertz |
Rated Current (In) | 1A |
Rated Operational Voltage | Main Circuit 690 volt AC |
Terminal Type | Screw Terminals |
Number Of Poles | 3 |
Package Gross Weight | 0.24 kilogram |
Product Range | MO-MS |

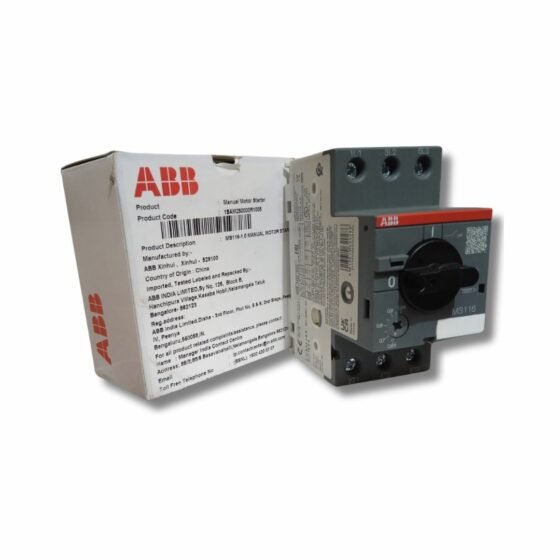

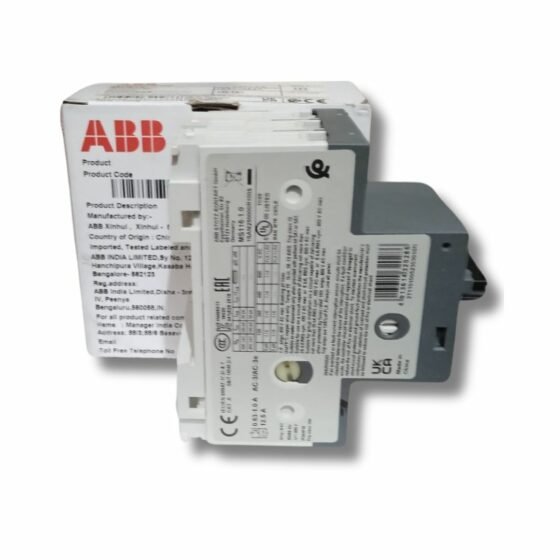

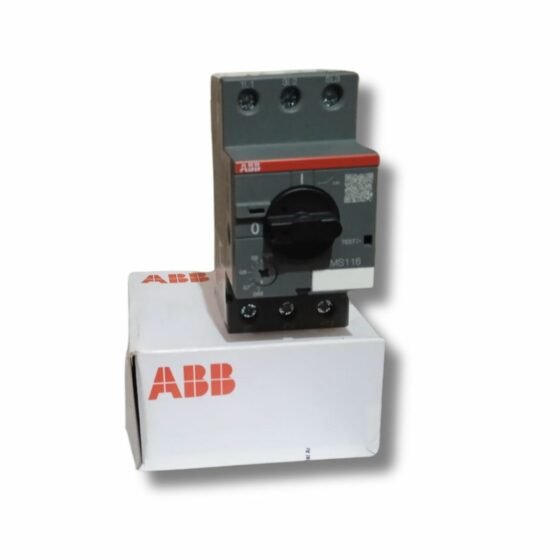

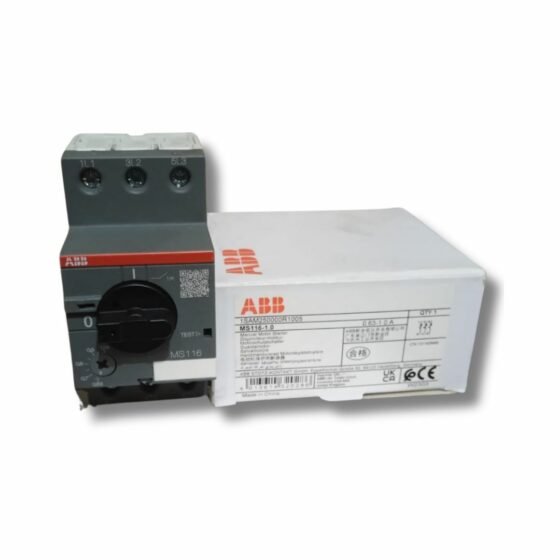

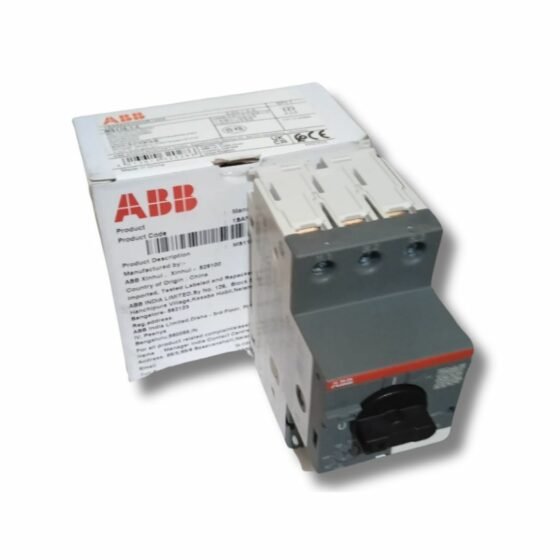

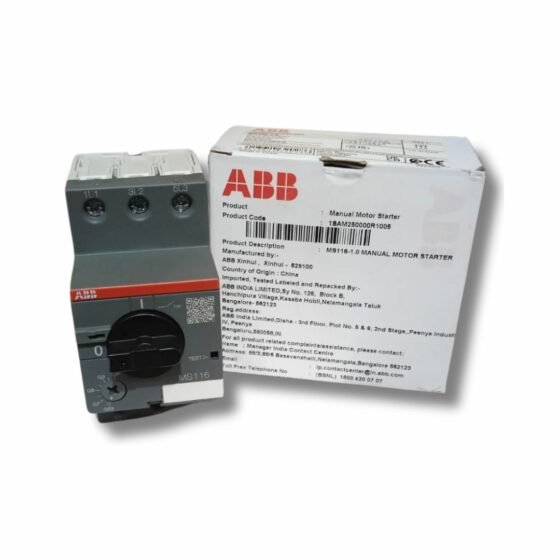

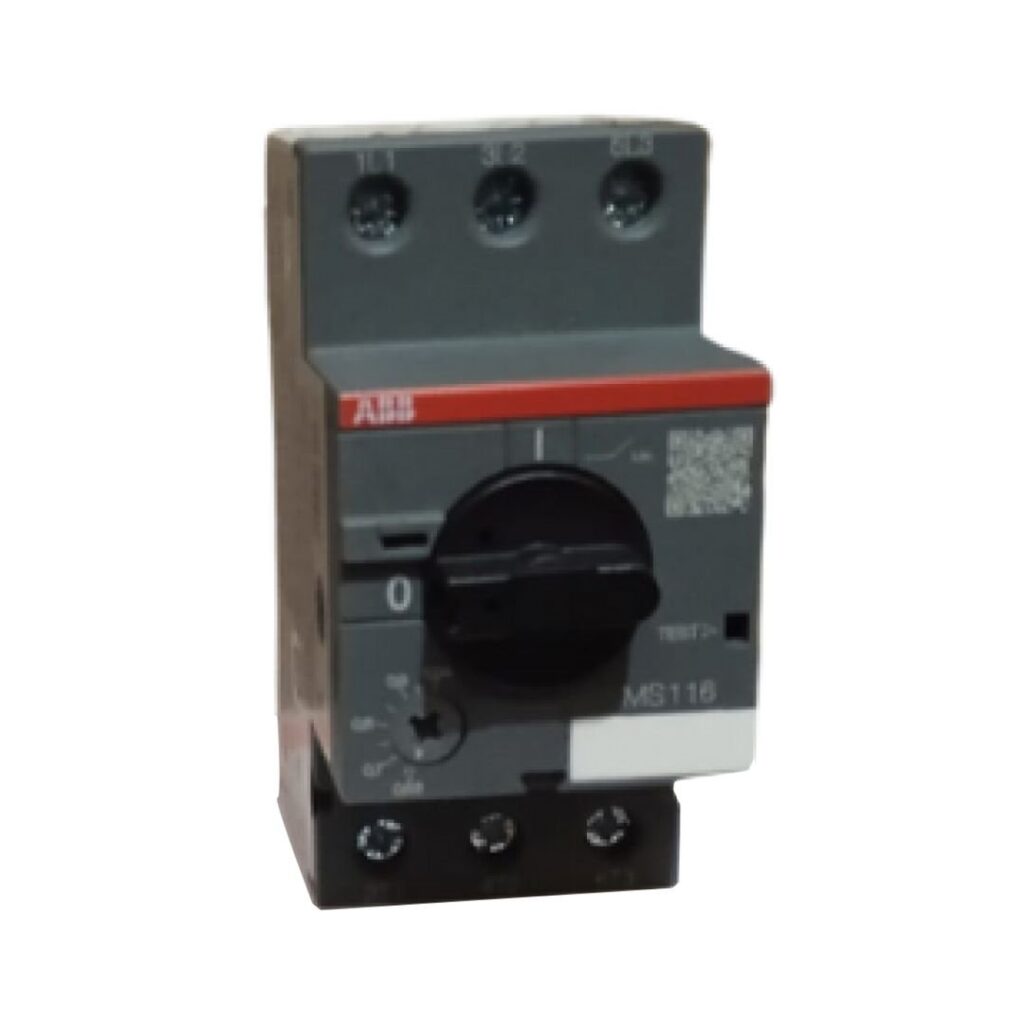

Invoice Description | MS116-1.0 Manual Motor Starter Trip class 10A, 0.63 … 1.0A |
Package Height | 50 millimetre |
Package Length | 95 millimetre |
Package Width | 92 millimetre |
Max Operating Voltage UL/CSA | Main Circuit 600 volt AC |
Extended Product Type | MS116-1.0 |
Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 50 kiloampere, (400 V AC) 50 kiloampere, (440 V AC) 50 kiloampere, (500 V AC) 30 kiloampere, (690 V AC) 30 kiloampere |
Rated Operational Current (Ie) | 1A |
Country of origin | China |
