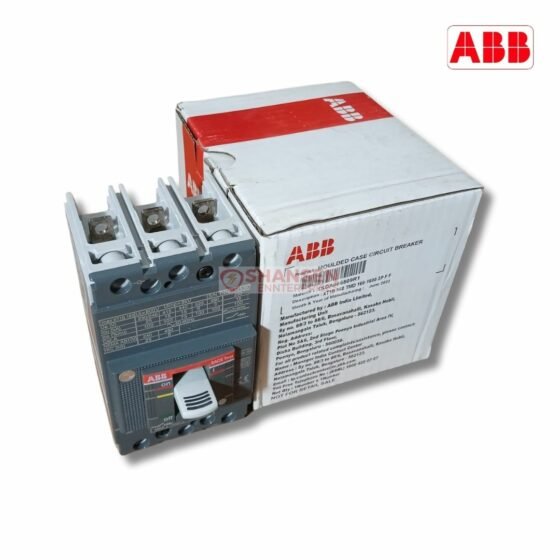

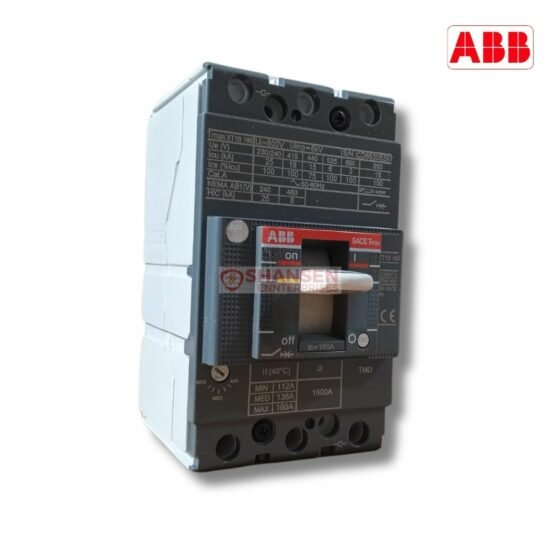

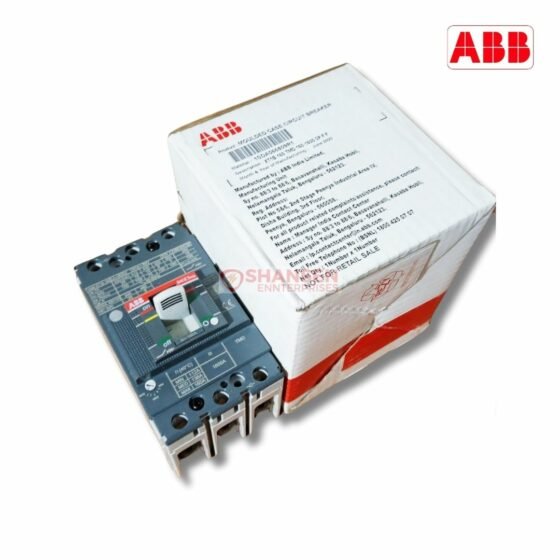

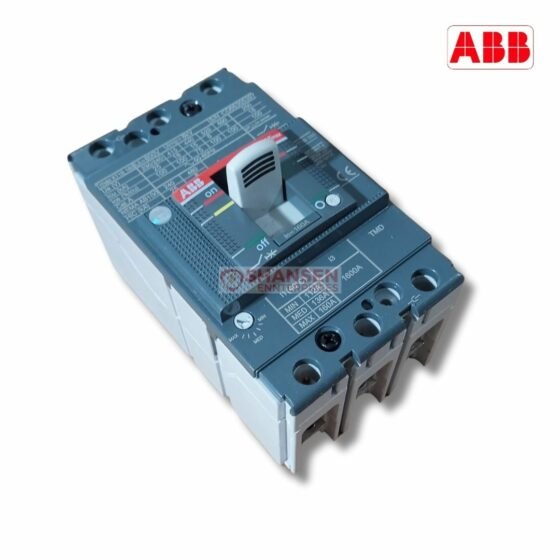

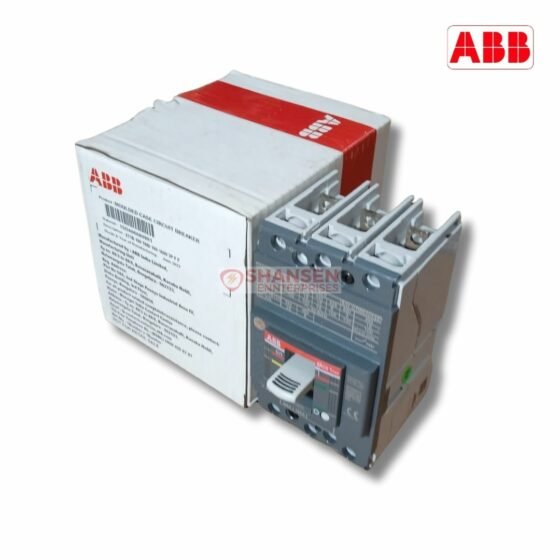

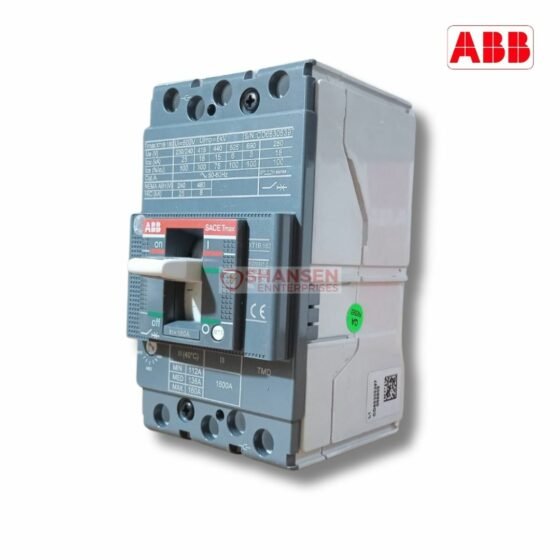

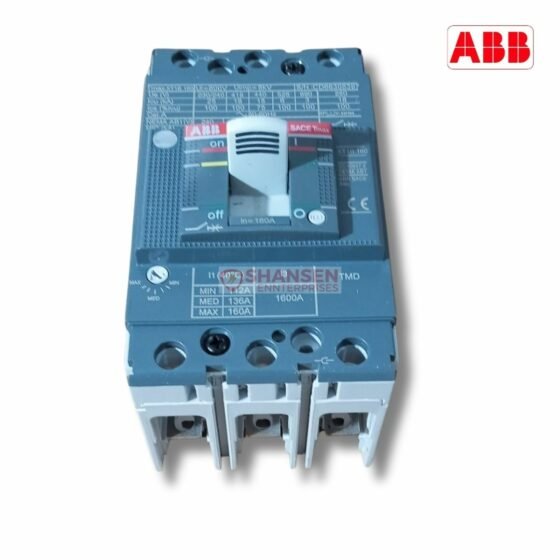

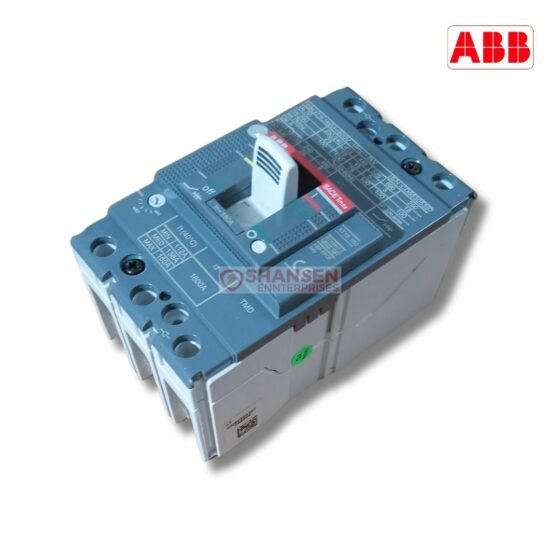

Meet the ABB Tmax XT1B 160 TMD 160-1600 3P F F MCCB, a molded case circuit breaker designed to deliver high performance and advanced protection—all in a compact package. Whether you're setting up a new industrial facility or upgrading an existing electrical panel, this MCCB ensures you get top-tier reliability, energy metering, and ease of installation.
Compact Footprint – Slim 76.2 mm width saves panel space
High Breaking Capacity – Ideal for demanding industrial environments
Electronic Trip Unit (TMD) – Supports adjustable protection settings
Modbus Communication – Enables smart energy monitoring and diagnostics
Enhanced Safety – Keylock/padlock compatible with plug-in/withdrawable options
Customizable Accessories – Tailor installation with wide accessory range
Real-Time Diagnostics – Status updates for proactive maintenance
Multi-application Ready – Motor, generator & energy protection in one
The ABB XT1B 160 MCCB is built to simplify electrical distribution without compromising on performance. With ABB’s trusted engineering and smart trip units, it offers flexibility, communication capabilities, and protection that adapt to complex system needs. It's a favorite among engineers who value reliability, safety, and space-saving designs.
🏭 Industrial Automation
🏢 Commercial Infrastructure
🏗️ Construction Sites
⚡ Energy & Utilities
🏬 Retail & Large Complexes
🧪 Laboratories and R&D Centers
Shansen Enterprises is proud to be an Authorized Channel Partner of ABB in Coimbatore, trusted by clients across India. With 100% customer satisfaction and readily available stock, we offer personalized quotes, competitive prices, and fast delivery.
👉 Tap the “Get Quote via WhatsApp” now and get a fast, customized deal!
Q1: Is this MCCB suitable for motor protection?
Yes, it’s ideal for motor and generator protection with adjustable thermal-magnetic settings.
Q2: Can this unit be integrated into smart monitoring systems?
Absolutely. It supports Modbus integration for real-time monitoring and energy metering.
Q3: Are accessories available for customization?

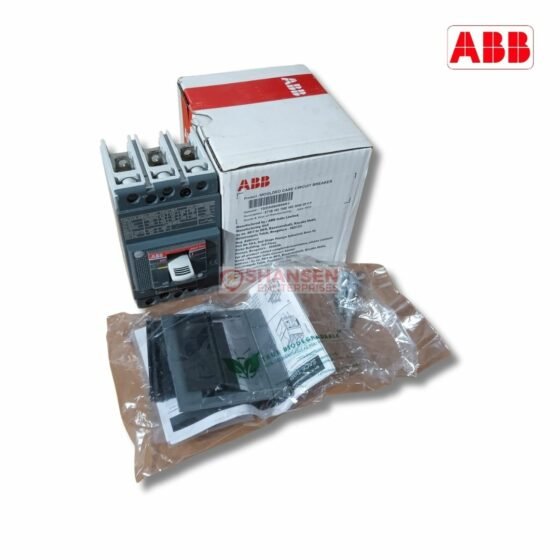

Yes, various accessories like auxiliary contacts, shunt trips, and padlocks are available.
Send us a message on WhatsApp or email to get pricing and availability. We respond within 30 minutes.
| Technical Specification | Details |
|---|---|
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour, 8000 cycles |
| Mechanical Durability | 240 cycles per hour, 25000 cycles |
| Number of Poles | 3P |
| Opening Time | CB with SOR 15 ms, CB with UVR 15 ms |
| Order Multiple | 1 piece |
| Power Loss | At rated operating conditions per pole 15 W |
| Rated Current (In) | 160 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1600 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC, 500 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) |
|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) |
|
| Rated Uninterrupted Current (Iu) | 160 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 112...160 A |
| Short-Circuit Performance Level | B |
| Standards | IEC60947-2 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
