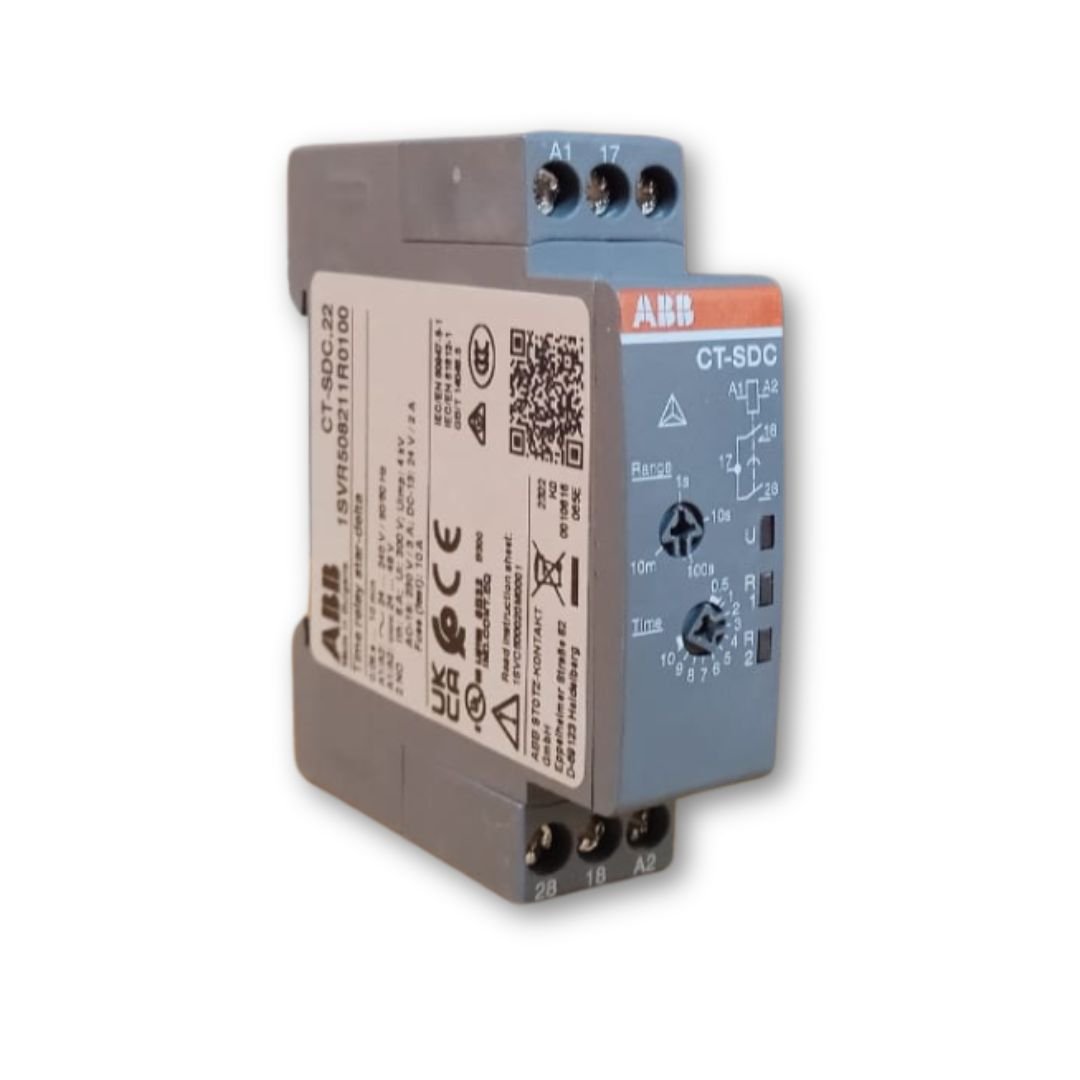

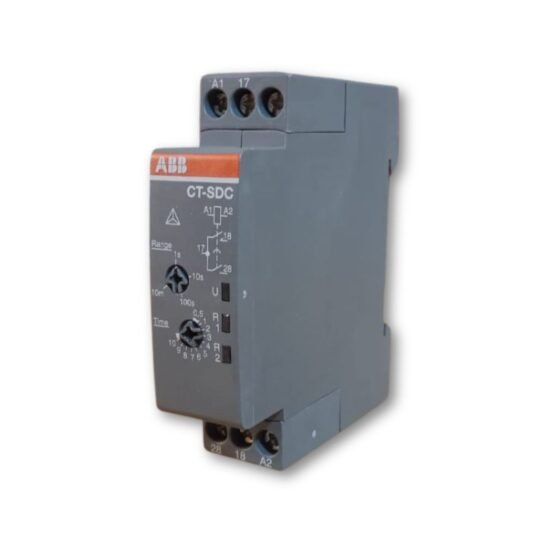

Description
| Technical Details | Specification |
|---|---|
| Timer Relay Type | Star-Delta |
| Time Range | 0.05 s … 10 min |
| Rated Control Supply Voltage (Us) | 24 … 240 V AC / 24 … 48 V DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz, DC |
| Output | 2 n/o contacts |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A |
| Minimum Switching Capacity | 12 V, 100 mA |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V, Output Circuit 1/2 300 V |
| Degree of Protection | Housing IP50, Terminals IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Short-Circuit Protective Devices | Output NC – F Type Fuse 6 A / Output NO – F Type Fuse 10 A |
| Connecting Capacity | Flexible 1x 0.5 … 2.5 mm², 2x 0.5 … 1.5 mm² / Rigid 1x 0.5 … 4 mm², 2x 0.5 … 1.5 mm² |
| Tightening Torque | 0.5 … 0.8 N·m |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | 0.8 x 4, Pozidriv 1 |
| Mounting Position | 1 … 6 |
| Mounting on DIN Rail | TH35-15 / TH35-7.5 (IEC 60715) |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC 61812-1, UL 508 |
