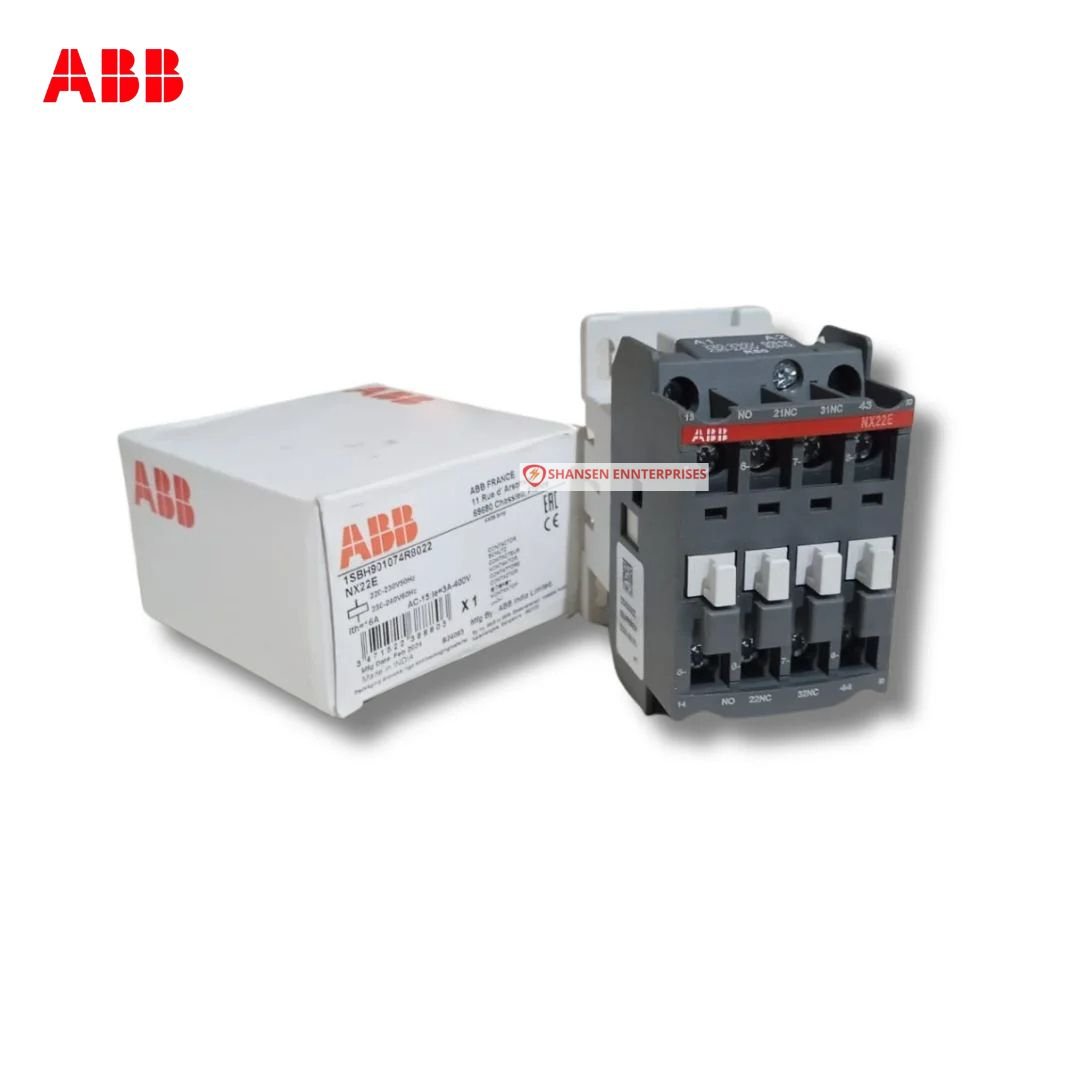

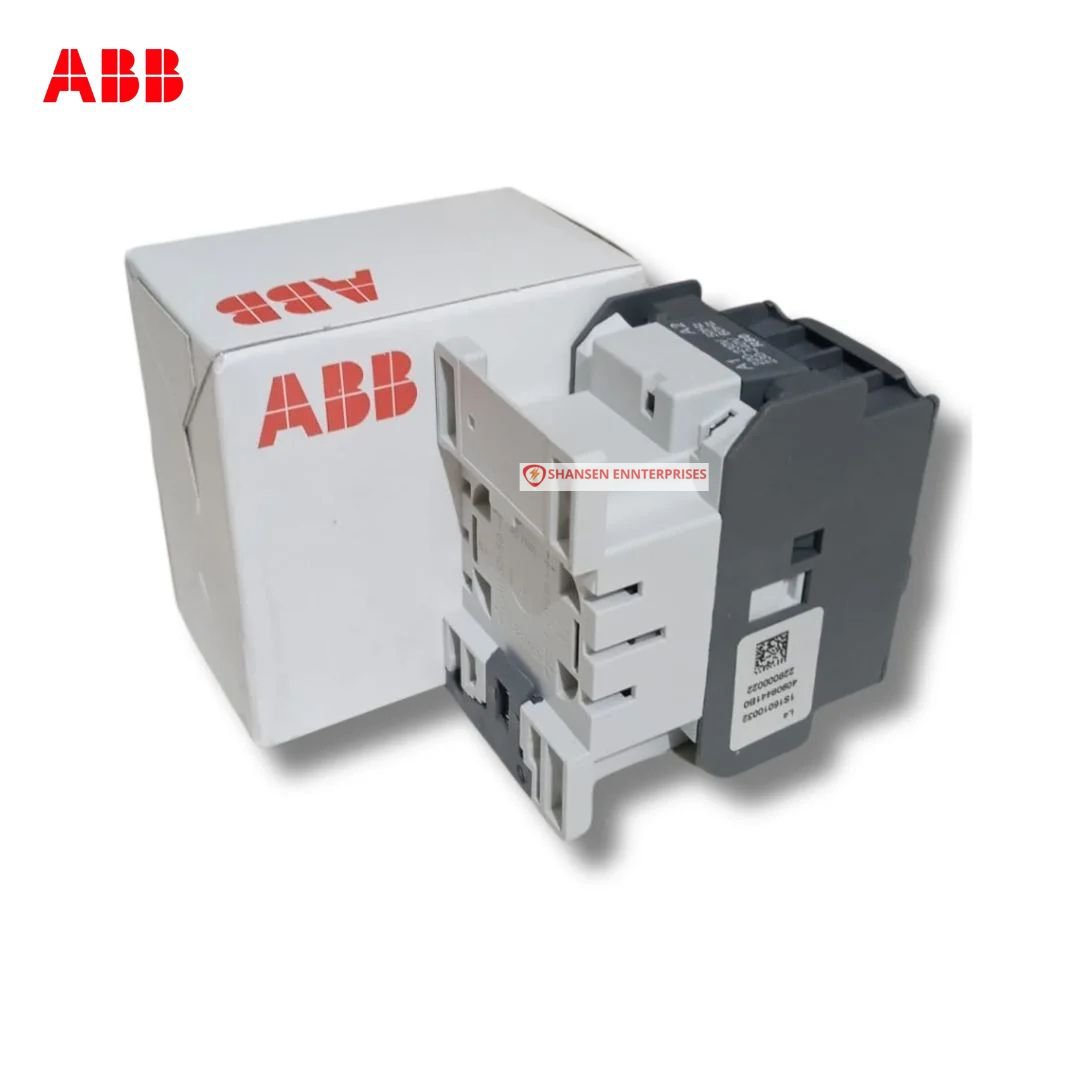

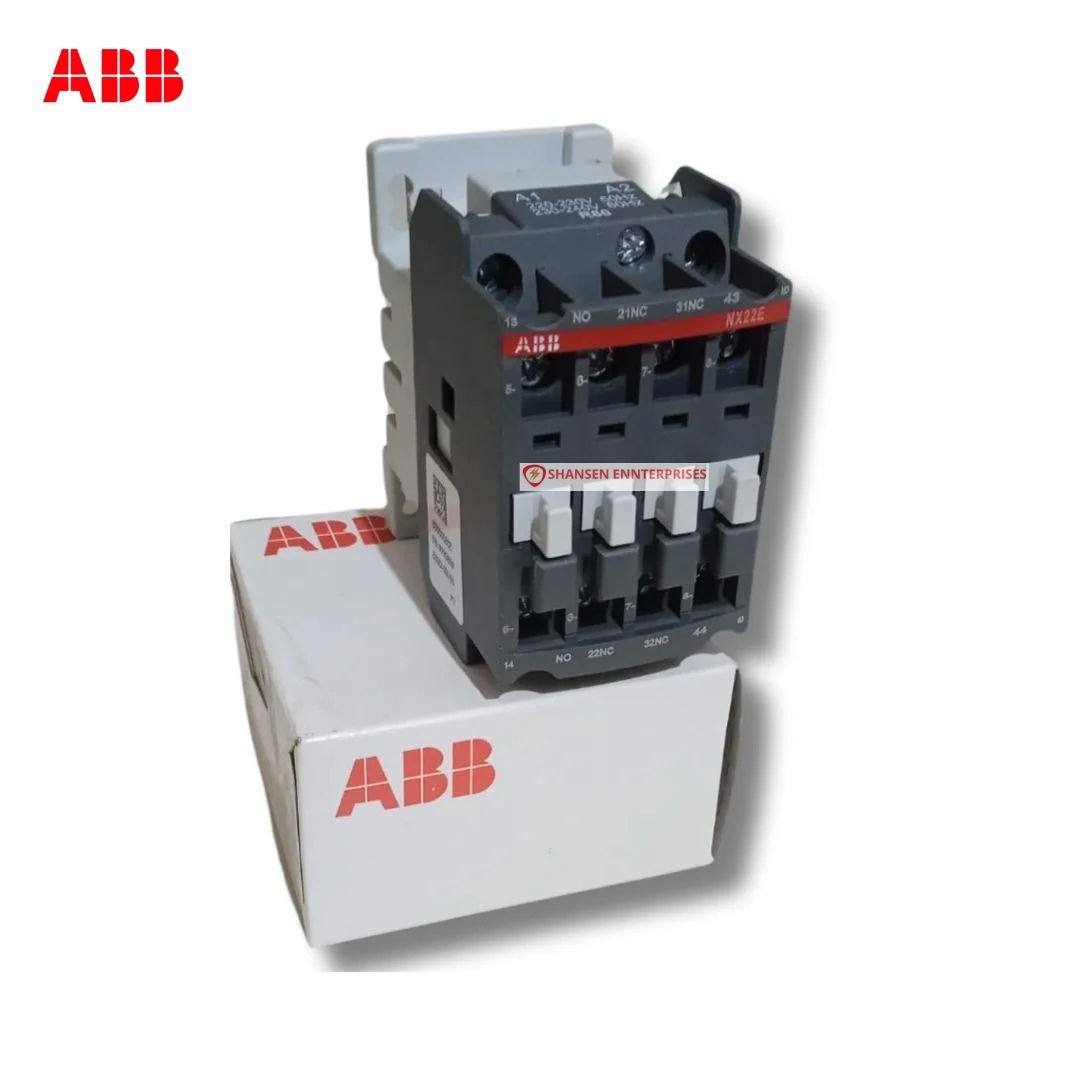

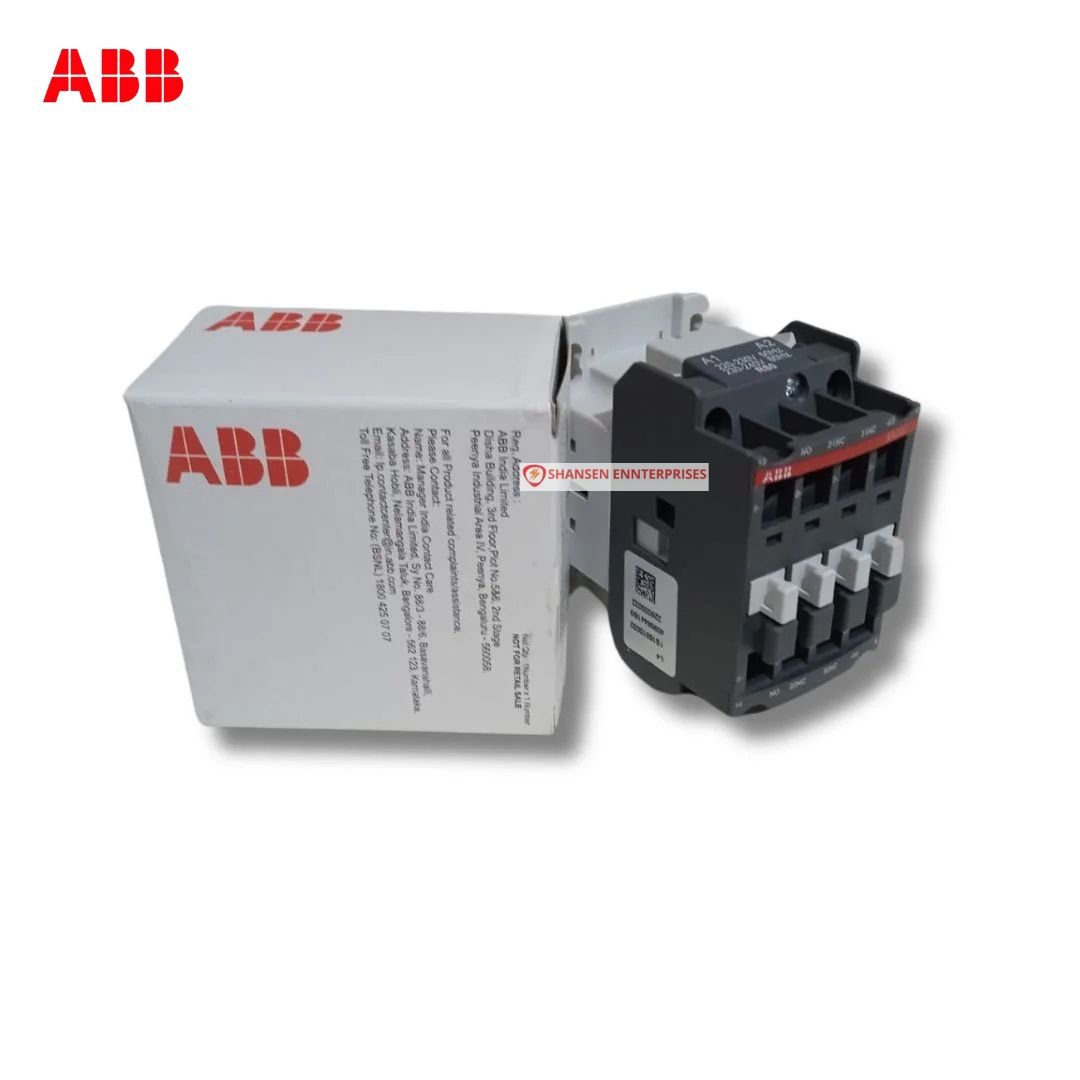

ABB NX22E-80 220-230V 50Hz / 230-240V 60Hz Contactor Relay

The ABB NX22E-80 Contactor Relay is designed for reliability, durability, and precision in control and auxiliary circuit switching. Built with ABB’s trusted engineering, this 4-pole block-type contactor relay operates efficiently across both 50Hz and 60Hz frequencies. It’s ideal for modern control panels, automation systems, and auxiliary circuit management. With a compact design (44 mm width, 74 mm height, 74 mm depth) and a lightweight body (0.315 kg), it ensures easy installation even in space-constrained setups. Offering mechanically linked auxiliary contacts, superior insulation, and fast response times, the NX22E-80 stands out for its long service life and consistent electrical performance.

⚙️ Key Features at a Glance

• Rated Control Voltage: 220–230V 50Hz / 230–240V 60Hz

• Rated Operational Voltage: Up to 690V (Main & Auxiliary)

• 4 Poles (2 NO + 2 NC Contacts)

• Thermal Current (Ith): 16 A (IEC 60947-5-1)

• Short-time Withstand Current: 140 A (0.1 s) / 100 A (1 s)

• Switching Frequency: Up to 6000 mechanical cycles/hour

• Impulse Withstand Voltage: 6 kV

• Degree of Protection: IP20 (Coil Terminals)

• Terminal Type: Screw terminals (1 N·m tightening torque)

• Compact dimensions: 44 mm (W) x 74 mm (D) x 74 mm (H)

💡 Why Choose This Product

The ABB NX22E-80 combines performance and dependability, making it a top choice for industrial automation, control systems, and power management applications. Its robust build ensures reliable operation in demanding electrical environments, while ABB’s design excellence minimizes maintenance and downtime. With compatibility for front or side-mounted auxiliary blocks and a full accessory range, it offers both flexibility and ease of customization for diverse control setups.

🏭 Ideal For

• Control and auxiliary circuit switching

• Industrial automation panels

• Machine control systems

• Electrical distribution boards

• OEM and panel manufacturing

📲 WhatsApp Quote – Shansen Enterprises

We are a Channel Partner of ABB, Eaton Bussmann, and SECURE Meters, with a 100% customer satisfaction record.
📦 Delivery all over India!
👉 Get your quote on WhatsApp now and experience our fast response and reliable service.

❓ Frequently Asked Questions

Q1. What is the rated operational voltage of the ABB NX22E-80 relay?
A1. The rated operational voltage is up to 690V for both main and auxiliary circuits.

Q2. Can I use this relay for DC control circuits?
A2. Yes, it supports DC-13 rated operational currents as specified (e.g., 24V – 6A, 110V – 0.55A).

Q3. What accessories can be added to this relay?
A3. You can add front or side-mounted auxiliary contact blocks and other ABB-compatible accessories.
