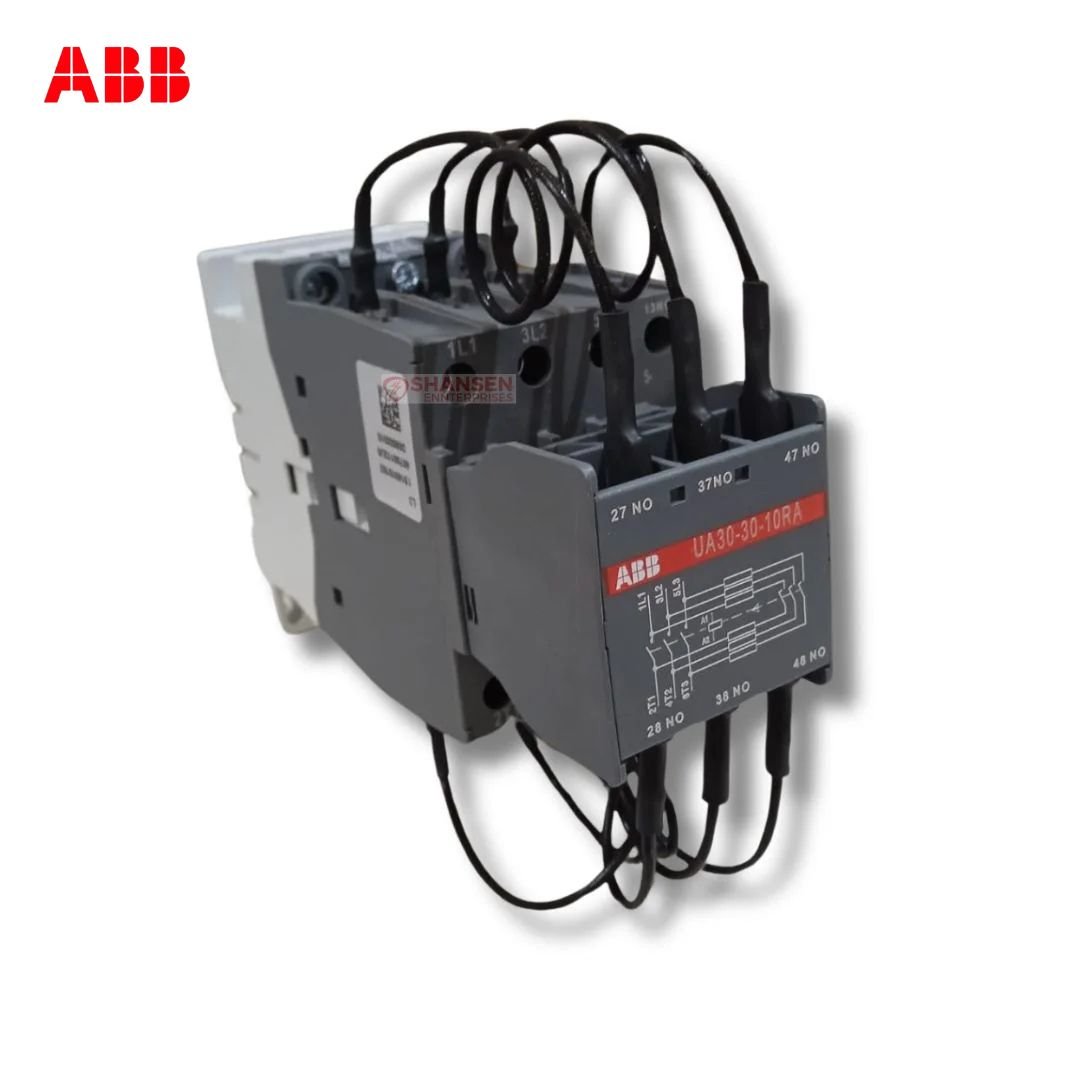

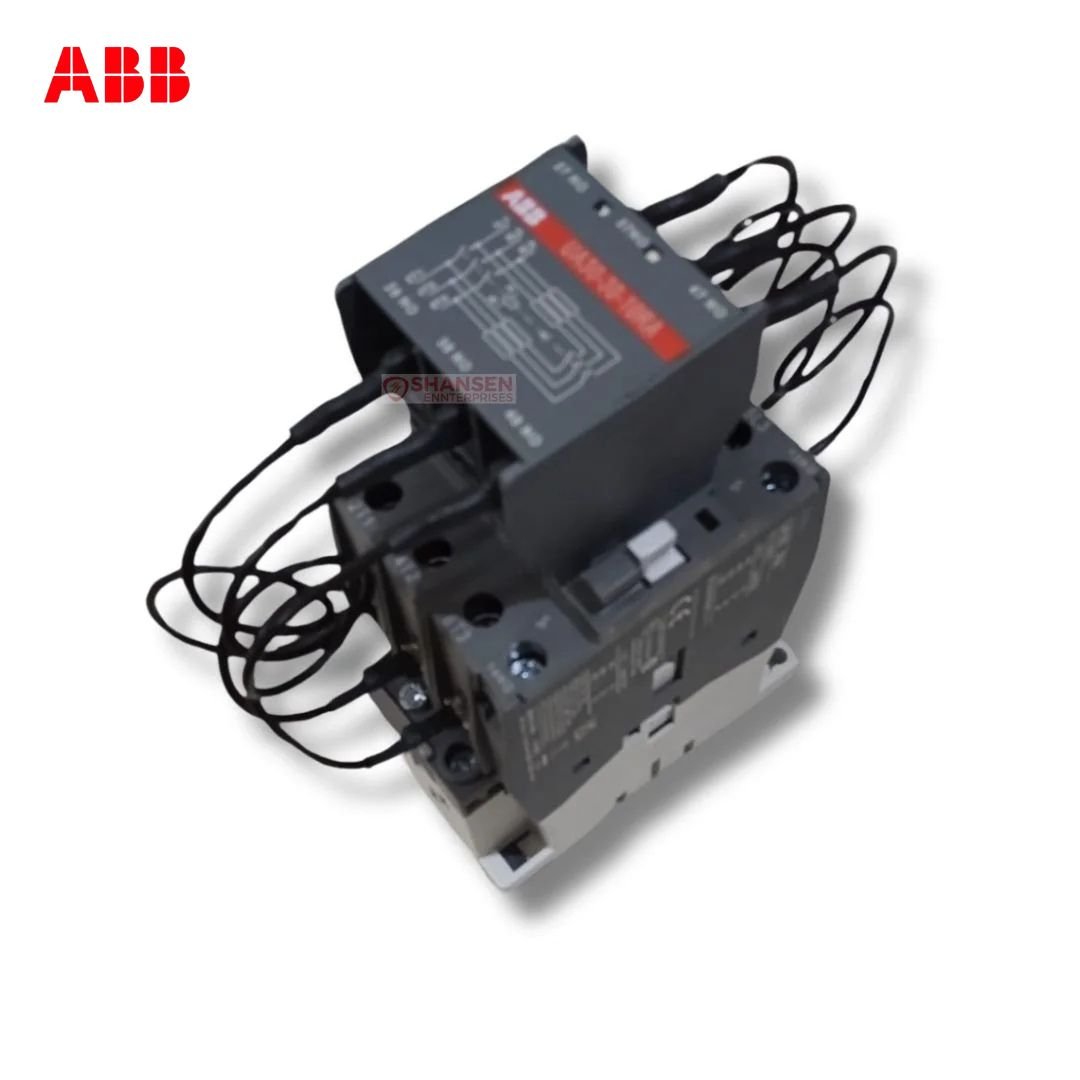

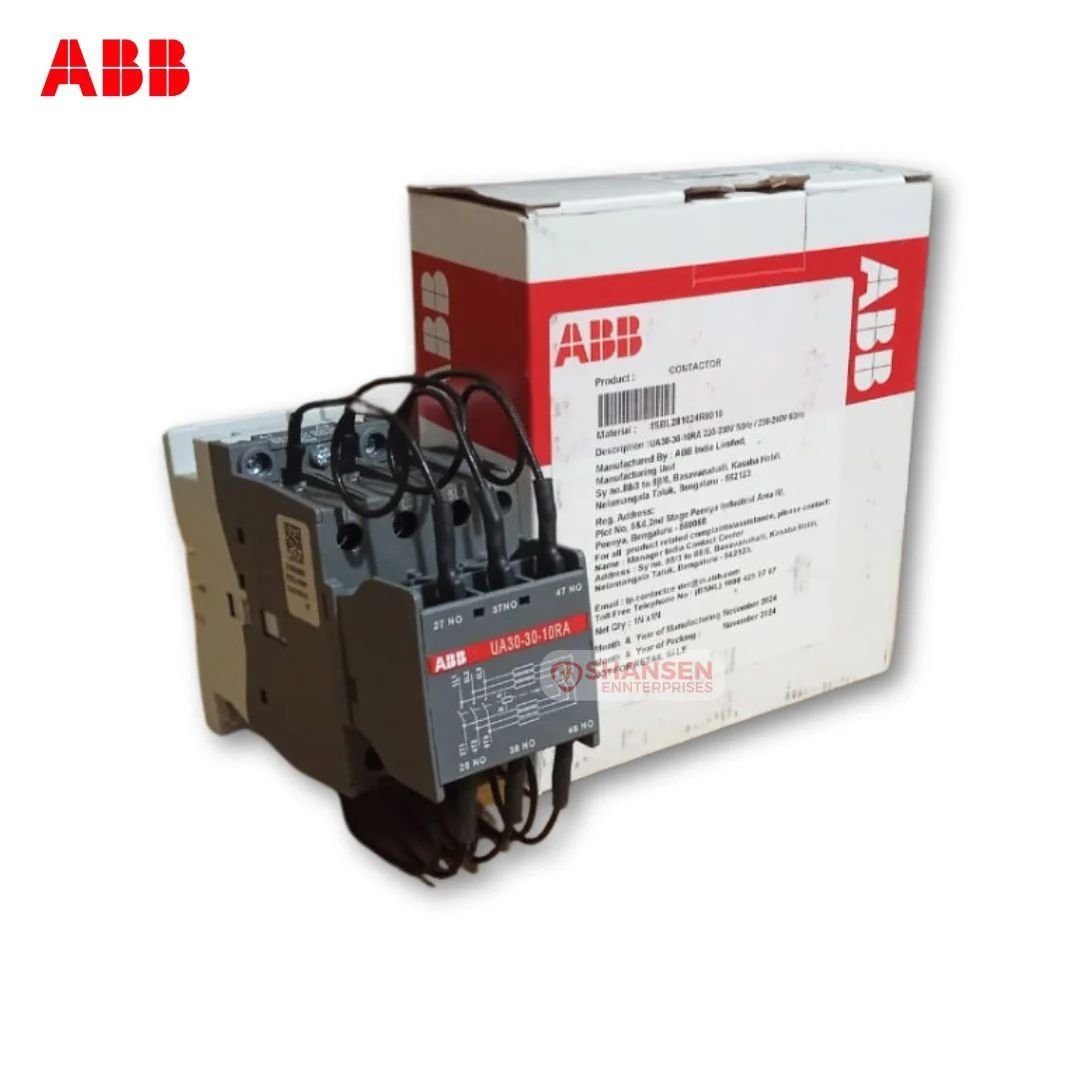

ABB UA30-30-10RA 230-240V 50Hz / 240-260V 60Hz 3 Pole Contactor

The ABB UA30-30-10RA Contactor (1SBL281024R8810, EAN 3471522302885) is a high-performance 3-pole capacitor switching contactor engineered for reliability in demanding power factor correction systems. Designed for both 50 Hz (230–240 V) and 60 Hz (240–260 V) applications, it ensures safe and efficient capacitor bank switching, even where peak currents can exceed 100 times the nominal RMS current. With integrated damping resistors, the UA30-30-10RA eliminates the need for additional inductances and minimizes inrush currents, protecting both the capacitor bank and the connected system. Built to IEC/EN 60947 standards, it offers long electrical durability, precise switching capability, and compatibility with a wide range of accessories, making it a trusted choice for industrial and commercial installations across India.

Key Features at a Glance

• Brand: ABB

• Type: 3-pole capacitor switching contactor

• Rated Control Voltage: 230–240 V 50 Hz / 240–260 V 60 Hz

• Rated Operational Voltage: 690 V (Main & Auxiliary Circuits)

• Rated Insulation Voltage: 1000 V

• Rated Impulse Withstand Voltage: 8 kV

• Electrical Durability: 250,000 cycles @ ≤ 440 V / 100,000 cycles @ 500–690 V

• Built-in 3 damping resistors for reduced inrush currents

• Auxiliary Contact: 1 NO

• Coil Consumption: 12 VA holding / 120–140 VA pull-in

• Dimensions: 54 mm (W) × 141 mm (D) × 130 mm (H)

• Weight: 0.81 kg

• Standards: IEC/EN 60947-1, IEC/EN 60947-4-1

• Mounting: DIN rail or screw fixing

• Protection: IP20 terminals

Why Choose This Product

The ABB UA30-30-10RA stands out for its ability to reliably handle the harsh switching demands of capacitor banks. Its integrated resistor technology reduces damaging current peaks during energization, extending equipment life and ensuring safer operation. Backed by ABB’s engineering excellence and compliance with international standards, it offers long-term reliability, precise control, and energy efficiency, making it a cost-effective investment for industrial electrical systems.

Ideal For

• Power factor correction panels

• Industrial capacitor bank switching

• Energy-efficient distribution systems

• Heavy-duty commercial installations

• OEMs and panel builders requiring compact capacitor contactors
