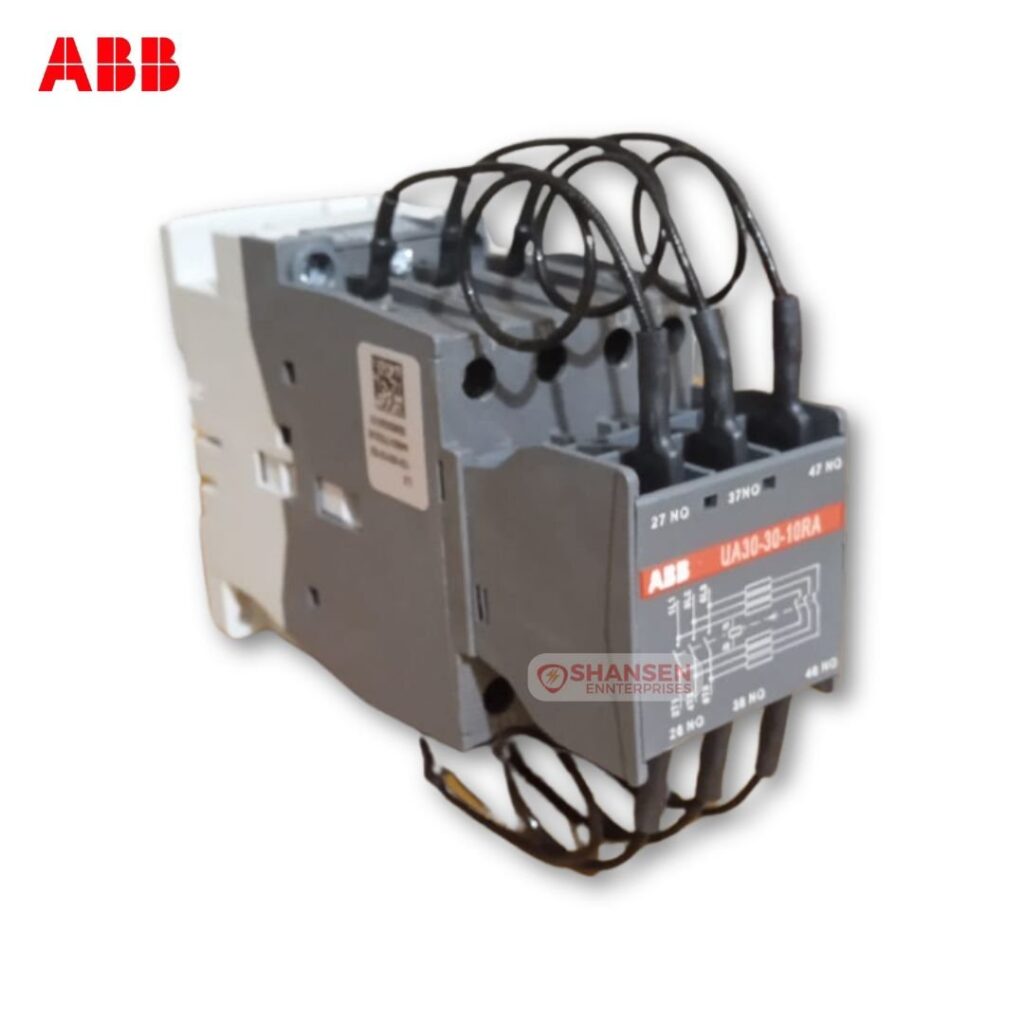

Description
| Technical Specification | Details |
|---|---|
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 3P |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1 |
| Rated Operational Voltage | Auxiliary & Main Circuit: 690 V |
| Rated Frequency (f) | Auxiliary, Control, Main Circuit: 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | 16 A (at 40°C) |
| Rated Operational Current AC-15 (Ie) | Up to 6 A depending on voltage |
| Rated Operational Current DC-13 (Ie) | Up to 6 A depending on voltage |
| Rated Operational Power AC-6b (Pe) | Up to 34 kvar depending on voltage and temperature |
| Short-Circuit Protective Devices | gG Type Fuses: Auxiliary 10 A, Main 200 A |
| Rated Short-time Withstand Current (Icw) | 140 A for 0.1s, 100 A for 1s |
| Maximum Breaking Capacity | Up to 820 A at 440 V |
| Rated Insulation Voltage (Ui) | Up to 1000 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Electrical Durability | 250,000 cycles (<=440 V), 100,000 cycles (500-690 V) |
| Maximum Electrical Switching Frequency | 240 cycles/hour |
| Rated Control Circuit Voltage (Uc) | 230-240 V (50 Hz), 240-260 V (60 Hz) |
| Coil Consumption | Holding: 12 VA, Pull-in: 120-140 VA |
| Power Loss per Pole | 0.1 W |
| Operate Time | Opening: 4-11 ms, Closing: 8-21 ms |
| Mounting Options | DIN Rail (TH35-15, TH35-7.5) or Screws (M4) |
| Connecting Capacity Main Circuit | Flexible: 2.5-4 mm², Rigid: 2.5-6 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible: 0.75-2.5 mm², Rigid: 1-4 mm² |
| Degree of Protection | IP20 (Auxiliary, Coil, Main Terminals) |
| Connecting Terminals | M5 pozidriv screws with open connectors |
| Terminal Type | Screw Terminals |
| Product Name | Block Contactor |
