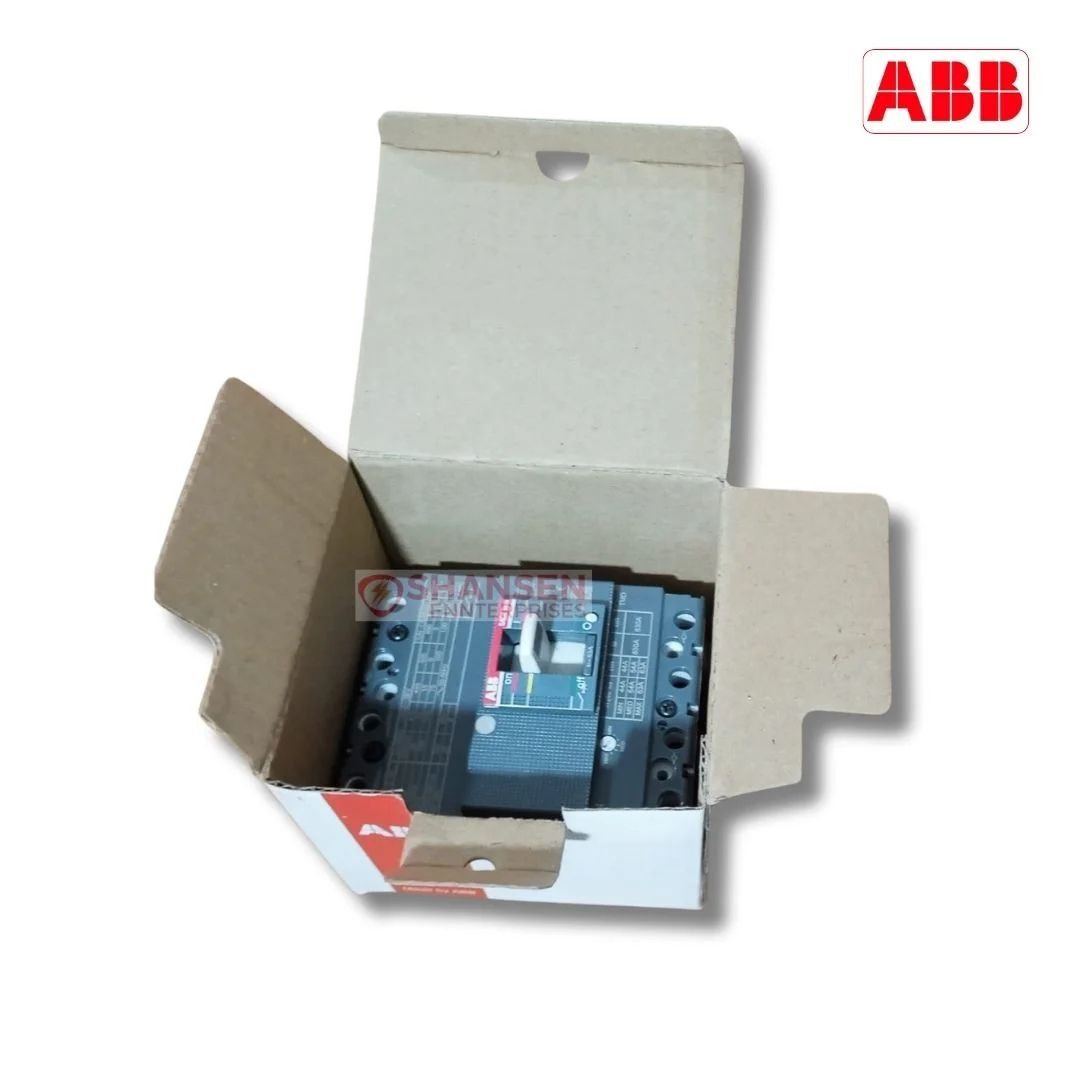

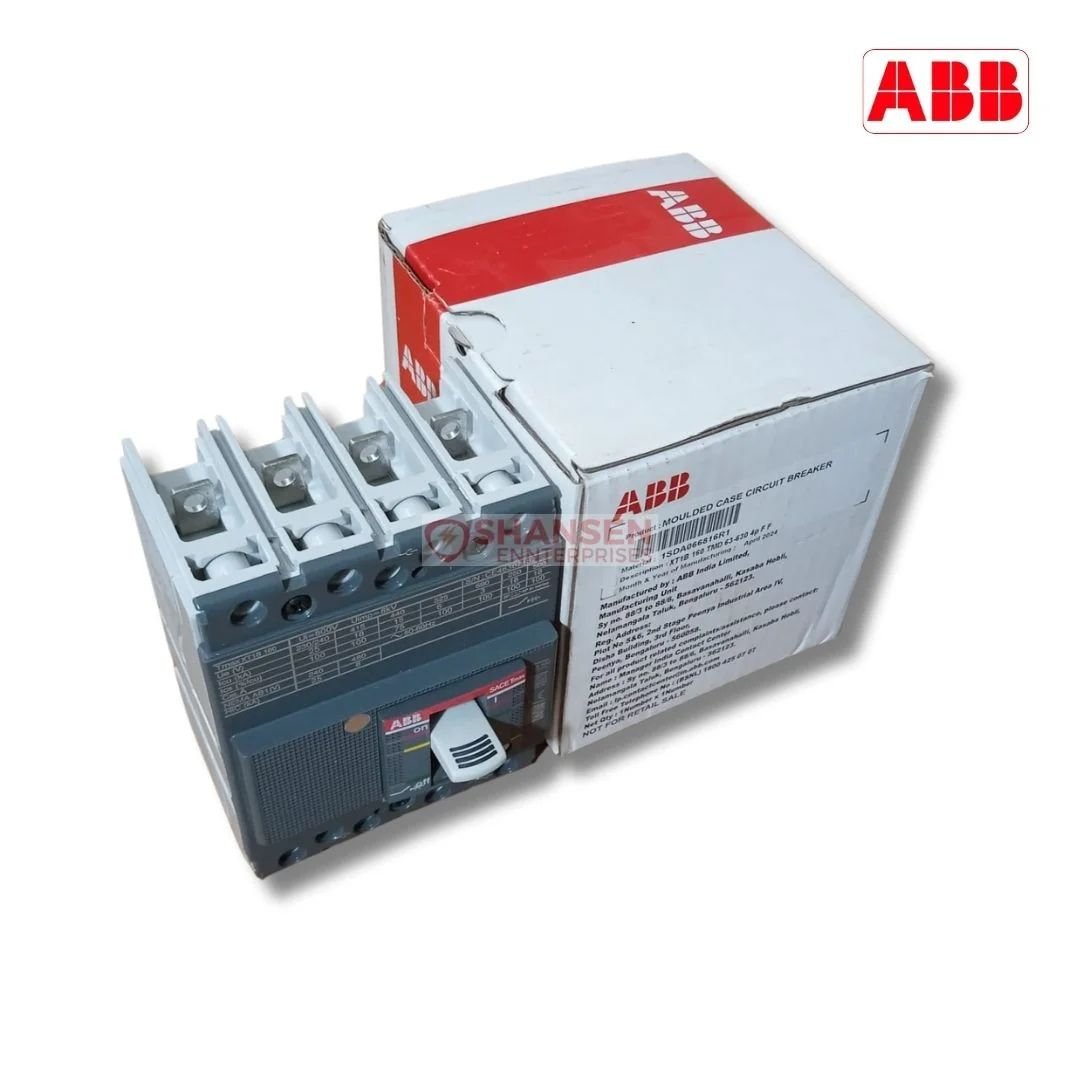

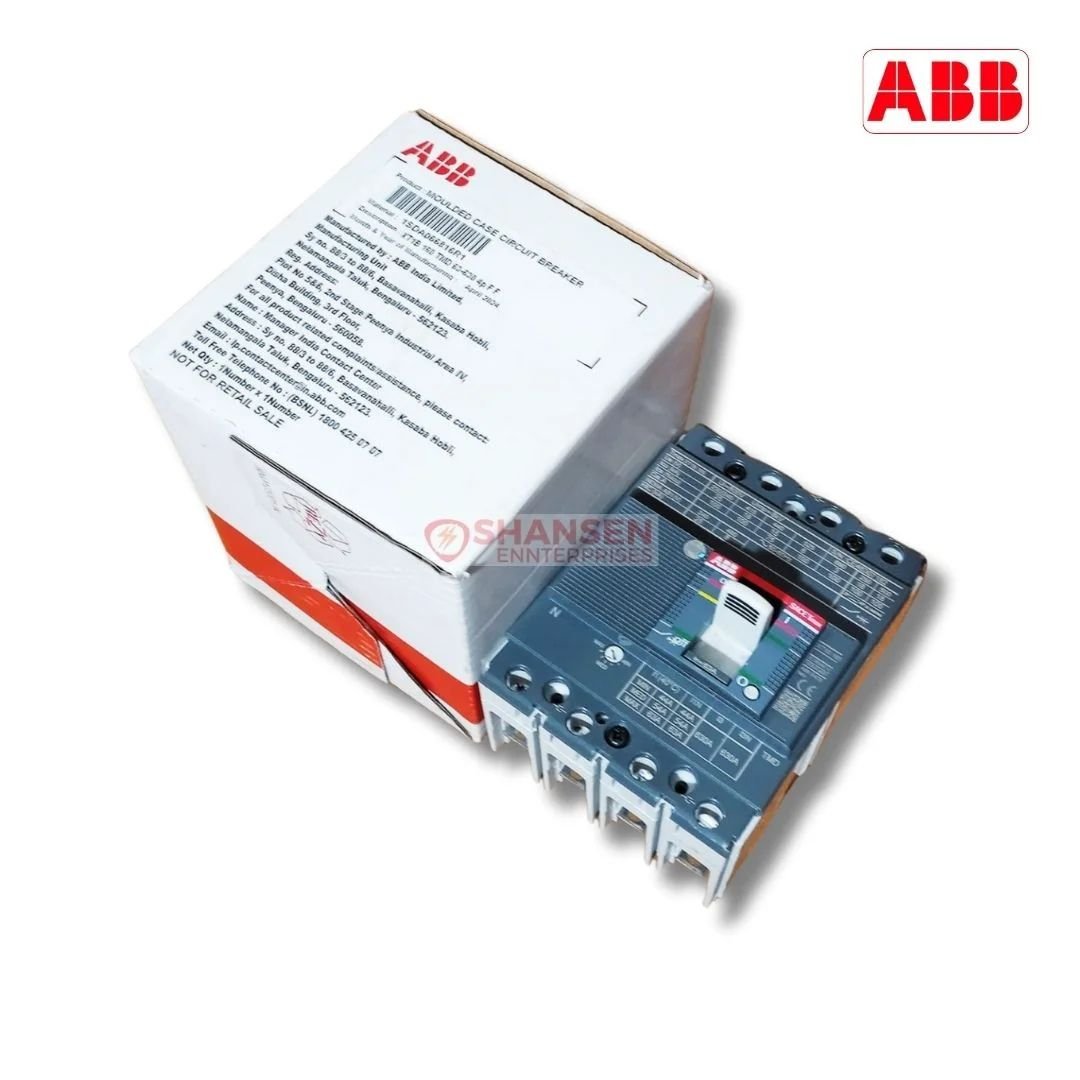

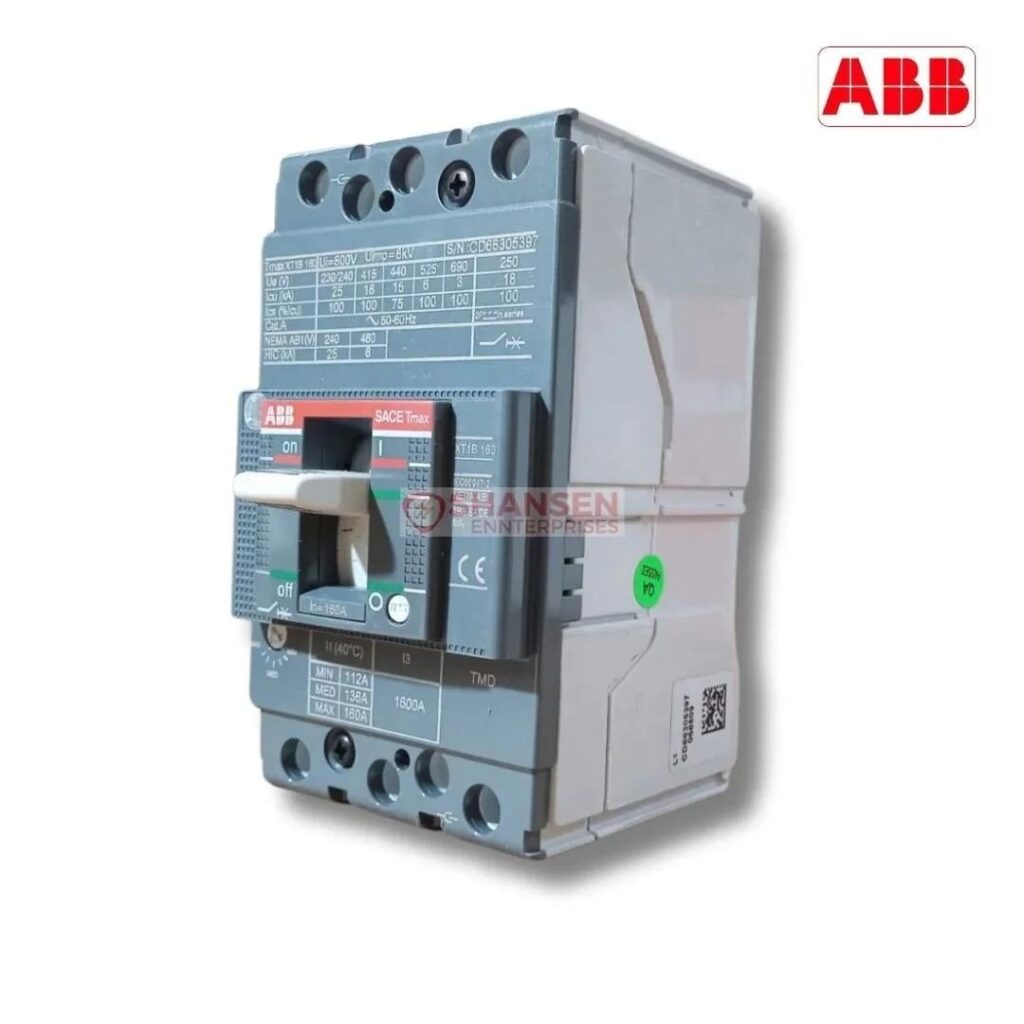

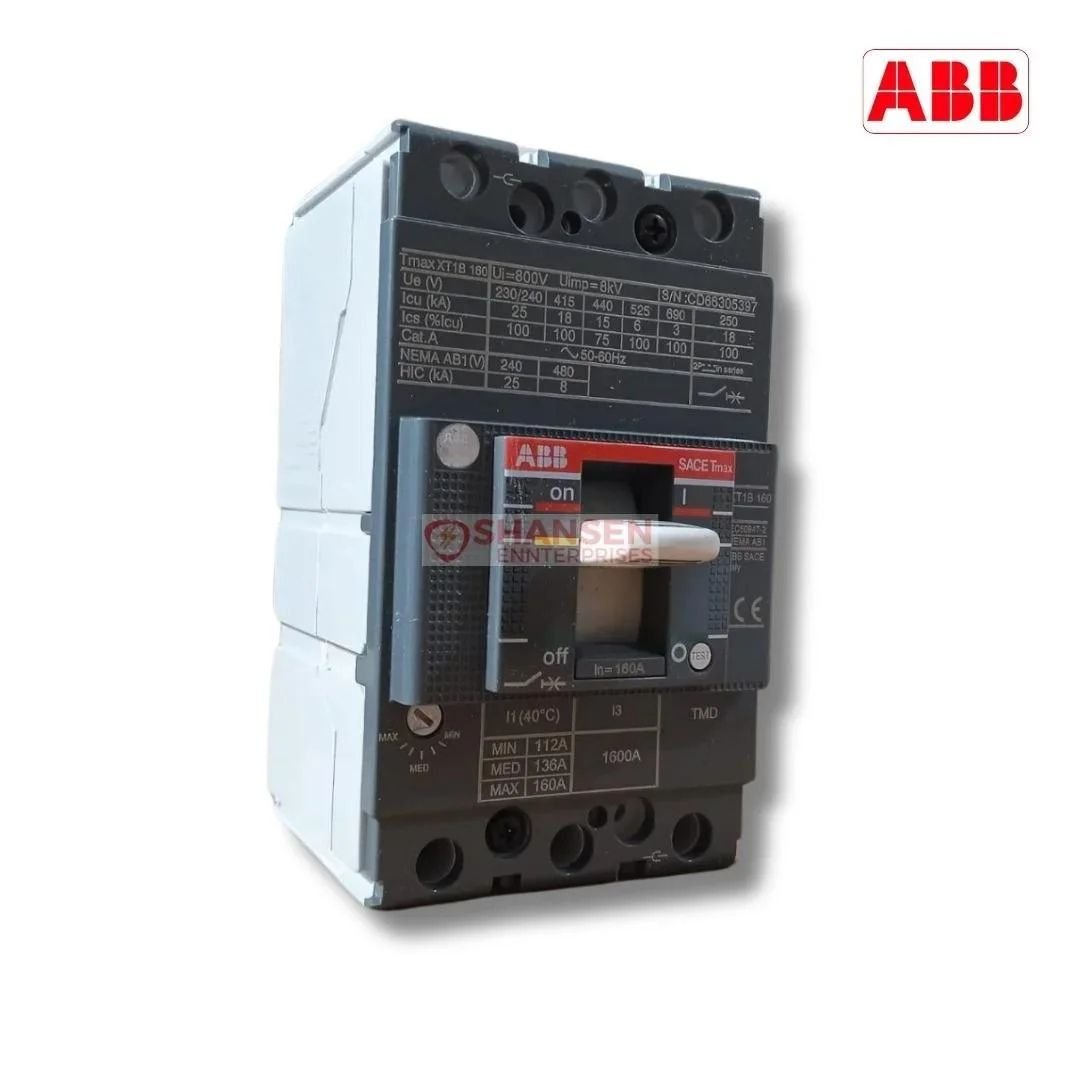

ABB XT1B 160 TMD 63–630, 4-pole, fixed-type MCCB

Meet the ABB XT1B 160 TMD 63–630, 4-pole, fixed-type MCCB with front terminals and a thermomagnetic (TMD) release. Built on the SACE Tmax XT platform, it delivers reliable protection and compact performance for modern LV power distribution.

Key Features at a Glance

• Frame size: 160 A; In (rated current): 63 A; TMD setting range: 44.1…63 A

• 4P, fixed version (F), front bolt terminals (M6); tightening torque: 6 N·m

• AC/DC operation; 50/60 Hz; Ui 800 V; Uimp 8 kV; Ur 690 V; Ue up to 690 V AC / 500 V DC

• Ics / Icu (AC):
  • 220–240 V: 25 kA / 25 kA
  • 380–415 V: 18 kA / 18 kA
  • 440 V: 11.25 kA / 15 kA
  • 500 V: 8 kA / 8 kA
  • 525 V: 6 kA / 6 kA
  • 690 V: 3 kA / 3 kA
  • 250 V DC (2 poles in series): 18 kA / 18 kA

• Rated instantaneous short-circuit setting (Ii): 630 A; short-circuit performance level: B

• Opening time: with SOR 30 ms; with UVR 30 ms

• Power loss at rated operating conditions: 4.3 W per pole

• Durability: Electrical 8,000 ops (max 120 ops/h); Mechanical 25,000 ops (max 240 ops/h)

• Busbar connecting capacity (main circuit): 45.5…80 mm²

• Standards: IEC 60947-2

• Compact dimensions: 101.6 × 130 × 70 mm; weight: 1.4 kg

• Accessory ecosystem: metering/protection trip units, Modbus module, keylocks, padlocking, plug-in/withdrawable versions (compatibility as per XT range)

Why Choose This Product (paragraph)
The XT1B 160 TMD 4P combines ABB’s XTraordinary current-limiting performance with a compact footprint—helping reduce copper, space, and heat in panels. Its proven TMD release ensures dependable overload and short-circuit protection, while the XT accessory family makes it easy to tailor for metering, motor/generator protection, or system integration. Built for safety, uptime, and straightforward installation.

Ideal For- use case list

• Main and sub-incomer protection in LV panels

• Feeder protection in commercial buildings and data/IT rooms

• Motor and machinery feeders (with appropriate coordination)

• Genset distribution boards and backup systems

• OEM control panels and MCCs

• Retrofit upgrades where compact size is critical

WhatsApp Quote
Message us on WhatsApp for pricing, stock, and delivery timelines. We’re channel partners of ABB, Eaton Bussmann, and SECURE Meters with a 100% customer satisfaction record. Delivery all over India. We’ll share options, lead times, and any accessories you need—fast.

FAQs

1. What is the difference between frame size (160 A) and In (63 A)?
   • Frame size (Iu) is the maximum current the breaker frame can handle; In is the actual rated current setting of this model (63 A).

2. Can this MCCB be used on DC applications?
   • Yes—up to 500 V DC operational voltage. DC breaking capacity is 18 kA at 250 V DC with two poles in series (per ABB data).

3. Are plug-in or withdrawable versions available?
   • The XT family includes plug-in/withdrawable versions and a wide accessory range. Confirm exact compatibility for this specific code before ordering.
