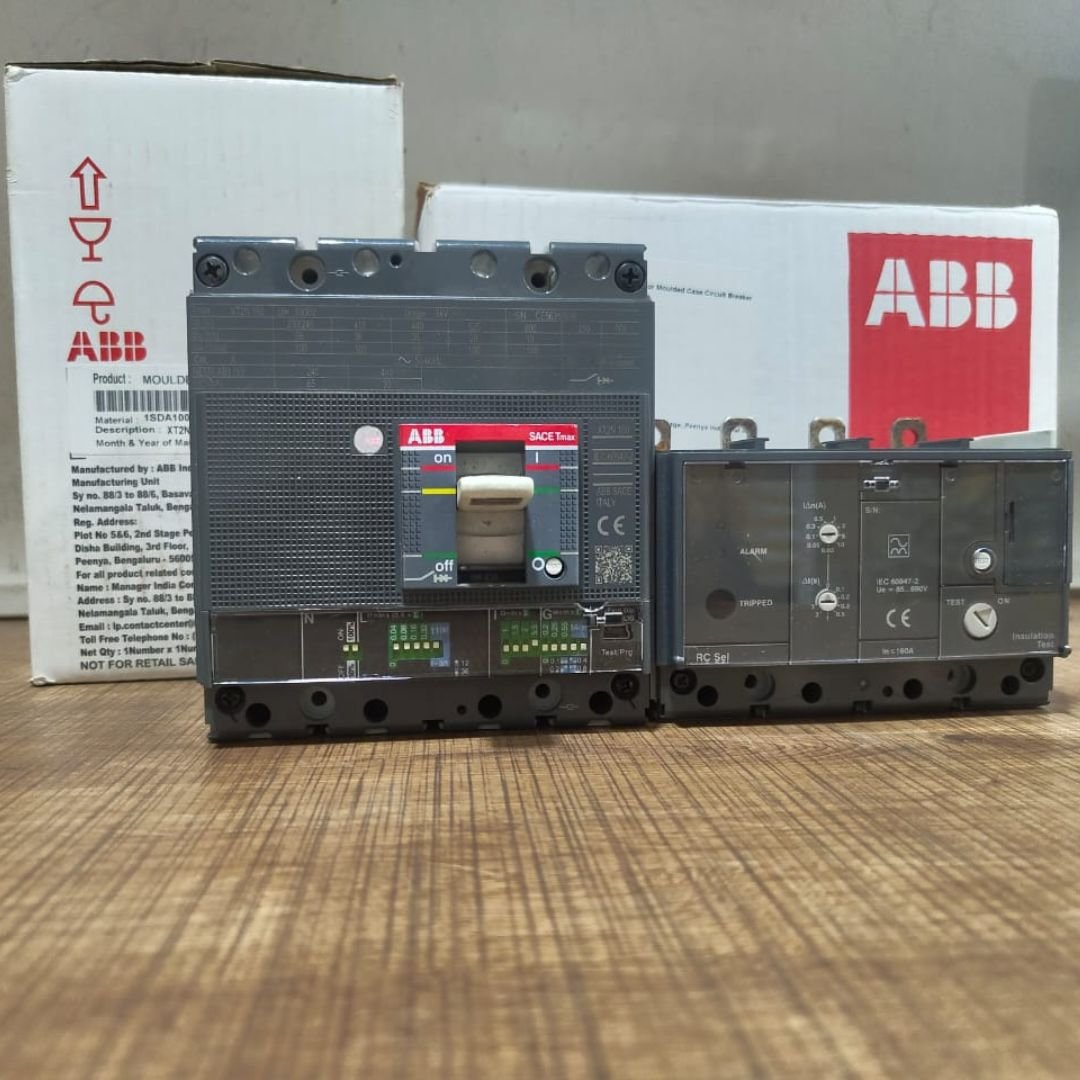

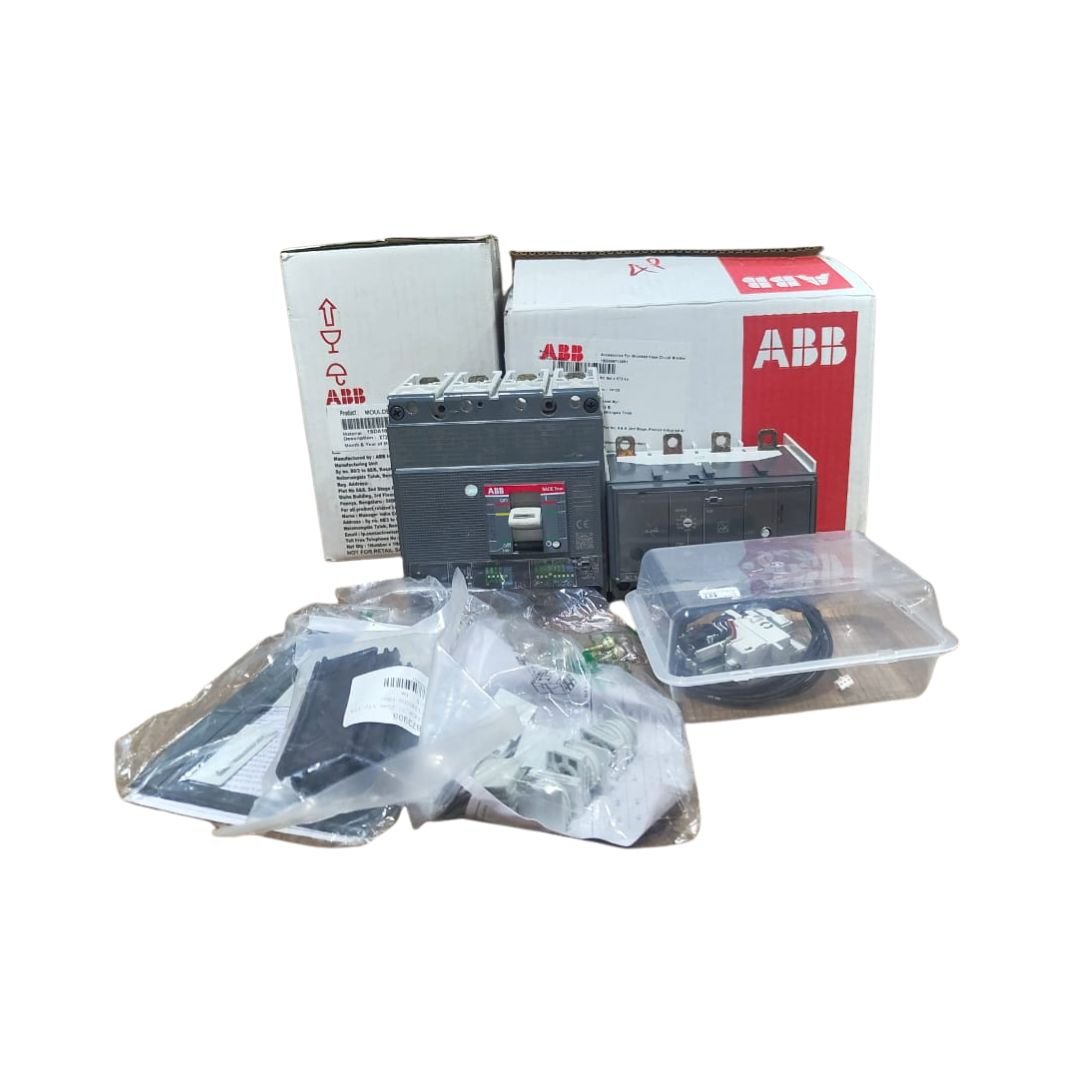

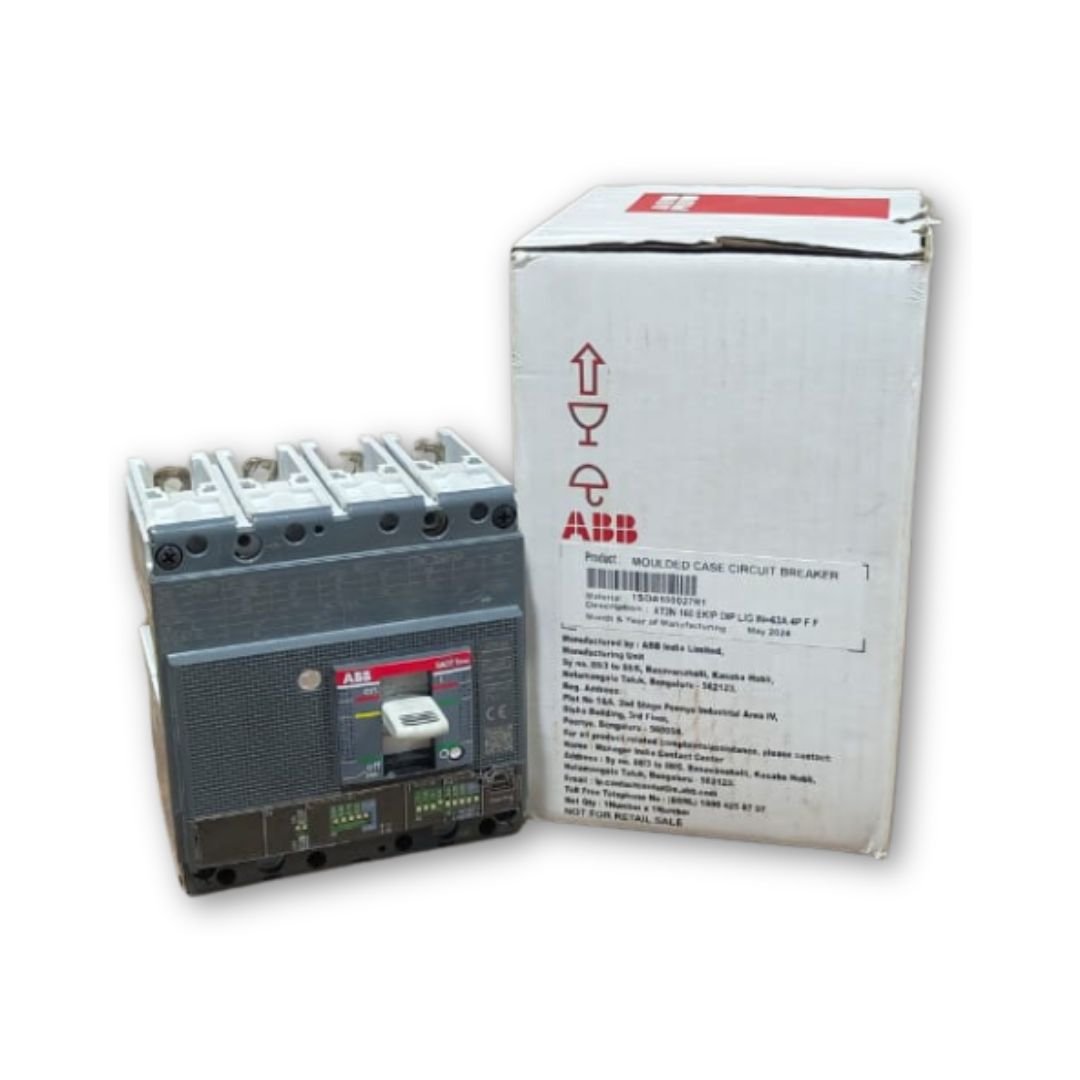

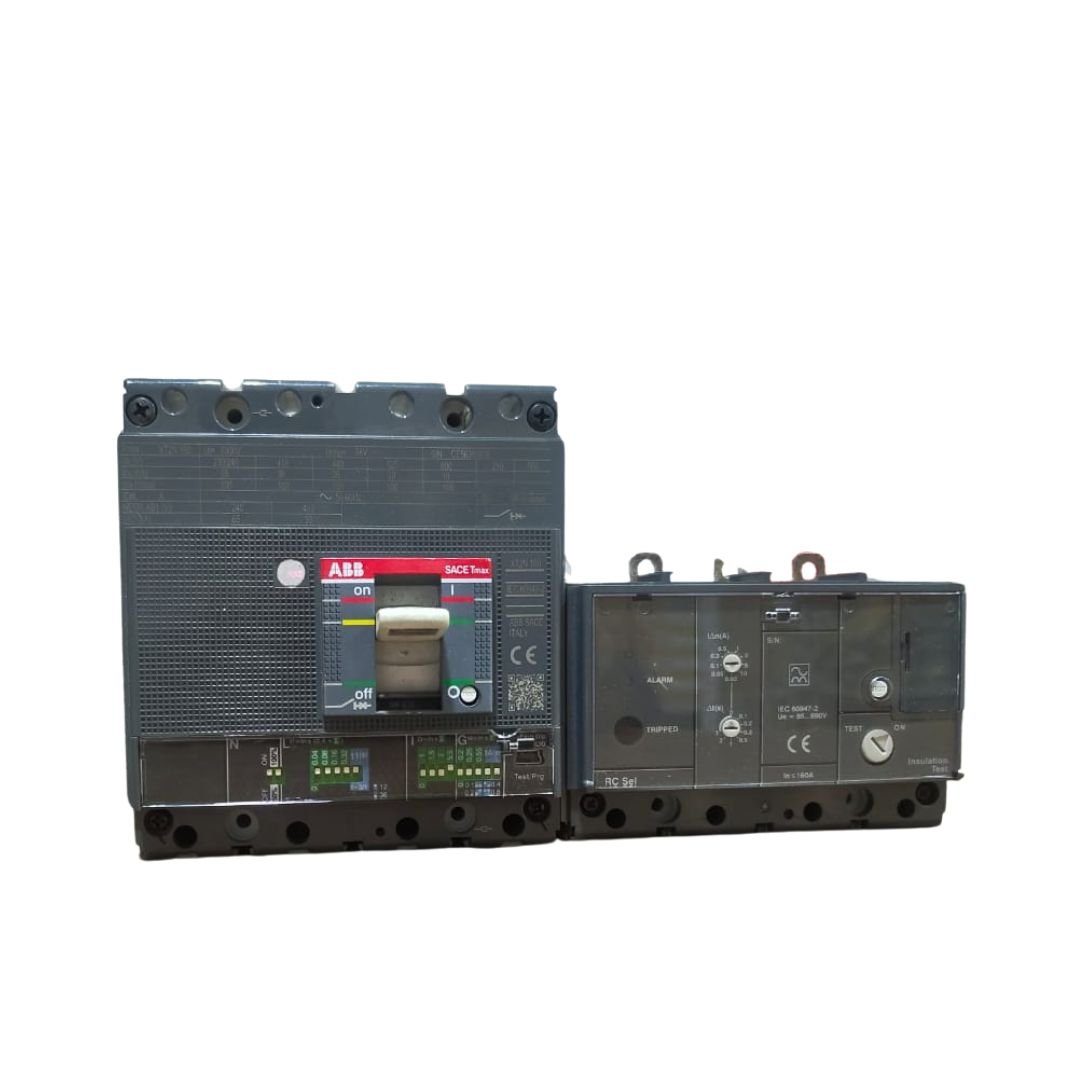

ABB XT2N-160 Ekip Dip LIG 63A MCCB

The ABB XT2N-160 EKIP DIP LIG is a robust Molded Case Circuit Breaker (MCCB) from ABB’s trusted SACE Tmax XT series, designed for advanced circuit protection and reliability in industrial and commercial electrical networks. With a rated current of 63A, rated insulation voltage up to 1000V, and a 4-pole, fixed front connection design, this MCCB ensures safety, performance, and adaptability. Equipped with an Ekip LIG (LSI) electronic trip unit, it offers precise adjustable protection for overload, short-circuit, and ground fault conditions—making it ideal for complex installations requiring high breaking capacities and compliance with IEC 60947-2 standards. Built with ABB’s engineering precision, the XT2N-160 guarantees long service life, minimal power loss, and reliable operational performance even in demanding environments.

Key Features at a Glance

• Rated Current (In): 63A

• Rated Operational Voltage (Ue): 690V AC

• Rated Insulation Voltage (Ui): 1000V

• Rated Impulse Withstand Voltage (Uimp): 8kV

• Short-Circuit Breaking Capacity:

  • 65 kA @ 230V

  • 36 kA @ 415V

  • 30 kA @ 500V

  • 10 kA @ 690V

• Rated Uninterrupted Current (Iu): 160A

• Protection: Ekip LIG (LSI) electronic trip unit

• Connection Type: Front terminals (FF)

• 4-Pole fixed version

• Dimensions: 120 × 130 × 82.5 mm (W×H×D)

• Weight: Approx. 1.6 kg

• Mechanical Durability: 25,000 operations

• Electrical Durability: 8,000 operations

• Compliance: IEC 60947-2, CE, RoHS, GL/LR marine approved

Why Choose This Product

Choose the ABB XT2N-160 EKIP DIP LIG for its reliability, modularity, and intelligent protection capabilities. ABB’s Ekip trip technology ensures advanced selectivity, coordination, and flexibility for a wide range of low-voltage power distribution systems. Its front connection and fixed configuration simplify installation and maintenance while minimizing downtime. Engineered for efficiency and precision, this MCCB offers a perfect blend of safety, performance, and long-term operational stability backed by ABB’s global service support.

Ideal For

• Industrial switchgear and panel boards

• Power distribution and feeder protection

• Transformer and generator circuit protection

• Motor control centers (MCC)

• Retrofit and system upgrades

• Marine and offshore installations

Get Quote Via WhatsApp

Looking for the best quote on ABB MCCBs?
📲 Contact Shansen Enterprises — Authorized Channel Partner for ABB, Eaton Bussmann, and SECURE Meters.
We ensure 100% customer satisfaction and pan-India delivery within committed timelines.
Get your personalized WhatsApp quote now!

FAQs

Q1: What is the rated short-circuit capacity of ABB XT2N-160?
A1: The XT2N-160 can handle up to 65 kA at 230V, ensuring reliable protection during fault conditions.

Q2: Does this MCCB come with adjustable trip settings?
A2: Yes, the Ekip LIG (LSI) electronic trip unit allows adjustable overload, short-circuit, and ground fault settings.

Q3: Is this MCCB suitable for marine or offshore applications?
A3: Yes, it has GL and LR marine certifications, making it suitable for marine environments.
