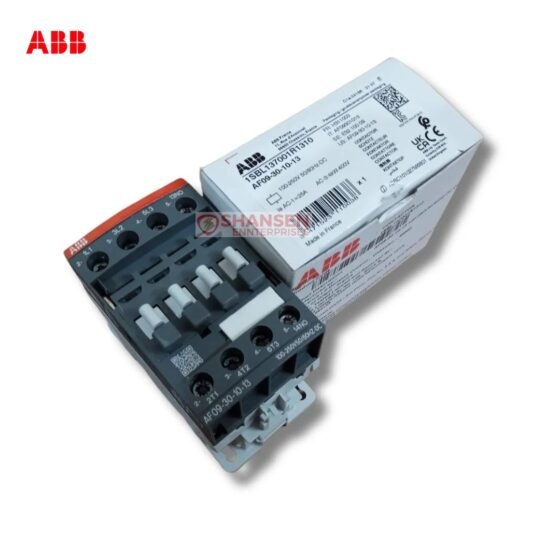

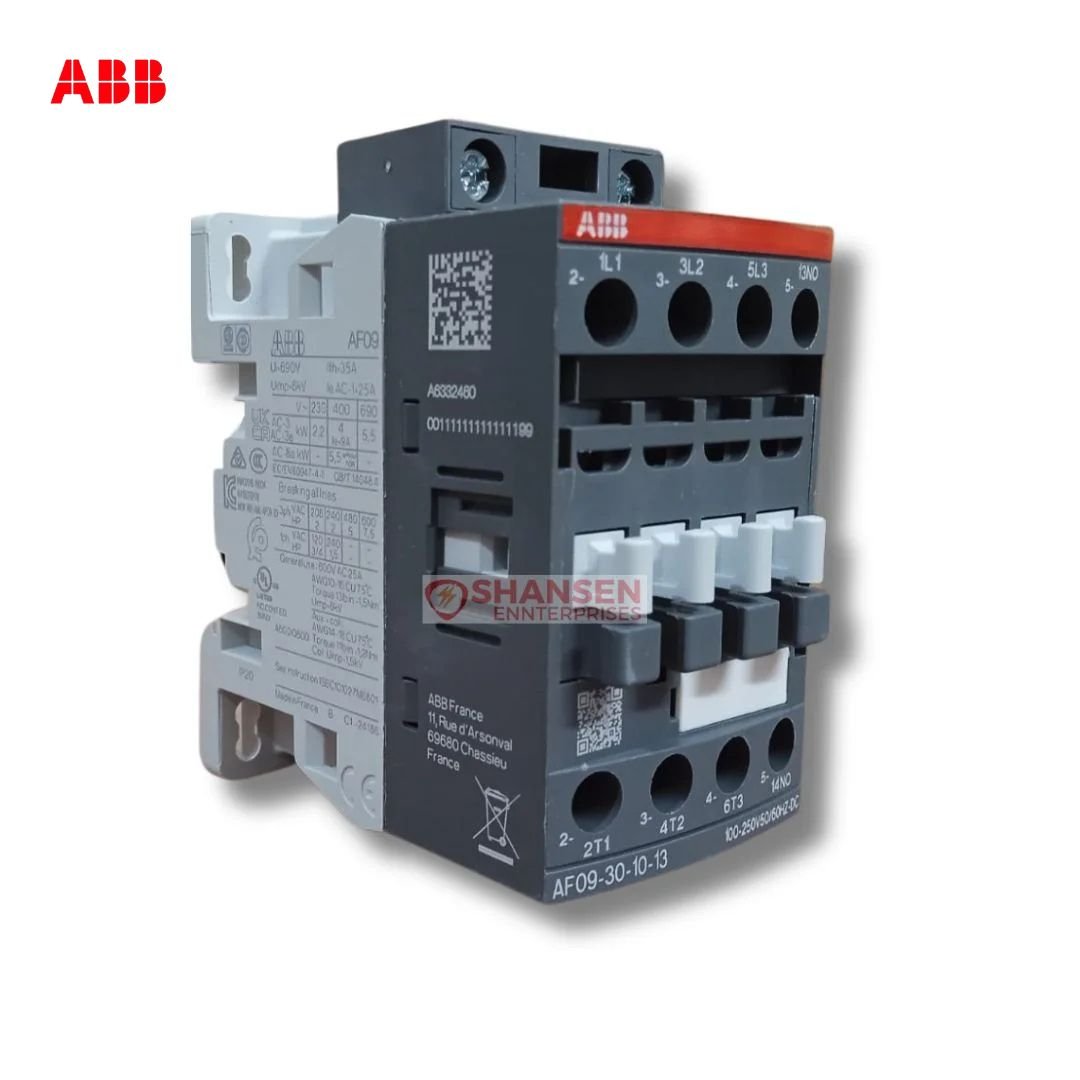

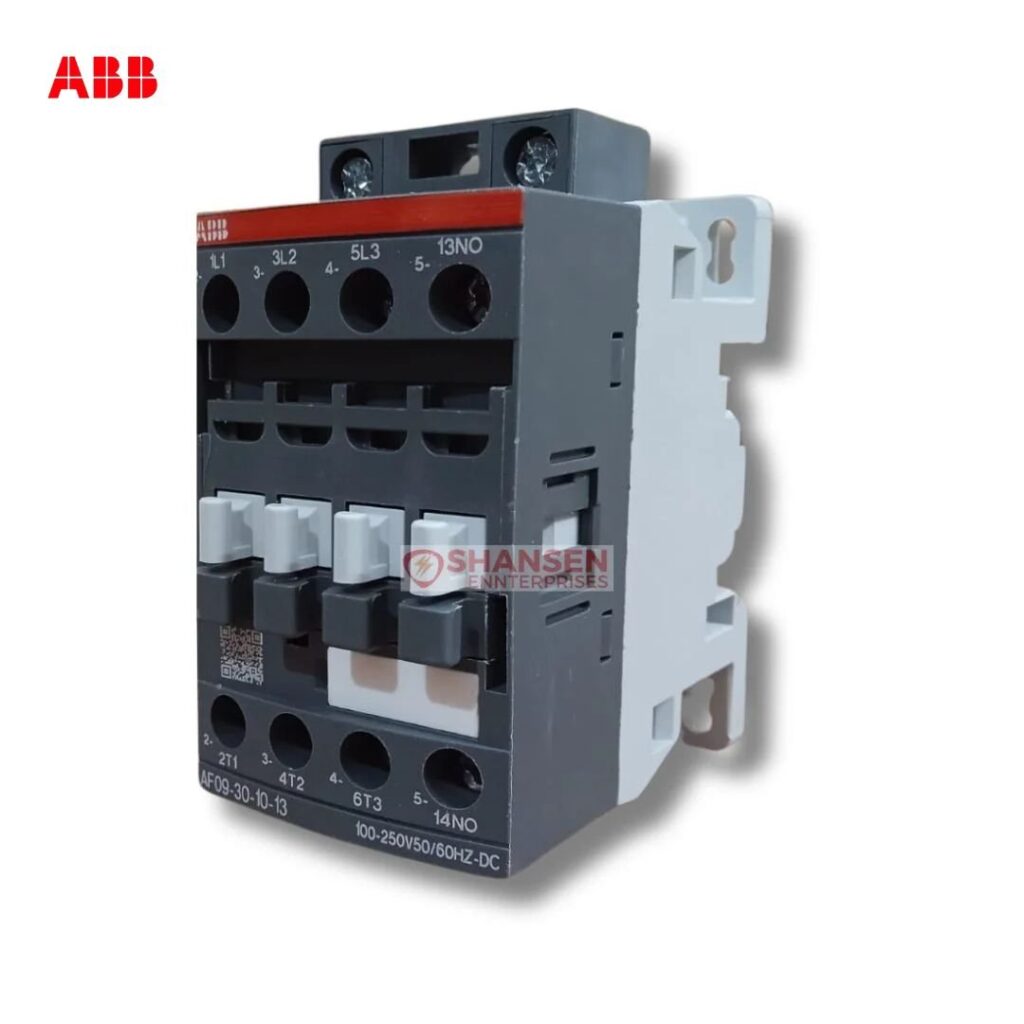

The AF09-30-10-13 Contactor is a high-performance 3-pole device designed to deliver reliability, efficiency, and compact installation for modern electrical panels. Manufactured with advanced AF technology, it ensures seamless operation across a wide control voltage range (100–250 V AC/DC, 50/60 Hz). This versatile contactor can control motors up to 4 kW / 400 V AC (AC-3) or 5 HP / 480 V UL while also switching power circuits up to 25 A (AC-1). Built-in surge protection safeguards equipment, while the compact block-type design allows easy extension with auxiliary blocks and accessories. Its IP20 protection and compliance with multiple international standards make it a robust and dependable solution for industrial and commercial applications.
Wide control voltage range: 100–250 V AC/DC, 50/60 Hz
Motor control up to 4 kW (400 V AC-3) / 5 HP (480 V UL)
Rated operational current: 25 A (AC-1)
Integrated surge protection for reliable operation
Compact block-type design, DIN rail or screw mounting
3 main NO contacts + 1 auxiliary NO contact
Standards: IEC/EN 60947-1, UL 60947-4-1, CSA approvals
Built-in energy-saving AF technology for reduced panel consumption
Lightweight design: only 0.27 kg
IP20 terminal protection for safety
The ABB AF09-30-10-13 Contactor offers unmatched flexibility with its wide coil voltage tolerance, making it ideal for installations facing unstable power conditions. Unlike traditional contactors, it integrates surge suppression and ensures efficient energy use—reducing costs while enhancing reliability. Its modular design allows future scalability with auxiliary contacts and accessories, ensuring adaptability for different industrial requirements.
Motor control in HVAC systems
Pump and compressor applications
Industrial automation systems
Switching power circuits up to 25 A
Control panels requiring compact and modular contactors
Looking to order the ABB AF09-30-10-13 Contactor? Get your best price quote on WhatsApp today!
We are trusted channel partners of ABB, Eaton Bussmann, and SECURE Meters, with a 100% customer satisfaction record.
✅ Fast Delivery All Over India ✅ Genuine Products ✅ Expert Support
Q1: What is the rated motor control capacity of the AF09-30-10-13?
It can control motors up to 4 kW / 400 V AC (AC-3) or 5 HP / 480 V UL.
Q2: Does it include surge protection?
Yes, the contactor has built-in surge suppression, reducing the need for external devices.
Q3: Can it be mounted on both DIN rail and screws?
Yes, it supports DIN rail mounting and screw mounting for flexible installation.
| Brand | ABB |
|---|---|
| Model | AF09-30-10-13 |
| Type | 3 Pole Block Contactor |
| Rated Operational Voltage | 690 V IEC / 600 V UL |
| Control Voltage Range | 100–250 V AC/DC 50/60 Hz |
| Motor Power | 4 kW (400 V AC-3) / 5 HP (480 V UL) |
| Rated Current | 25 A (AC-1) |
| Auxiliary Contacts | 1 NO |
| Standards | IEC/EN 60947-1, UL 60947-4-1, CSA |
| Mounting | DIN Rail / Screw Mount |
| Dimensions | 45 mm (W) x 77 mm (D) x 86 mm (H) |
| Weight | 0.27 kg |
| Country of Origin | France |
