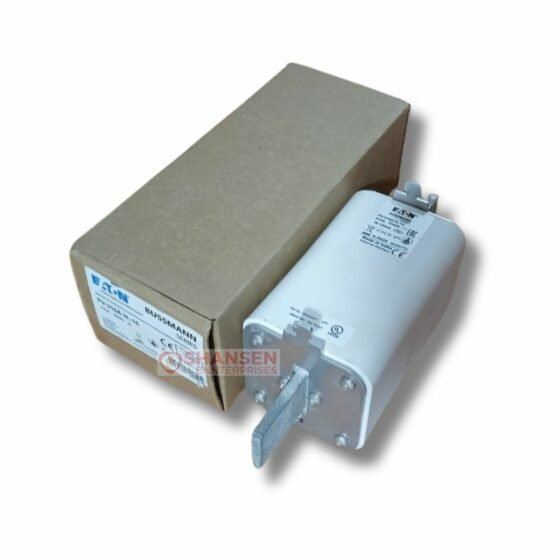

Brand Eaton Bussmann Series Photovoltaic Fuse PV-315A-3L-15

0.00

Upgrade your photovoltaic system’s safety and efficiency with the Eaton Bussmann PV-315A-3L-15 Fuse. This high-speed fuse-link is engineered to handle currents up to 315 A at DC 1500 V, providing reliable protection for your solar installations.

Key Features

  • High-Speed Protection: Fast-acting fuse-link ensures quick response to overcurrents.
  • Robust Specifications: Rated at 315 A, DC 1500 V, ideal for heavy-duty photovoltaic applications.
  • Global Standards Compliance: Meets gPV standards with UL and IEC certifications.
  • Built-In Indicator: Includes an indicator for easy status monitoring.
  • Easy Installation: Blade connections facilitate straightforward integration.
  • Compact Dimensions: Measures 75 x 91 x 205 mm to fit various setups.

Certifications and Compliances

  • Certifications: IEC 60269, UL Listed, and CSA Certified.
  • Compliances: CE Marked and RoHS Compliant.

Available at Shansen Enterprises

Shansen Enterprises, located in Coimbatore, is your go-to authorized channel partner for Eaton Bussmann Series Photovoltaic Fuses, fuse links, and fuse bases. Serving Coimbatore and all over India from ready stock with 100% satisfied customers.

Get a Quick Quote Now!

Just tap the “Get Quote Via WhatsApp” message right from this product page to receive a quick quote.

Description

Product Specifications Details
Used with Solar panel applications
Type Bladed
Application Photovoltaic array combiners and disconnects
Amperage Rating 315 A
Accessories Recomended fuse holders- SD1XL-S (for 01 and 1XL), SD2XL-S (for 2XL), SD3L-S (for 3L), 170H0236 and 170H0238 Microswitches
Breaking capacity 100 kA
Voltage type DC
Utilization category gPV (photovoltaic protection)
Fuse indicator Top fuse status indicator
Rated switching capacity 100 kA
Fuse size 3L
Current type DC
Rated voltage DC 1500 V
Class Class gPV
Watt losses 52 W
Fuse shape Square body
Pre arc (I2T) 150000
Total I2T 533000 at 1500 V
Color White
Interrupt rating 100 kAIC
Connection Blade end x blade end
Construction size 3L
Material Ceramic body
Voltage rating 1500 Vdc
Fuse type PV-3L-15
Fitted with Blade with top indicator
Suitable for SD3L-S-PV XL Fuse base
Fuse system (according to IEC 60269) Other
Rated switching capacity DC 100 kA
