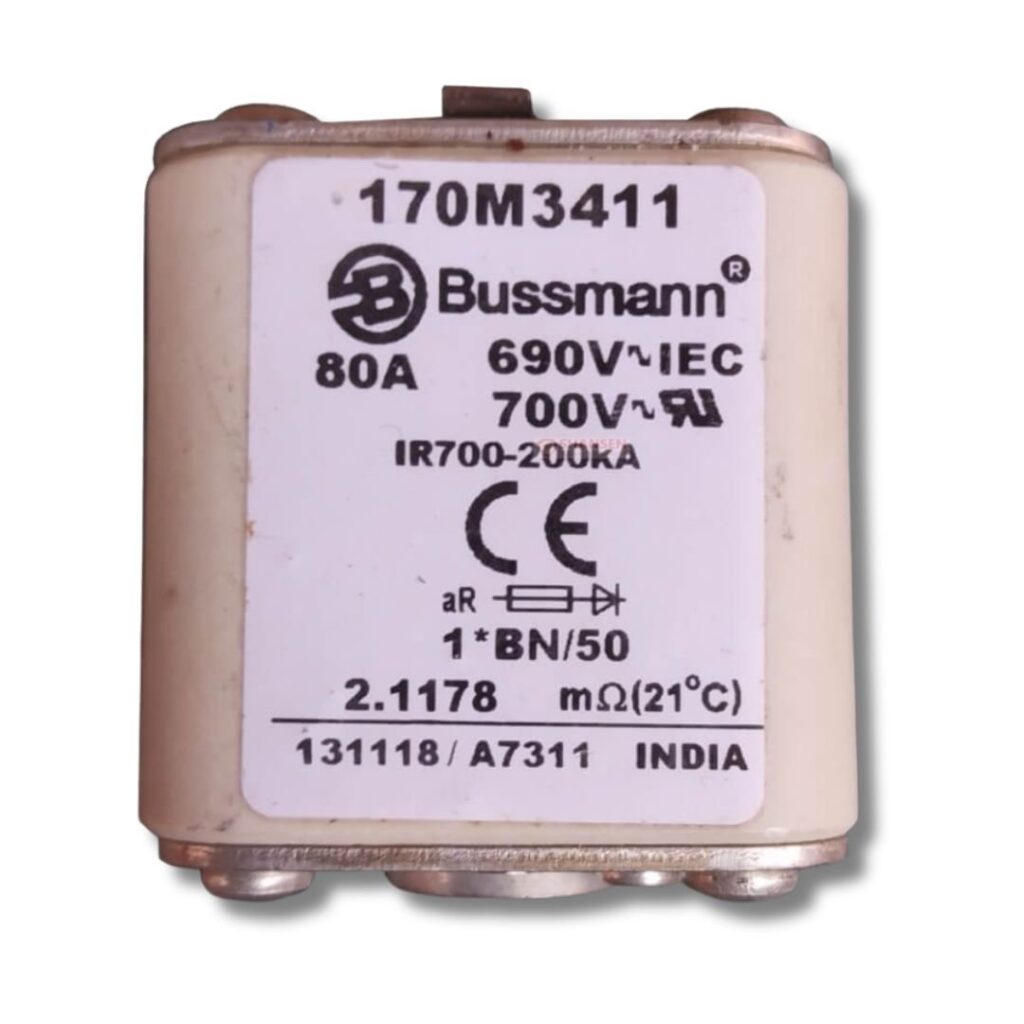

Bussmann Eaton Square Body FUSE 80A 690V 1*BN/50 AR UC 170M3411

$0.00

Product range
Fuse
Basic function
Fuse-link
Field of application
high speed
Rated current [I]
80 A
Rated voltage
AC 690 V
Construction size
compact size 1
Size
45 x 59 x 51 mm
Utilization category
aR
Status indicator
single indicator
Description
M8
Breaking Capacity
200 kA
usable for size/applications
semiconductor protection
Standard/Approval
IEC
UL
Shape
square body with flush end contacts
Standards/Regulations
IEC 60269-4

Description

TECHNICAL DATA ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse (ecl@ss10.0.1-27-14-20-05 [AFZ800015])
Construction size
Other
Rated current
80 A
Rated voltage
690 V
Voltage type
AC
Rated switching capacity
200 kA
Utilization category
aR (accompanied semiconductor protection)
Type of fuse status indicator
Top fuse status indicator
Insulated metal gripping lugs (IMGL)
No
