Description
| Product Specifications | |
|---|---|

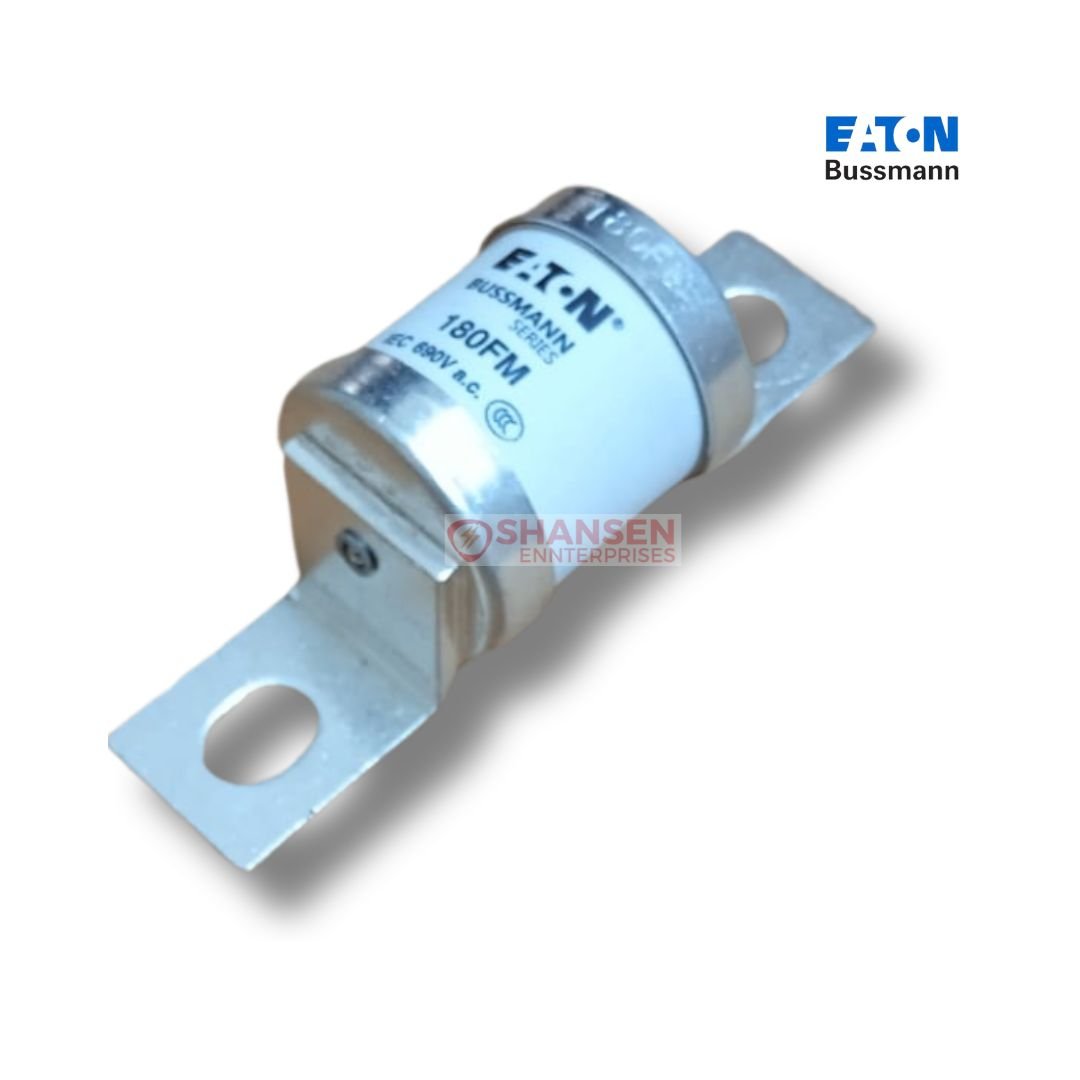

| Type | Fuse |
| Application | Protection of DC common bus, DC drives, power converters/rectifiers, and reduced voltage starters |
| Amperage Rating | 180 A |
| Breaking Capacity | 200 kA |
| Fuse Indicator | None |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Utilization Category | aR (accompanied semiconductor protection) |
| Voltage Type | AC/DC |
| Rated Switching Capacity | 200 kA |
| Rated Voltage AC | 690 V |
| Rated Voltage DC | 450 V |
| Center-to-Center Distance of Connections | 84 mm |
| Mounting Dimension | M8 |
| Current Type | AC/DC |
| Class | Class aR |
| Clearing (I2T) | 7500 at 415 V, 13500 at 660 V |
| Watt Losses | 40 W |
| Fuse Shape | Offset bolted tags |
| Pre Arc (I2T) | 1400 |
| Color | None |
| Interrupt Rating | 200 kAIC, 200 kA RMS Sym (IEC/UL), 40 kA at 450 Vdc (IEC), 50 kA at 500 Vdc (UL) |
| Connection | Blade end x blade end |
| Construction Size | Other |
| Mounting Method | Stud |

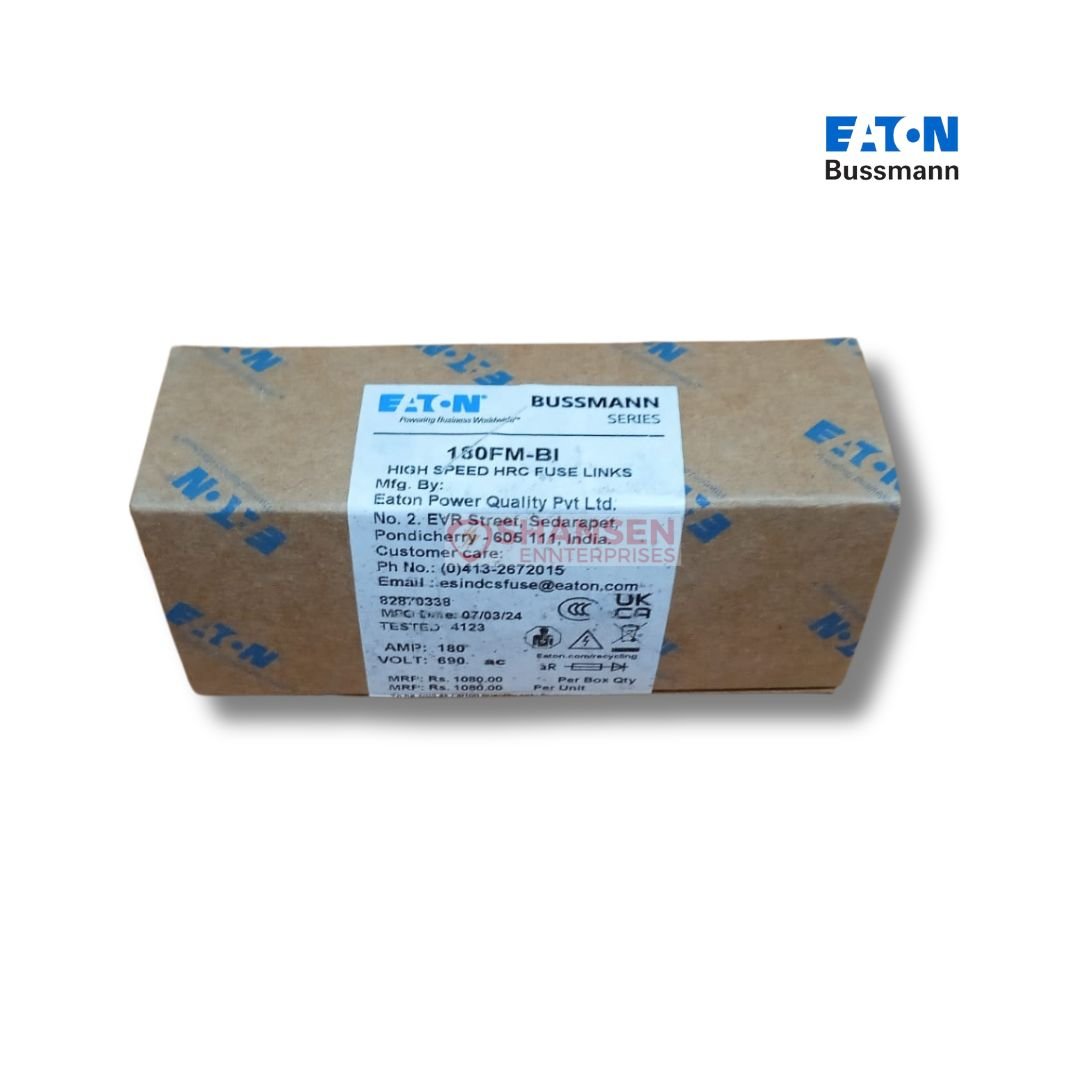

| Packaging Type | Standard |
| Voltage Rating | 690 V (IEC), 700 V (UL) |
| Fuse Type | FM |
| Suitable for | MC-600 Trip indicator kit (indicator + clips), TI700 Fuse indicator, MAI Microswitch/adaptor, MBI Microswitch/adaptor |
