Description
General Specifications | Details |
---|---|

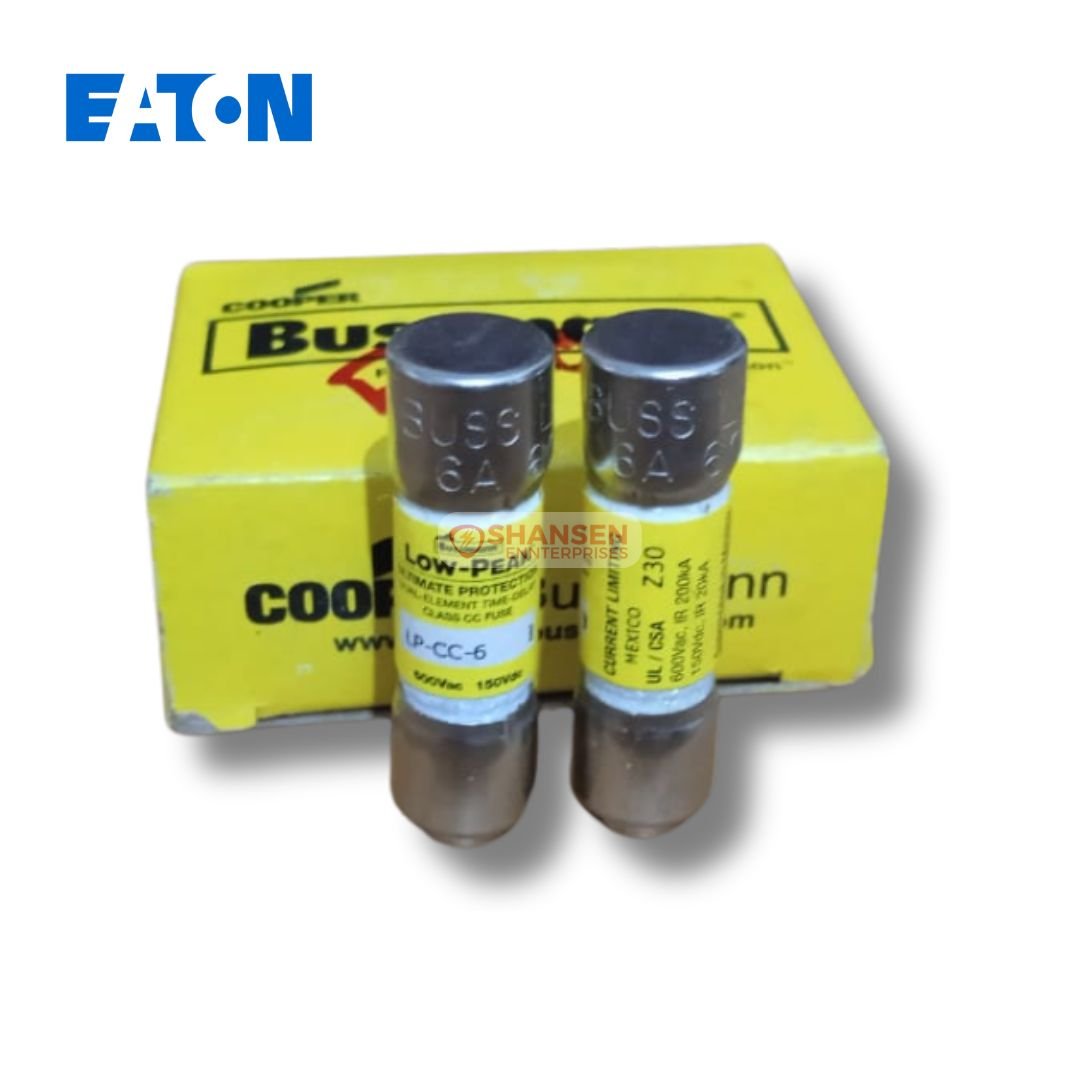

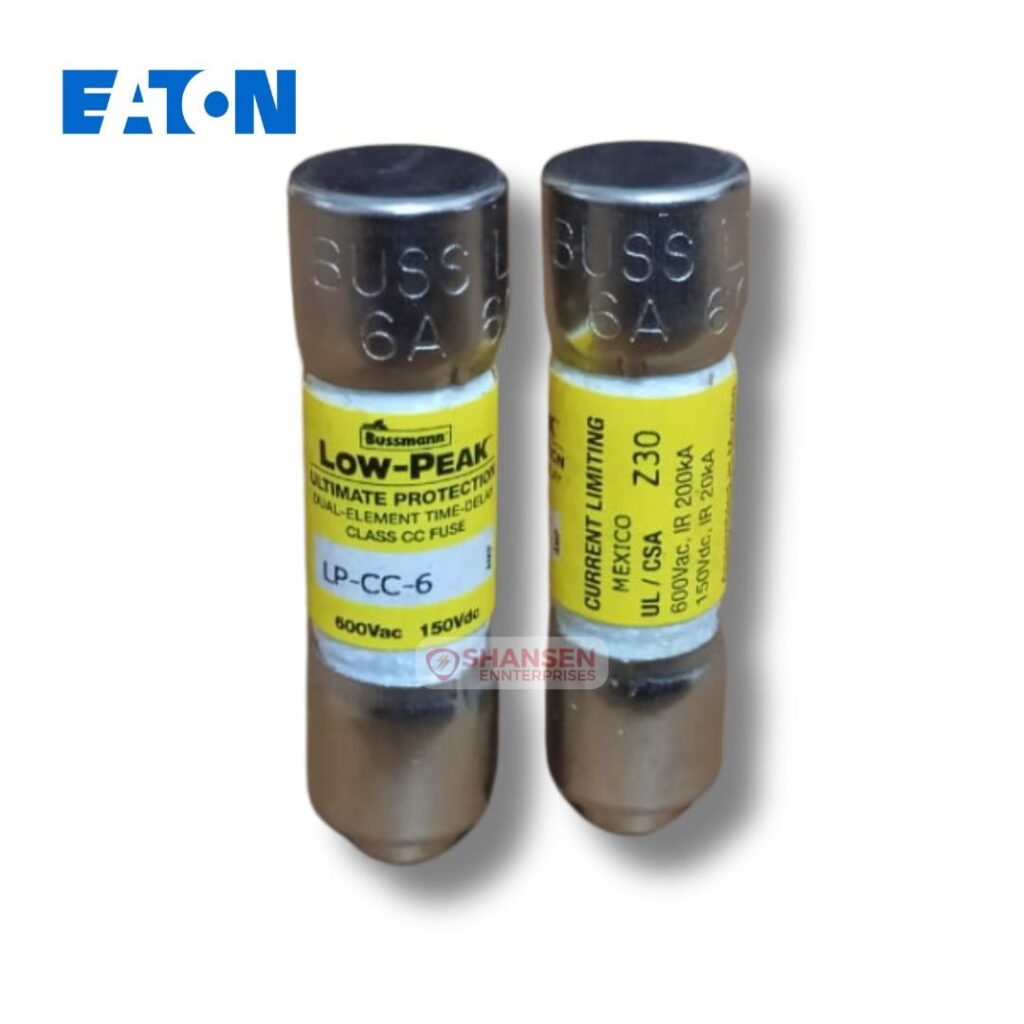

Product Name | Eaton Bussmann series LP-CC fuse |
Catalog Number | LP-CC-6 |
UPC | 051712180344 |
EAN | 5027590448109 |
Product Length/Depth | 0.41 in |
Product Height | 1.5 in |
Product Width | 0.41 in |
Product Weight | 0.15 lb |
Warranty | Not Applicable |
Compliances | CE Marked, RoHS Compliant |
Certifications | UL Listed, CSA Certified |
Product Specifications | Details |
Type | Current-limiting time-delay fuse |
Special Features | Rejection style |
Application | Specialized circuits and industrial control |
Amperage Rating | 6 A |
Number of Elements | Dual |
Class | Class CC |
Interrupt Rating | 20 kAIC at 150 Vdc, 200 kAIC at 600 Vac |
Fuse Indicator | Non-indicating |
Connection | Ferrule end x ferrule end |
Response Time | 12 sec at 200% |
Material | Melamine tube |
Packaging Type | Standard |
Quantity | 10 |
Voltage Rating | 600 Vac, 150 Vdc |
