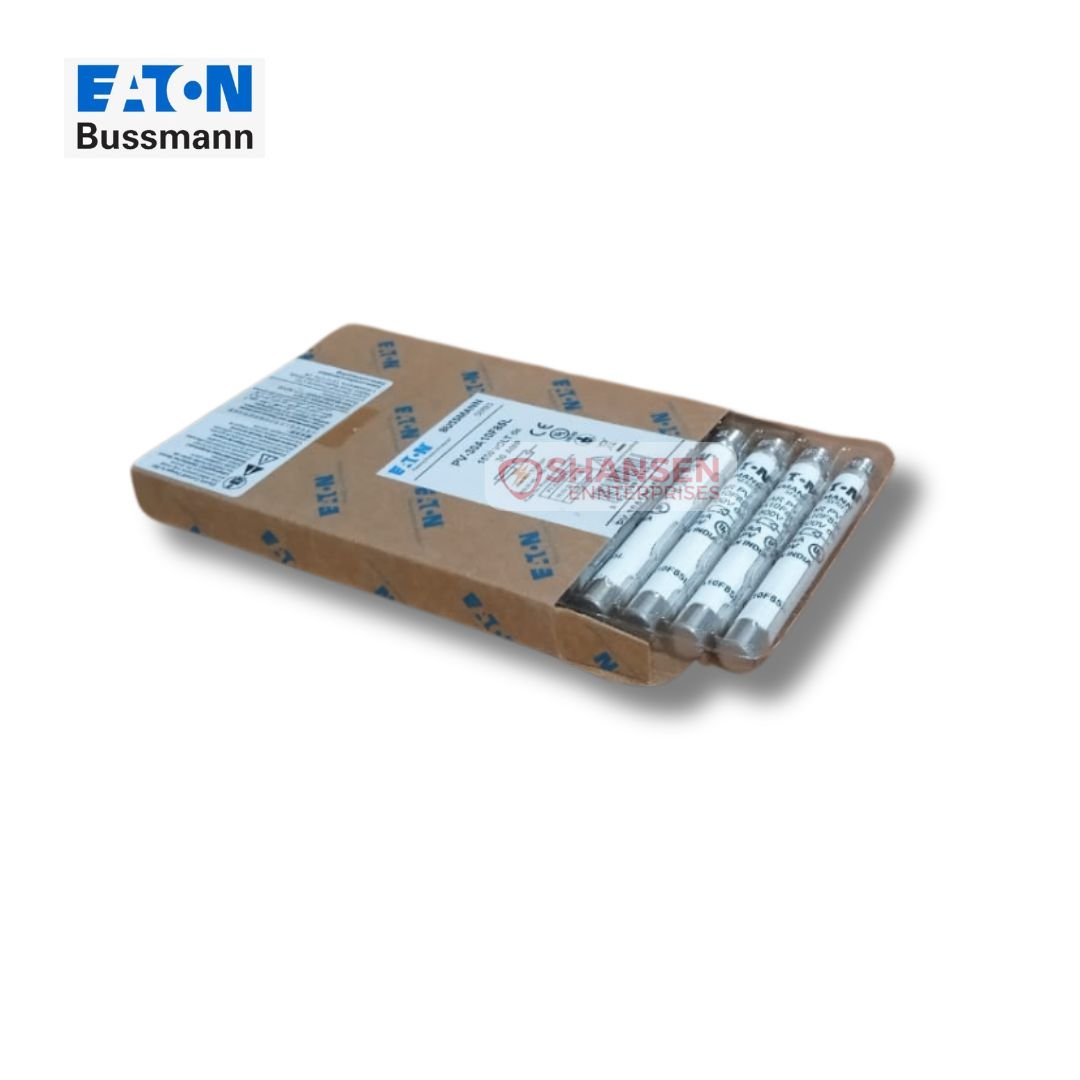

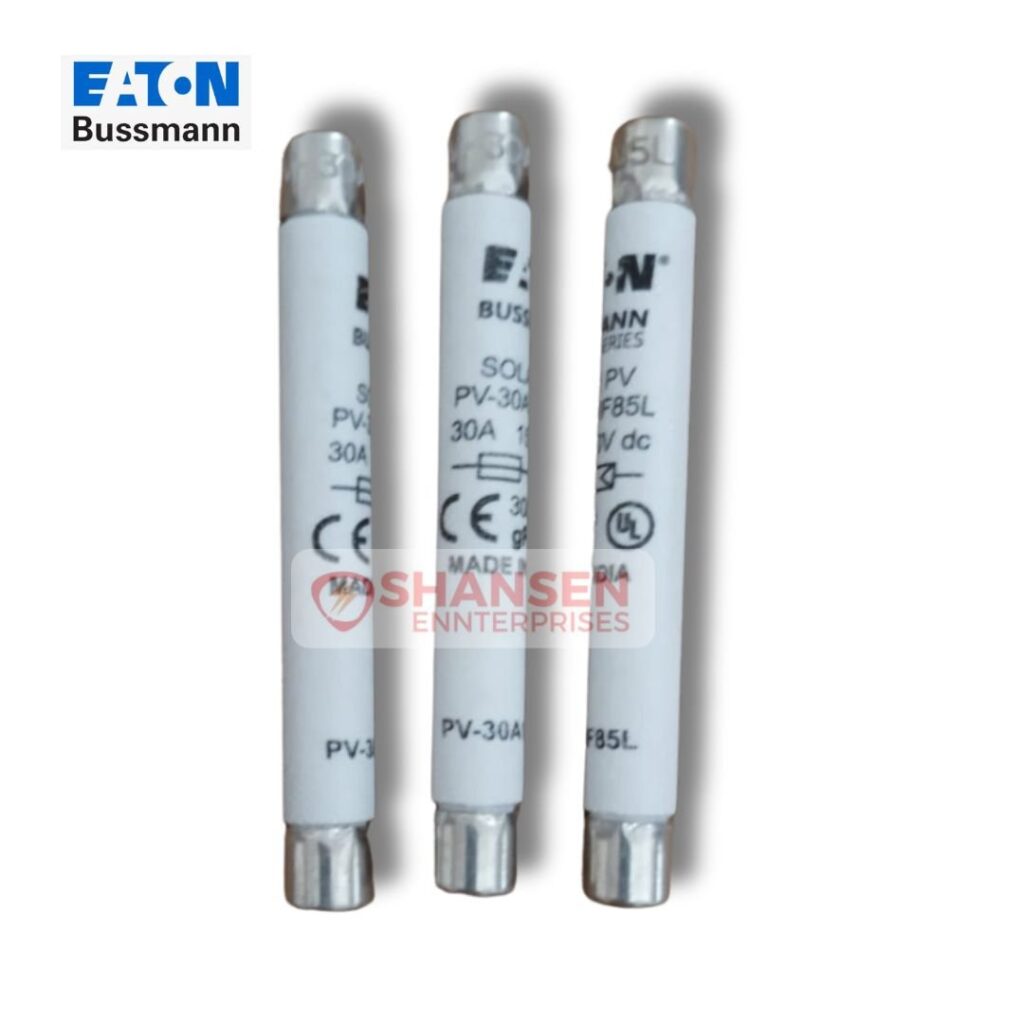

Reliable Protection for Photovoltaic Systems
The Eaton Bussmann Series High-Speed Fuse Link PV-30A10F85L is designed to deliver superior protection for photovoltaic (PV) systems. With a rated current of 30A and a DC voltage capacity of 1500V, this fuse ensures safety and efficiency in solar energy applications. It meets IEC 60269-6 Type A and UL PV standards, making it a trusted choice for PV strings, inverters, and solar installations.
✅ High-Speed Performance – Ideal for fast response to short circuits in PV systems.
✅ Robust Build – 10x85 mm size, ensuring durability and reliability.
✅ Global Compliance – Certified under IEC and UL standards.
✅ Photovoltaic Safety – Designed specifically for high-voltage PV applications.
📍 Available at Shansen Enterprises, Coimbatore – Your Authorized Channel Partner for Eaton Bussmann fuses, fuse links, and bases.
🛒 Serving All Over India – Fast and reliable dispatch to Tamil Nadu (Coimbatore, Madurai, Chennai, Salem, Erode) and beyond (Telangana, Kerala, Karnataka, Maharashtra, Gujarat, West Bengal).
🚚 Quick Dispatch – Shipped within 48 hours via courier or transport services.
📩 Easy Quote Process – Just tap the "Get Quote Via WhatsApp" button to receive pricing instantly!
Send us a message on WhatsApp or email to get pricing and availability. We respond within 30 minutes.
| General Specifications | Details |
|---|---|
| Product Name | Eaton Bussmann series photovoltaic fuses |
| Catalog Number | PV-30A10F85L |
| UPC | 051712713191 |
| EAN | 5027590516006 |
| Product Length/Depth | 85 mm |
| Product Height | 10 mm |
| Product Width | 10 mm |
| Product Weight | 17.3 g |
| Compliances | CE, RoHS Compliant |
| Certifications | IEC 60269 |
| Electrical Rating | Details |
|---|---|
| Amperage Rating | 30 A |
| Voltage Rating | 1500 Vdc |
| Interrupt Rating | 30 kAIC |
| Class | Class gPV |
| Pre arc (I2T) | 485 |
| Watt Losses | 6.6 W |
| Product Specifications | Details |
|---|---|
| Application | Photovoltaic systems, inverters, Photovoltaic strings |
| Fuse Type | PV-A10F85L |
| Fuse Indicator | Non Indicating |
| Fuse Size | 10 x 85 mm |
| Compatible Fuse Holder | CHPV15L85 Fuse Holder |
Send us your requirements on WhatsApp or email — our team will get back to you with pricing and availability.
