Eaton Bussmann series high speed square body fuse 170M1567D

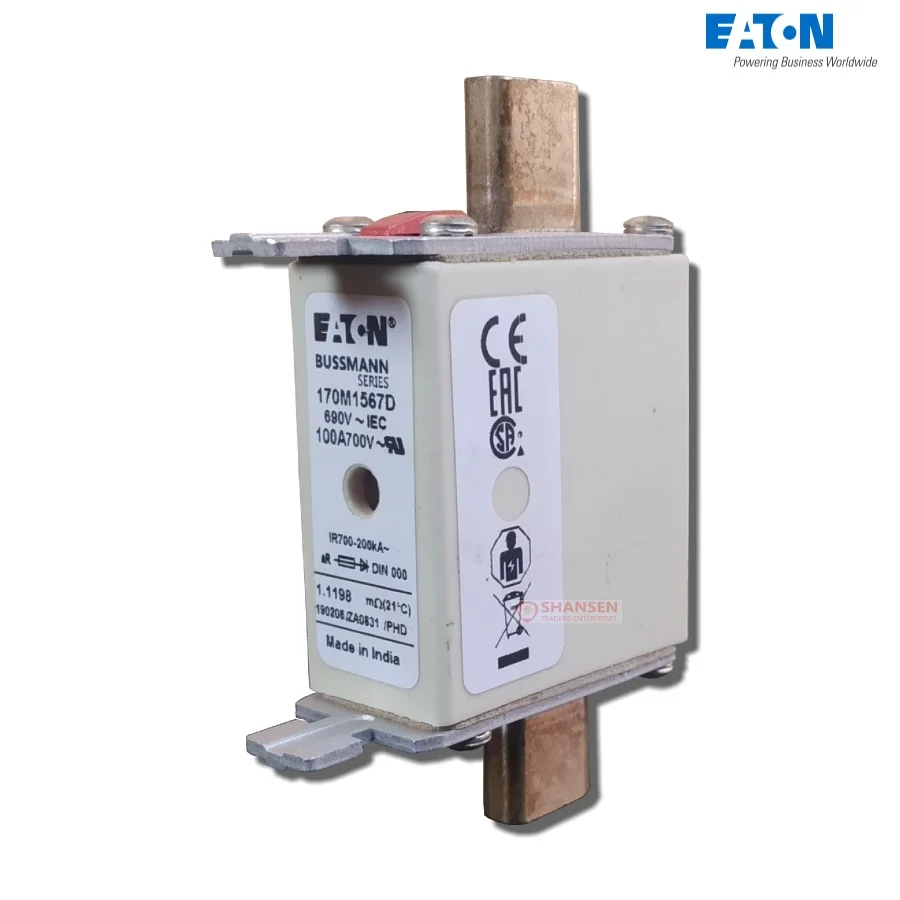

Eaton Bussmann 170M1567D High Speed Square Body Fuse – 100A, 690V, Class aR

Looking for a reliable fuse for semiconductor protection in high-performance applications? The Eaton Bussmann series 170M1567D is a high-speed square body fuse engineered to safeguard your critical equipment. Rated at 100A and 690V (IEC), with an impressive 200kA interrupting capacity, it delivers fast-acting protection in compact form. Ideal for industrial power systems, this fuse features a DIN 43-620 blade end connection and a combination fuse status indicator for quick diagnostics.

Key Features at a Glance

• Model: 170M1567D

• Voltage Rating: 690V AC (IEC)

• Amperage Rating: 100A

• Interrupt Rating: 200 kAIC

• Fuse Class: aR (Semiconductor Protection)

• Connection Type: DIN 43-620 blade end x blade end

• Body Type: Square body with knife blade contacts

• Fuse Indicator: Combination status indicator

• Certifications: UL Recognized, CE Marked, IEC Rated

• Pre-Arc I²t: 695

• Clearing I²t @660V: 4950

• Watt Losses: 16.5 W

• Dimensions (L x W x H): 79 x 21 x 48 mm

• Weight: 134.7 g

Why Choose This Product

The Eaton Bussmann 170M1567D fuse is a top choice for engineers and technicians seeking superior performance in semiconductor circuit protection. Designed for speed and reliability, it minimizes equipment damage in fault conditions. Its square body and DIN blade terminals ensure easy installation, while the integrated fuse status indicator saves time during troubleshooting. Trusted globally, it's a go-to solution in demanding industrial applications.

Ideal For

• DC Common Bus Systems

• DC Motor Drives

• Power Converters and Rectifiers

• Reduced Voltage Starters

• Semiconductor Equipment Protection
