Description
| General Specifications | Details |
|---|---|

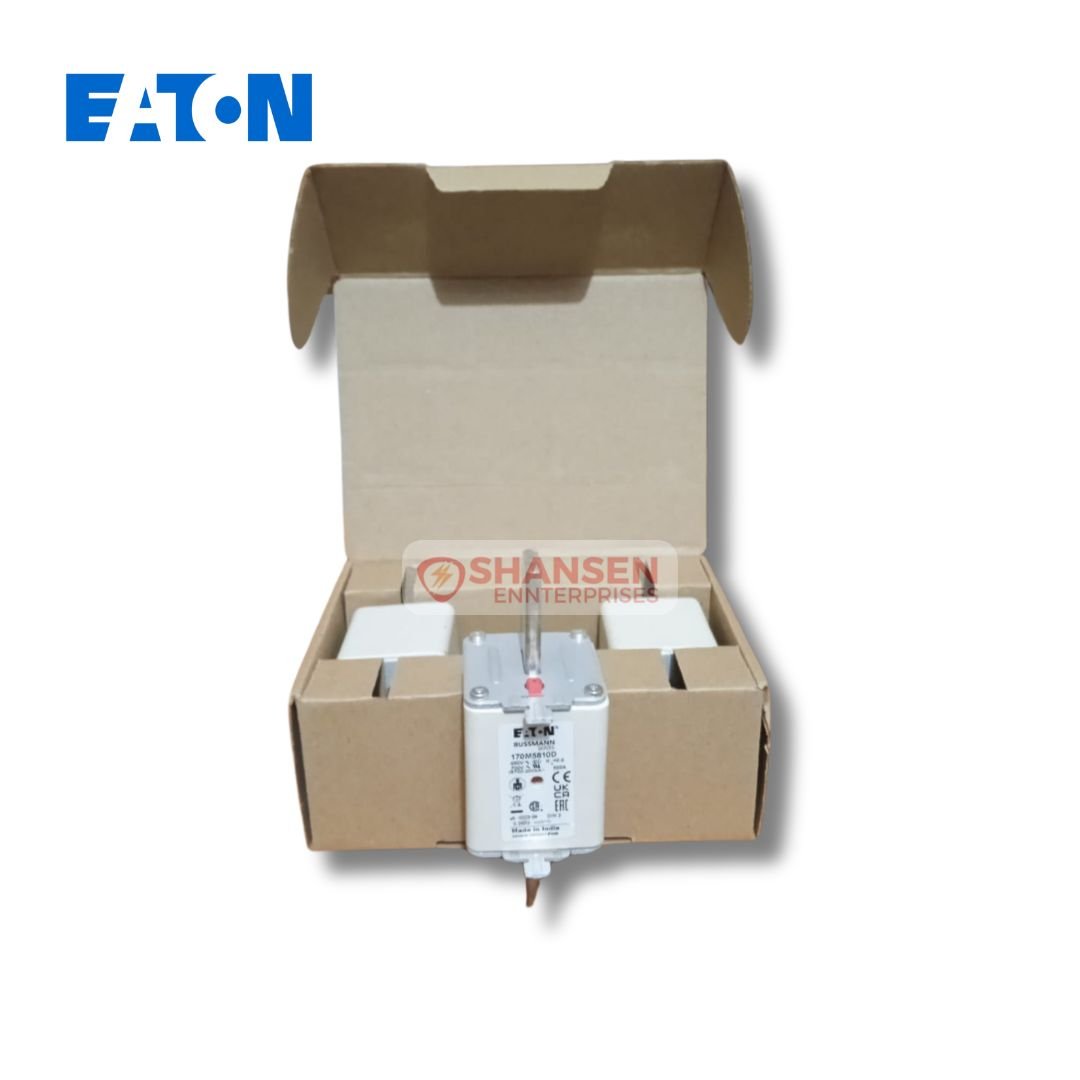

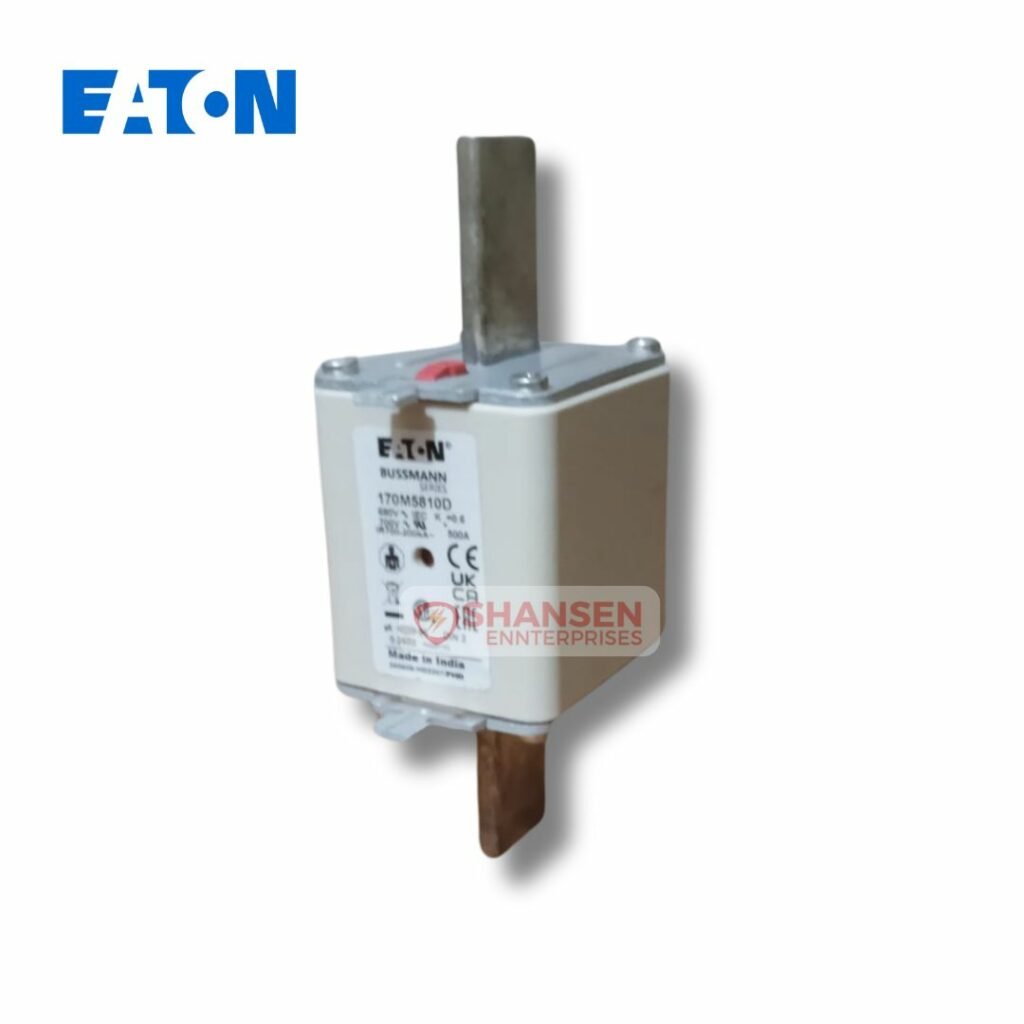

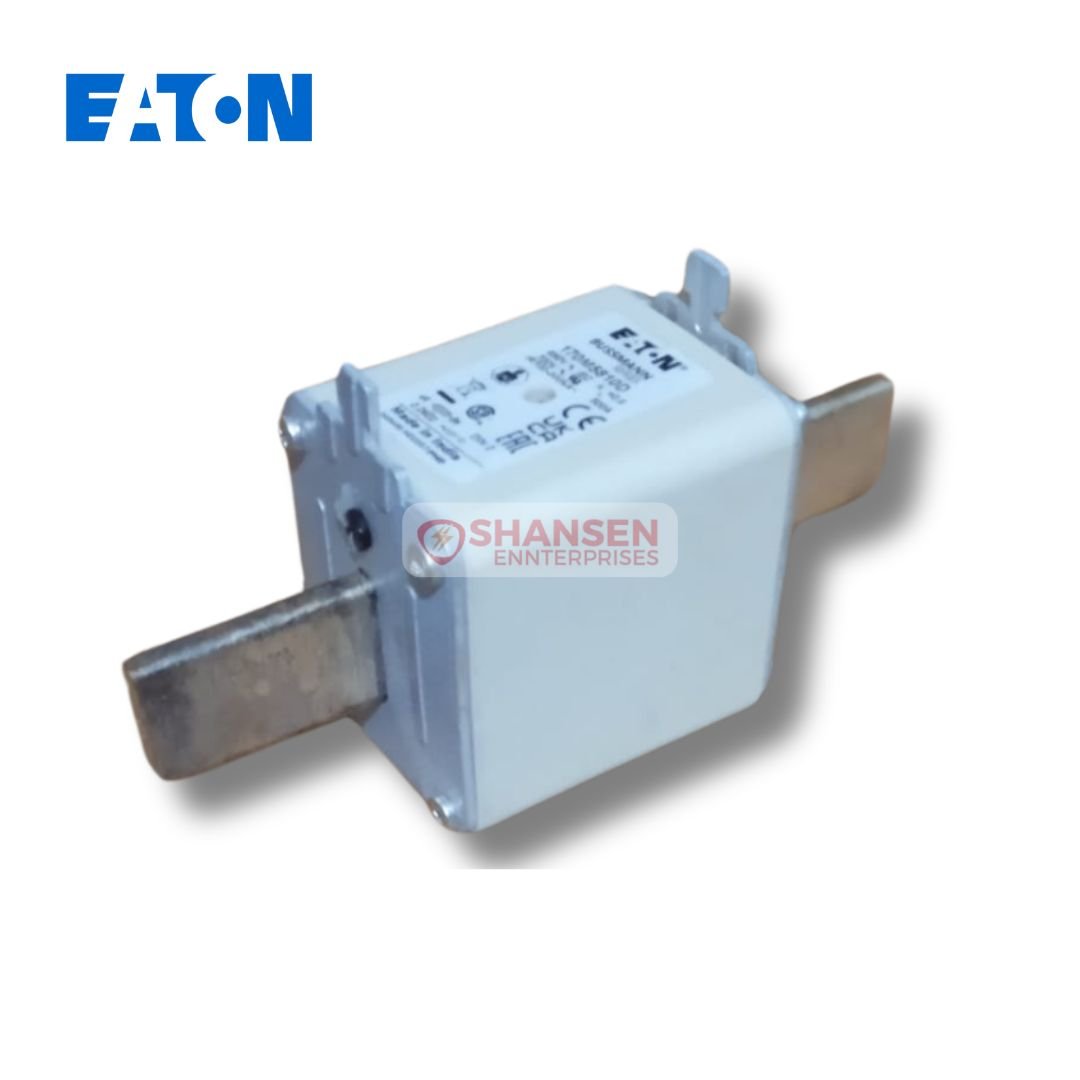

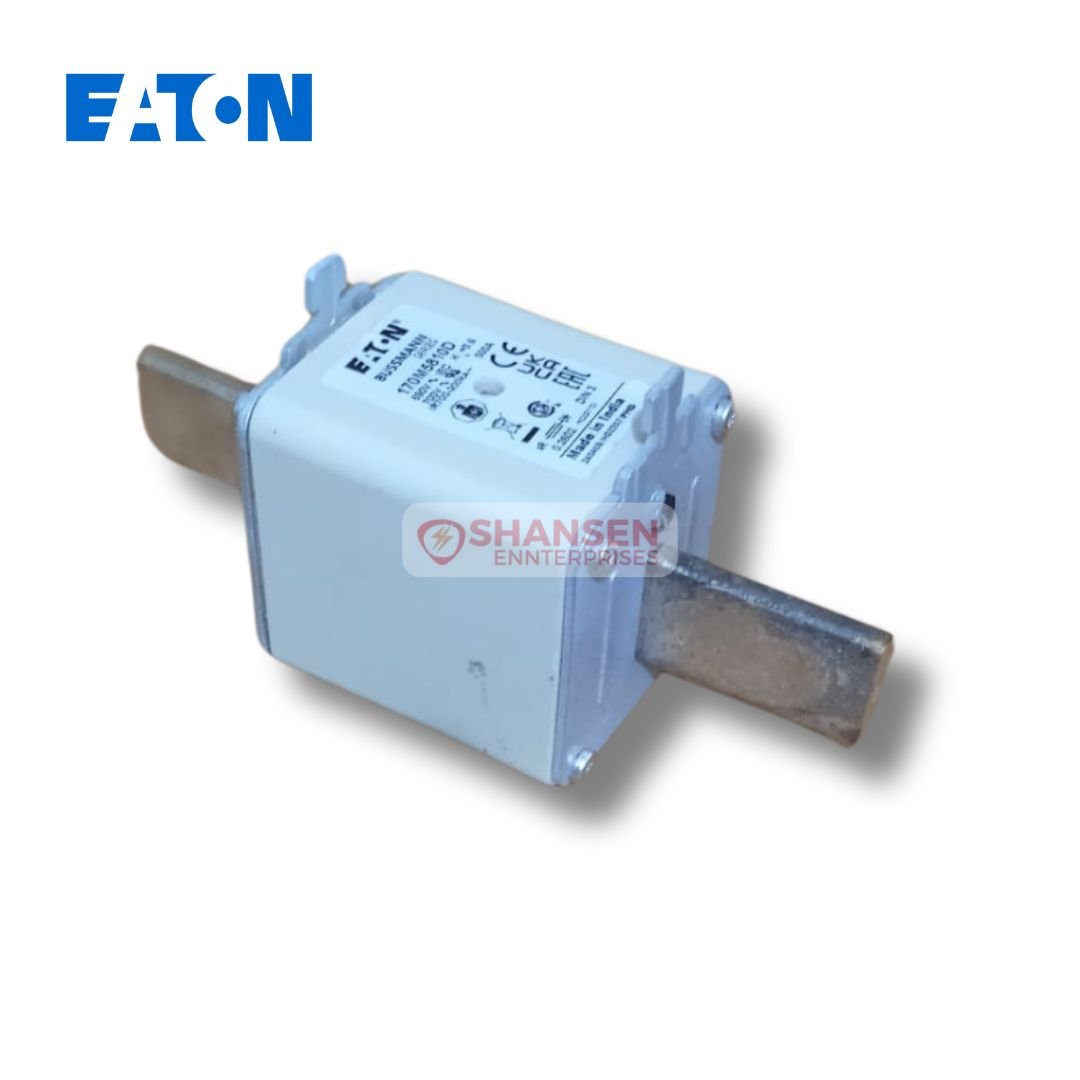

| Product Name | Eaton Bussmann series high speed square body fuse |
| Catalog Number | 170M5810D |
| UPC | 051712334501 |
| EAN | 5027590460538 |
| Product Length/Depth | 150 mm |
| Product Height | 72 mm |
| Product Width | 54 mm |
| Product Weight | 675 g |
| Warranty | Not Applicable |
| Compliances | CE Marked, RoHS Compliant |
| Certifications | UL Recognized, IEC Rated |
| Product Specifications | Details |
| Type | Fuse |
| Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
| Amperage Rating | 500 A |
| Breaking Capacity | 200 kA |
| Fuse Indicator | Combination fuse status indicator |
| Insulated Metal Gripping Lugs (IMGL) | No |
| Utilization Category | aR (accompanied semiconductor protection) |
| Voltage Type | AC |
| Fuse Size | 2 |
| Rated Voltage AC | 690 V |
| Current Type | AC |
| Class | Class aR |
| Clearing (I2T) | 155000 at 660 V |
| Watt Losses | 34 W |
| Fuse Shape | Square body, knife blade contacts |
| Pre Arc (I2T) | 21500 |
| Color | None |
| Interrupt Rating | 200 kAIC |
| Fitted With | Dual indicator |
| Connection | DIN 43-620 blade end x DIN 43-620 blade end |
| Construction Size | 2 |
| Packaging Type | Standard |
| Voltage Rating | 690 V (IEC), 700 V (UL) |
| Fuse Type | DIN 43620 |
