Description
Model code: FUSE 700A 690V 3/80 AR UC
Fuse-link, high speed, 700 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator

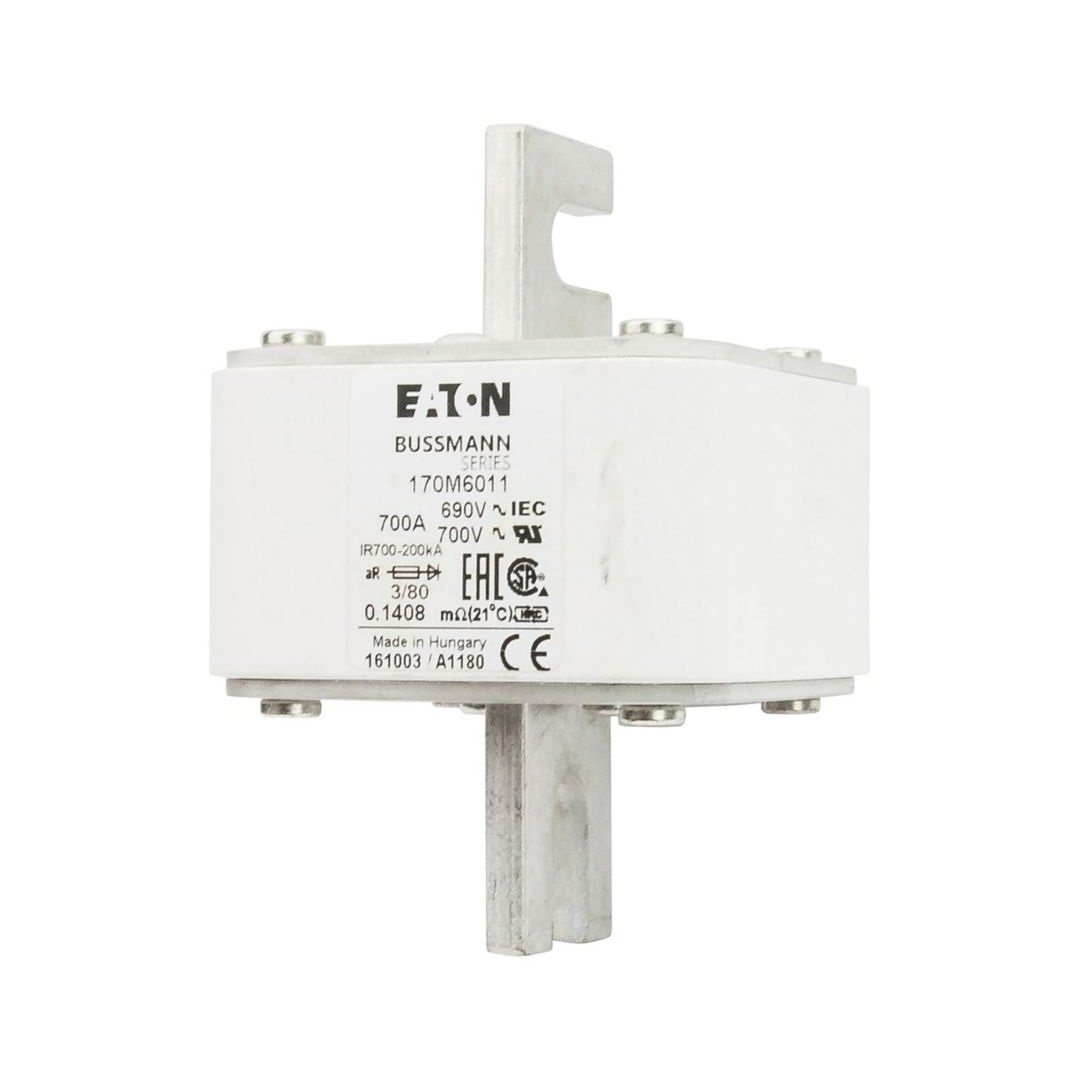

Eaton Bussmann series high speed square body fuse 170M6011
₹0.00
The Eaton Bussmann Series High Speed Square Body Fuse, catalog number 170M6011, is designed for superior performance in electrical systems requiring high-speed protection. Engineered to meet rigorous industry standards, this fuse offers reliability and safety for a variety of applications.
Key Features
- High Current Rating: With a current rating of 700A, this fuse is ideal for applications requiring high current protection.
- Exceptional Interrupting Capacity: Boasting a 200 kAIC (kiloampere interrupting capacity), it ensures the safe interruption of high fault currents.
- Top Fuse Status Indicator: The built-in top fuse status indicator allows for easy and quick identification of fuse status, enhancing maintenance efficiency.
Specifications
- Catalog Number: 170M6011
- UPC: 051712262569
- EAN: 5996516017265
- Product Length/Depth: 170 mm
- Product Height: 90 mm
- Product Width: 76 mm
- Product Weight: 935 g
Design and Construction
- Fuse Type: High-speed fuse
- Blade End X Blade End: Ensures a secure and reliable connection in electrical circuits.
- Class: aR
- DIN Standard: Conforms to DIN 43 620, ensuring compatibility with standard fuse holders.
Compliance and Certifications
- CE Marked: Conforms to European safety, health, and environmental protection requirements.
- RoHS Compliant: Free from hazardous substances, making it environmentally friendly.
- UL Recognized: Meets the safety standards set by Underwriters Laboratories.
- IEC Rated: Compliant with international electrical standards.
Warranty and Reliability
While this product does not come with a warranty, its adherence to stringent compliance and certification standards guarantees long-term reliability and performance.
Applications
Ideal for use in industrial and commercial electrical systems where high-speed circuit protection is crucial, such as in:
- Power distribution networks
- Electrical panels and switchgear
- Renewable energy systems
- Motor control centers
To Sum Up
The Eaton Bussmann Series High Speed Square Body Fuse 170M6011 is a robust and reliable choice for high-speed circuit protection, offering excellent performance, safety, and compliance with international standards. Its design ensures easy installation and maintenance, making it a top choice for electrical professionals.
Download Product PDF
Additional information
| Product Specification | FUSE INDICATOR |
|---|
