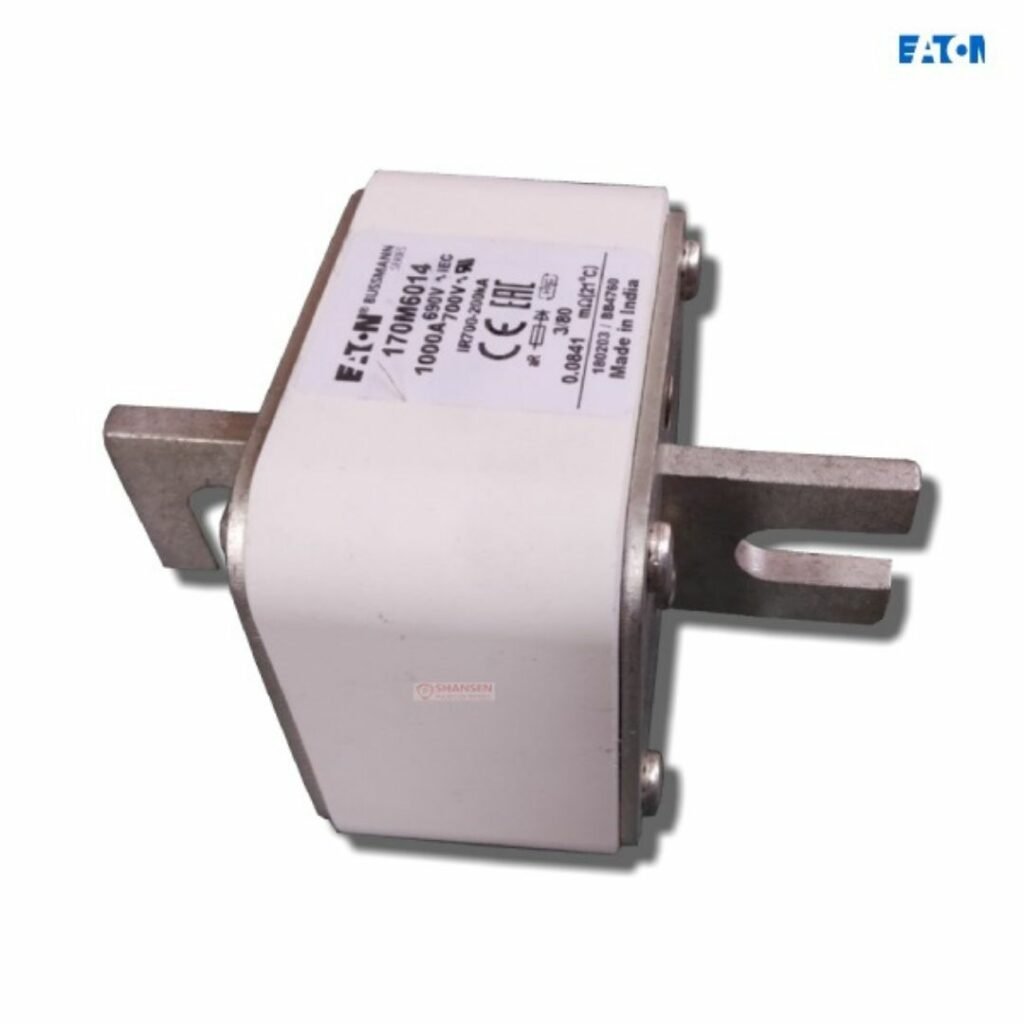

Eaton Bussmann Series High Speed Square Body Fuse 170M6014

The Eaton Bussmann series high-speed square body fuse (170M6014) is a top-tier choice for safeguarding electrical systems. With a robust build and superior functionality, this fuse is designed to provide reliable protection for your equipment.

Key Features

• Voltage & Amperage: Rated at 700V (UL) and 690V (IEC) with a current rating of 1000A, this fuse ensures safe and efficient performance in various electrical applications.
• High Interrupting Capacity: Boasting a 200 kAIC (kiloampere interrupting capacity), it’s built to handle high fault currents, providing robust protection.
• Design & Build: This fuse features a square body design, measuring 170 mm in length, 90 mm in height, and 76 mm in width, and weighs approximately 935 grams. It comes with blade-end terminals for easy installation and secure connections.
• Status Indicator: Equipped with a top fuse status indicator, it allows for quick visual checks, enhancing maintenance efficiency and safety.

Compliance & Certification

• Certifications: The fuse meets stringent standards, being IEC Rated and UL Recognized, ensuring it adheres to global safety and performance benchmarks.
• Compliances: It’s CE Marked and RoHS Compliant, making it a safe and environmentally friendly choice for your electrical systems.

Availability

You can find the Eaton Bussmann 170M6014 fuse at Shansen Enterprises, your trusted authorized channel partner located in Coimbatore. Serving customers across Coimbatore and all over India, we pride ourselves on quality and reliability. Whether you need this specific model or other fuses, fuse links, or fuse holders, we’ve got you covered.

Reach out to us for all your fuse needs and experience top-notch service and support.

Download Product Specifications
