Description
General Specifications | Details |
---|---|

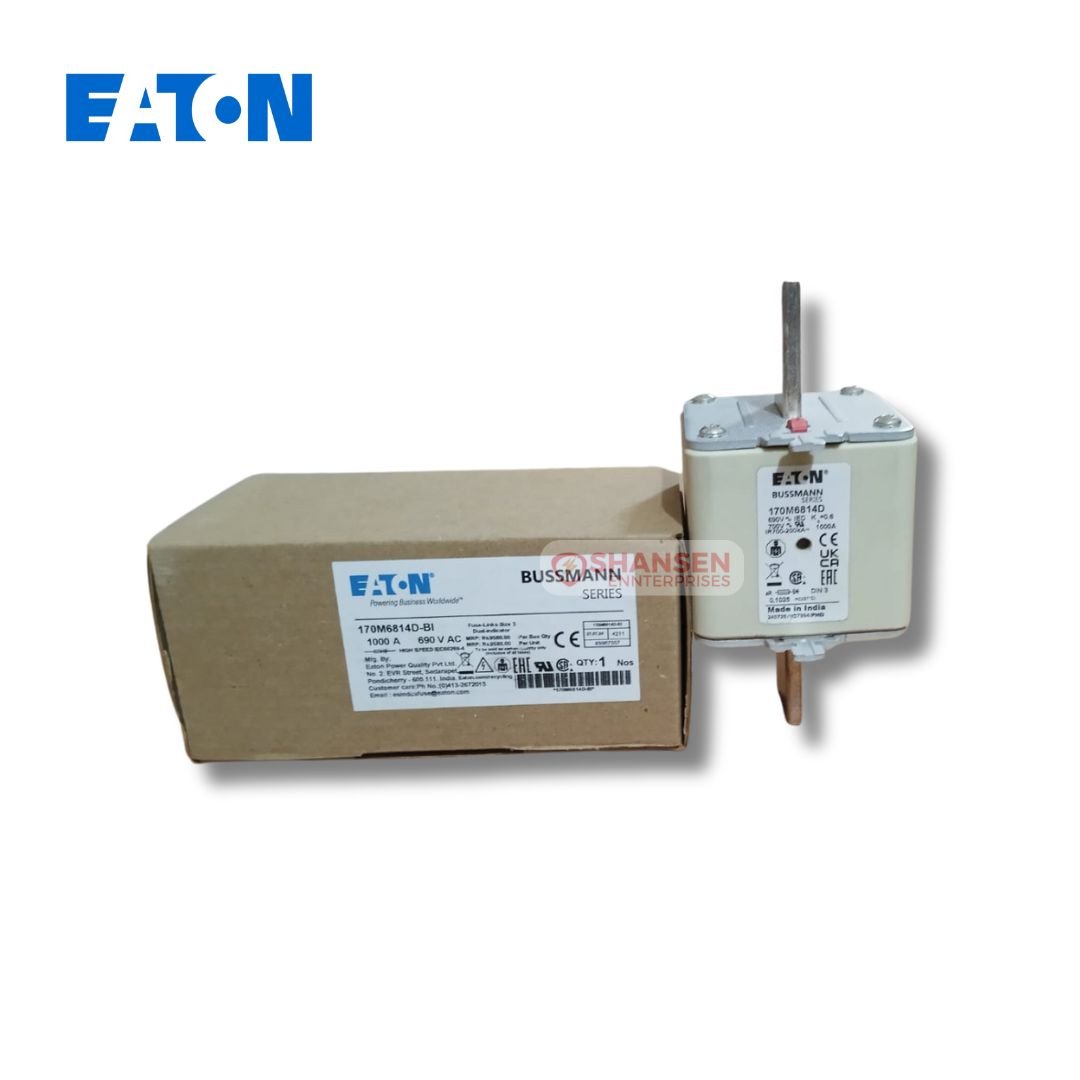

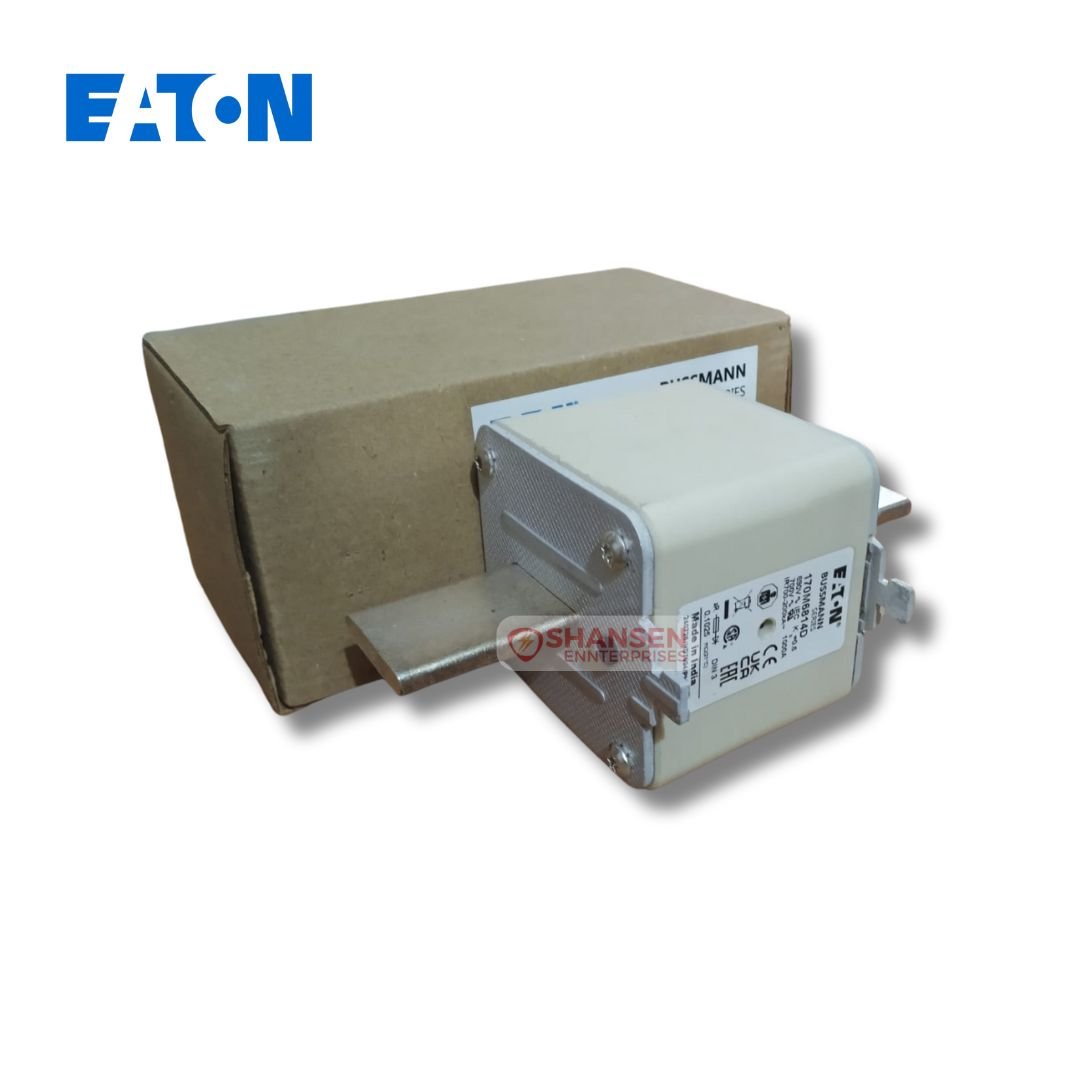

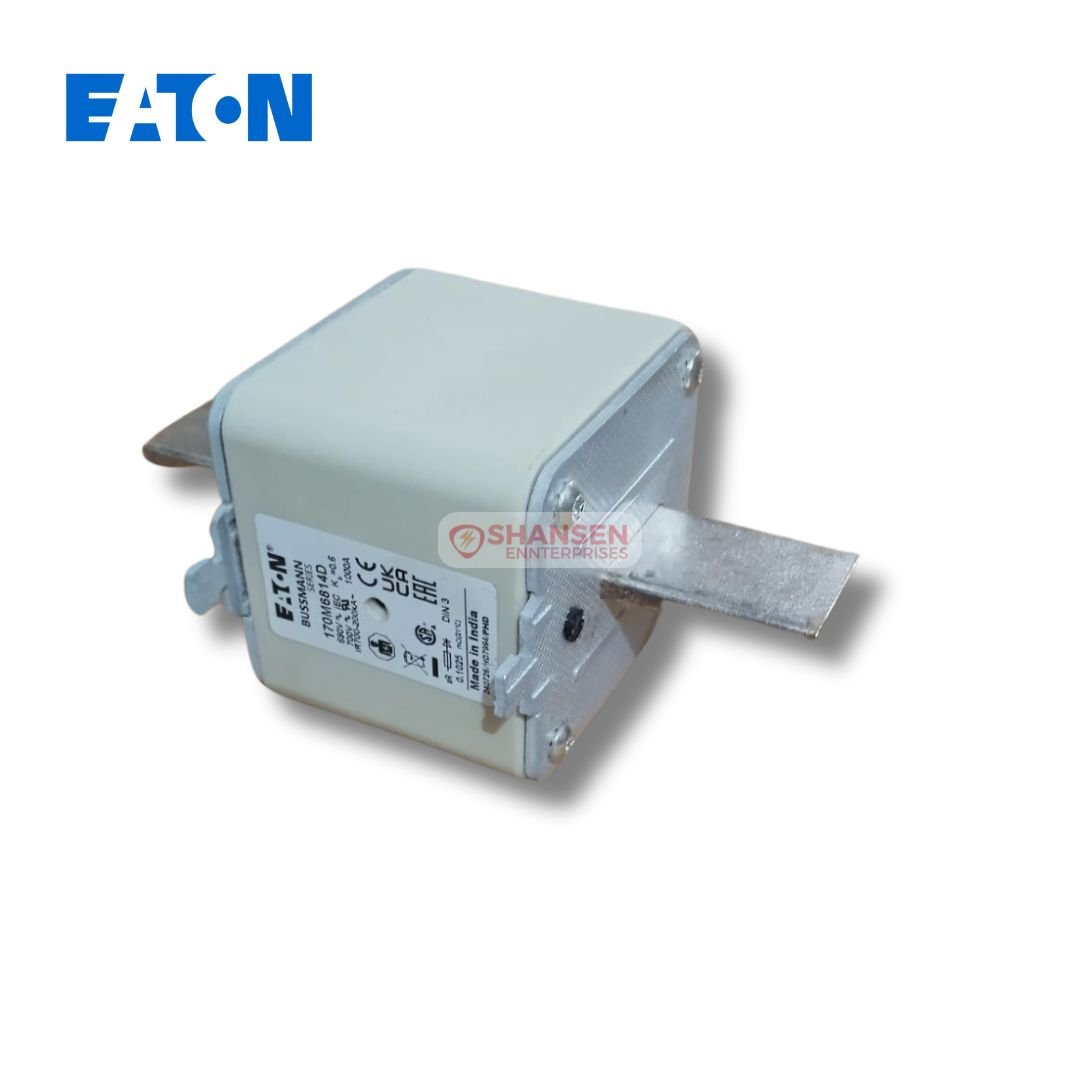

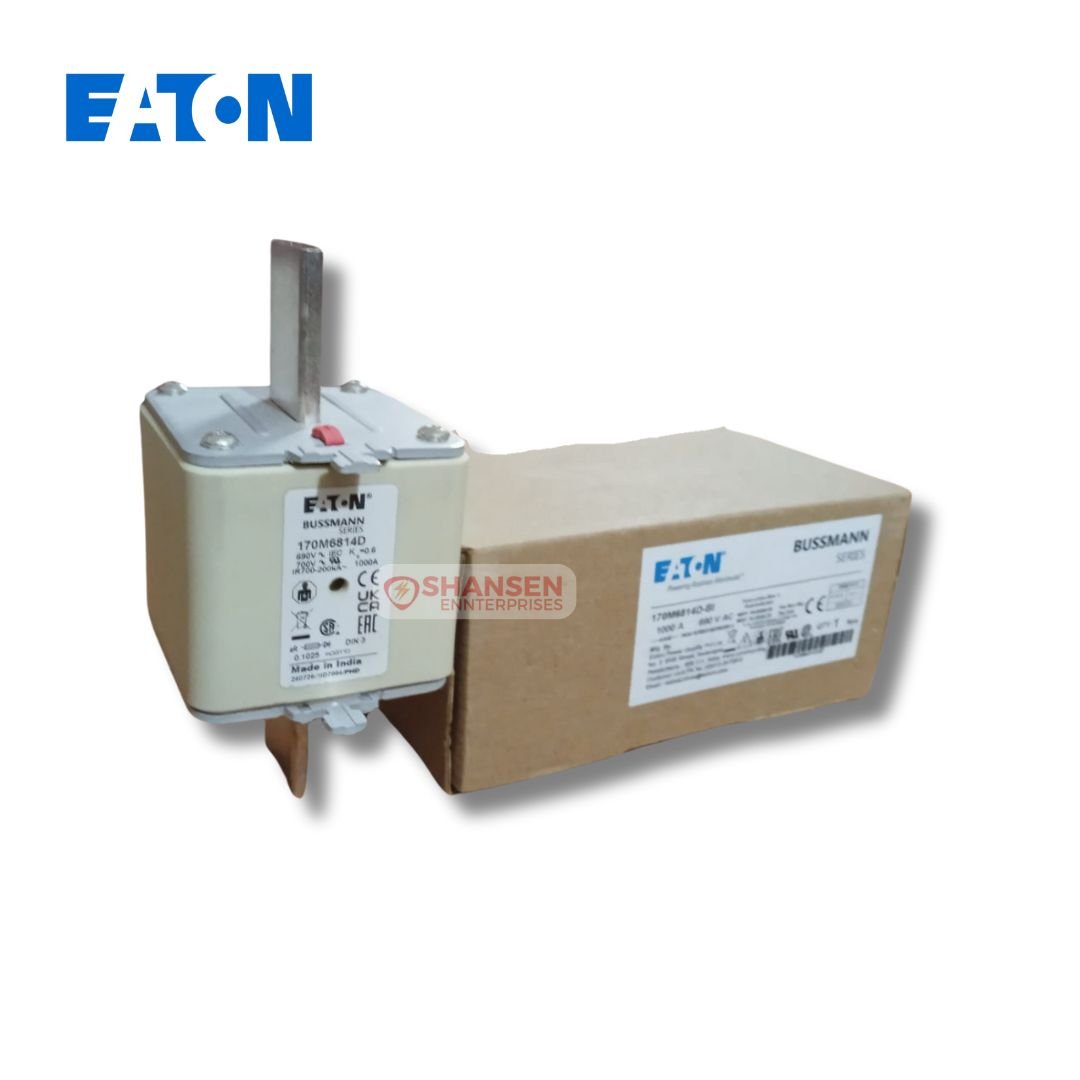

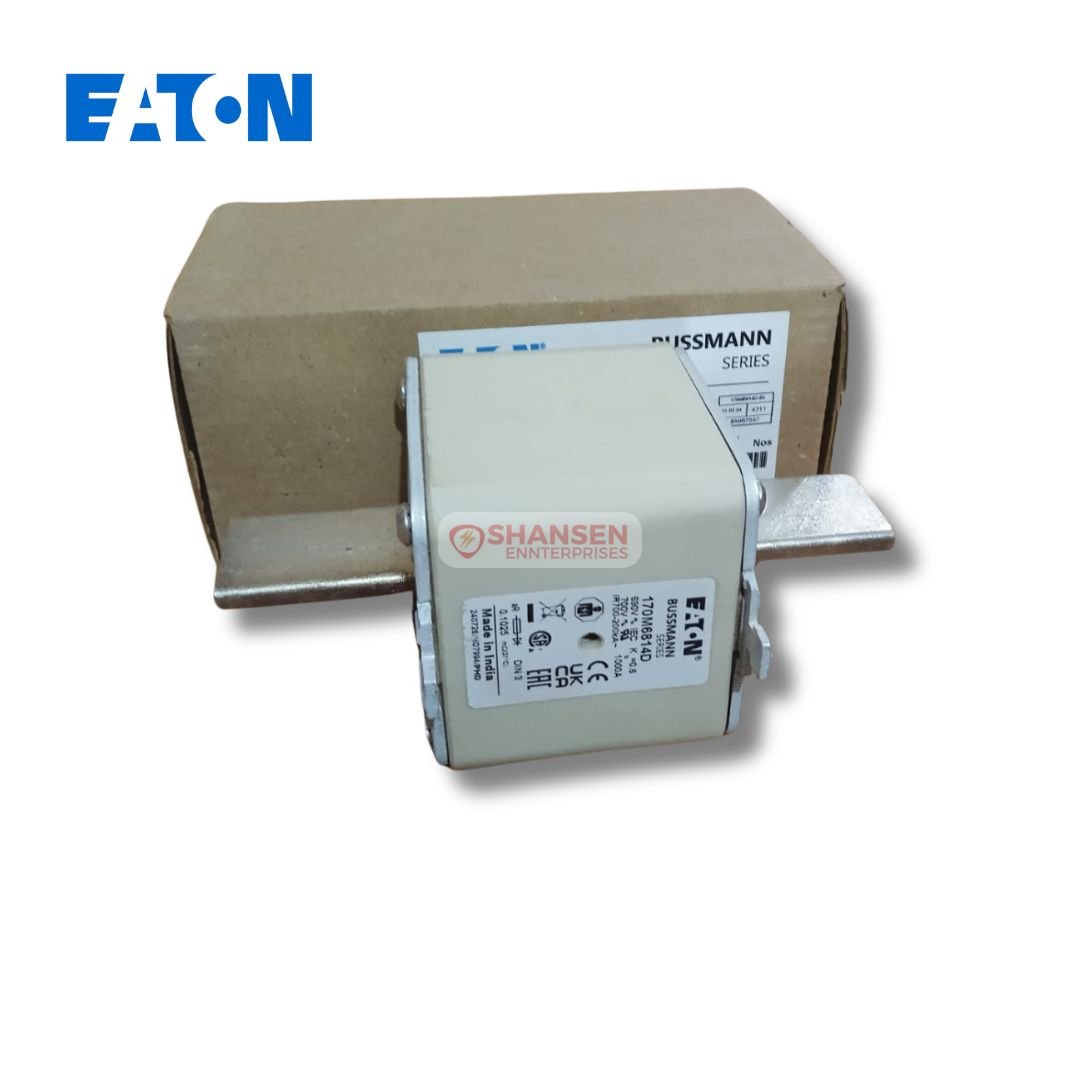

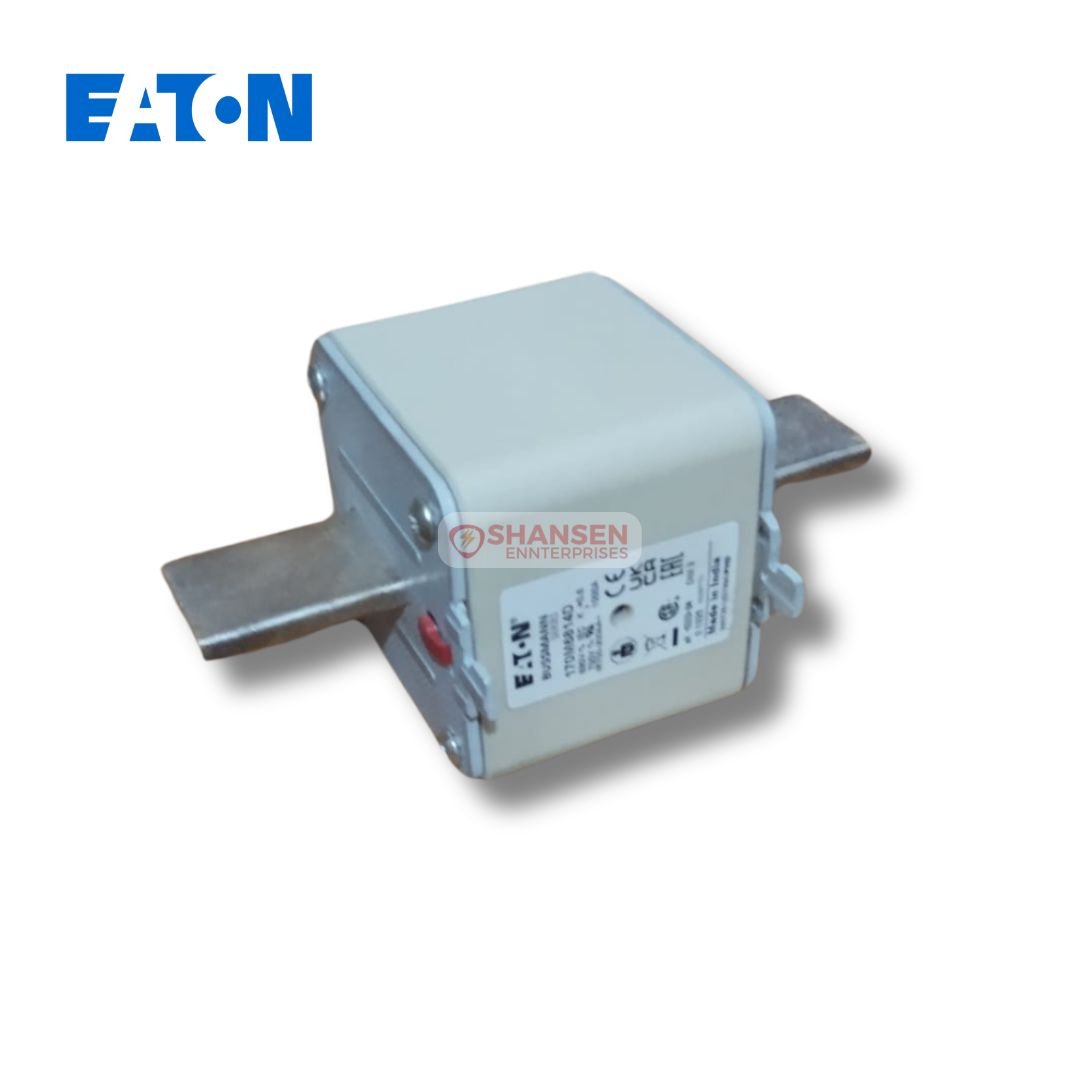

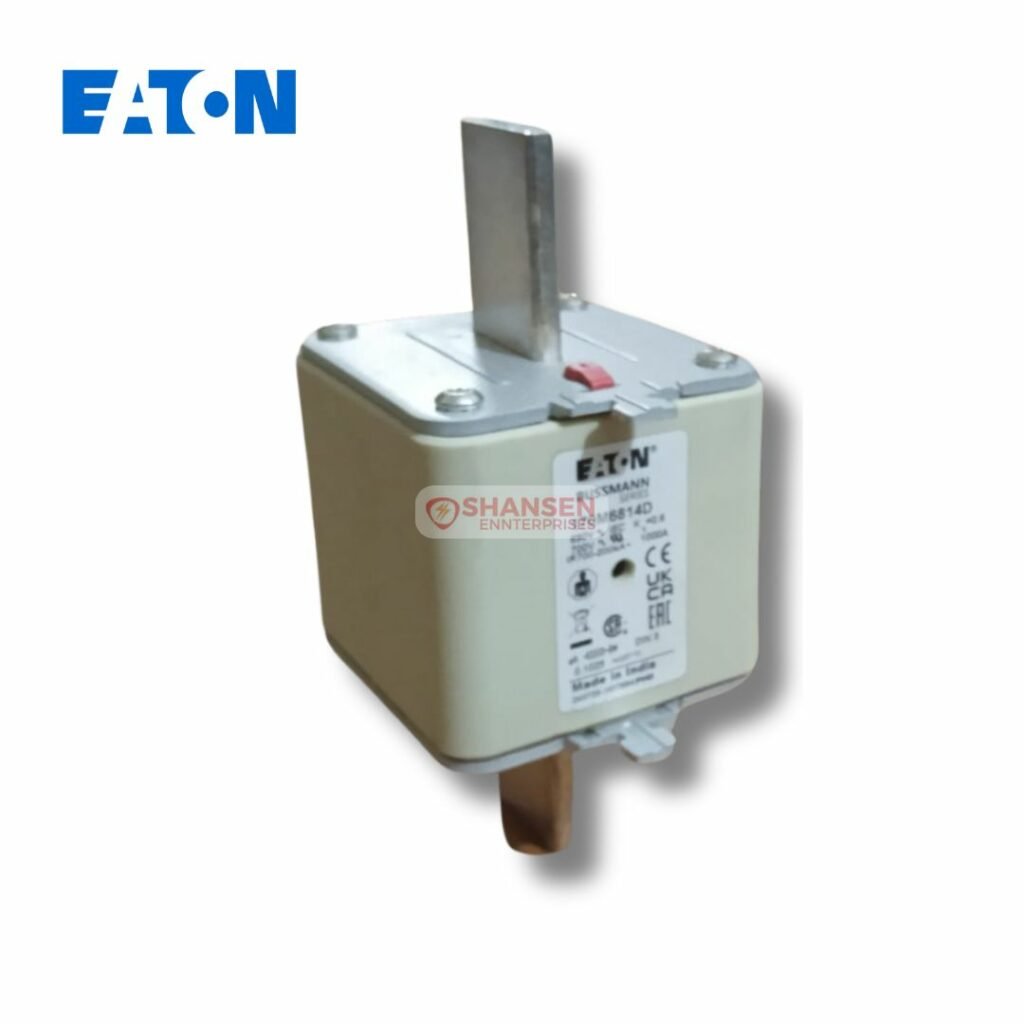

Product Name | Eaton Bussmann series high speed square body fuse |
Catalog Number | 170M6814D |
UPC | 051712335270 |
EAN | 5027590463287 |
Product Length/Depth | 150 mm |
Product Height | 87 mm |
Product Width | 71 mm |
Product Weight | 1112 g |
Compliances | CE Marked, RoHS Compliant |
Certifications | IEC Rated, UL Recognized |
Amperage Rating | 1000 A |
Voltage Rating | 690 V (IEC), 700 V (UL) |
Voltage Type | AC |
Clearing (I²T) | 985000 at 660 V |
Pre Arc (I²T) | 140000 |
Watt Losses | 56 W |
Breaking Capacity | 200 kA |
Class | Class aR |
Application | Semiconductor, DC Common bus, DC drives, power converters/rectifiers |
Fuse Type | DIN 43620, Bladed |
Fuse Indicator | Combination fuse status indicator |
Fuse Size | 3 |
Fitted With | Dual Indicator |
